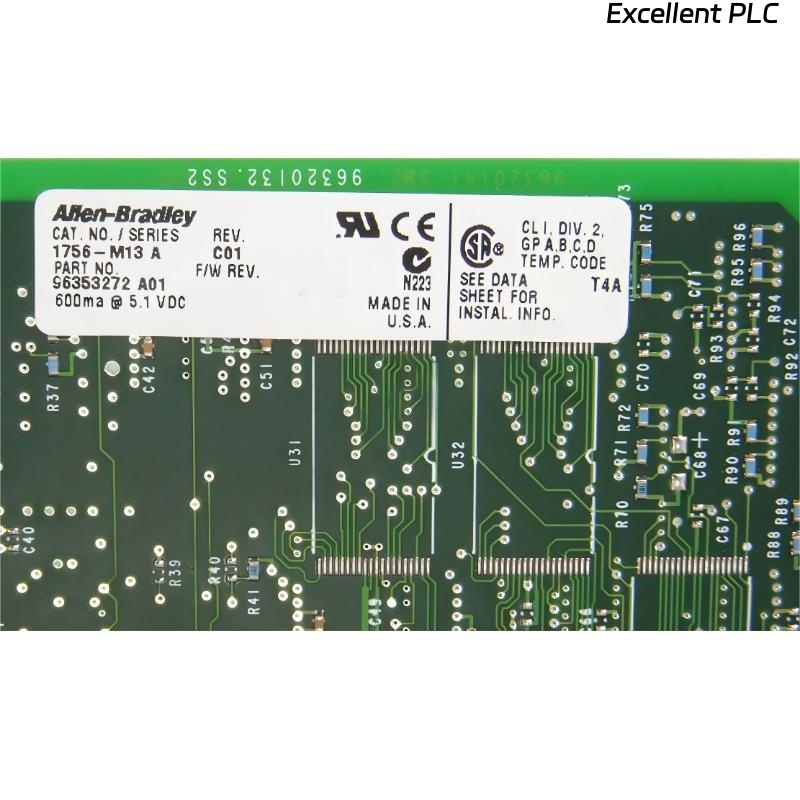

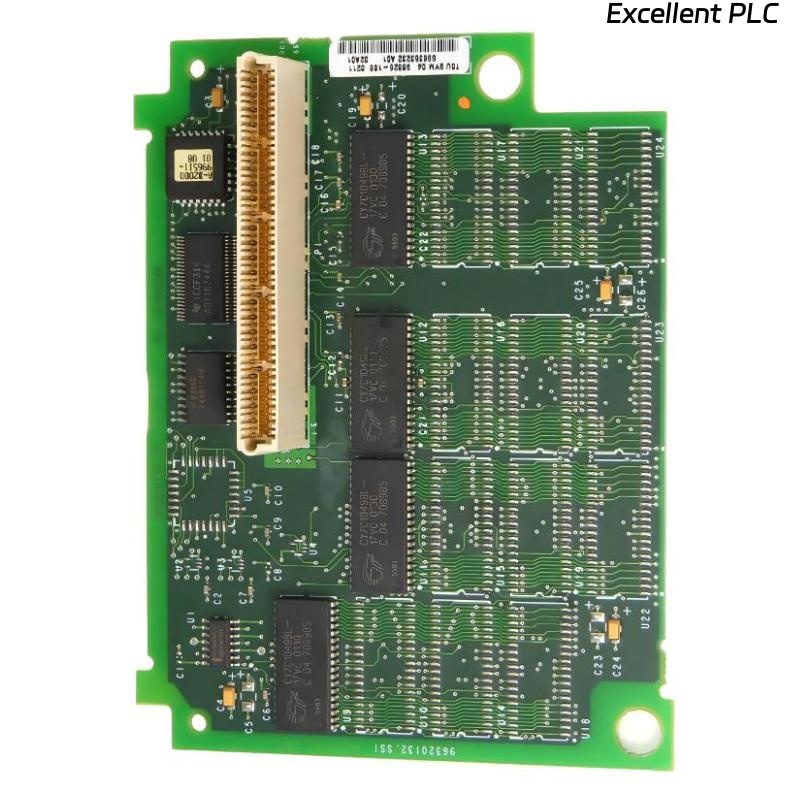

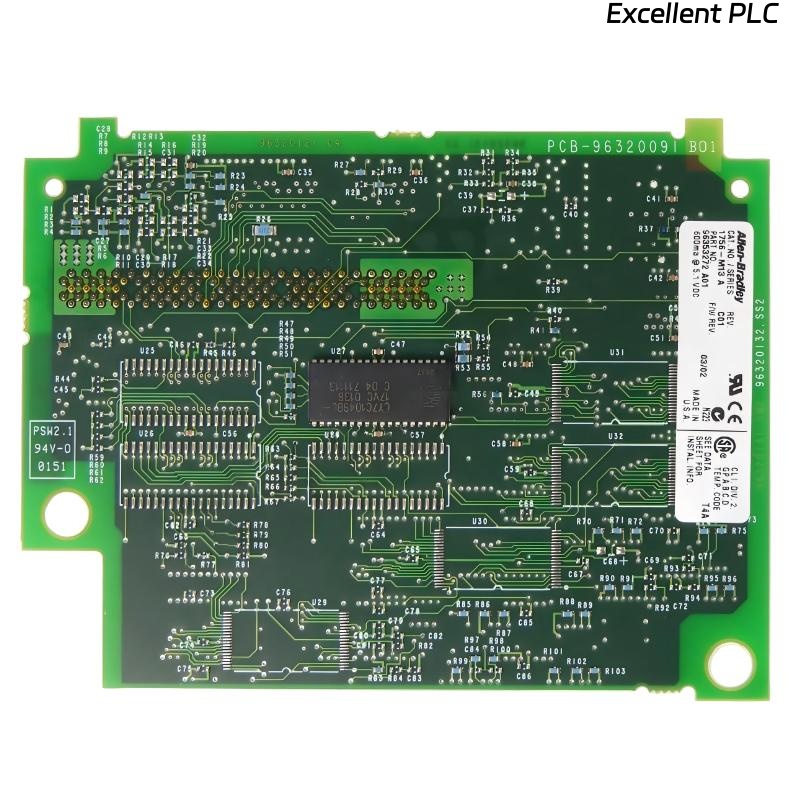

Allen Bradley 1756-M13 ControlLogix Logix5555 Expansion Memory Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1756-M13 ControlLogix Logix5555 Expansion Memory Module provides additional memory capacity for Logix5555 controllers within the ControlLogix automation platform. With 1.5 MB of memory, it allows larger programs, more extensive data logging, and complex control routines without upgrading the main processor.
The module is designed for industrial environments, supporting standard operating and storage conditions. It integrates seamlessly into a standard 1756 ControlLogix chassis and is ideal for systems where program size or variable data requirements exceed the onboard memory of the primary Logix5555 controller.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | Logix5555 Expansion Memory Module |
| Model | 1756-M13 |
| Manufacturer | Allen Bradley |
| Series | ControlLogix |
| Memory Size | 1.5 MB |
| Operating Temperature | 0 to 60 deg C |
| Storage Temperature | -40 to 85 deg C |
| Relative Humidity | 5 to 95% non-condensing |
| Compatibility | Logix5555 Controllers |
| Mounting | 1756 ControlLogix Chassis |
| Dimensions | 150 x 50 x 100 mm |
| Weight | 0.03 kg |
Applications
• Expands memory for large automation programs
• Supports complex data logging and variable storage
• Ideal for distributed control systems and advanced process automation
• Suitable for machine automation tasks exceeding standard controller memory
• Enables seamless integration with Logix5555 controllers
• Provides flexibility for industrial control systems with growing program requirements
Advantages
• Provides 1.5 MB of additional memory for Logix5555 controllers
• Enables larger and more complex control programs without replacing the processor
• Compact design fits standard 1756 ControlLogix chassis
• Reliable operation within industrial operating and storage conditions
• Supports data logging, program expansion, and variable storage
• Reduces the need for upgrading the controller due to memory limitations
FAQ
-
What is the purpose of the 1756-M13 module?
It expands the memory of Logix5555 controllers to accommodate larger programs and additional data storage. -
How much memory does it provide?
The module provides 1.5 MB of additional memory. -
Is it compatible with all ControlLogix processors?
It is specifically designed for Logix5555 controllers. -
What is the operating temperature range?
The module operates safely from 0 to 60 deg C. -
What is the storage temperature range?
The module can be stored in temperatures from -40 to 85 deg C. -
What is the acceptable relative humidity range?
It supports 5 to 95% non-condensing humidity. -
Can multiple memory expansion modules be used?
Yes, multiple modules can be added as supported by the Logix5555 controller. -
Does it require special software for configuration?
No, the controller automatically recognizes the expanded memory. -
How is the module installed?
It installs directly into an available slot in a standard 1756 ControlLogix chassis. -
Is it suitable for industrial environments?
Yes, it is designed for reliable operation under industrial conditions.
Related Models
| Model | Memory | Description | Series |
|---|---|---|---|
| 1756-M12 | 750 KB | Logix5555 Expansion Memory | ControlLogix |
| 1756-M03 | 1 MB | Logix5555 Expansion Memory | ControlLogix |
| 1756-L81E | — | Logix5580 Processor | ControlLogix |
| 1756-L83E | — | High-Memory Processor | ControlLogix |
| 1756-EN2T | — | Ethernet Communication Module | ControlLogix |
| 1756-HSC | — | High-Speed Counter Module | ControlLogix |
Popular Models
| Model | Product Type | Application | Series |
|---|---|---|---|
| 1756-L81E | Logix5580 Processor | Central Control | ControlLogix |
| 1756-EN2TR | Ethernet Module | Network Communication | ControlLogix |
| 1756-IB16 | Digital Input Module | Discrete Control | ControlLogix |
| 1756-OB16E | Digital Output Module | Output Control | ControlLogix |
| 1756-PA72 | Power Supply | Rack Power | ControlLogix |
| 5069-L320ER | CompactLogix Processor | Modern Automation | CompactLogix |
