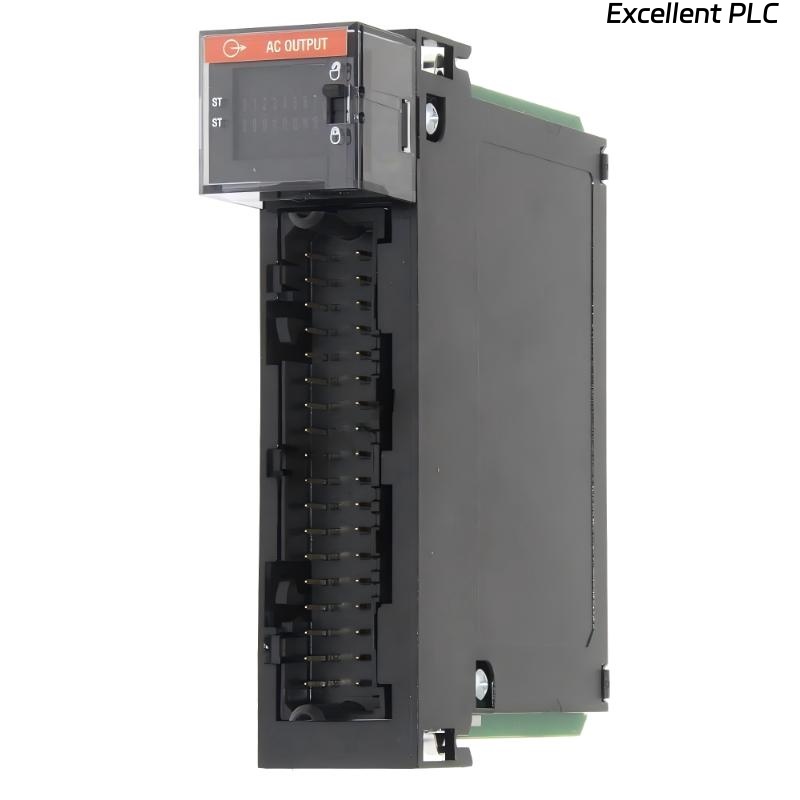

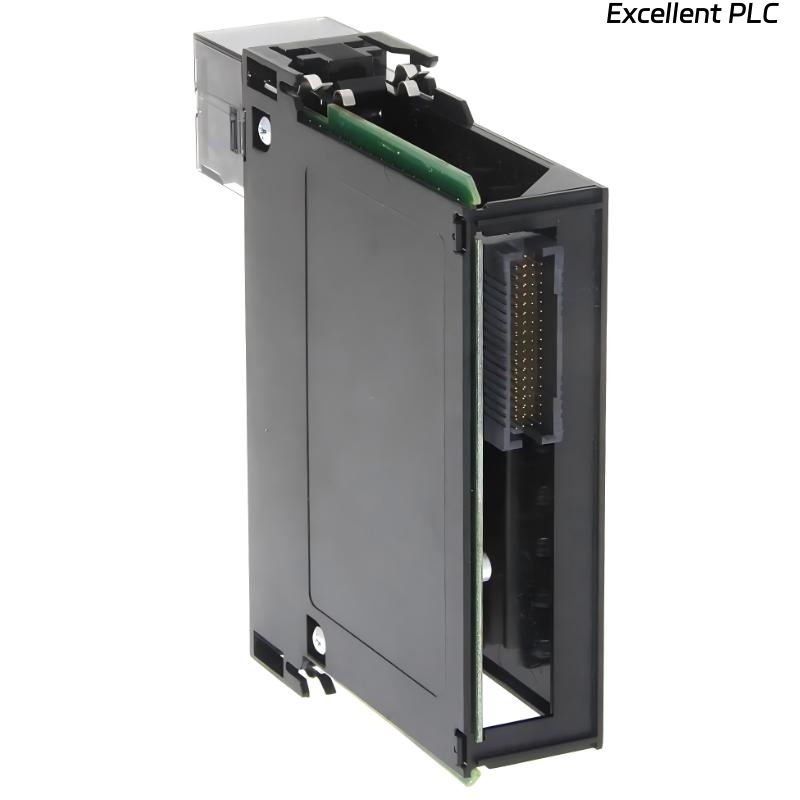

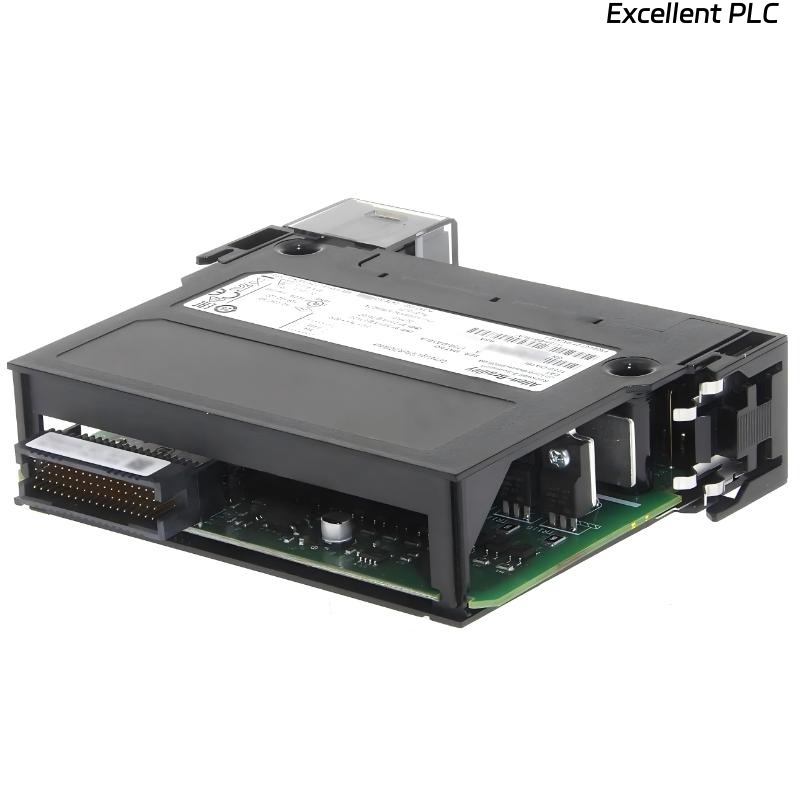

Allen Bradley 1756-OA16I ControlLogix AC Digital Output Module

Product Introduction

The Allen-Bradley 1756-OA16I is a ControlLogix AC digital output module designed for industrial control systems that require reliable and isolated switching of AC loads. As part of the ControlLogix I/O family, this module provides stable output performance, predictable response characteristics, and seamless integration within Rockwell Automation control architectures.
It is commonly selected for applications where electrical isolation, high-current AC switching, and consistent output behavior are critical to system operation and safety.

The 1756-OA16I supports standard 120 VAC and 240 VAC control voltages and is capable of handling higher output current per point compared to standard AC output modules. Its isolated output design helps protect the control system from field-side disturbances, making it well suited for complex industrial environments with mixed power and control wiring.

---

Product Specifications

---

Applications

• Used for direct control of AC loads such as contactors, solenoid valves, pilot lights, and alarm devices

• Suitable for high-current AC output applications where standard output modules may not provide sufficient capacity

• Applied in process automation systems requiring electrically isolated outputs for improved system protection

• Commonly implemented in manufacturing lines, power distribution panels, and material handling systems

• Ideal for systems that require clear separation between control logic and field power circuits

---

Advantages

• Higher output current capability allows reliable operation of demanding AC loads without external relays

• Isolated output design reduces the risk of electrical interference and protects the ControlLogix backplane

• Standard voltage compatibility simplifies system design across global installations

• 16-point output density optimizes chassis space and reduces overall system complexity

• Consistent integration with ControlLogix software tools ensures efficient configuration and diagnostics

• Designed for stable operation in electrically noisy industrial environments

FAQ

1. What is the main difference between the 1756-OA16I and standard AC output modules?
   The 1756-OA16I provides isolated outputs with higher current capacity per point, offering improved protection and load-handling capability.

2. How does output isolation benefit system reliability?
   Isolation helps prevent field-side voltage transients and noise from affecting the controller and backplane, improving overall system stability.

3. Can the module directly drive inductive AC loads?
   Yes, the module is suitable for driving inductive loads such as contactors and solenoids when proper wiring and suppression practices are followed.

4. Is this module suitable for mixed-voltage control panels?
   The isolated output design makes it suitable for panels where multiple voltage levels are present, provided wiring standards are maintained.

5. How is output status monitored by the controller?
   Output states are reported through the ControlLogix backplane, allowing real-time monitoring and diagnostics via the control software.

6. Does the module require external isolation components?
   No, isolation is built into the module, reducing the need for additional external protection devices.

7. How does the module handle electrical noise from nearby power equipment?
   Its isolation architecture and ControlLogix grounding practices help minimize susceptibility to electrical noise and transients.

8. Can this module be used alongside non-isolated output modules in the same chassis?
   Yes, isolated and non-isolated modules can coexist within the same ControlLogix chassis when properly configured.

9. What considerations are important when wiring high-current AC outputs?
   Proper conductor sizing, secure terminal connections, and adherence to industrial wiring standards are essential for safe operation.

10. Is the module suitable for continuous-duty applications?
    Yes, it is designed for continuous operation within its specified electrical ratings in industrial environments.
