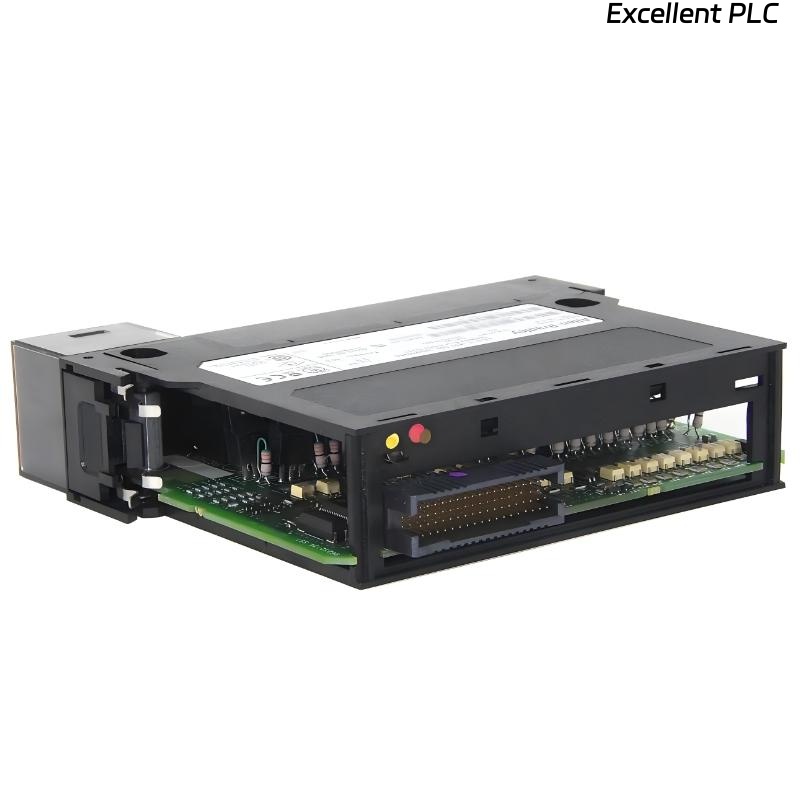

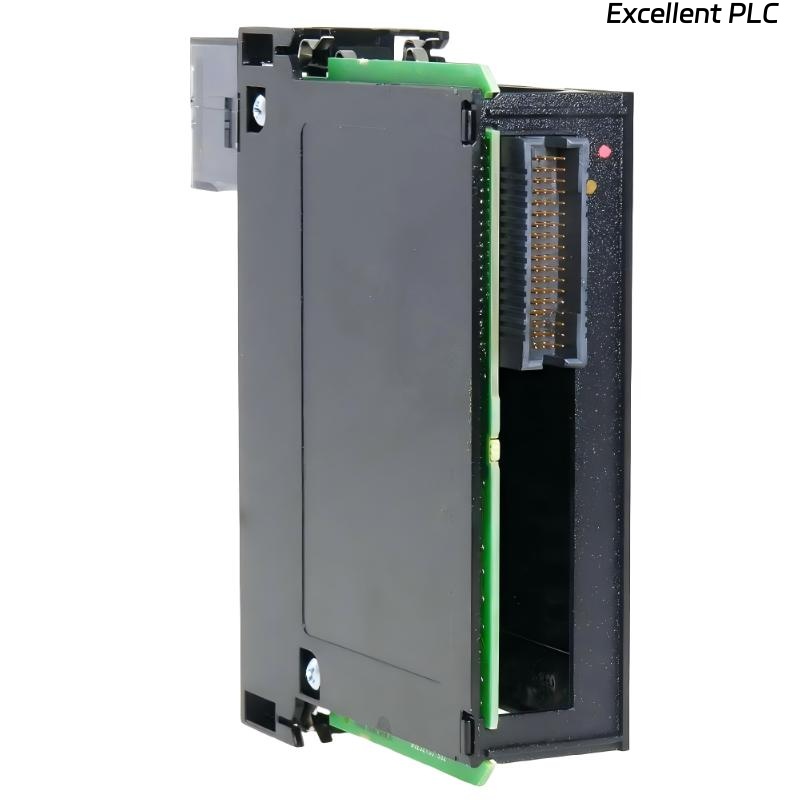

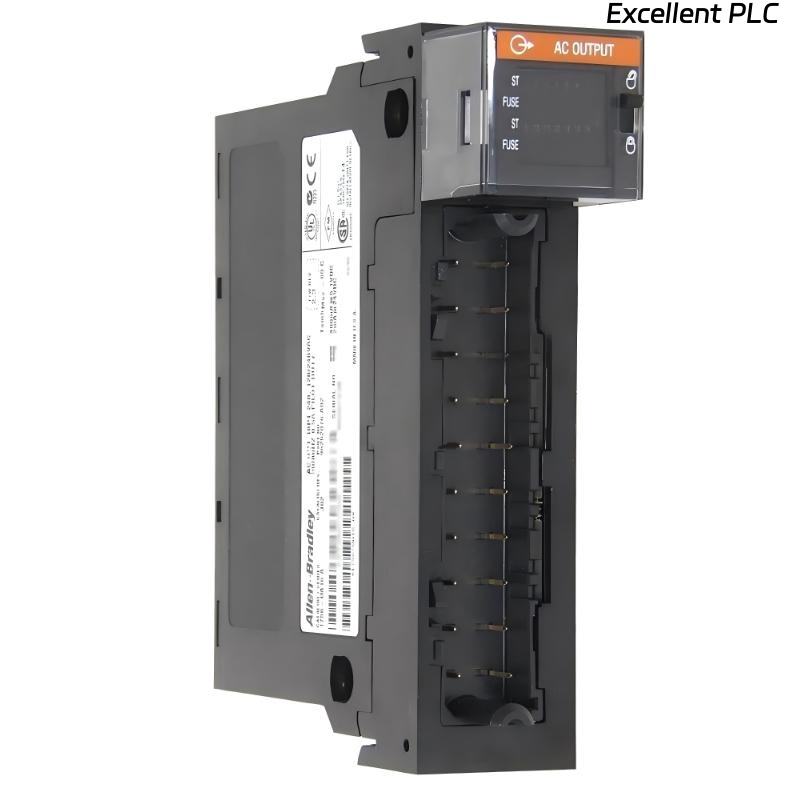

Allen Bradley 1756-OA16 ControlLogix Digital Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1756-OA16 is a ControlLogix digital output module designed for reliable switching of AC loads in industrial automation systems. It is engineered to integrate seamlessly into the ControlLogix platform, providing deterministic control, flexible configuration, and stable performance in demanding control environments.
This module is typically used in applications where high-voltage AC output control, robust isolation, and predictable response times are required. Its design reflects Rockwell Automation’s long-standing focus on system integrity, modular scalability, and ease of maintenance within complex control architectures.
The 1756-OA16 supports a wide operating voltage range and is suitable for both 120 VAC and 240 VAC control scenarios. By offering programmable output delay times, the module allows engineers to optimize switching behavior for inductive or resistive loads, reducing electrical stress and improving overall system reliability.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | ControlLogix Digital Output Module |
| Output Type | AC Digital Output |
| Number of Outputs | 16 points |
| Operating Voltage Range | 74–265 VAC, 47–63 Hz |
| Voltage Category | 120 / 240 VAC |
| Current per Point | 0.5 A @ 60 °C |
| Current per Module | 4 A @ 60 °C |
| Output Delay Time | Programmable, approximately 9.3 ms or 11 ms |
| Isolation Voltage | 50 V continuous |
| Backplane Current @ 5 V | 400 mA |
| Backplane Current @ 24 V | 2 mA |
| Mounting | ControlLogix chassis-based |
| Environmental Class | Industrial control environment |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.45 kg |
Applications
• Used for AC actuator control, including contactors, solenoid valves, and motor starters in automated production lines
• Suitable for process control systems where stable switching of high-voltage AC loads is required
• Applied in power distribution and auxiliary control circuits within ControlLogix-based systems
• Commonly deployed in manufacturing, oil & gas, chemical processing, and material handling installations
• Ideal for systems requiring centralized I/O management with deterministic response and diagnostic visibility
Advantages
• Wide AC voltage compatibility allows a single module type to be used across multiple voltage standards
• Programmable output delay helps reduce inrush current effects and improves load protection
• High channel density (16 outputs) minimizes chassis space usage and simplifies system design
• Seamless integration with ControlLogix architecture ensures consistent configuration, diagnostics, and maintenance
• Industrial-grade isolation design enhances system safety and reduces the risk of electrical interference
• Designed for long-term stability in harsh industrial environments, including temperature and electrical noise conditions
FAQ
-
How does the module manage switching behavior for inductive AC loads?
The programmable output delay allows engineers to fine-tune switching timing, helping to mitigate inrush currents and reduce stress on inductive components such as contactors and solenoids. -
Can different output delay times be configured within the same module?
Yes, output delay settings can be configured through the ControlLogix configuration environment, allowing the module behavior to be aligned with application requirements. -
How is electrical isolation implemented between the outputs and the backplane?
The module incorporates internal isolation circuitry that separates field-side AC signals from the ControlLogix backplane, improving system robustness and noise immunity. -
What types of loads are best suited for this module?
The 1756-OA16 is optimized for AC loads such as relays, motor starters, solenoid valves, and pilot devices commonly used in industrial control systems. -
How does the module report output status to the controller?
Output states and diagnostic information are communicated directly through the ControlLogix backplane, enabling real-time monitoring and fault detection. -
Is the module suitable for safety-critical applications?
While the module provides reliable AC output control, safety-related applications should follow system-level safety design standards and use certified safety components where required. -
How does temperature affect output current capability?
The specified current ratings are defined at 60 °C, ensuring predictable performance under elevated ambient conditions commonly found in control cabinets. -
Can the module be used in mixed AC and DC I/O systems?
Yes, within a ControlLogix chassis, AC and DC modules can coexist, provided each module is correctly selected and wired according to its electrical specifications. -
How does the module handle electrical noise from nearby power equipment?
The internal design, combined with ControlLogix chassis grounding practices, helps reduce susceptibility to electrical noise and transient disturbances. -
What diagnostic capabilities are available for troubleshooting?
The module supports standard ControlLogix diagnostics, allowing engineers to identify output faults, wiring issues, or abnormal operating conditions through the controller software.
Related Models
| Model | Description |
|---|---|
| 1756-OA8 | 8-point AC digital output module |
| 1756-OB16E | 16-point DC digital output module |
| 1756-OB32 | High-density DC output module |
| 1756-IB16 | 16-point DC digital input module |
| 1756-IA16 | 16-point AC digital input module |
| 1756-OW16I | Isolated relay output module |
