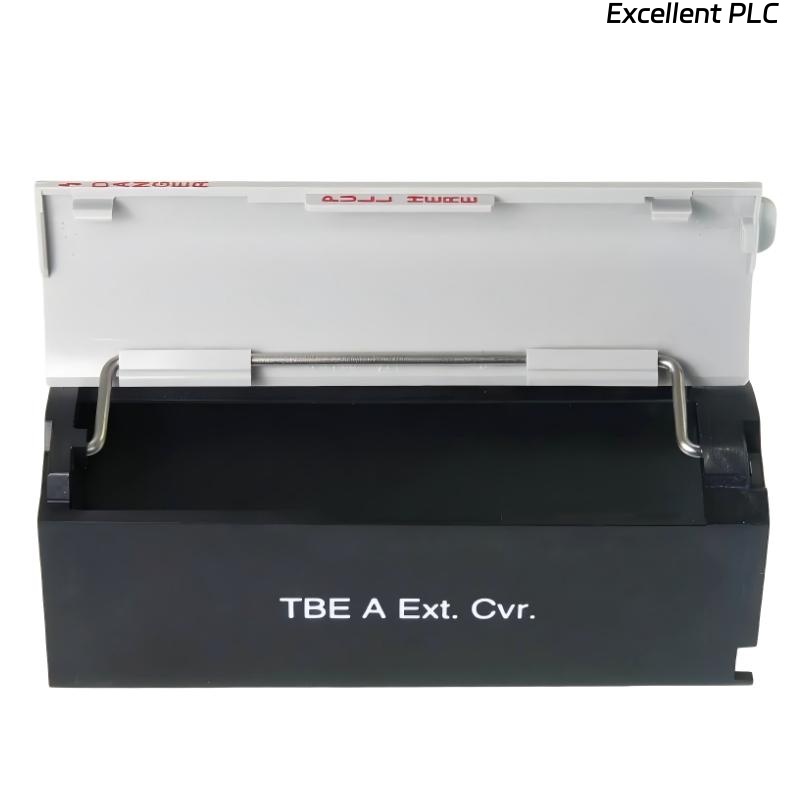

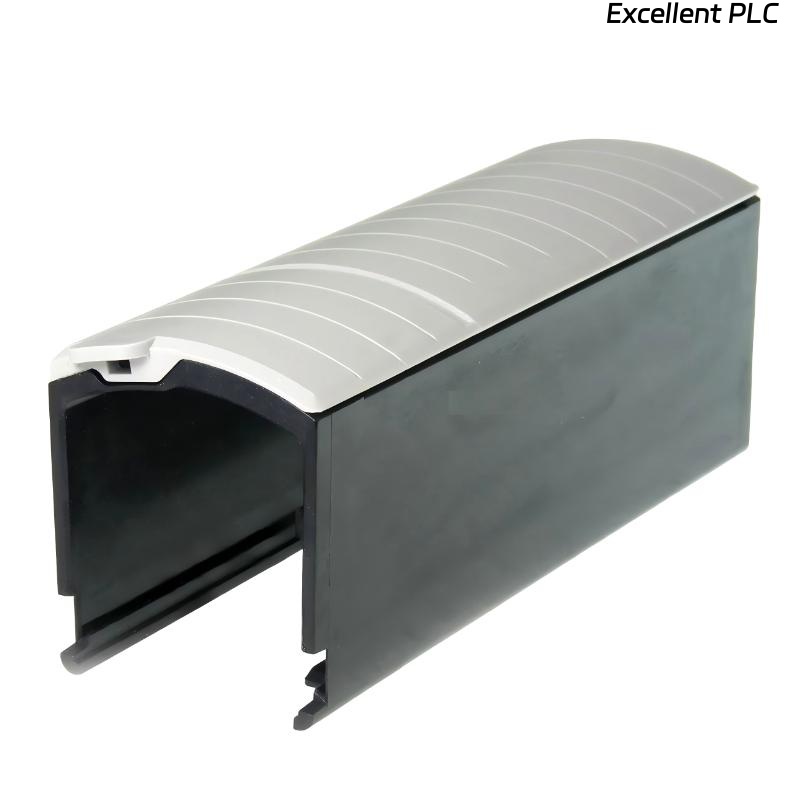

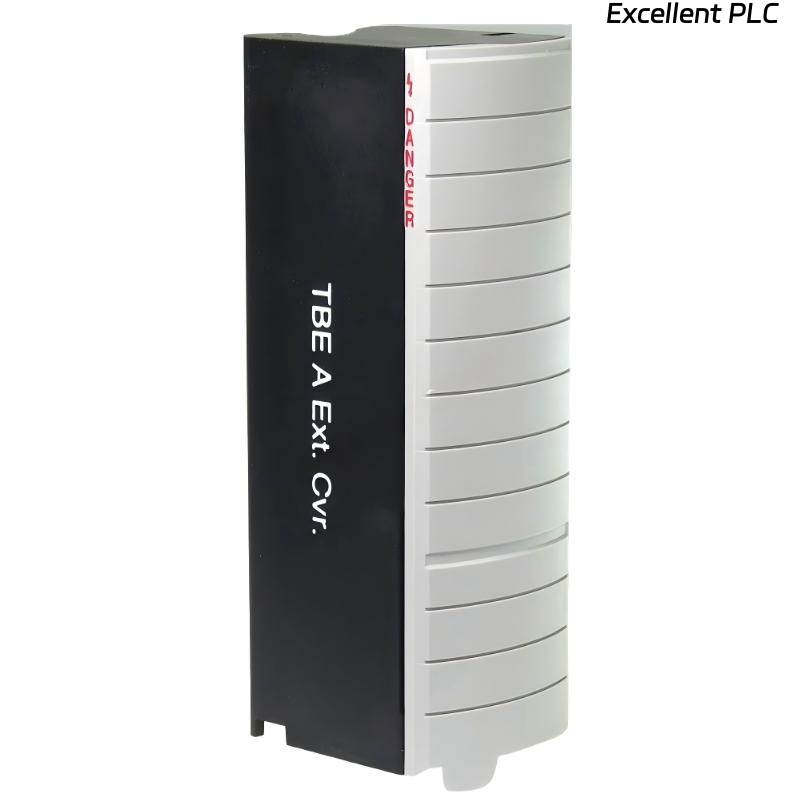

Allen Bradley 1756-TBE ControlLogix Extended Depth Terminal Block Housing

Product Introduction

The Allen Bradley 1756-TBE ControlLogix Extended Depth Terminal Block Housing is designed to provide a robust and flexible interface for field wiring in ControlLogix I/O applications. The extended depth housing allows for easier wire routing, especially when handling multiple or larger conductors, without compromising the secure cage-clamp connection.

This terminal block housing is compatible with a variety of ControlLogix I/O modules and simplifies installation in control cabinets by offering additional wire space. Its modular design enables fast installation and removal, facilitating maintenance or module replacement without disturbing existing field wiring.

The 1756-TBE is constructed with industrial-grade materials to ensure durability, stable electrical connections, and long-term performance in standard factory and process environments. Its design reduces wiring congestion and improves accessibility, making it an ideal solution for high-density I/O applications.

---

Product Specifications

---

Applications

• ControlLogix I/O modules requiring extended wire routing space for dense wiring layouts.

• Industrial automation cabinets where accessibility and wire management are important.

• Process control systems with multiple conductors or larger gauge wires.

• OEM machinery panels needing reliable, removable terminal connections.

• High-density I/O environments to reduce wiring congestion and improve maintenance access.

• Industrial facilities that require quick module replacement without rewiring.

• Factory automation systems for organized and reliable electrical connections.

---

Advantages

• Extended Depth Design
Provides additional wire routing space, simplifying installation for high-density wiring.

• Cage-Clamp Secure Connection
Ensures stable electrical contact without periodic retightening.

• Removable Housing
Allows modules to be replaced or serviced without disturbing field wiring.

• Flexible Wire Accommodation
Accepts 22–14 AWG single wires and 22–16 AWG double wires.

• Industrial-Grade Materials
Durable construction maintains performance in standard operating conditions.

• Compact Footprint
Optimized dimensions save cabinet space while providing wire accessibility.

• Reduced Maintenance Effort
Long-term connection stability eliminates frequent checks.

FAQ

1. What is the primary benefit of the extended depth housing?
   It allows easier wire routing and more space for larger or multiple conductors without compromising connection reliability.

2. 它是否兼容所有 ControlLogix 接线端子？
   它兼容专为笼式夹紧连接设计的标准 ControlLogix I/O 接线端子。

3. 它可以使用多股线和单股线吗？
   是的，它支持指定AWG范围内的多股线和单股线。

4. 它是否提供电气隔离？
   电气隔离取决于所连接的接线端子；外壳本身提供可靠的机械支撑。

5. 安装后需要维护吗？
   不需要，笼式夹具设计无需定期重新拧紧。

6. 模块能否在不断开线路的情况下拆卸？
   可以，可拆卸外壳允许在不破坏现场线路的情况下更换模块。

7. 最高工作温度是多少？
   外壳额定工作温度为0至60摄氏度。

8. 它适用于高振动环境吗？
   是的，工业级结构和笼式夹紧设计确保在振动下连接牢固。

9. 加深的深度会增加机柜占地面积吗？
   深度会略微增加，但设计经过优化，可以高效地适配标准 ControlLogix 面板。

10. 多个机箱可以并排安装吗？
    可以，模块化设计允许并排安装，适用于高密度布线布局。
