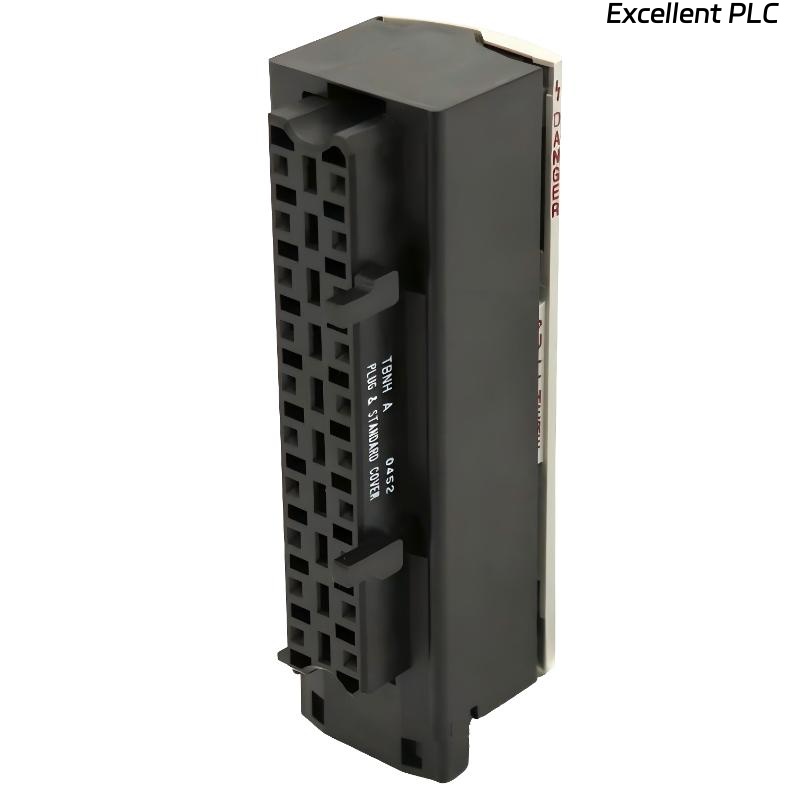

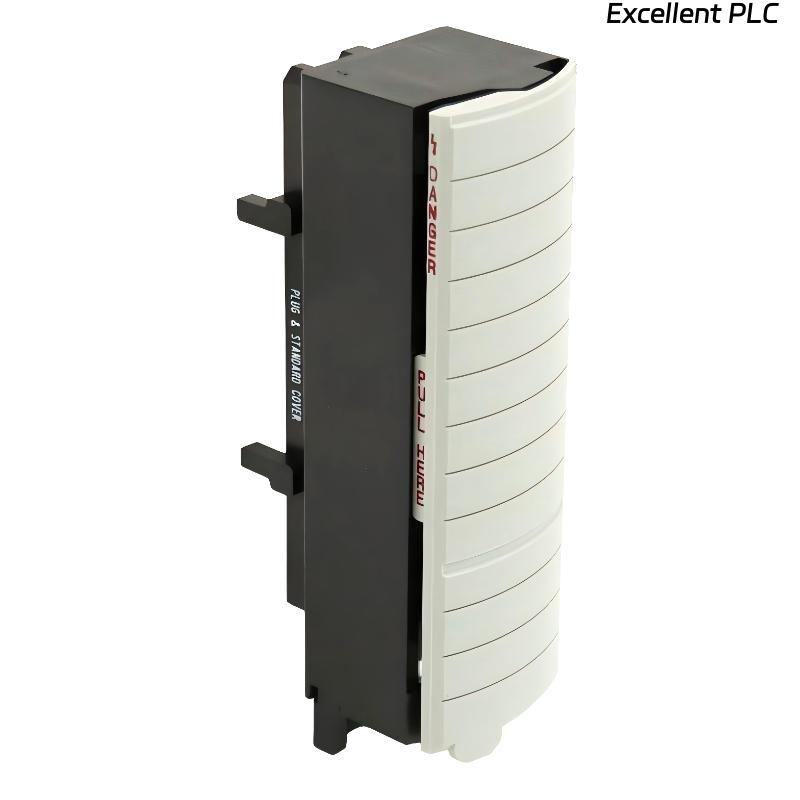

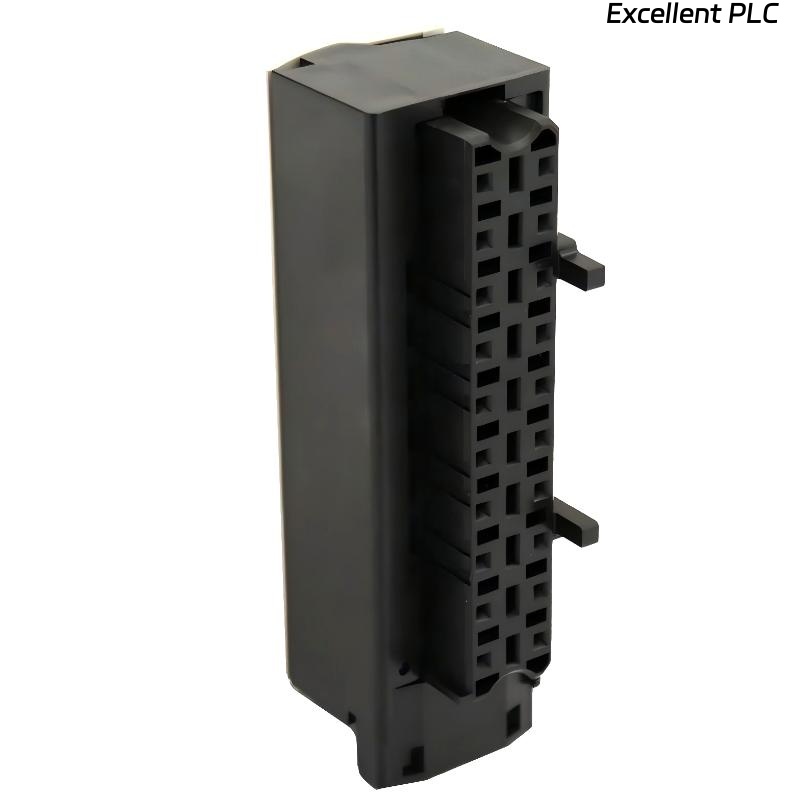

Allen Bradley 1756-TBNH ControlLogix 20 Pin Screw Clip Terminal Block
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1756-TBNH ControlLogix 20 Pin Screw Clip Terminal Block is a high-quality I/O interface accessory designed for the ControlLogix automation platform. It provides a secure and reliable connection point for field wiring to I/O modules, ensuring proper signal transmission and system integrity.
The terminal block supports up to 20 positions and accommodates wire sizes from 22 to 14 AWG. Its screw-clip design guarantees strong electrical contact while simplifying field wiring and maintenance. This accessory is widely used in industrial automation environments for structured and organized I/O wiring, enhancing both system reliability and serviceability.
Engineered for robust performance, the 1756-TBNH is suitable for harsh industrial environments, offering durability and stability in control cabinets, PLC racks, and process automation systems.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 1756-TBNH |
| Product Type | ControlLogix Terminal Block |
| Function | Provides secure connection for field wiring to I/O modules |
| Number of Positions | 20 |
| Wire Size Range | 22–14 AWG |
| Connection Type | Screw-clip terminals |
| System Compatibility | Allen-Bradley ControlLogix I/O systems |
| Diagnostics | Not applicable (passive terminal block) |
| Operating Environment | Industrial control cabinets and racks |
| Housing Type | Rigid modular terminal block |
| Dimensions | 132 × 54 × 110 mm |
| Weight | 0.141 kg |
Applications
● Provides secure wiring connections for ControlLogix I/O modules in automation systems.
● Supports organized field wiring in control cabinets, reducing installation errors.
● Used in PLC racks and I/O systems for structured signal distribution.
● Facilitates maintenance and troubleshooting by providing labeled connection points.
● Applied in industrial automation, process control, and manufacturing systems.
● Enhances signal integrity and connection reliability for digital and analog I/O wiring.
Advantages
● Screw-clip terminals provide strong and reliable electrical contact.
● Supports multiple wire sizes (22–14 AWG) for flexible installation.
● 20 positions allow efficient organization of I/O wiring.
● Rigid modular design ensures durability and long-term stability.
● Simplifies maintenance and troubleshooting with clearly labeled terminals.
● Compatible with ControlLogix I/O modules, guaranteeing proper integration.
FAQ
-
What wire sizes are supported by the 1756-TBNH?
It supports 22–14 AWG wires for field connections. -
How many positions does the terminal block provide?
The terminal block has 20 screw-clip positions. -
Is the terminal block compatible with all ControlLogix I/O modules?
It is compatible with modules designed for the 1756-TBNH terminal block; always verify module compatibility. -
Does it provide secure electrical contact for industrial applications?
Yes, the screw-clip design ensures strong and reliable electrical connections. -
Can it simplify wiring organization in control cabinets?
Yes, it provides structured and labeled terminal points for organized wiring. -
Is this terminal block suitable for both digital and analog I/O wiring?
Yes, it supports both digital and analog I/O connections. -
Does it support maintenance and troubleshooting activities?
Yes, labeled terminals make field maintenance and fault diagnosis easier. -
Is it designed for use in harsh industrial environments?
Yes, the modular housing and robust terminals ensure durability. -
Can multiple terminal blocks be used together?
Yes, multiple blocks can be arranged to accommodate larger I/O systems. -
Does installation require special tools?
No, standard screwdrivers are sufficient for wiring installation and securing connections.
Related Models
| Model | Description |
|---|---|
| 1756-TBCH | ControlLogix 20-Position Clip Terminal Block with shorter clip design |
| 1756-TBCH2 | 20-Position Terminal Block with dual labeling slots |
| 1756-TB | Standard ControlLogix Terminal Block for I/O wiring |
| 1756-TBL | ControlLogix Terminal Block with larger spacing |
| 1756-TBP | 20-Position Terminal Block with protective cover |
| 1756-TBRT | Terminal block with removable clips for easy wiring |
Popular Models
| Model | Description |
|---|---|
| 1756-TBNH | 20 Pin Screw Clip Terminal Block (this module) |
| 1756-TBCH | 20-Position Clip Terminal Block |
| 1756-TB | Standard ControlLogix Terminal Block |
| 1756-TBL | Larger spacing terminal block |
| 1756-TBP | Terminal Block with protective cover |
| 1756-TBRT | Removable clip terminal block for easy wiring |
