Product Introduction

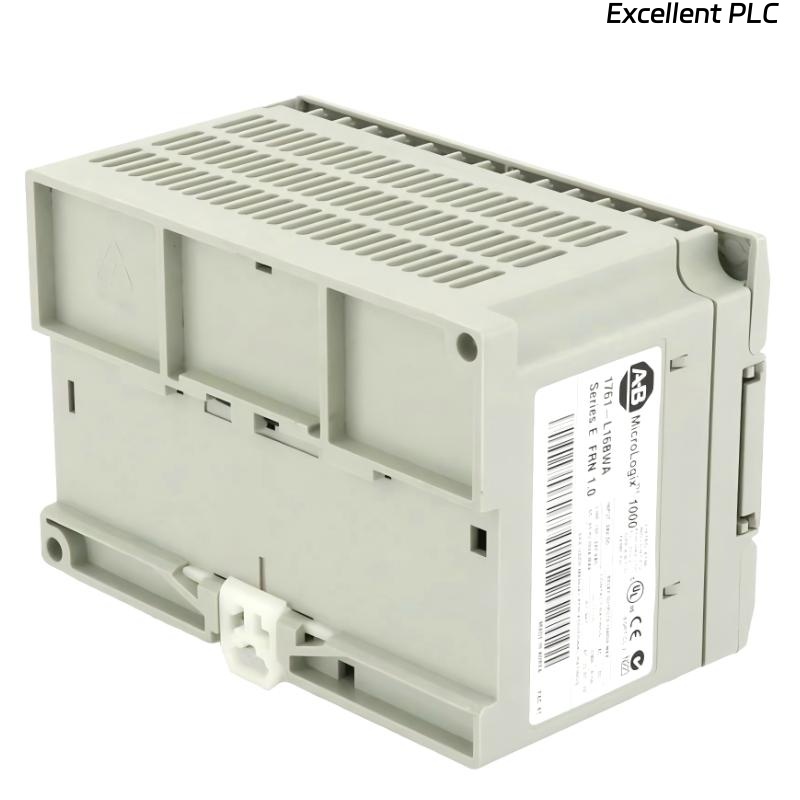

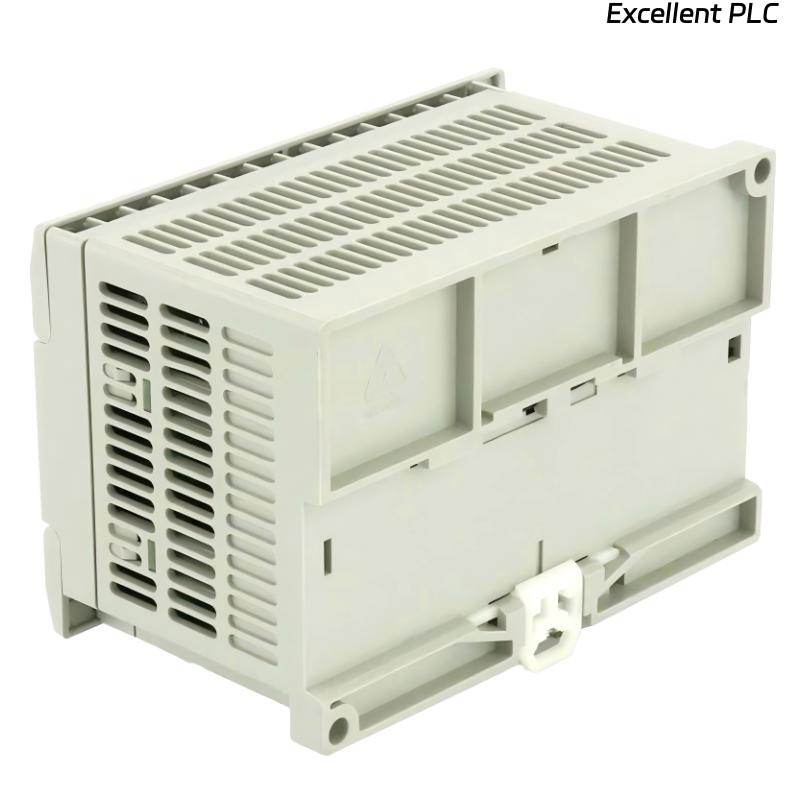

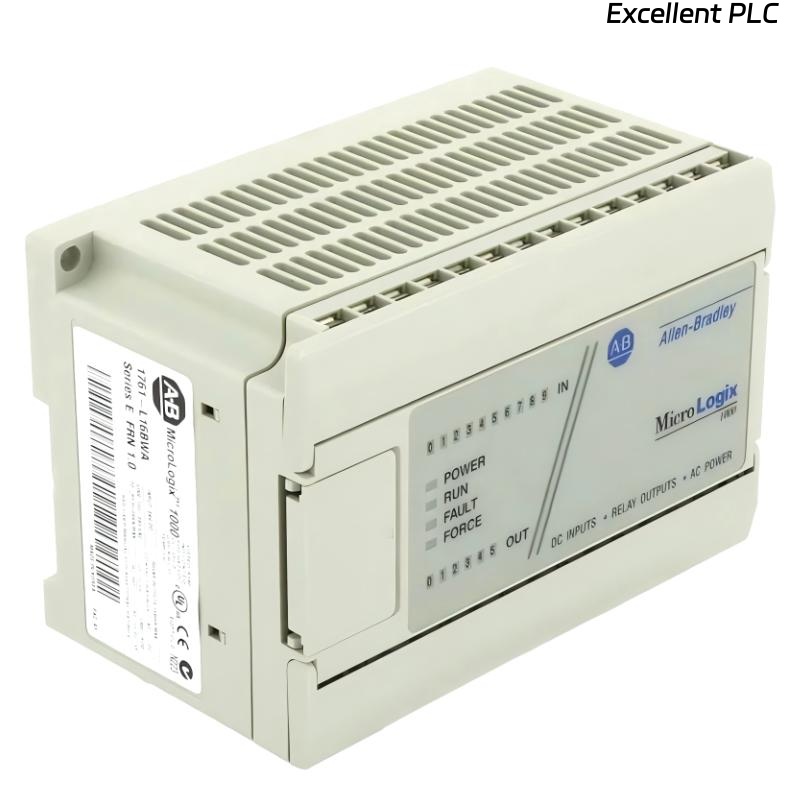

The Allen-Bradley 1761-L16BWA is a MicroLogix 1000 programmable controller designed for advanced small-scale automation and OEM equipment applications. Powered by 24V DC, it features 6 standard digital inputs, 4 fast digital inputs, and 6 relay contact outputs, allowing precise control of time-sensitive processes, motor starters, alarms, and sequencing tasks.
With 8 KB of user memory, the 1761-L16BWA is ideal for more complex programs compared to standard MicroLogix 1000 models, making it suitable for small machinery automation, signal monitoring, and process control. Its compact footprint and reliable 24V DC operation enable integration into panel-mounted control systems or OEM machines.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 1761-L16BWA |
| Product Series | MicroLogix 1000 |
| Controller Type | Compact PLC |
| Power Supply | 24 VDC |
| Digital Inputs | 6 Standard Inputs + 4 Fast Inputs |
| Outputs | 6 × Relay Contact Outputs |
| User Memory | 8 KB EEPROM |
| Communication Port | RS-232 Serial Port |
| Programming Software | RSLogix 500 |
| Mounting Type | DIN Rail / Panel Mount |
| Dimensions | 133 × 73 × 80 mm |
| Weight | 0.45 kg |
Applications
● Advanced small machine automation requiring precise timing and fast input response.
● Motor control and interlock logic in 24V DC systems.
● Conveyor and packaging systems with fast input sensing needs.
● Alarm monitoring and signal processing.
● OEM panel-mounted equipment for small machinery.
● Process control applications where 8 KB memory supports more complex programs.
Advantages
● Fast input channels allow accurate monitoring of high-speed signals.
● Integrated 24V DC power supply simplifies wiring.
● 6 relay outputs capable of switching AC or DC loads.
● Large 8 KB EEPROM memory for advanced logic programming.
● Compact panel-mount design suitable for tight control cabinets.
● Reliable industrial operation with RSLogix 500 programming compatibility.
