Product Introduction

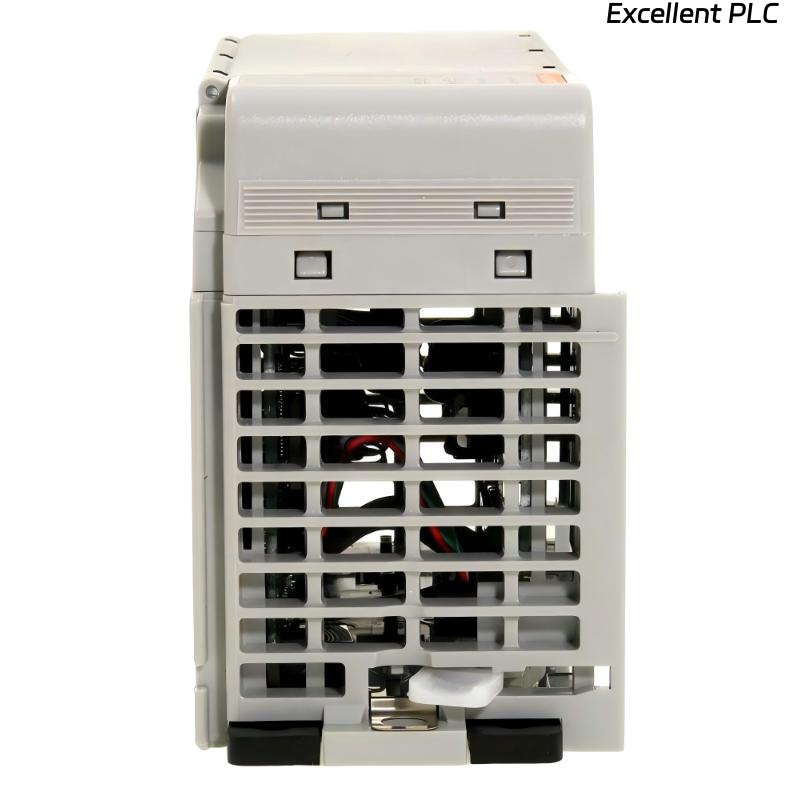

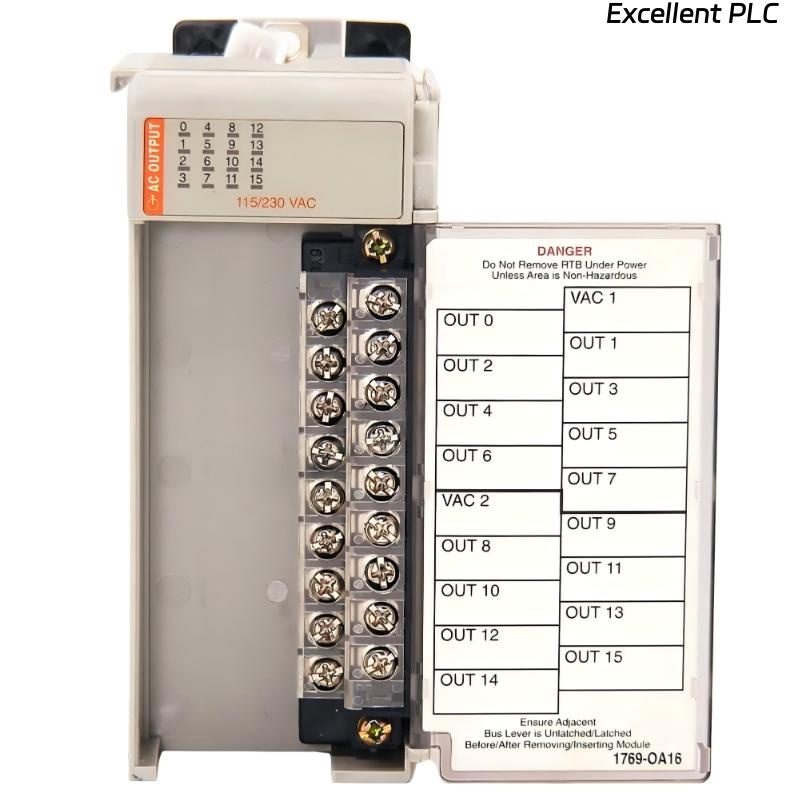

The Allen Bradley 1769-OA16 CompactLogix 16 Point AC Output Module is a reliable and high-performance output module designed for the CompactLogix family of controllers. It provides 16 discrete AC output points, suitable for controlling industrial devices such as motors, solenoids, lights, and relays. This module is optimized for compact automation systems that require precise and dependable AC output control.
Operating on 120/240 VAC nominal voltage and supporting a broad input range of 85–264 VAC at 47–63 Hz, it can adapt to various industrial power environments. The module draws minimal backplane current (225 mA at 5.1 V), ensuring energy efficiency and safe integration with CompactLogix controllers. With a compact design, it is ideal for OEM machinery, small control panels, and distributed I/O systems.
Installation is straightforward with standard copper wiring, supporting both solid and stranded conductors across a practical gauge range. Its robust construction and lightweight design make the 1769-OA16 a versatile module for modern industrial automation applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | 1769-OA16 |
| Product Type | CompactLogix AC Output Module |
| Output Points | 16 AC points |
| Output Voltage | 120/240 VAC nominal |
| Operating Voltage Range | 85–264 VAC, 47–63 Hz |
| Backplane Current | 225 mA @ 5.1 V |
| Wire Type | Copper, 90 °C |
| Wire Size (Solid) | 22–14 AWG |
| Wire Size (Stranded) | 22–16 AWG |

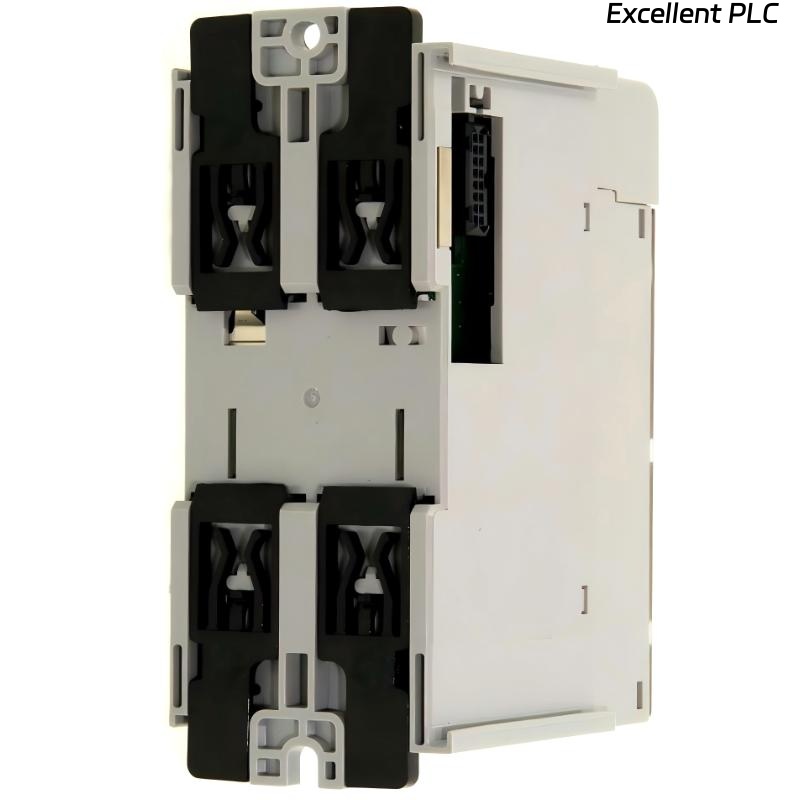

| Mounting Method | DIN Rail / Panel Mount |
| Dimensions | 118 × 52.5 × 87 mm |
| Weight | 0.41 kg |
Applications
• Industrial AC load control
Used for driving motors, solenoids, lighting systems, and other AC-powered devices in industrial automation.
• OEM machinery integration
Ideal for compact machines requiring multiple AC outputs in small control cabinets.
• Process automation
Controls sequential operations of industrial equipment, supporting both discrete and distributed automation processes.
• Distributed I/O systems
Works with multiple I/O modules to expand output capabilities across a modular control system.
• Automation retrofits
Suitable for upgrading older machines with modern CompactLogix control systems.
Advantages
• High output capacity
Provides 16 AC output points in a compact footprint for versatile machine control.
• Wide operating voltage range
Supports 85–264 VAC, making it compatible with various industrial power standards.
• Low backplane current
Efficiently draws only 225 mA at 5.1 V, preserving controller resources and energy.
• Flexible wiring options
Supports both solid and stranded copper wires with a broad gauge range, simplifying installation.
• Compact and lightweight
Easy to integrate into small cabinets without compromising reliability or functionality.
