Allen Bradley 1769-OA8 CompactLogix AC Solid-state Output Module

Product Introduction

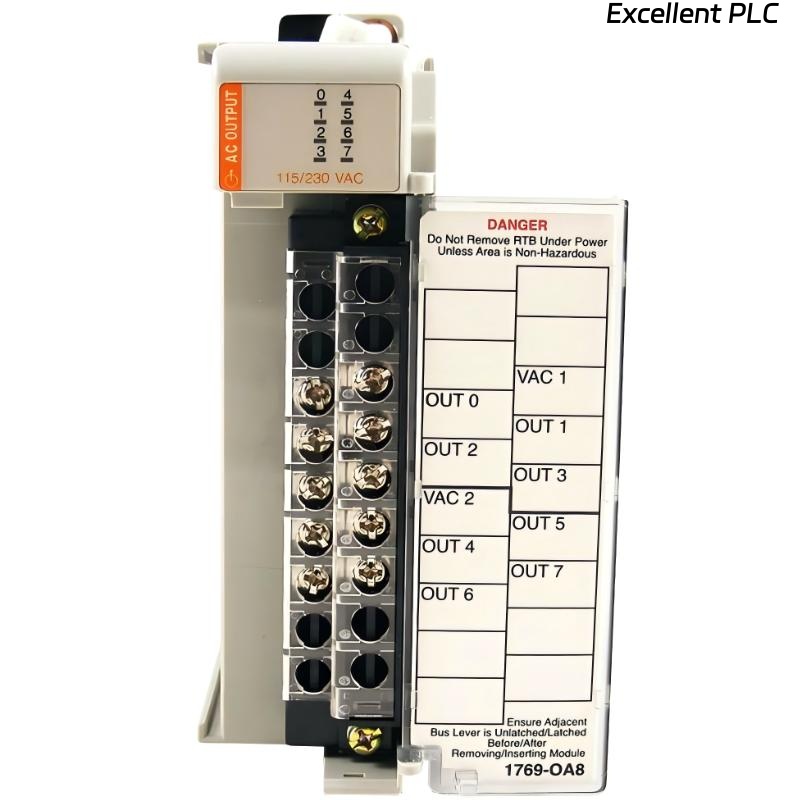

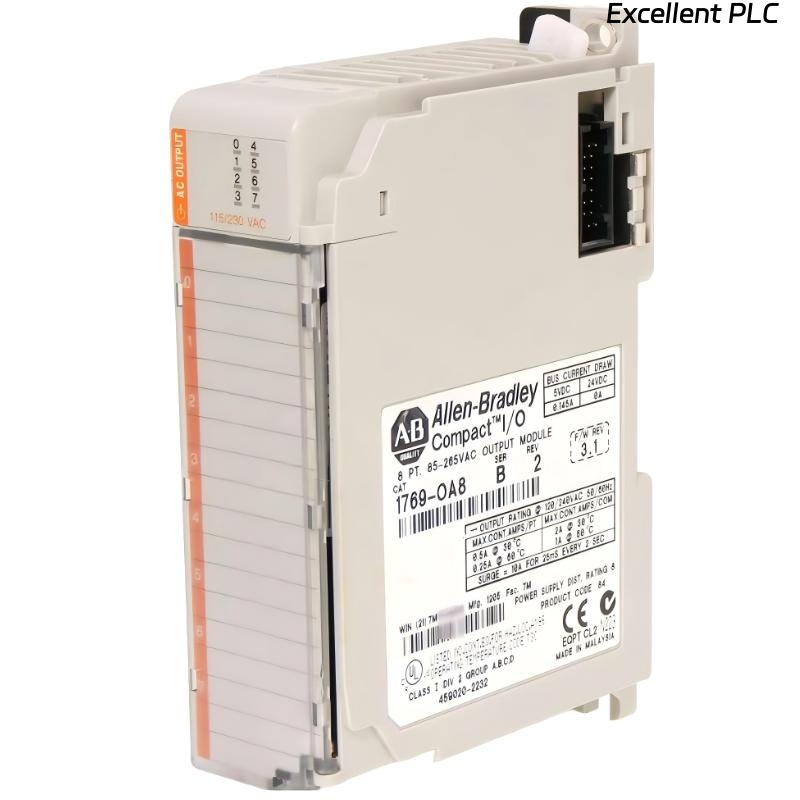

The Allen Bradley 1769-OA8 CompactLogix AC Solid-State Output Module is a reliable and compact output module designed for the CompactLogix family of controllers. It provides 8 AC solid-state output points, organized in two groups of 4 outputs, for switching AC loads such as motors, solenoids, lights, and other industrial devices. The module is optimized for automation systems that require fast switching, high reliability, and minimal mechanical wear.

Operating within a voltage range of 85–265 VAC and a frequency of 47–63 Hz, the module is suitable for various industrial AC environments. Its fast turn-on/turn-off delay of 0.5 cycles ensures precise control of AC loads. The module draws a maximum bus current of 145 mA at +5 VDC (1.125 W), consuming minimal power from the CompactLogix backplane, and has a heat dissipation of 2.12 W, maintaining stable performance during continuous operation.

The 1769-OA8 is ideal for modern industrial applications requiring precise AC control, including OEM machinery, process automation, and distributed control systems. Its solid-state design ensures high reliability, low maintenance, and consistent operation under typical industrial conditions.

Product Specifications

Applications

• Industrial AC load control
Switches motors, solenoids, lights, and other AC-powered devices in automated systems.

• Compact automation systems
Optimized for OEM machinery and small control panels that require multiple AC outputs.

• Process control
Manages sequential operations, timing, and coordinated control of industrial equipment.

• Fast switching applications
Ideal for processes requiring rapid and repetitive AC load switching without mechanical wear.

• Distributed I/O systems
Can be combined with other I/O modules to expand control capabilities in larger automation networks.

Advantages

• Solid-state AC outputs
Provides fast, reliable switching with minimal mechanical wear for long-term operation.

• Wide operating voltage range
Operates from 85–265 VAC, suitable for various industrial power environments.

• Fast response time
Turn-on/turn-off delay of 0.5 cycles ensures accurate and timely control of AC devices.

• Low bus current consumption
Consumes only 145 mA at +5 VDC, reducing load on the controller and improving energy efficiency.

• Flexible integration
Supports solid-state outputs in small cabinets or OEM machinery and can work with multiple modules in distributed systems.
