Product Introduction

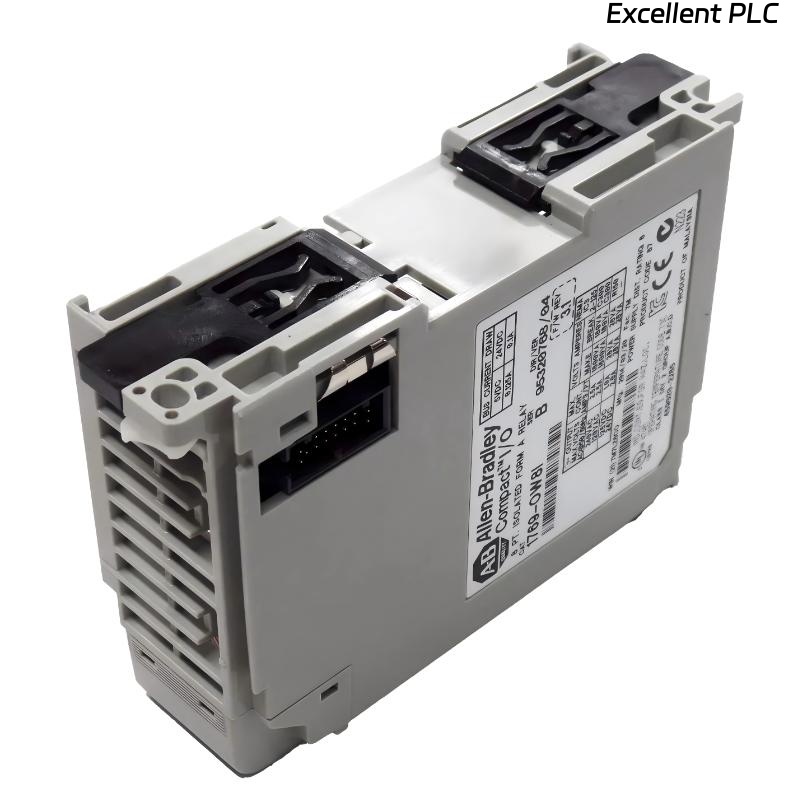

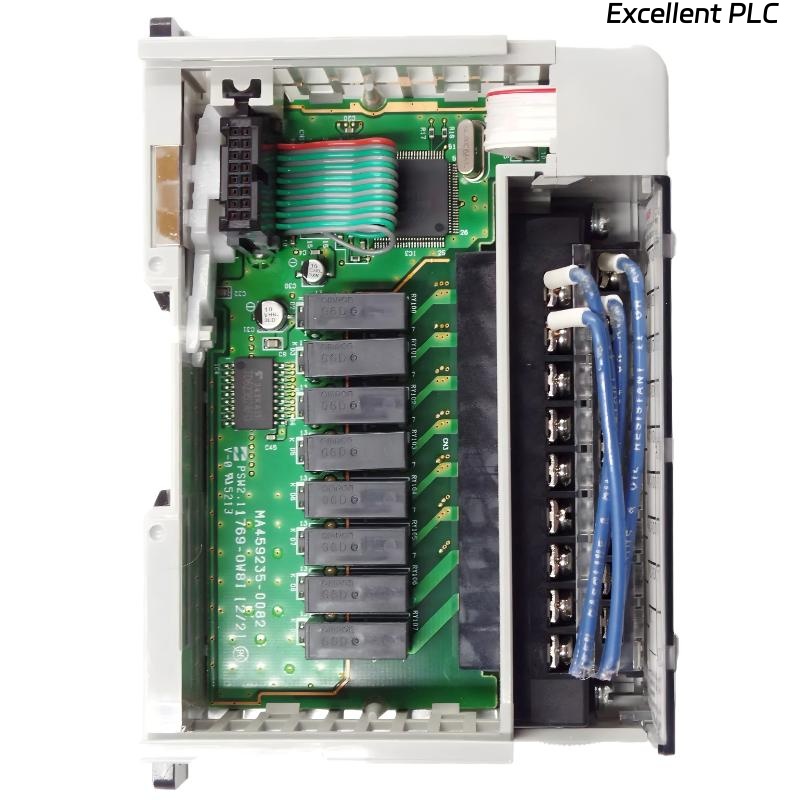

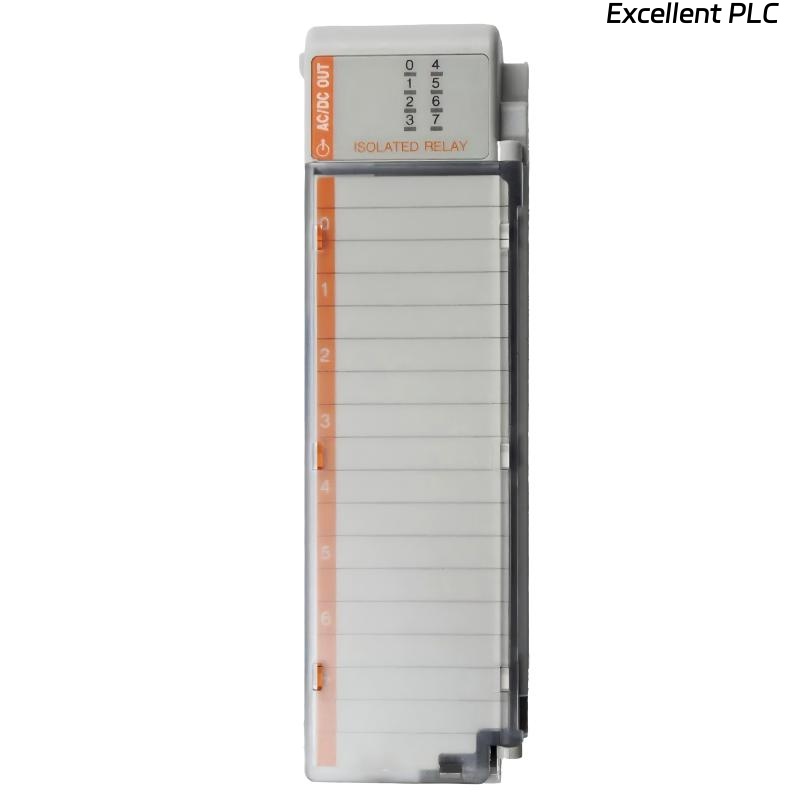

The Allen Bradley 1769-OW8I CompactLogix 8 Point Relay Output Module is a relay-based digital output module designed for the CompactLogix control platform. It provides 8 independent relay output channels, enabling the controller to switch both AC and DC loads in industrial automation systems. The relay design allows the module to control a wide variety of field devices such as contactors, solenoids, alarms, and indicator lights.
The module supports a broad operating voltage range of 5–265 VAC or 5–125 VDC, providing flexibility when controlling different types of electrical equipment. With a 10 ms signal delay when turning on, the module delivers stable switching performance suitable for many industrial control applications.
The 1769-OW8I integrates seamlessly into the CompactLogix I/O system and is commonly used in machine automation, manufacturing equipment, and process control systems where reliable relay-based output switching is required.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | 1769-OW8I |
| Product Type | CompactLogix Relay Output Module |
| Output Channels | 8 |
| Output Type | Relay |
| Operating Voltage Range | 5–265 VAC, 5–125 VDC |
| Signal Delay (ON) | 10 ms |
| Bus Current Draw (5.1 V) | 125 mA |
| Bus Current Draw (24 V) | 100 mA |
| Heat Dissipation | 2.83 W |
| Mounting Method | DIN Rail / Panel Mount |
| Dimensions | 118 × 35 × 87 mm |
| Weight | 0.29 kg |
Applications
• Industrial machine control
Used for switching relays, motors, alarms, and other electrical loads in automation equipment.
• Process automation systems
Controls valves, pumps, and signaling devices within process control environments.
• Factory automation lines
Suitable for operating AC or DC loads in manufacturing and production systems.
• Building and facility automation
Can be used to control lighting systems, warning indicators, and auxiliary equipment.
• OEM machinery integration
Widely applied by equipment manufacturers requiring flexible relay output control.
Advantages
• Relay-based switching capability
Allows the module to control both AC and DC electrical loads.
• Wide voltage compatibility
Supports a large operating voltage range for various industrial devices.
• Reliable switching performance
Provides stable output control with consistent relay operation.
• Efficient backplane power usage
Optimized bus current consumption supports stable CompactLogix system performance.
• Flexible automation integration
Works seamlessly with other 1769 I/O modules to build scalable automation systems.
