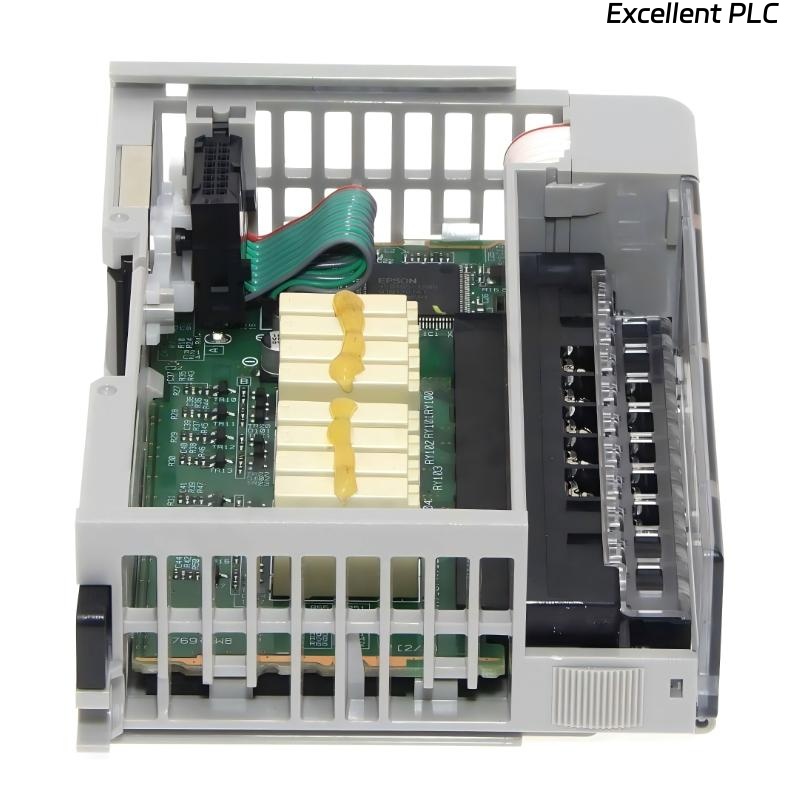

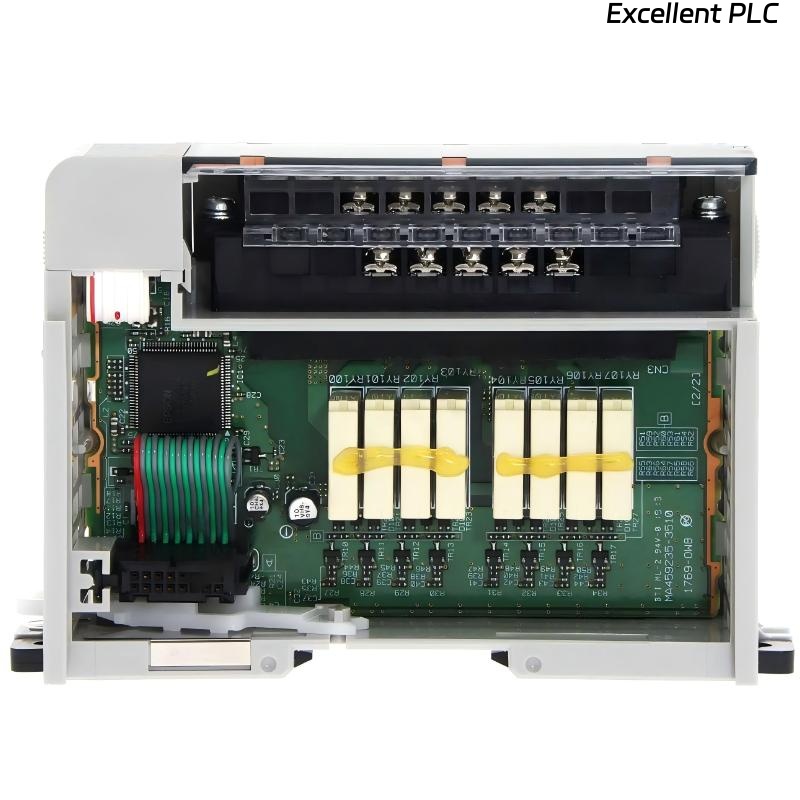

Allen Bradley 1769-OW8 CompactLogix 8 Point Relay Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1769-OW8 CompactLogix 8 Point Relay Output Module is a relay-based digital output module designed for the CompactLogix control platform. It provides 8 relay output channels that allow PLC systems to control both AC and DC loads, making it highly flexible for various industrial automation applications.
Unlike transistor-based output modules, the 1769-OW8 uses electromechanical relay contacts, enabling it to switch a wide range of voltages. It supports an operating voltage range of 5–265 VAC or 5–125 VDC, allowing it to control devices such as contactors, motors, lamps, alarms, and solenoid valves.
The module offers reliable switching performance with a 10 ms signal delay when turning on, ensuring stable operation in automation systems. Its compact design and compatibility with the 1769 I/O platform make it a practical choice for applications requiring versatile output switching capabilities.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | 1769-OW8 |
| Product Type | CompactLogix Relay Output Module |
| Output Channels | 8 |
| Output Type | Relay |
| Operating Voltage Range | 5–265 VAC, 5–125 VDC |
| Bus Current Draw @ 5.1 V | 125 mA |
| Bus Current Draw @ 24 V | 100 mA |
| Signal Delay (On) | 10 ms |
| Heat Dissipation | 2.83 W |
| Wire Type | Copper, 90 °C |
| Wire Size (Solid) | 22–14 AWG |
| Wire Size (Stranded) | 22–16 AWG |
| Mounting Method | DIN Rail / Panel Mount |
| Dimensions | 118 × 35 × 87 mm |
| Weight | 0.28 kg |
Applications
• Industrial machine control
Used to switch motors, relays, and other electrical devices within automated machinery.
• Process control systems
Controls alarms, pumps, and control relays used in process automation.
• Factory automation equipment
Suitable for switching AC or DC loads in manufacturing lines and automated production systems.
• Building and facility automation
Used for controlling lighting systems, warning signals, and auxiliary equipment.
• OEM machinery
Frequently used by equipment manufacturers requiring flexible relay-based switching outputs.
Advantages
• Relay-based switching
Allows the module to control both AC and DC loads with a wide voltage range.
• Flexible voltage compatibility
Supports loads from 5 V up to 265 VAC or 125 VDC.
• Reliable electromechanical design
Relay outputs provide strong isolation and dependable switching performance.
• Compact module structure
Saves panel space while providing multiple output channels.
• Seamless CompactLogix integration
Fully compatible with other 1769 I/O modules for scalable automation systems.
FAQ
-
What type of outputs does the 1769-OW8 module provide?
The module provides relay-based outputs that allow switching of both AC and DC electrical loads. -
How many output channels are available on this module?
The module includes 8 independent relay output channels for controlling multiple devices. -
What voltage range can the module switch?
It can switch loads operating between 5 and 265 VAC or between 5 and 125 VDC. -
What types of devices can be controlled using this module?
Common devices include contactors, solenoid valves, alarms, lamps, and other electrical loads. -
What is the signal delay time for output activation?
The module has an approximate 10 millisecond delay when the output turns on. -
How much current does the module draw from the controller backplane?
The module draws about 125 mA at 5.1 V and 100 mA at 24 V from the backplane. -
Why are relay outputs used in automation systems?
Relay outputs provide electrical isolation and allow switching of higher voltage loads compared to transistor outputs. -
Is the module suitable for both AC and DC load control?
Yes, the relay design allows it to switch both AC and DC circuits. -
Can the module be installed with other CompactLogix modules?
Yes, it integrates seamlessly with other modules in the 1769 I/O platform. -
Is the module commonly used in industrial automation systems?
Yes, it is widely used in machine control, process automation, and factory equipment.
Related Models
| Model | Description |
|---|---|
| 1769-OA16 | CompactLogix 16 Point AC Output Module |
| 1769-OB16 | CompactLogix 16 Point DC Output Module |
| 1769-OB32 | CompactLogix 32 Point DC Output Module |
| 1769-OV16 | CompactLogix DC Sink Output Module |
| 1769-OF2 | CompactLogix Analog Output Module |
| 1769-IB16 | CompactLogix Digital Input Module |
Popular Models
| Model | Product Type |
|---|---|
| 1756-L73 | ControlLogix PLC Controller |
| 1769-L33ERM | CompactLogix Ethernet Controller |
| 1769-IB16 | CompactLogix DC Input Module |
| 1769-OB16 | CompactLogix DC Output Module |
| 1734-AENTR | POINT I/O Ethernet Adapter |
| 1794-AENT | FLEX I/O Ethernet Adapter |
