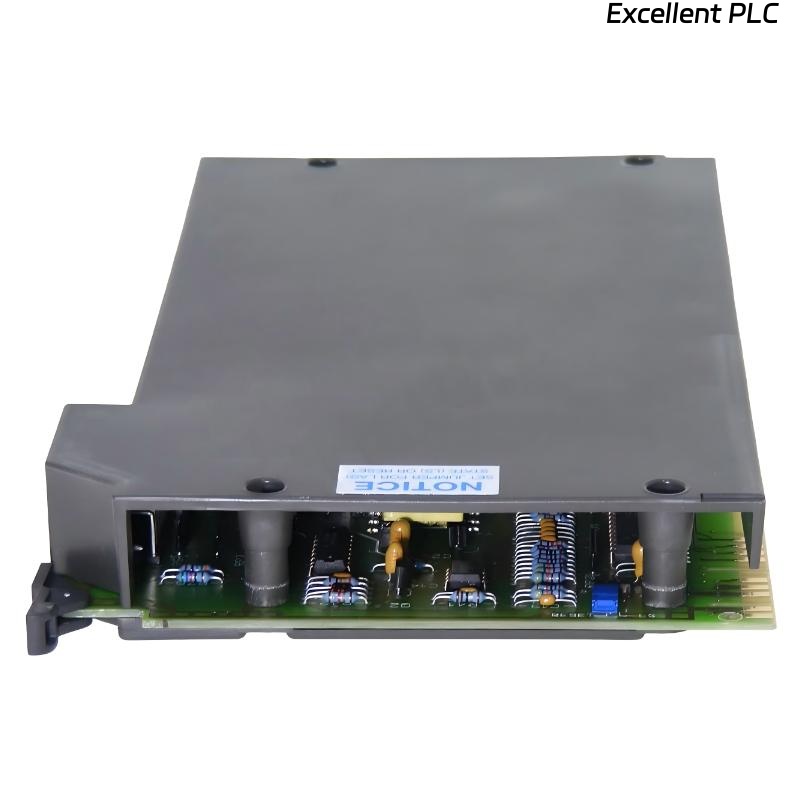

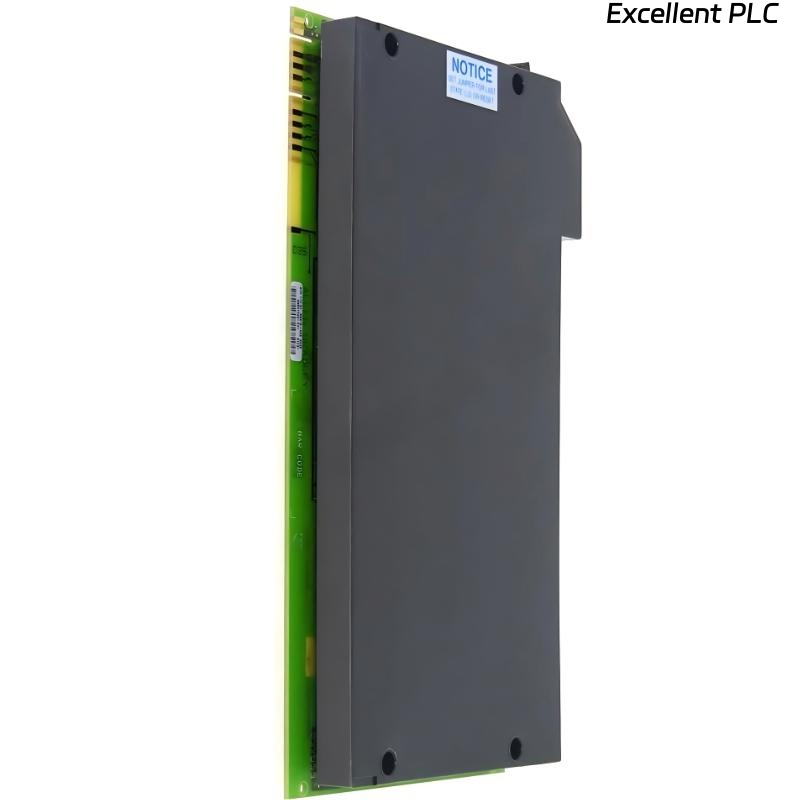

Allen Bradley 1771-IMD/B AC/DC Input Module

Product Introduction

The Allen-Bradley 1771-IMD/B AC/DC Input Module is a discrete input module designed for the PLC-5 based 1771 I/O platform from Allen-Bradley. It is used to monitor high-voltage AC or DC input signals from field devices and transmit the signal status to the PLC processor for automated control and system monitoring.

The module provides 16 input points and is capable of handling 220 VAC or DC signals, making it suitable for industrial applications where higher voltage sensing is required. Once the signals are received, the module converts them into logic data that can be processed by the PLC-5 controller to trigger operations, alarms, or machine actions.

Installed in a standard 1771 I/O chassis, the 1771-IMD/B communicates with the control processor through the backplane. Its robust design allows reliable operation in industrial automation environments such as manufacturing lines, machine control panels, and process monitoring systems where dependable signal detection is essential.

---

Product Specifications

---

Applications

● Industrial PLC-5 Control Systems
Used to detect AC or DC signals from field equipment and transmit the status to the PLC for automated control.

● Manufacturing Production Lines
Monitors switches, relays, and other field devices to ensure equipment operates in the correct sequence.

● Machine Control Panels
Provides reliable signal acquisition from high-voltage devices used in industrial machinery.

● Process Monitoring Systems
Collects input signals from process equipment to support safe and stable system operation.

● Power and Utility Equipment
Suitable for applications where higher voltage input signals must be detected and monitored.

---

Advantages

● High-Voltage Input Capability
Supports 220 VAC/DC signals, making it suitable for industrial control circuits and power equipment.

● 16-Channel Input Capacity
Allows multiple field devices to be monitored within a single module, improving system efficiency.

● Reliable Signal Detection
Accurately converts field signals into logic data for PLC processing and control actions.

● Stable Backplane Communication
Ensures dependable data transfer between the module and the PLC-5 processor.

● Compact Modular Design
Fits easily into a standard 1771 chassis slot, simplifying installation and maintenance.

● Industrial-Grade Durability
Designed for consistent operation in demanding automation environments.

FAQ

1. What is the primary function of the 1771-IMD/B module?
   It monitors high-voltage AC or DC input signals from field devices and sends the status information to the PLC controller.

2. How many input channels are available on this module?
   The module provides 16 input points that allow multiple field devices to be monitored simultaneously.

3. What type of voltage signals can it detect?
   It can detect both AC and DC signals at approximately 220 volts, making it suitable for industrial equipment.

4. Where is the module installed in a control system?
   It is installed in a slot of the 1771 I/O chassis and communicates with the PLC processor through the system backplane.

5. What types of devices can connect to the input channels?
   Common devices include switches, relays, contactors, and other field components that provide AC or DC signals.

6. How does the module support system reliability?
   It provides stable signal detection and consistent communication with the PLC processor.

7. Can this module be used with other 1771 I/O modules?
   Yes, it integrates with other modules in the 1771 PLC-5 I/O system for flexible automation solutions.

8. What kind of applications typically require this module?
   Applications such as machine control, industrial automation, and process monitoring often use this module.

9. Why are AC/DC input modules important in PLC systems?
   They allow the controller to monitor external devices and respond automatically to changes in field signals.

10. What is the benefit of using a dedicated input module?
    It improves signal organization, simplifies wiring, and enables accurate monitoring of multiple devices.
