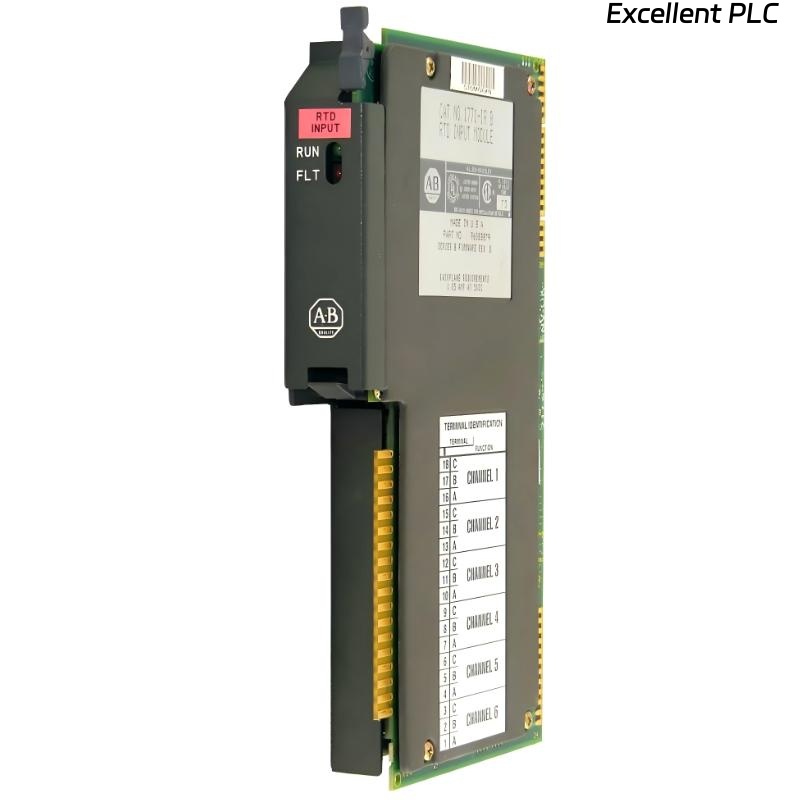

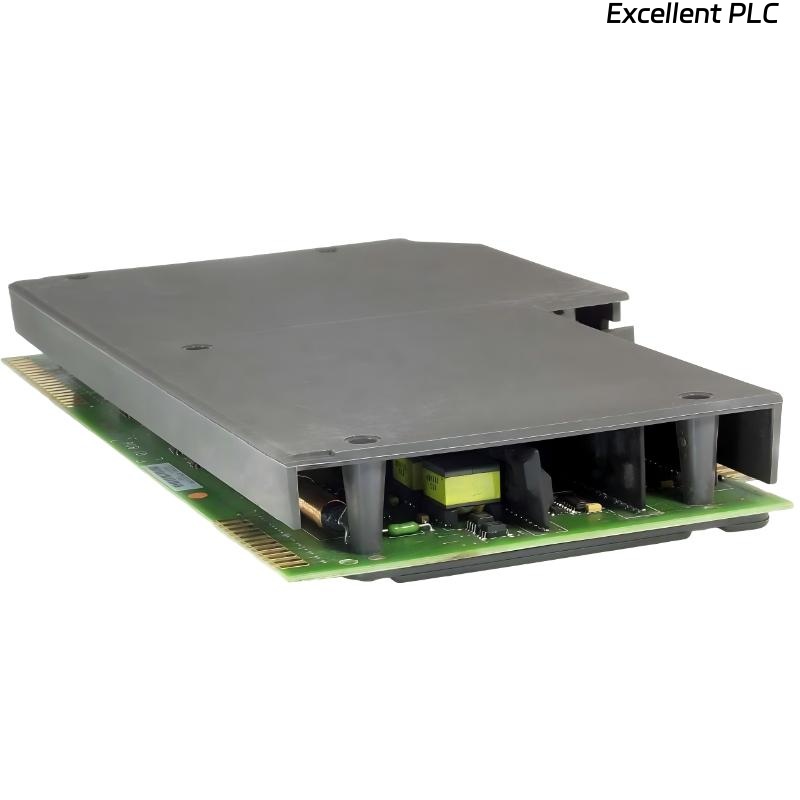

Allen Bradley 1771-IR Analog RTD Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1771-IR Analog RTD Input Module is an analog input module designed for temperature measurement in PLC-5 based automation systems from Allen-Bradley. It is specifically engineered to interface with resistance temperature detectors (RTDs), allowing accurate monitoring of temperature conditions in industrial processes.
The module supports up to six analog RTD input channels using a 3-wire RTD configuration, which helps improve measurement accuracy by compensating for lead resistance. This capability makes the module well suited for applications where stable and precise temperature monitoring is required.
Installed in a standard 1771 I/O chassis, the 1771-IR communicates directly with the PLC-5 processor through the backplane. It converts RTD signals into digital data that can be processed by the controller for temperature regulation, system monitoring, and automated process control in manufacturing and industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | Allen-Bradley 1771-IR Analog RTD Input Module |
| Manufacturer | Allen-Bradley |
| Series | 1771 PLC-5 I/O System |
| Module Type | Analog RTD input module |
| Input Channels | 6 points |
| Sensor Type | 3-wire RTD |
| Compatible System | PLC-5 |
| Backplane Current | 0.950 A @ 5 VDC |
| Installation Location | 1771 I/O chassis |
| Dimensions | 165 × 51 × 89 mm |
| Weight | 0.45 kg |
Applications
● Industrial Temperature Monitoring
Collects temperature data from RTD sensors to ensure stable operation of industrial processes and equipment.
● Manufacturing Process Control
Used in production lines where accurate temperature measurement is critical for product quality and equipment protection.
● Energy and Utility Systems
Monitors temperature conditions in power equipment, heating systems, and industrial facilities.
● Machine Automation Systems
Allows PLC controllers to monitor machine temperature conditions and respond automatically to abnormal changes.
● Process Industries
Widely applied in chemical processing, water treatment, and other industries requiring reliable temperature measurement.
Advantages
● Dedicated RTD Measurement
Designed specifically for RTD sensors, ensuring accurate and stable temperature acquisition.
● 3-Wire RTD Support
Improves measurement accuracy by compensating for lead resistance in sensor wiring.
● Multiple Input Channels
Provides six analog input points for monitoring several temperature sensors simultaneously.
● Reliable PLC Integration
Communicates directly with the PLC-5 processor through the 1771 system backplane.
● Compact Modular Installation
Fits into a standard 1771 I/O chassis, allowing flexible expansion of temperature monitoring capability.
● Stable Industrial Performance
Built for long-term operation in demanding industrial environments.
FAQ
-
What is the main function of the 1771-IR module?
It measures temperature signals from RTD sensors and converts them into digital data for PLC-based control systems. -
How many RTD sensors can be connected?
The module supports up to six RTD input channels. -
What type of RTD wiring does the module support?
It supports 3-wire RTD connections to improve measurement accuracy. -
Why is a 3-wire RTD configuration used?
It helps compensate for resistance in the sensor leads, which improves the accuracy of temperature readings. -
Where is the module installed?
It is installed in a slot of a 1771 I/O chassis within a PLC-5 control system. -
What role does the PLC play after receiving the RTD data?
The PLC processes the temperature data to control heating, cooling, alarms, or other automated actions. -
What industries commonly use this module?
Industries such as manufacturing, power generation, water treatment, and chemical processing often require RTD temperature monitoring. -
How does the module communicate with the controller?
It communicates through the PLC-5 system backplane inside the 1771 chassis. -
Can the module be used with other 1771 I/O modules?
Yes, it integrates with other digital and analog modules within the same 1771 automation system. -
What is the advantage of using RTD sensors with this module?
RTD sensors provide stable and highly accurate temperature measurements, making them ideal for industrial monitoring.
Related Models
| Model | Description |
|---|---|
| 1771-IFE | Analog input module |
| 1771-IFF | Fast analog input module |
| 1771-IFM | Fast millivolt input module |
| 1771-IXE | Thermocouple input module |
| 1771-ALX | Local I/O adapter module |
| 1771-A3B1 | 12-slot I/O chassis |
Popular Models
| Model | Description |
|---|---|
| 1756-L73 | ControlLogix programmable automation controller |
| 1769-L33ER | CompactLogix controller |
| 1756-IF8 | ControlLogix analog input module |
| 1756-OW16I | ControlLogix relay output module |
| 1769-IF8 | Compact I/O analog input module |
| 1769-OW16 | Compact I/O relay output module |
