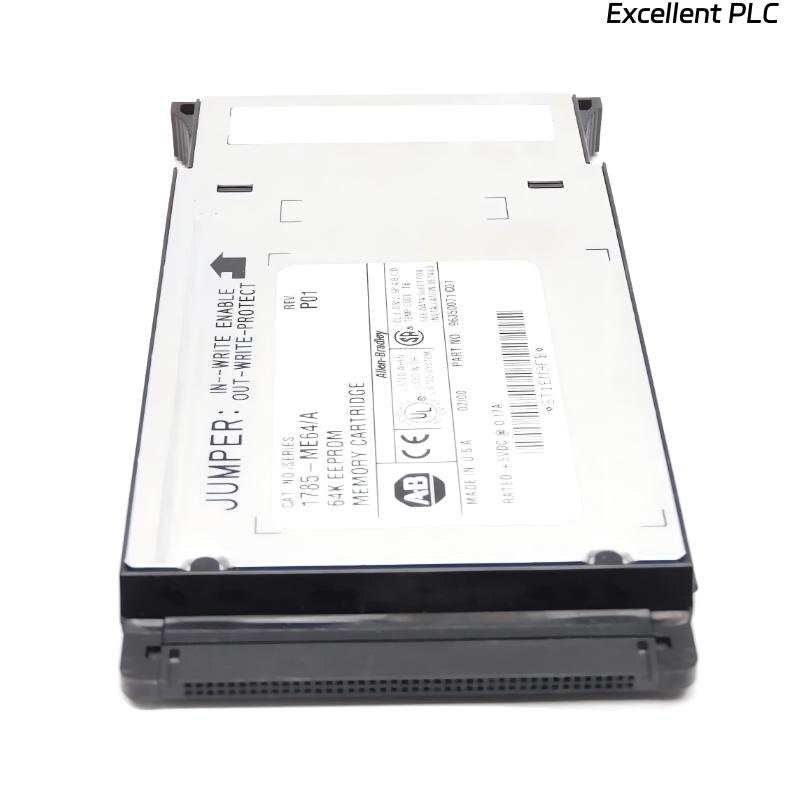

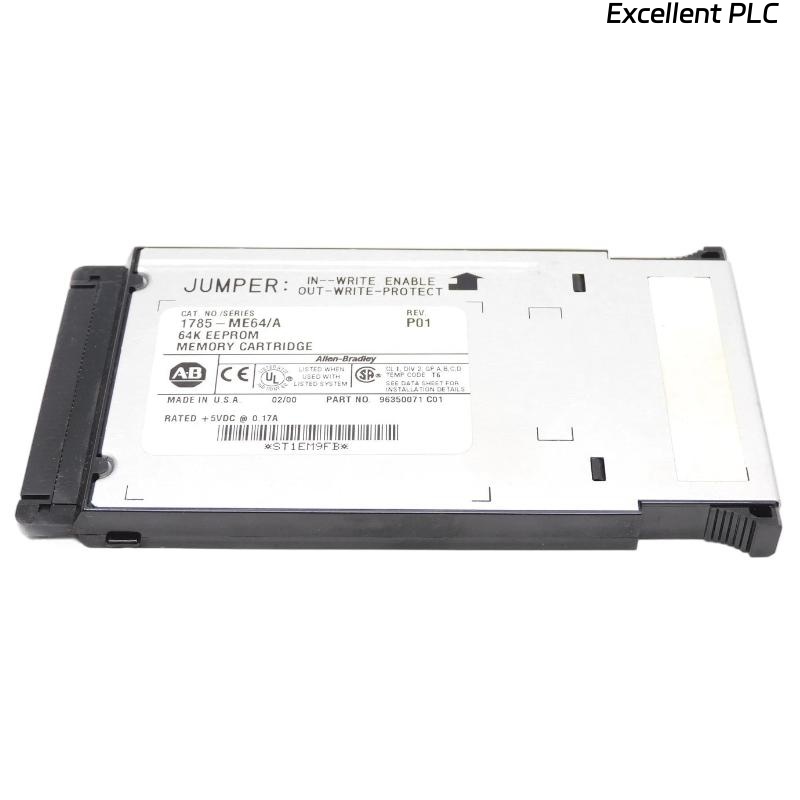

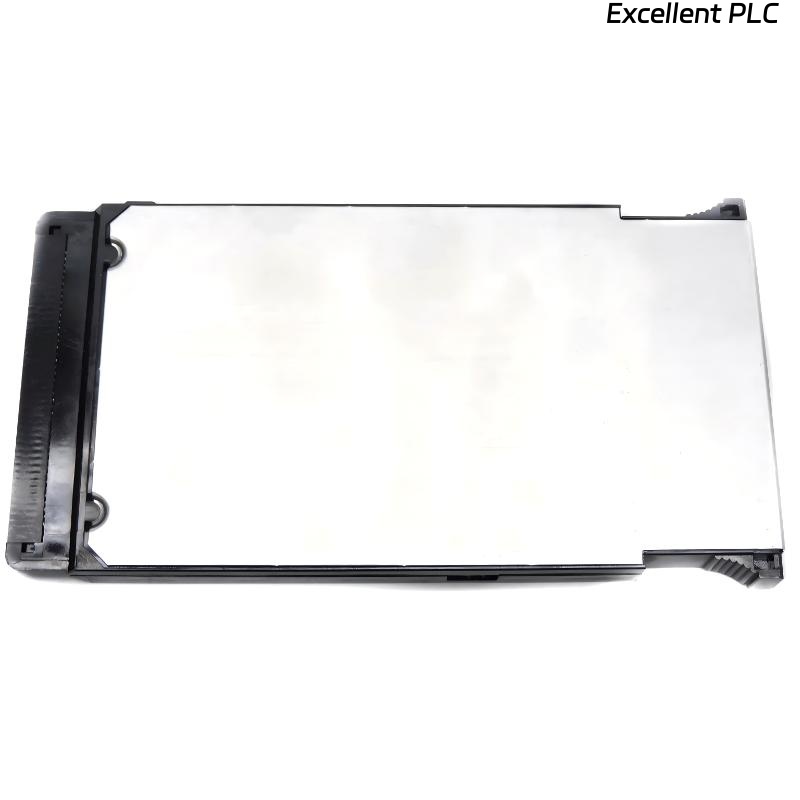

Allen Bradley 1785-ME64/A EEPROM Memory Cartridge

Product Introduction

The Allen Bradley 1785-ME64/A EEPROM Memory Cartridge is a non-volatile backup memory module designed for PLC-5 series programmable logic controllers. It provides reliable storage for control programs, configuration parameters, and critical automation data, ensuring that system programs remain preserved even when the controller is powered down.

Featuring 64 K words of EEPROM memory, this cartridge offers expanded program storage capacity for PLC-5 systems running more complex control logic. The module allows users to store the processor’s program externally and reload it when required, which is especially useful for system recovery, controller replacement, and maintenance procedures.

The 1785-ME64/A is designed for quick installation into compatible PLC-5 processors and requires no additional hardware for operation. Its compact structure and dependable memory retention make it a practical solution for safeguarding PLC programs in industrial automation environments.

---

Product Specifications

---

Applications

● PLC Program Backup
Stores complete PLC programs to prevent data loss during power interruptions or controller replacement.

● Industrial Automation Systems
Used in manufacturing plants and process industries where program integrity is essential.

● System Recovery Operations
Allows quick restoration of control logic after maintenance or unexpected shutdown.

● Machine Automation Systems
Preserves machine control programs to ensure consistent machine operation.

● Production Line Control
Maintains program stability in automated production lines that rely on PLC-based control.

● Maintenance and System Upgrades
Provides secure backup before performing system modifications or updates.

---

Advantages

● Large Memory Capacity
64 K word EEPROM storage supports larger PLC programs compared with smaller memory cartridges.

● Non-Volatile Data Storage
EEPROM technology retains stored programs even when the system loses power.

● Reliable Industrial Performance
Designed for stable operation within demanding automation environments.

● Simple Installation
Installs directly into compatible PLC-5 processors without additional configuration hardware.

● Improved System Security
Protects valuable automation programs from accidental loss.

● Efficient Maintenance Support
Makes system backup and recovery procedures faster and more convenient.

FAQ

1. What is the main purpose of the 1785-ME64/A memory cartridge?
   It provides non-volatile storage for PLC programs and configuration data so they can be restored when needed.

2. What type of memory technology does the module use?
   The cartridge uses EEPROM memory, which retains stored data without requiring continuous power.

3. What is the storage capacity of this cartridge?
   It provides 64 K words of memory for storing PLC control programs and data.

4. Which controllers are compatible with this module?
   It is designed for use with Allen Bradley PLC-5 series processors.

5. Can the stored program be restored automatically?
   Yes. When properly configured, the PLC processor can load the program stored in the EEPROM during startup.

6. Why is external program backup important in PLC systems?
   External backup protects automation programs from being lost due to power failures, hardware replacement, or maintenance operations.

7. Does the cartridge require special tools to install?
   No. It installs directly into the memory slot of the compatible PLC-5 processor.

8. Is this module suitable for long-term program storage?
   Yes. EEPROM memory provides stable long-term retention of stored data.

9. Can this module support complex PLC applications?
   Yes. With 64 K words of memory, it can store larger and more complex control programs.

10. What benefits does EEPROM offer compared with volatile memory?
    EEPROM retains stored information without power, making it ideal for backup and recovery applications.
