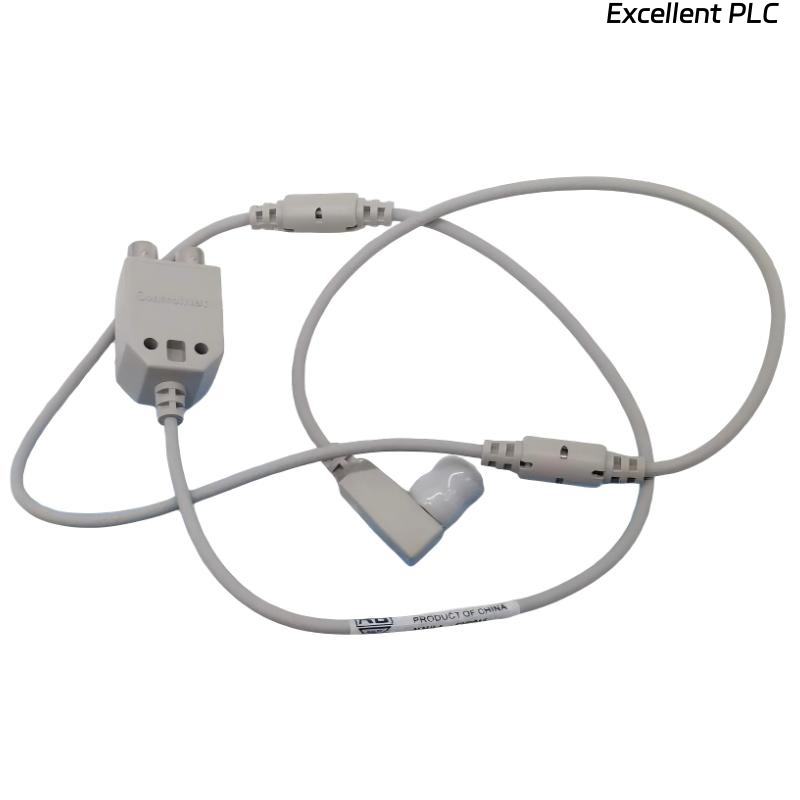

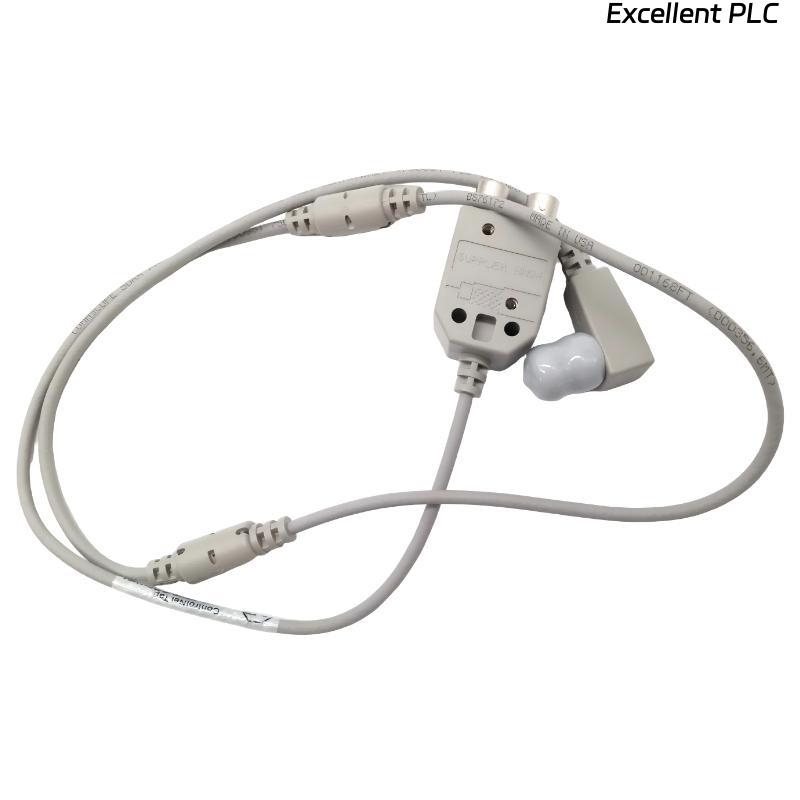

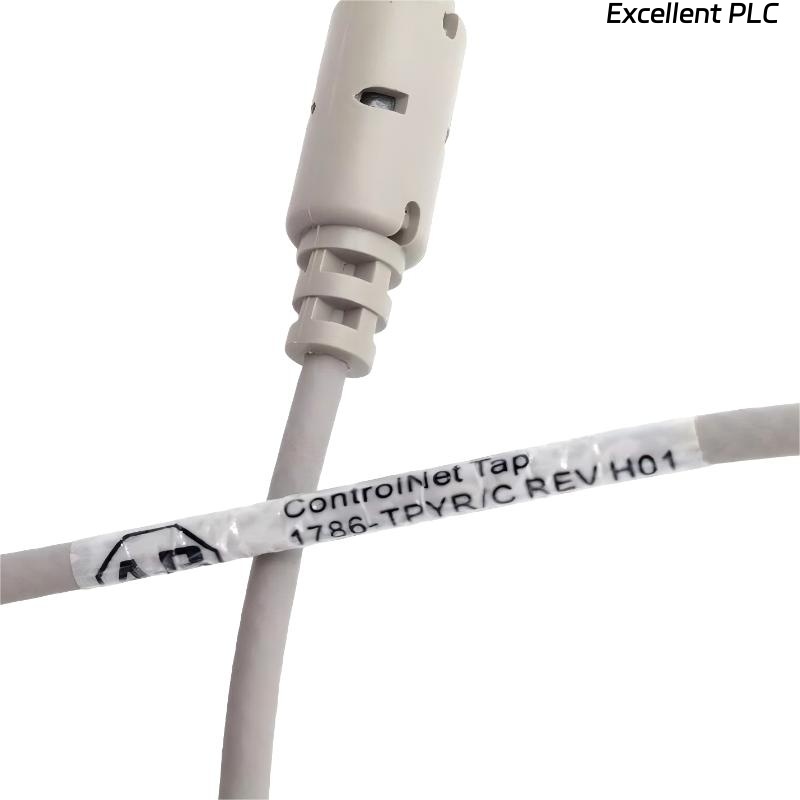

Allen Bradley 1786-TPYR ControlNet Coaxial Tap Cable
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1786-TPYR ControlNet Coaxial Tap Cable is a network connection component designed for ControlNet coaxial communication systems. It allows devices to connect to the main network trunk via a Y-Tap connection with a right-angle BNC connector, enabling multiple network nodes to access the ControlNet system without disrupting signal integrity.
This tap cable is commonly used in industrial automation networks to provide a reliable connection for controllers, remote I/O modules, and communication adapters. Its design supports easy installation in tight spaces due to the right-angle connector, making it ideal for control cabinets or network panels. The 1786-TPYR operates in industrial environments and features an IP20 enclosure rating, offering protection suitable for indoor automation applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | ControlNet Coaxial Tap Cable |
| Manufacturer | Allen Bradley |
| Model Number | 1786-TPYR |
| Network Type | ControlNet |
| Connector Type | Right-angle BNC |
| Cable Type | Coaxial Tap Cable |
| Connection Type | Y-Tap |
| Cable Length | 1 m |
| Enclosure Rating | IP20 |
| Operating Temperature | −20 to 70 °C |
| Installation Type | ControlNet network device connection |
| Application | Coaxial network access for devices |
| Industrial Usage | Automation network wiring |
| Shipping Weight | 3 kg |
Applications
● ControlNet Device Connectivity
Connects PLCs, communication modules, and remote I/O to the main network trunk.
● Industrial Automation Networks
Ensures stable signal transmission in industrial control systems.
● Control Cabinet Installations
Right-angle connector allows installation in tight spaces inside control panels.
● Distributed Control Systems
Provides reliable network access for devices spread across the plant.
● Network Expansion and Configuration
Enables flexible connection for adding new nodes without disrupting existing network signals.
● Factory Automation Networks
Maintains deterministic communication between devices within production facilities.
Advantages
● Y-Tap with Right-Angle Connector
Supports multiple network nodes while saving space in control cabinets.
● Reliable Communication
Ensures stable signal transmission between devices and the ControlNet trunk.
● Industrial Temperature Range
Operates from −20 to 70 °C for demanding industrial environments.
● IP20 Enclosure Rating
Suitable for indoor installations and protected automation environments.
● Flexible Network Installation
1-meter cable provides convenience for connecting devices to the network trunk.
● Easy Integration
Plug-and-play design simplifies connection of devices to ControlNet networks.
FAQ
-
What is the main function of the 1786-TPYR cable?
It connects ControlNet devices to the main coaxial trunk via a Y-Tap connection to enable multiple devices to communicate. -
What type of connector does this cable use?
It features a right-angle BNC connector for stable network connection. -
Why is a Y-Tap connection used in ControlNet networks?
Y-Tap connections allow multiple devices to access the network trunk without interrupting the signal. -
Which network type is this cable compatible with?
It is designed specifically for ControlNet coaxial communication networks. -
Can this cable be used in industrial automation environments?
Yes, it is suitable for industrial control systems and automation networks. -
How does the right-angle connector benefit installation?
It allows cable routing in tight spaces, improving organization and accessibility in control cabinets. -
What devices can be connected using this cable?
PLC controllers, communication adapters, remote I/O modules, and other ControlNet devices. -
How does this cable maintain network reliability?
It ensures stable signal transmission without disrupting the main coaxial trunk line. -
Where is this cable typically installed?
Inside control cabinets or network panels in industrial automation environments. -
What environmental protection does the cable provide?
The cable has an IP20 rating, suitable for indoor protected environments.
Related Models
| Model | Description |
|---|---|
| 1786-TPS | ControlNet coaxial T-Tap cable with BNC connector |
| 1786-TPR | ControlNet coax repeater with T-Tap interface |
| 1786-BNC | ControlNet RG6 coaxial connector |
| 1786-BC | ControlNet BNC T-Tap connector |
| 1786-RPCD | ControlNet dual coaxial repeater module |
| 1786-RPA | ControlNet modular repeater adapter |
Popular Models
| Model | Description |
|---|---|
| 1756-L81E | ControlLogix programmable automation controller |
| 1756-L73 | ControlLogix processor module |
| 1769-L33ER | CompactLogix controller |
| 1769-L24ER | CompactLogix processor |
| 1756-EN2T | ControlLogix Ethernet communication module |
| 1734-AENT | POINT I/O Ethernet adapter |
