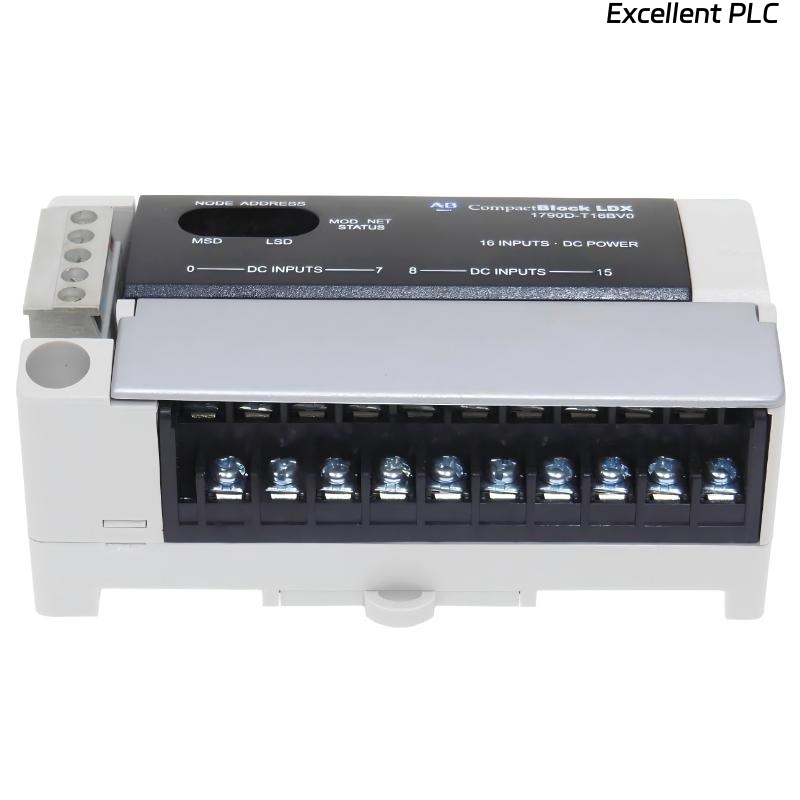

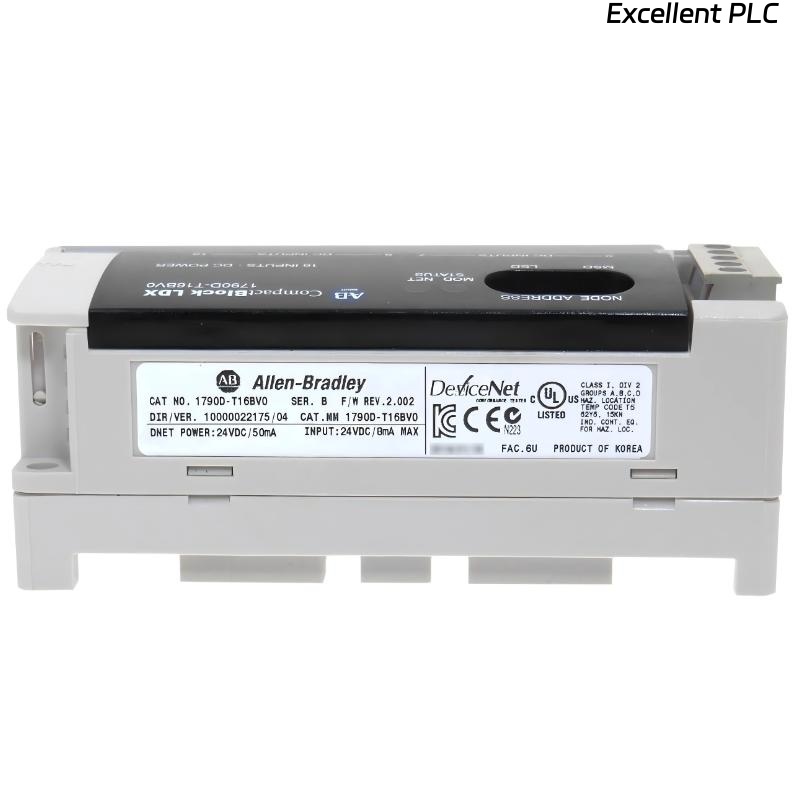

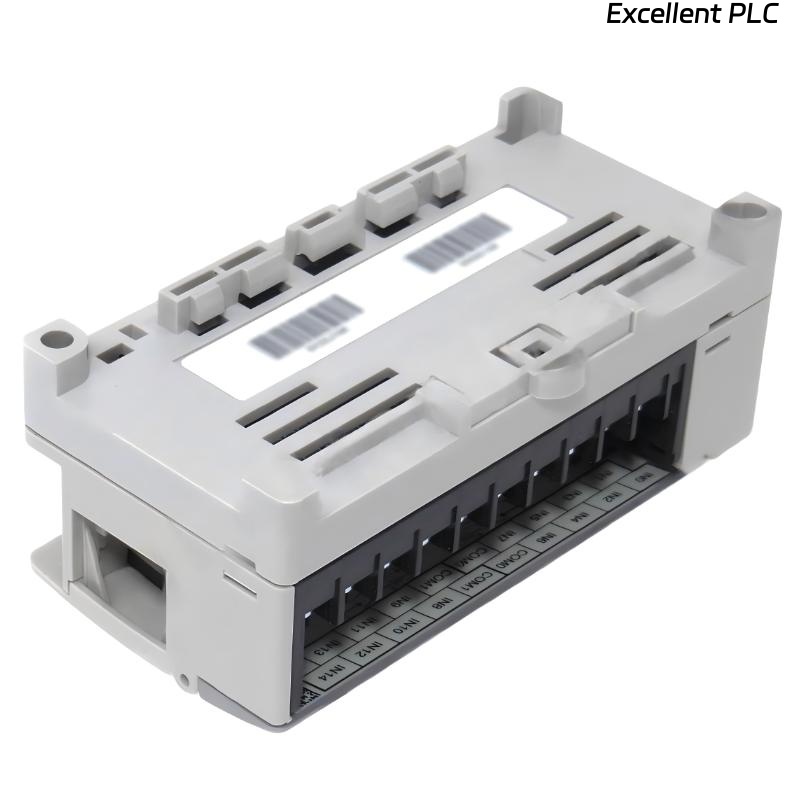

Allen Bradley 1790D-T16BV0 CompactBlock LDX I/O Base Block Module

Product Introduction

The Allen-Bradley 1790D-T16BV0 CompactBlock LDX I/O Base Block Module is a compact distributed digital input module designed for machine-level automation systems. Manufactured by Rockwell Automation under the Allen-Bradley brand, the module belongs to the CompactBlock LDX series and is intended to simplify field wiring and distributed I/O deployment.

The module provides 16 digital input channels that support both sinking and sourcing input configurations, allowing it to connect with a wide range of industrial sensors and switches. It operates with a nominal supply voltage of 24 VDC and supports an input voltage range of 9.6–28.8 VDC, which fits standard industrial control systems.

With a 2 ms response time, the module can quickly detect signal changes from field devices. Its compact structure and integrated terminal design make it suitable for installation in machine panels where space is limited while maintaining reliable signal acquisition.

---

Product Specifications

---

Applications

• Machine Automation Systems
Used to collect digital signals from limit switches, proximity sensors, and push buttons in automated machinery.

• Packaging and Sorting Equipment
Detects product presence, position signals, and sensor triggers used in packaging lines.

• Material Handling and Conveyor Systems
Monitors operational signals such as conveyor status, item detection, and equipment interlock conditions.

• Factory Production Lines
Captures input signals from assembly stations, automated work cells, and inspection equipment.

• OEM Industrial Equipment
Integrated into machine control panels to gather field signals while maintaining a compact installation footprint.

• Process Monitoring Systems
Used for reading valve position signals, safety switch feedback, and equipment operating status.

---

Advantages

• Compact Structural Design
The small mechanical footprint helps reduce control cabinet space while allowing flexible installation in machine panels.

• Flexible Sensor Compatibility
Supports both sinking and sourcing input devices, enabling connection with many types of industrial sensors.

• Fast Signal Processing Capability
A response time of 2 ms allows the module to quickly detect changes in input signals for reliable machine control.

• Simplified Field Wiring
Integrated terminal connections reduce wiring complexity and improve installation efficiency.

• Reliable Industrial Performance
Built with industrial-grade components to support stable operation in demanding automation environments.

• Suitable for Distributed I/O Systems
Designed for decentralized automation architectures where signal acquisition occurs close to the machine.

FAQ

1. What types of devices can be connected to the digital inputs of this module?
   The module is typically connected to industrial field devices such as proximity sensors, photoelectric sensors, push buttons, selector switches, and limit switches that provide discrete signal outputs.

2. How does the module detect digital input signals?
   Each input channel contains signal conditioning circuitry that converts the incoming voltage signal into a stable logic signal for the control system.

3. What is the benefit of supporting both sinking and sourcing inputs?
   Supporting both input types allows the module to connect with a broader range of sensors and field devices without additional signal converters.

4. How does the module handle electrical noise from industrial equipment?
   The input circuits include filtering and protection features that help minimize interference caused by electrical noise from motors or switching devices.

5. Can the module detect fast-changing signals from sensors?
   Yes. The 2 millisecond response time allows the module to detect rapid signal transitions in automated equipment.

6. How are field sensors wired to the module?
   Sensors are connected directly to the integrated terminal block using standard industrial wiring practices.

7. Is the module suitable for distributed I/O system architecture?
   Yes. CompactBlock modules are commonly used in distributed I/O designs where signal acquisition occurs close to the machine.

8. Can multiple modules operate within the same control system?
   Yes. Several modules can be installed in a single machine or system to increase the number of available digital input channels.

9. What type of control system typically uses this module?
   The module is commonly integrated into PLC-based automation systems used in manufacturing and industrial processing environments.

10. How does the module ensure stable signal processing?
    The internal electronics provide signal filtering and voltage tolerance features that ensure stable input detection under typical industrial conditions.
