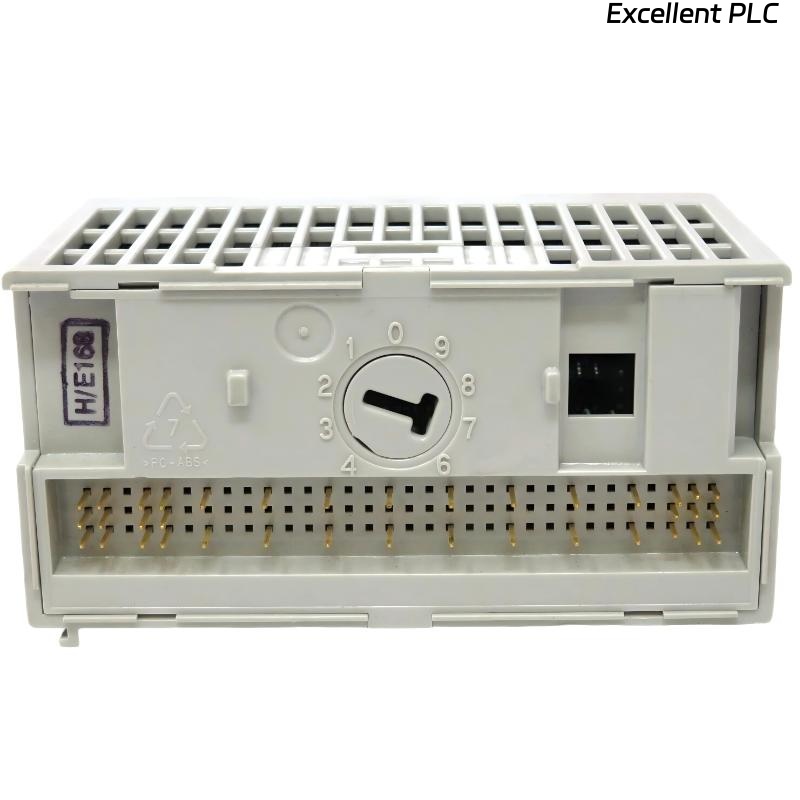

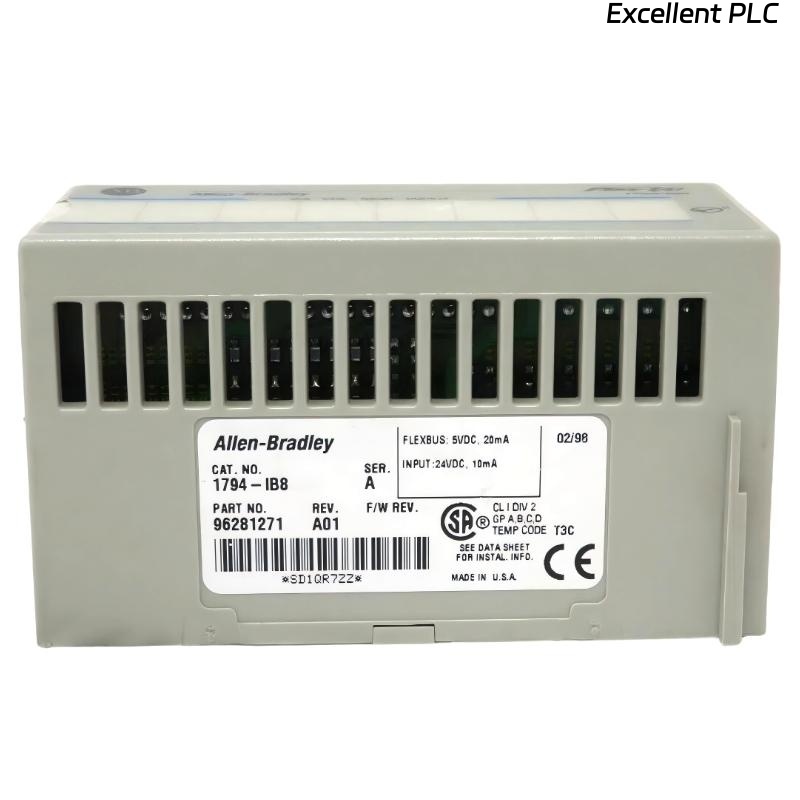

The Allen-Bradley 1794-IB8 FLEX I/O DC Digital Input Module is a compact and reliable discrete input module designed for industrial automation systems requiring accurate and stable signal acquisition. As part of the FLEX I/O platform developed by Rockwell Automation, this module is widely used in distributed control architectures where flexibility and scalability are essential.
With 8 sinking input points operating at 24 VDC, the 1794-IB8 is well-suited for interfacing with a variety of field devices such as sensors, switches, and contact outputs. Its open-style design allows for efficient heat dissipation, while the DIN rail mounting structure simplifies installation and maintenance.
This module is engineered to deliver dependable performance in industrial environments, ensuring consistent signal processing and seamless integration with PLC systems through FLEX I/O communication adapters.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 1794-IB8 |
| Brand | Allen-Bradley |
| Series | FLEX I/O |
| Module Type | Discrete Digital Input |
| Input Type | DC Input |
| Number of Inputs | 8 Points |
| Input Configuration | Sinking (NPN) |
| Rated Voltage | 24 VDC |
| Signal Type | Discrete |
| Mounting Type | DIN Mount |
| Construction | Open Style |
| Protection Rating | IP20 |
| Communication | FLEX I/O Backplane Communication |
| Isolation | Electrical isolation between field and system |
| Response Time | Fast response for real-time input detection |
| Dimensions | 94 x 46 x 53 mm |
| Weight | 0.071 kg |
Applications
• Industrial Control Systems – Designed for accurate acquisition of discrete input signals from field devices such as push buttons and limit switches.
• Automated Manufacturing Equipment – Used for monitoring machine states and operational signals in production lines.
• Process Automation – Suitable for capturing status signals in industries like chemical processing, oil & gas, and power plants.
• Material Handling Systems – Enables reliable detection of object presence and motion signals in conveyors and logistics systems.
• Distributed I/O Networks – Ideal for remote I/O installations, improving wiring efficiency and system scalability.
Advantages
• Compact Input Solution – Provides 8 reliable digital input channels in a space-saving module design.
• Stable Signal Processing – Ensures accurate and noise-resistant input detection for industrial applications.
• Flexible Installation – Supports standard DIN rail mounting, reducing installation time and effort.
• Seamless Integration – Fully compatible with FLEX I/O systems, enabling easy expansion and configuration.
• Industrial-Grade Reliability – Designed to operate consistently in demanding automation environments.
• Efficient System Design – Reduces wiring complexity and supports modular distributed architectures.
