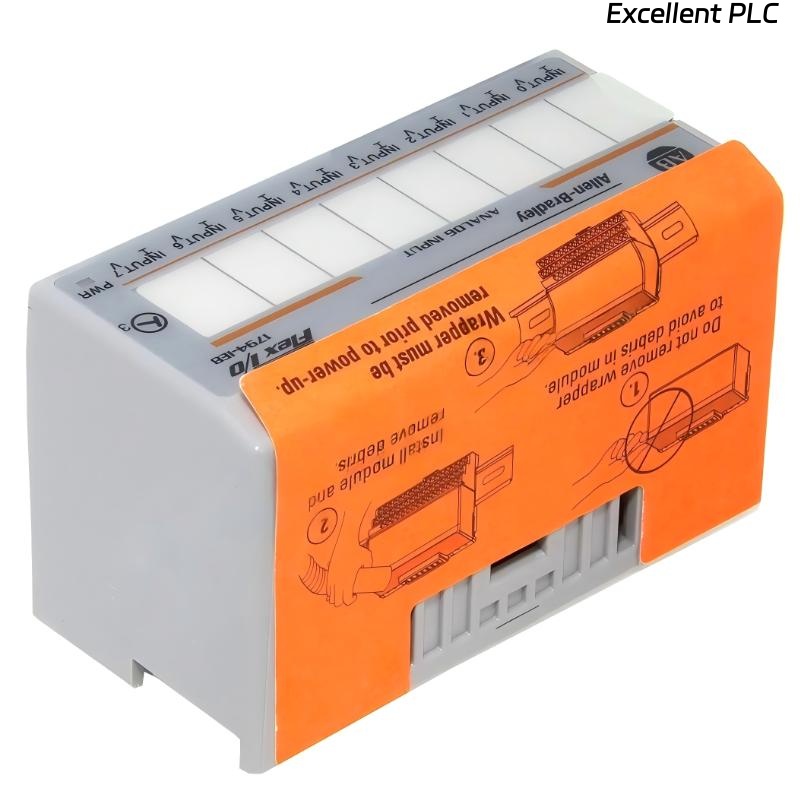

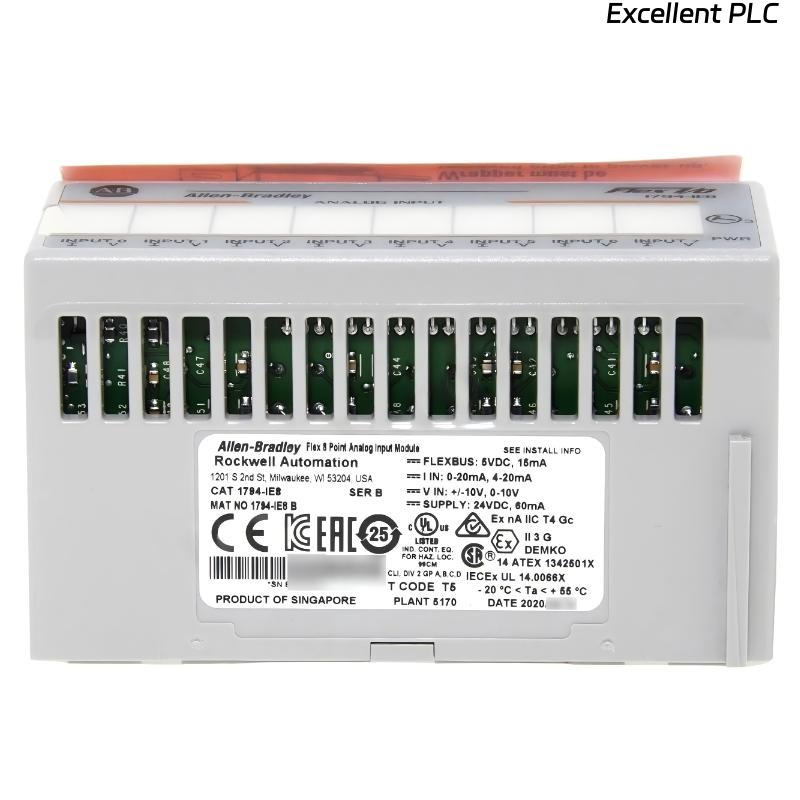

Allen Bradley 1794-IE8 Flex I/O Analog Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1794-IE8 FLEX I/O Analog Input Module is a compact and reliable analog input module designed for accurate signal acquisition in distributed industrial control systems. As a member of the FLEX I/O family developed by Rockwell Automation, this module provides efficient integration for applications requiring stable and precise analog data collection.
With 8 single-ended input channels, the 1794-IE8 supports a wide range of analog signals, making it suitable for interfacing with transmitters and sensors in process automation environments. Its design focuses on delivering consistent performance while maintaining a compact footprint for space-constrained control panels.
The module features an open-style structure and DIN rail mounting, ensuring easy installation and effective heat dissipation. It is widely used in industrial systems where dependable analog signal monitoring is essential.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 1794-IE8 |
| Brand | Allen-Bradley |
| Series | FLEX I/O |
| Module Type | Analog Input Module |
| Signal Type | Analog |
| Number of Channels | 8 Channels |
| Input Configuration | Single-Ended Input |
| Input Type | Current / Voltage (Typical Industrial Signals) |
| Backplane Current | 60 mA |
| External Power Supply | 24 VDC |
| Internal Power Requirement | 5 VDC / 15 mA |
| Mounting Type | DIN Mount |
| Construction | Open Style |
| Protection Rating | IP20 |
| Communication | FLEX I/O Backplane Communication |
| Isolation | Electrical isolation between field and system |
| Performance | Stable analog signal acquisition |
| Dimensions | 94 × 46 × 53 mm |
| Weight | 0.11 kg |
Applications
• Process Automation Systems – Used for accurate acquisition of analog signals such as temperature, pressure, and flow.
• Industrial Monitoring Systems – Enables real-time tracking of process variables from field transmitters.
• Energy and Utility Applications – Suitable for measurement and monitoring of electrical and process parameters.
• Manufacturing Equipment – Provides stable analog signal input for automated machinery and production lines.
• Distributed I/O Systems – Ideal for remote analog data collection, improving system flexibility and reducing wiring complexity.
Advantages
• Compact Design – Offers space-efficient installation in control panels with limited space.
• Reliable Signal Processing – Ensures stable and accurate analog data acquisition for industrial applications.
• Flexible Integration – Compatible with FLEX I/O systems for easy expansion and modular configuration.
• Efficient Power Usage – Optimized for low power consumption, improving system efficiency.
• Easy Installation – DIN rail mounting simplifies setup and maintenance.
• Wide Application Range – Supports various analog signal types, making it adaptable to multiple industries.
FAQ
-
What types of signals can this module accept?
It accepts standard industrial analog signals, including current and voltage inputs. -
What does single-ended input mean?
It means all channels share a common reference point, simplifying wiring for most applications. -
How many channels are available on this module?
The module provides 8 analog input channels. -
Is this module suitable for PLC integration?
Yes, it integrates with PLC systems through FLEX I/O communication adapters. -
What kind of devices are typically connected?
Transmitters, sensors, and other analog-output field devices are commonly connected. -
Does the module require an external power supply?
Yes, it typically operates with a 24 VDC external power supply. -
Is it suitable for distributed I/O systems?
Yes, it is designed for distributed architectures using FLEX I/O platforms. -
What industries commonly use this module?
Industries such as manufacturing, energy, and process control widely use it. -
How is the module installed?
It is mounted on a DIN rail inside a control cabinet. -
How does it communicate with the controller?
It communicates via the FLEX I/O backplane connected to a network adapter.
Related Models
| Model | Description |
|---|---|
| 1794-IE12 | 12-channel analog input module |
| 1794-IE4XOE2 | Analog combination module |
| 1794-OE4 | 4-channel analog output module |
| 1794-IF4I | Isolated analog input module |
| 1794-IB16 | Digital input module |
| 1794-OB16 | Digital output module |
Popular Models
| Model | Description |
|---|---|
| 1794-AENT | Ethernet adapter module |
| 1794-ACN15 | ControlNet adapter module |
| 1794-ADN | DeviceNet adapter module |
| 1734-IE4C | POINT I/O analog input module |
| 1756-IF8 | ControlLogix analog input module |
| 1769-IF8 | CompactLogix analog input module |
