Product Introduction

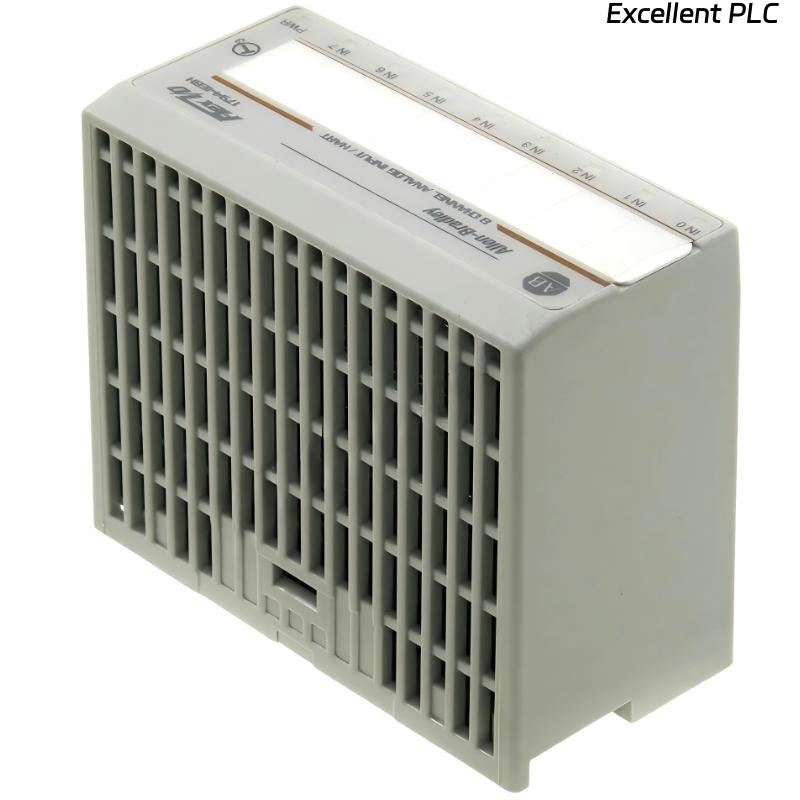

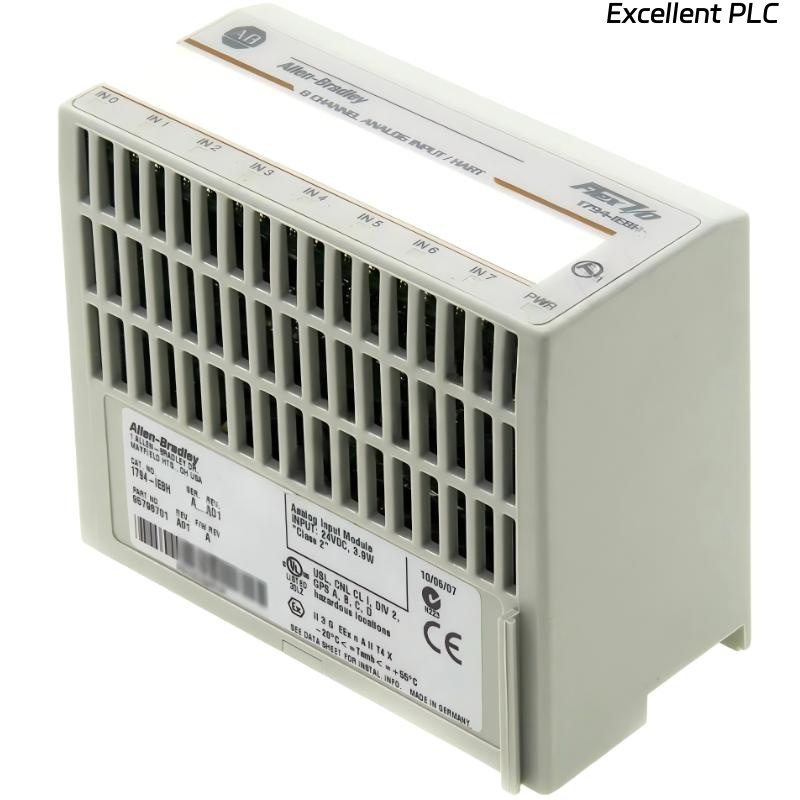

The Allen-Bradley 1794-IE8H FLEX I/O HART Analog Input Module is a high-precision analog input module designed for industrial automation systems requiring HART-enabled communication for smart field devices. As part of the FLEX I/O platform from Rockwell Automation, this module allows integration of both traditional analog signals and digital HART communication, enabling enhanced process monitoring and control.
With 8 single-ended input channels, the 1794-IE8H supports both current and voltage inputs from transmitters and other field instruments. Its HART capability allows access to additional device diagnostics and configuration parameters without interrupting analog signal processing. The open-style construction and DIN rail mounting ensure simple installation and effective heat dissipation, making it ideal for distributed I/O systems in demanding industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 1794-IE8H |
| Brand | Allen-Bradley |
| Series | FLEX I/O |
| Module Type | HART Analog Input Module |
| Signal Type | Analog / HART |
| Number of Channels | 8 Channels |
| Input Configuration | Single-Ended Input |
| Input Type | Current / Voltage (HART compatible) |
| HART Capability | Yes, supports HART protocol communication |
| Mounting Type | DIN Mount |
| Construction | Open Style |
| Protection Rating | IP20 |
| Communication | FLEX I/O Backplane Communication |
| Isolation | Electrical isolation between field and system |
| Function | Analog signal measurement with HART digital overlay |
| Dimensions | 94 × 46 × 75 mm |
| Weight | 0.2 kg |
Applications
• Smart Process Control – Monitors analog signals from HART-enabled transmitters while accessing device diagnostics.
• Industrial Automation – Enables real-time acquisition of both standard analog and HART digital data.
• Energy and Utilities – Suitable for integration with HART instruments for enhanced process measurement.
• Chemical and Oil & Gas Industries – Supports remote device configuration and process monitoring using HART-enabled devices.
• Distributed I/O Architectures – Ideal for remote analog data acquisition with advanced HART diagnostics.
Advantages
• HART Communication Capability – Provides digital overlay on analog signals, allowing access to diagnostics, calibration, and configuration.
• Multi-Signal Support – Handles both current and voltage analog inputs, increasing system versatility.
• High Channel Density – Offers 8 single-ended input channels in a compact module.
• Reliable Signal Acquisition – Ensures accurate and stable analog measurements in industrial environments.
• Easy Installation – DIN rail mounting allows quick and convenient integration into control panels.
• Flexible System Integration – Fully compatible with FLEX I/O systems for distributed and modular automation solutions.
