Allen Bradley 1794-TB32 Flex I/O Terminal Base Unit

Product Introduction

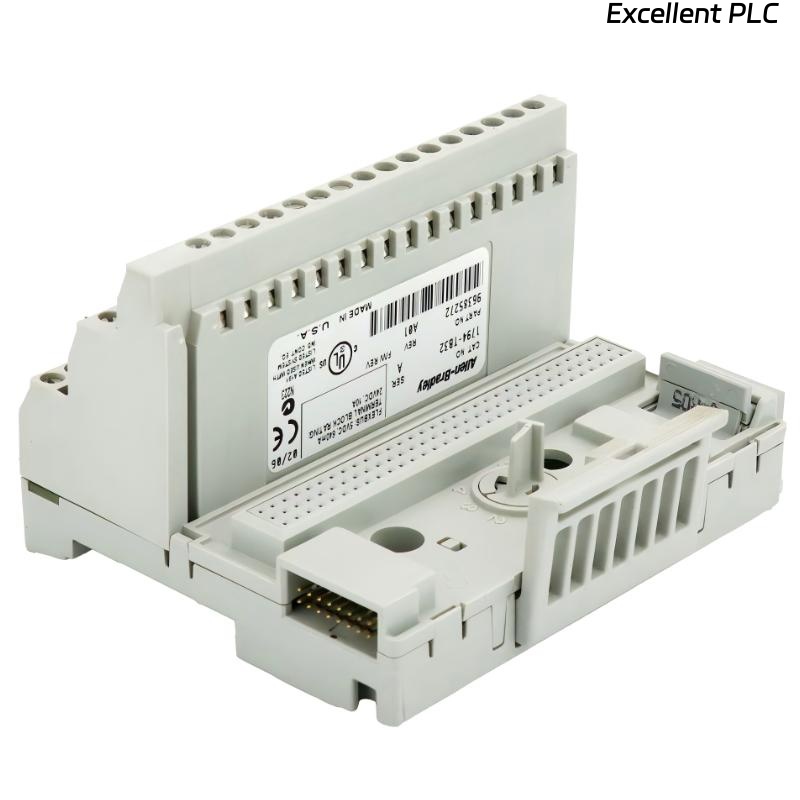

The Allen Bradley 1794-TB32 Flex I/O Terminal Base Unit is a high-density terminal base designed for the FLEX I/O system, providing 32 connection points for industrial automation applications. This unit serves as a robust interface for field devices, enabling secure wiring and efficient organization of inputs and outputs in complex control systems.

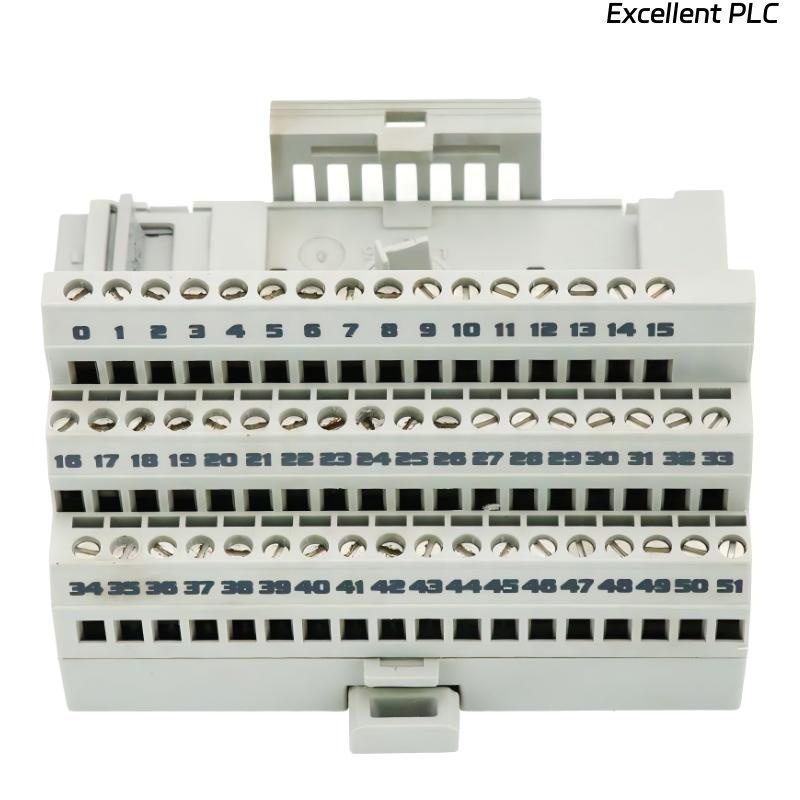

Equipped with 32 points, including 8 common terminals and 8 dedicated +V terminals, the 1794-TB32 supports a variety of digital and analog modules. Its cage clamp terminals and DIN rail mountable design ensure reliable connections, simple maintenance, and easy integration into control panels. It supports wire sizes ranging from 24 to 16 AWG, making it suitable for a wide range of sensor and actuator connections.

The open-style design allows for quick inspection and troubleshooting, while its IP20 rating provides protection against solid objects and incidental contact. The 1794-TB32 is widely used in process control, factory automation, and machinery monitoring systems requiring high-density, flexible, and reliable I/O connectivity.

---

Product Specifications

---

Applications

• High-density I/O connection for FLEX I/O modules in industrial automation

• Process control systems requiring multiple points for sensors and actuators

• Factory automation and machinery monitoring applications

• Distributed control architectures where flexible and organized wiring is essential

• DIN rail installation for space-efficient control panel layouts

• Suitable for manufacturing, oil & gas, and heavy industrial environments requiring reliable and high-density connections

---

Advantages

• High-density 32-point design allows more devices to be connected per module

• Cage clamp terminals provide secure, vibration-resistant connections

• Supports 24–16 AWG wiring for versatile field device connectivity

• DIN rail mountable for efficient installation and panel organization

• Open-style construction enables quick inspection and maintenance

• IP20 rated protects terminals from solid objects and accidental contact

FAQ

1. What is the primary function of the 1794-TB32 terminal base?
It serves as a high-density wiring interface for FLEX I/O modules, providing secure and organized connections for field devices.

2. How many I/O points are available on this unit?
It offers 32 points, including 8 common terminals and 8 dedicated +V terminals.

3. What type of terminals are used in this unit?
It uses cage clamp terminals, which ensure reliable and vibration-resistant connections.

4. What wire sizes are supported?
It supports 24–16 AWG wires for flexible connection to various sensors and actuators.

5. How is it mounted in a control panel?
It is designed for DIN rail mounting, making installation compact and organized.

6. Can it be used in industrial environments?
Yes, with an IP20 rating, it protects against solid objects and incidental contact while providing reliable connections.

7. How does the open-style design benefit maintenance?
It allows visual inspection and easy access for wiring, troubleshooting, and modifications.

8. Can multiple 1794-TB32 units be combined?
Yes, multiple units can be used together to expand the I/O capacity in large FLEX I/O systems.

9. Is it compatible with all FLEX I/O modules?
It is compatible with most FLEX I/O modules, but module-specific compatibility should be verified.

10. What are the advantages of using this terminal base?
It provides high-density connections, secure wiring, easy maintenance, and supports flexible and reliable I/O integration in industrial automation systems.
