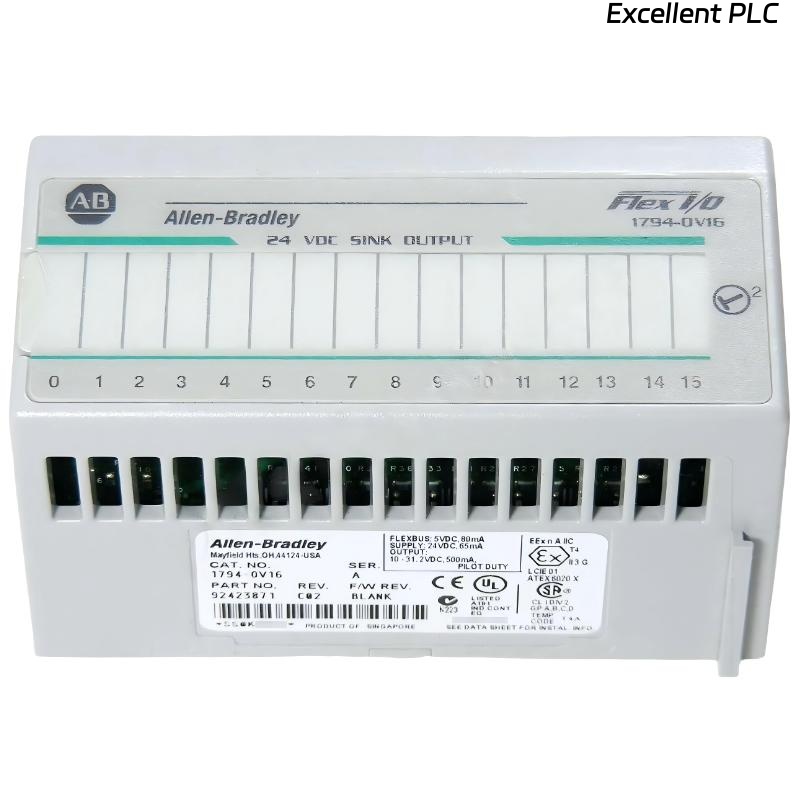

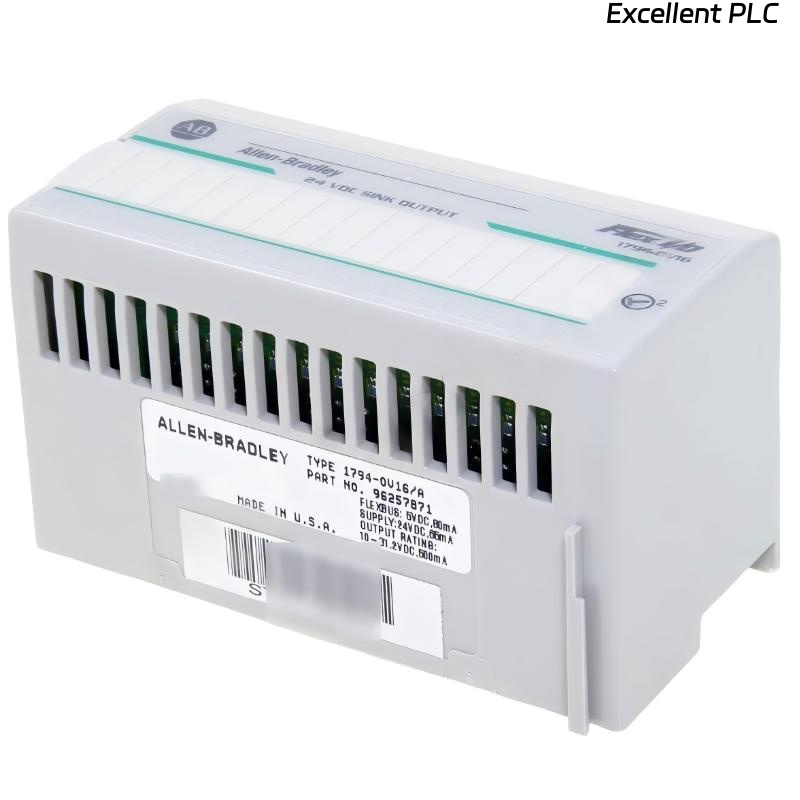

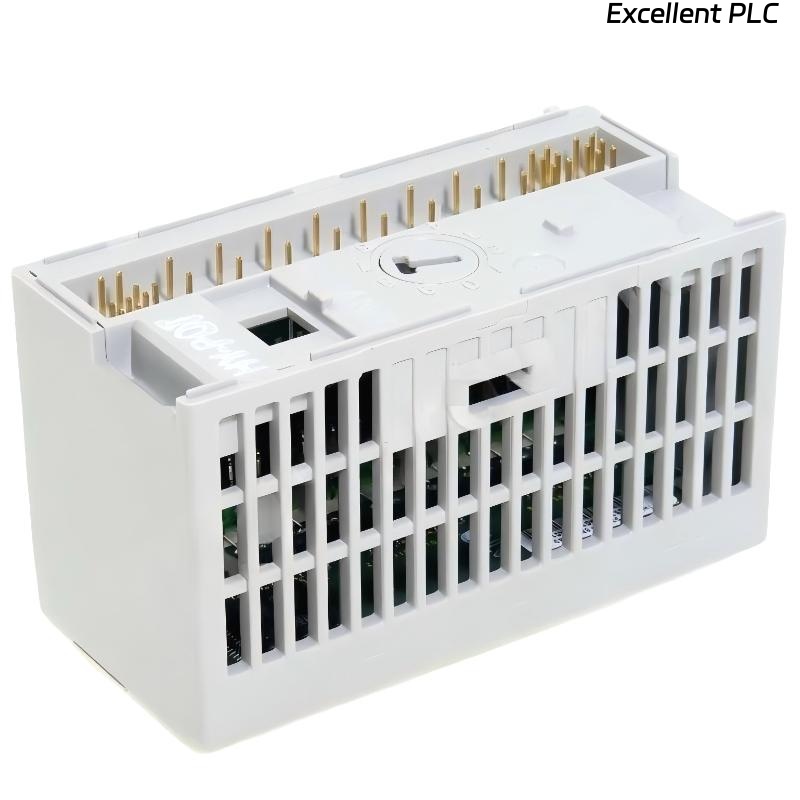

Allen Bradley 1794-OV16 Flex I/O Digital Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1794-OV16 FLEX I/O Digital Output Module is a versatile sinking output module designed to provide reliable control of DC-powered field devices in industrial automation systems. Part of the FLEX I/O series from Rockwell Automation, this module features 16 discrete sinking output points, making it ideal for applications where devices need to be activated by connecting to ground.
Its open-style housing and DIN rail mounting allow easy installation and access for wiring. The 1794-OV16 is built for stable, long-term operation in industrial environments, providing efficient control of loads such as relays, lamps, and solenoids. It is fully compatible with distributed I/O systems, supporting flexible layouts and reduced wiring complexity.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Digital Sinking Output Module |
| Series | FLEX I/O |
| Manufacturer | Rockwell Automation |
| Model Number | 1794-OV16 |
| Number of Channels | 16 Outputs |
| Output Type | Sinking DC Output |
| Rated Voltage | 24 VDC |
| Output Configuration | Discrete |
| Load Type | DC Devices (Relays, Lamps, Solenoids) |
| Channel Configuration | 16 Points |
| Isolation | Channel-to-backplane isolation |
| Mounting Method | DIN Rail Mount |
| Housing Type | Open Style |
| Ingress Protection | IP20 |
| Response Time | Suitable for standard DC switching |
| Wiring Method | Compatible with FLEX I/O terminal bases |
| Dimensions | 97 x 46 x 53 mm |
| Weight | 0.16 kg |
Applications
● Used in industrial automation systems to control DC devices such as relays, solenoids, and indicator lamps
● Ideal for machine control, including actuators, conveyors, and auxiliary equipment
● Suitable for distributed I/O systems, reducing wiring length and simplifying system layout
● Applied in building automation for controlling lighting and auxiliary DC loads
● Integrated into PLC-based control systems for coordinated activation of DC outputs
● Used in process control environments where reliable sinking outputs are needed
Advantages
● 16-point sinking output allows simultaneous control of multiple DC devices
● Compatible with 24 VDC devices, widely used in industrial automation
● Open-style housing with DIN rail mounting simplifies installation and maintenance
● Distributed I/O support enables flexible system layouts
● Compact design saves space in control panels
● Industrial-grade construction ensures reliable operation in harsh environments
● Seamless integration with FLEX I/O systems provides easy expansion and upgrades
FAQ
-
What types of devices can this module control?
It is designed to control DC devices, including relays, lamps, solenoids, and other 24 VDC equipment. -
What does sinking output mean?
Sinking outputs activate devices by providing a path to ground, allowing current to flow from the device to the module. -
Can it be used in distributed I/O systems?
Yes, it integrates with FLEX I/O architectures, allowing placement near field devices to reduce wiring. -
How does it differ from sourcing output modules?
Sourcing modules provide voltage to the load, whereas sinking modules provide the return path to ground. -
Is it suitable for continuous operation?
Yes, it is designed for reliable long-term operation in industrial environments. -
Does it require special wiring considerations?
Proper grounding and standard industrial wiring practices are required to ensure safe and stable operation. -
Is it compatible with PLC systems?
Yes, it works with most PLCs using the appropriate FLEX I/O adapter. -
How reliable is it under high load conditions?
It is built to handle standard DC loads reliably, with built-in protection from overcurrent conditions. -
Can multiple channels be controlled independently?
Yes, each channel operates independently, allowing flexible control strategies. -
Where should this module be installed?
It should be mounted on a DIN rail inside a control panel or enclosure, protected from environmental hazards.
Related Models
| Model | Channels | Voltage | Output Type | Description |
|---|---|---|---|---|
| 1794-OB16 | 16 | 24 VDC | Sourcing | Standard DC output module |
| 1794-OB16P | 16 | 24 VDC | Sourcing | Protected DC output module |
| 1794-OM8 | 16 | 220 VAC | AC Output | AC output module |
| 1794-OM16 | 16 | 240 VAC | AC Output | High-density AC output module |
| 1794-IB16 | 16 | 24 VDC | Input | Digital input module |
| 1794-IE8 | 8 | Analog | Input | Analog input module |
Popular Models
| Model | Type | Channels | Voltage | Application |
|---|---|---|---|---|
| 1794-IB16 | Digital Input | 16 | 24 VDC | Input monitoring |
| 1794-OB16 | Digital Output | 16 | 24 VDC | Output control |
| 1794-IE8 | Analog Input | 8 | ±10V / 4–20 mA | Process signals |
| 1794-OE4 | Analog Output | 4 | 4–20 mA | Process control |
| 1794-IF8IH | Analog Input | 8 | HART | Smart instrumentation |
| 1794-IT8 | Temperature Input | 8 | RTD/TC | Temperature systems |
