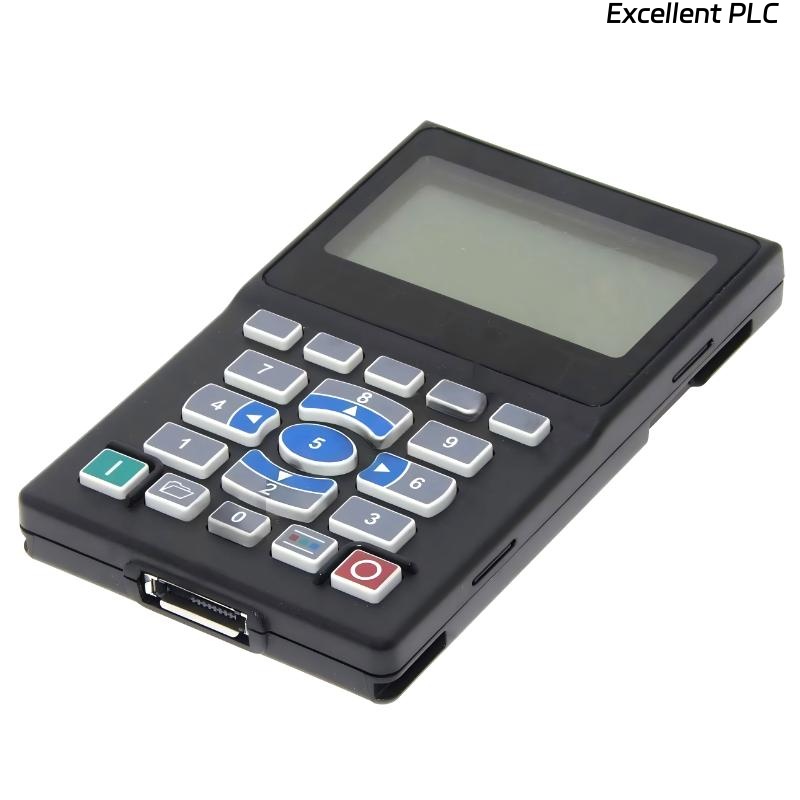

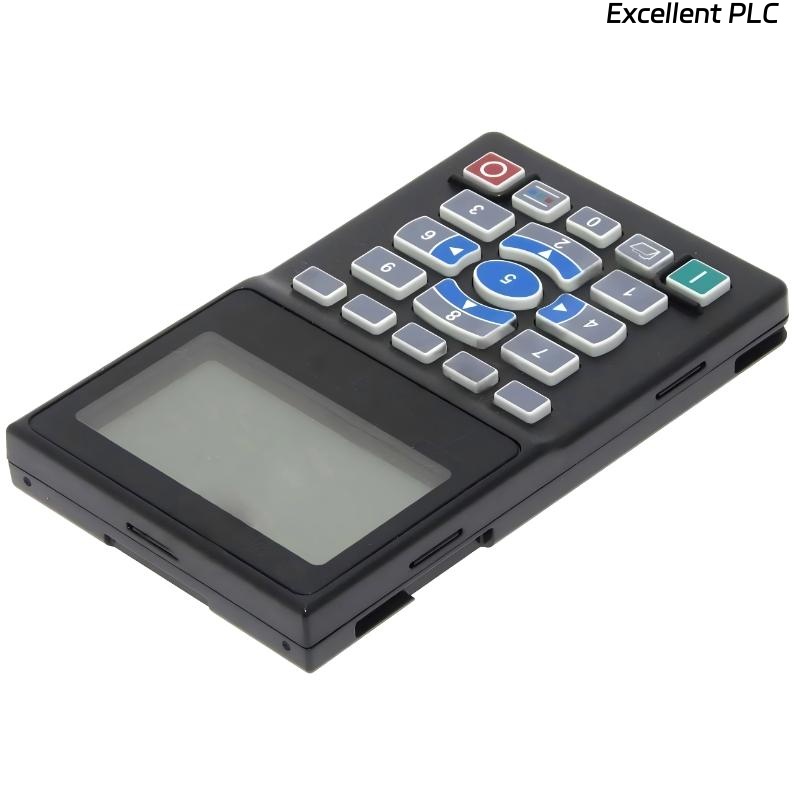

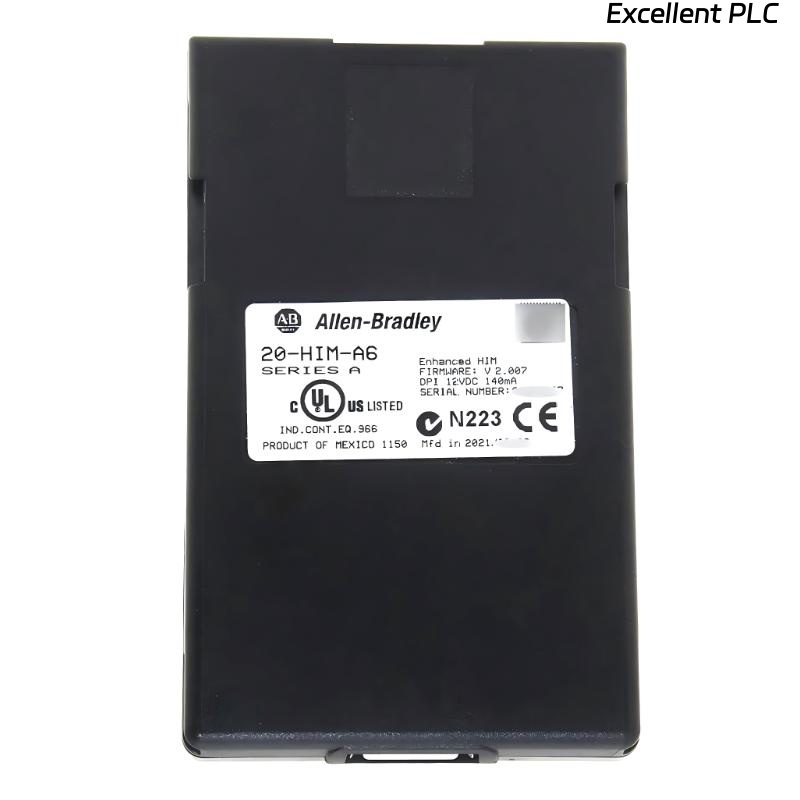

Allen Bradley 20-HIM-A6 PowerFlex Human Interface Module

Product Introduction

The Allen-Bradley 20-HIM-A6 PowerFlex Human Interface Module is an enhanced Human Interface Module (HIM) specifically designed for the PowerFlex 750-Series drives from Rockwell Automation. It provides a more advanced and intuitive user experience compared to standard HIM models, making it ideal for both commissioning and ongoing operation in industrial environments.

Equipped with a full-numeric keypad and integrated navigation functionality, the 20-HIM-A6 allows users to efficiently configure parameters, monitor system performance, and manage connected peripherals. The module features a dynamic LCD display with soft keys, which adapt based on the current screen or input mode, simplifying operation and reducing the number of physical keys required. Additionally, the enhanced display includes a flashing alert feature to improve visibility when alarms or faults occur, helping operators respond quickly to system events.

---

Product Specifications

---

Applications

• Drive Configuration – Efficient setup and parameter adjustment for PowerFlex 750-Series drives.

• System Monitoring – Real-time display of drive status, alarms, and performance data.

• Industrial Automation Systems – Ideal for applications requiring advanced operator interaction.

• Maintenance and Troubleshooting – Enables quick diagnostics and fault identification.

• Multi-Device Management – Supports monitoring and naming of connected peripherals.

---

Advantages

• Enhanced User Interface – Dynamic soft keys simplify navigation and reduce operational complexity.

• Full Numeric Keypad – Enables fast and accurate data entry.

• Customizable Monitoring – Users can define and display key parameters for quick access.

• Multi-Language Support – Suitable for global industrial environments.

• Alarm Visibility – Flashing LCD alerts improve response time to faults and warnings.

• Compact and Lightweight – Easy to install or use as a portable interface.

FAQ

1. What is the main difference between the 20-HIM-A6 and standard HIM modules?
   The A6 is an enhanced HIM with dynamic soft keys, improved navigation, customizable monitoring, and better alarm visibility compared to basic models.
2. Is this module compatible with all PowerFlex drives?
   It is primarily designed for PowerFlex 750-Series drives, and compatibility with other series should be verified.
3. Does it support multiple languages?
   Yes, it supports English as well as common European and Asian languages, making it suitable for international use.
4. What type of display does it use?
   It uses an LCD display with dynamic soft keys that change function depending on the screen.
5. Can users customize displayed parameters?
   Yes, users can customize monitoring items and display them as lists or individual screens.
6. Does it provide alarm indication?
   Yes, the display includes a flashing feature to highlight alarms and faults clearly.
7. Is it portable or fixed-mounted?
   It can be used as a panel-mounted or portable device, depending on application needs.
8. Does it include a numeric keypad?
   Yes, it features a full numeric keypad with integrated navigation controls.
9. Is it suitable for industrial environments?
   Yes, with a NEMA 1 rating, it is designed for industrial use in protected environments.
10. Can it simplify system configuration?
    Yes, its intuitive interface and navigation features significantly reduce setup time and complexity.
