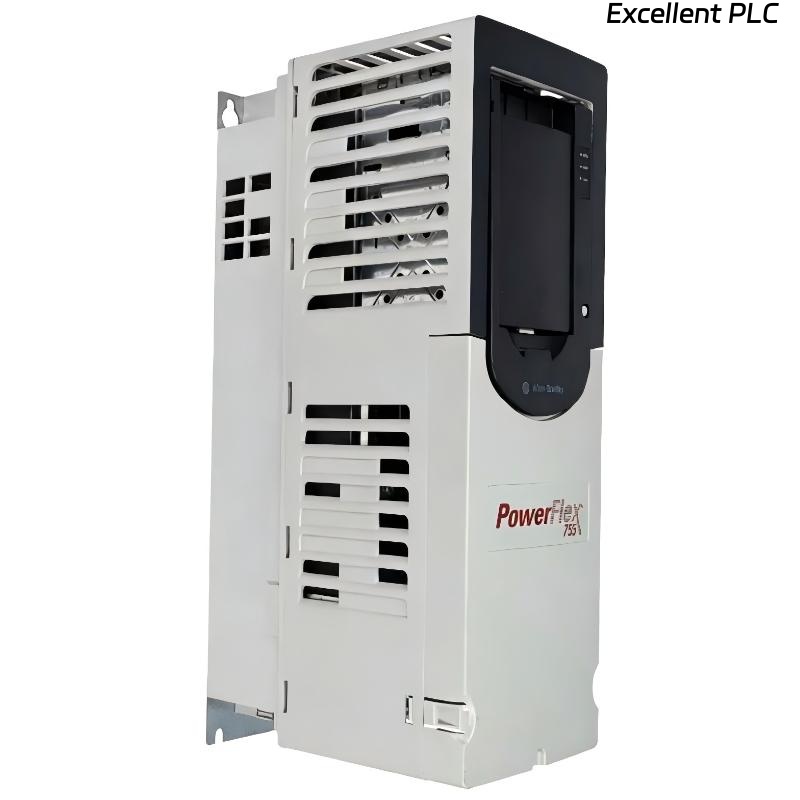

Allen Bradley 20G11NC3P5JA0NNNNN PowerFlex 755 AC Drive
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 20G11NC3P5JA0NNNNN PowerFlex 755 AC Drive is a compact and high-performance variable frequency drive designed for precision control in low-power industrial applications. As part of the PowerFlex 755 lineup from Rockwell Automation, this model combines advanced control capabilities with a space-saving design, making it ideal for modern automation systems.
Operating on 400 VAC input with support for a 540 VDC DC bus, the drive delivers 1.5 kW (2 HP) and 3.5 A output current. It features an air-cooled, open-type construction, integrated filtering, and precharge functionality to ensure safe startup and reliable operation. The inclusion of an internal transistor and installed jumper simplifies integration and enhances control flexibility.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 20G11NC3P5JA0NNNNN |
| Series | PowerFlex 755 |
| Cooling Method | Air Cooled |
| Input Type | AC Input with Precharge |
| Input Voltage | 400 VAC / 540 VDC |
| Power Rating | 1.5 kW / 2 HP |
| Output Current | 3.5 A |
| Enclosure Type | Open Type |
| Protection Level | IP20 / IP00 |
| Filtering | Integrated Filtering |
| Internal Components | Internal Transistor Included |
| Jumper | Installed |
| Operator Interface | No HIM |
| Control Capability | Precision Motor Control |
| Mounting Type | Panel Mount |
| Dimensions | 424.2 × 134.5 × 212 mm |
| Weight | 7.8 kg |
Applications
• Small Conveyor Systems – Provides accurate speed control for light-duty material handling.
• Pumps and Fans (Low Power) – Ensures energy-efficient operation in compact systems.
• Packaging Machines – Supports precise and repeatable motion control.
• Textile and Light Machinery – Ideal for applications requiring stable low-power motor operation.
• General Automation Equipment – Suitable for compact control cabinets with limited space.
Advantages
• Compact Design – Small footprint, ideal for space-constrained installations.
• Integrated Transistor – Simplifies system design and reduces external component requirements.
• Precharge Protection – Minimizes inrush current and enhances component longevity.
• Reliable Cooling – Air-cooled design supports continuous operation in industrial environments.
• Integrated Filtering – Reduces EMI and improves system stability.
• Flexible Integration – Easily integrates into modern control and communication architectures.
FAQ
- What is the rated power of this drive?
The drive is rated at 1.5 kW (2 HP) with a continuous output current of 3.5 A, suitable for low-power industrial applications. - Does this model include an internal transistor?
Yes, it includes an internal transistor, allowing easier system integration and improved control flexibility. - Is a HIM included with the drive?
No, this model does not include a HIM, so an external interface is required for configuration and monitoring. - What input voltage does the drive support?
It supports 400 VAC AC input and can also operate on a 540 VDC DC bus, offering flexibility in power configurations. - What is the purpose of the precharge function?
The precharge circuit helps limit inrush current during startup, protecting internal components and extending service life. - Is this drive suitable for continuous operation?
Yes, it is designed for continuous-duty industrial use, provided proper ventilation and installation conditions are maintained. - What type of enclosure does this drive use?
It features an open-type enclosure (IP20/IP00) and should be installed inside a protective control cabinet. - Does the drive include EMI filtering?
Yes, integrated filtering is included to reduce electromagnetic interference and ensure stable system performance. - What types of motors can be controlled?
It is mainly used for three-phase AC induction motors, especially in low-power applications. - How is cooling handled in this model?
Cooling is achieved through an air-cooled system, requiring sufficient airflow within the cabinet for optimal performance.
Related Models
| Model | Power | Voltage | Current | Feature |
|---|---|---|---|---|
| 20G11NC2P1JA0NNNNN | 1.1 kW | 400 VAC | 2.1 A | Ultra compact |
| 20G11NC5P0JA0NNNNN | 2.2 kW | 400 VAC | 5.0 A | Small-scale control |
| 20G11NC7P5JA0NNNNN | 3.0 kW | 400 VAC | 7.5 A | Extended capacity |
| 20G11NC011JA0NNNNN | 5.5 kW | 400 VAC | 11 A | Medium small load |
| 20G11NC015JA0NNNNN | 7.5 kW | 400 VAC | 15 A | Higher output |
| 20G11NC022JA0NNNNN | 11 kW | 400 VAC | 22 A | Compact industrial |
Popular Models
| Model | Series | Power | Voltage | Key Feature |
|---|---|---|---|---|
| 20F1ANC3P5AN0NNNNN | PowerFlex 753 | 1.5 kW | 400 VAC | Reliable control |
| 20G11ND3P5AA0NNNNN | PowerFlex 755 | 1.5 kW | 400 VAC | Advanced features |
| 25B-D2P1N104 | PowerFlex 525 | 1.5 kW | 400 VAC | Compact and efficient |
| 20F11ND2P1AA0NNNNN | PowerFlex 753 | 1.5 kW | 400 VAC | Flexible integration |
| 22B-D2P1N104 | PowerFlex 40 | 1.5 kW | 400 VAC | Cost-effective |
| 20AD2P1D3AYNNNC0 | PowerFlex 70 | 1.5 kW | 400 VAC | Stable performance |
