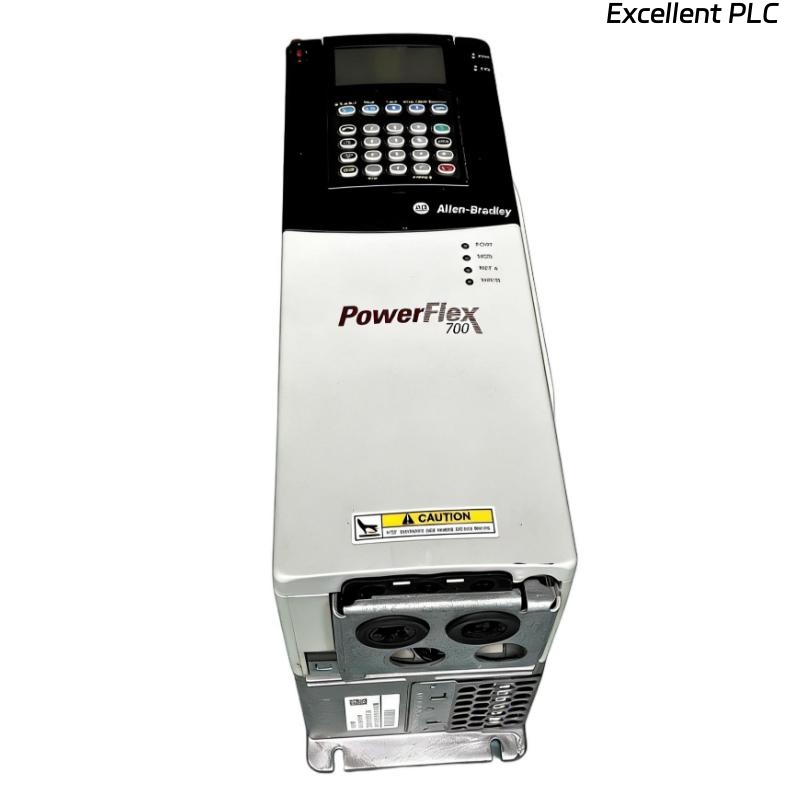

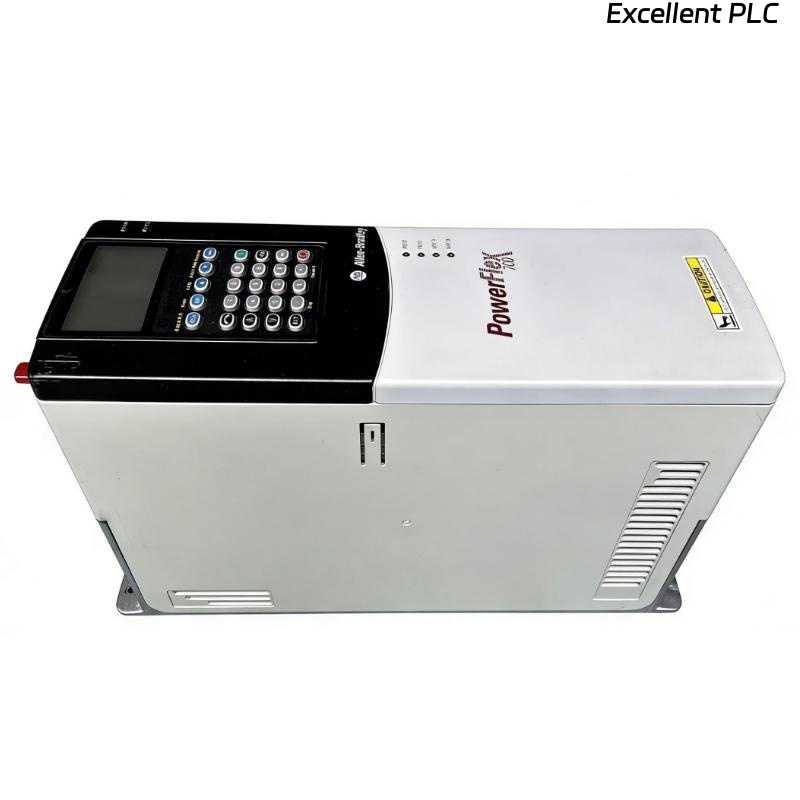

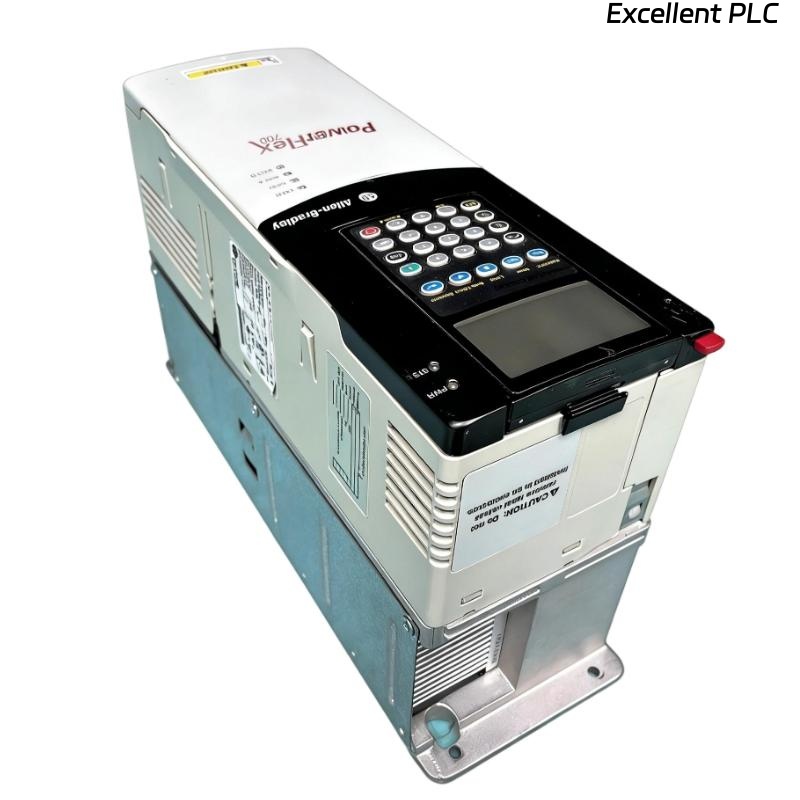

Allen Bradley 20BC2P1A3AYNACC0 PowerFlex 700 AC Drive

Product Introduction

The Allen-Bradley 20BC2P1A3AYNACC0 PowerFlex 700 AC Drive is a compact, high-performance variable frequency drive designed for precise motor control in industrial environments. As part of the well-established PowerFlex 700 family from Rockwell Automation, this model combines flexible control capabilities with robust hardware architecture.

Engineered for 3-phase 400 VAC systems, the drive delivers reliable speed and torque control for low-power applications such as conveyors, pumps, and small machinery. With integrated vector control, brake IGBT, and ControlNet communication support, it offers both standalone functionality and seamless integration into distributed automation systems.

The inclusion of a full LCD keypad enhances usability, allowing operators to configure, monitor, and troubleshoot the drive directly from the front panel without additional tools.

---

Product Specifications

---

Applications

• Conveyor Systems – Provides smooth acceleration and deceleration, reducing mechanical stress and improving system lifespan.

• Pumps and Fans – Enables energy-efficient speed control based on process demand, minimizing power consumption.

• Packaging Machinery – Ensures stable and repeatable motion control for consistent production quality.

• Material Handling Equipment – Supports precise positioning and controlled movement in automated lines.

• Light Industrial Machinery – Ideal for small motors requiring reliable and flexible speed regulation.

---

Advantages

• Flexible Control Performance – Built-in vector control ensures stable torque output even at low speeds, improving process accuracy.

• Integrated Brake Functionality – The brake IGBT allows rapid stopping without external braking modules, simplifying system design.

• Robust Communication Capability – With ControlNet support, the drive integrates easily into complex automation networks.

• User-Friendly Operation – The LCD full keypad provides intuitive configuration and real-time diagnostics.

• Enhanced EMC Compliance – Equipped with CE filter and common mode choke, reducing electrical noise and improving system reliability.

• Compact and Modular Design – Frame 0 structure saves panel space while maintaining high performance.

• Reliable Industrial Build – Designed for continuous operation in demanding environments with consistent output stability.

FAQ

1. What control mode is supported by this drive?
   This model uses vector control, providing accurate speed and torque regulation suitable for most industrial applications.
2. Can the drive operate without external braking components?
   Yes, it includes an internal brake IGBT, allowing direct connection of a braking resistor.
3. What type of communication protocol is available?
   It supports ControlNet communication via coaxial interface for integration into automation systems.
4. Is the drive suitable for low-speed high-torque applications?
   Yes, vector control ensures stable torque output even at low speeds.
5. What type of motors can be connected?
   It is designed for standard three-phase AC induction motors.
6. Does the drive support external I/O control?
   Yes, it provides 24 VDC I/O for external control signals and integration.
7. How is the drive configured and monitored?
   Through the built-in LCD full keypad, which allows parameter setting and diagnostics.
8. Is additional EMC protection required?
   No, it already includes a CE filter and common mode choke for noise suppression.
9. Can this drive be used in networked automation systems?
   Yes, with ControlNet communication, it integrates seamlessly into distributed control systems.
10. What type of industrial environments is it suitable for?
    It is suitable for general industrial environments requiring reliable motor control and moderate protection levels.
