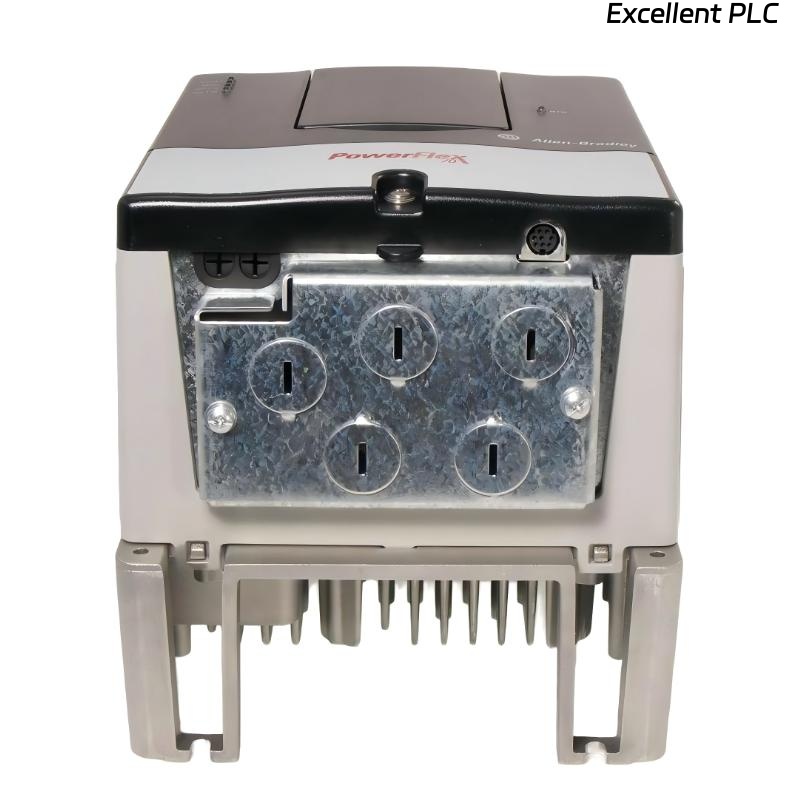

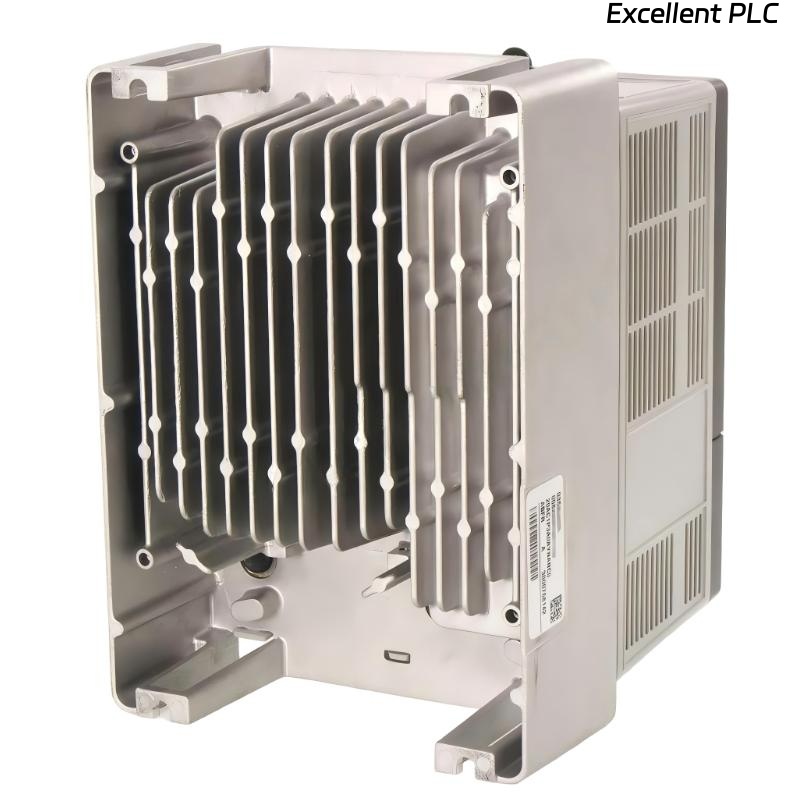

Allen Bradley 20AC1P3A0AYNANC0 PowerFlex 70 AC Drive
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 20AC1P3A0AYNANC0 is a compact and efficient AC drive from the PowerFlex 70 series, designed for precise motor speed control in light-duty industrial applications. Despite its small size, this drive offers reliable performance, flexible configuration, and stable operation, making it an ideal choice for applications where space and efficiency are critical.
With a power rating of 0.37 kW (0.5 HP) and an output current of 1.3 A, this model is optimized for low-power motor control tasks. It operates on a 400 VAC three-phase power supply, ensuring compatibility with standard industrial systems. The integrated braking capability enhances control during deceleration, even in smaller-scale applications.
The drive features a panel-mounted design with an IP20 protection rating, suitable for installation in control cabinets. It also includes a blank interface module cover, allowing users to expand communication and control functions based on system requirements. Its compact footprint and reliable performance make it a practical solution for entry-level automation systems.
Product Specifications
| Parameter | Value |
|---|---|
| Product Name | AC Drive |
| Model Number | 20AC1P3A0AYNANC0 |
| Manufacturer | Allen-Bradley |
| Series | PowerFlex 70 |
| Input Voltage | 400 VAC |
| Phase Type | Three-phase |
| Output Current | 1.3 A |
| Power Rating | 0.37 kW / 0.5 HP |
| Mounting Type | Panel mount |
| Control Type | Variable Frequency Drive (VFD) |
| Protection Rating | IP20 |
| Brake Function | Integrated braking capability |
| Interface Module | Blank cover (expandable) |
| Cooling Method | Air-cooled |
| Protection Features | Overcurrent, overvoltage, thermal protection |
| Application Level | Light-duty industrial control |
| Dimensions | 234.6 x 171.7 x 179.8 mm |
| Weight | 3.6 kg |
Applications
• Small conveyor systems, providing smooth and controlled movement
• Light-duty pumps and fans, improving energy efficiency and control
• Compact machinery, where installation space is limited
• Laboratory and test equipment, requiring stable low-power operation
• Packaging and labeling machines, handling lighter production tasks
• General-purpose automation, supporting basic motor control needs
Advantages
• Compact and lightweight structure ideal for limited installation space
• Reliable low-power output ensures stable performance in light-duty tasks
• Integrated braking function improves stopping accuracy and system control
• Expandable interface design allows flexible system configuration
• Standard industrial voltage compatibility simplifies deployment
• IP20 protection level suitable for enclosed control cabinets
• Energy-efficient operation reduces running costs over time
FAQ
- What type of applications is this drive mainly designed for?
It is primarily used in light-duty automation systems such as small conveyors, fans, and compact machinery where precise speed control and stable low-power output are required. - What input power conditions are required for proper operation?
The drive requires a 400 VAC three-phase power supply, and stable voltage input is important to ensure consistent performance and avoid faults. - How does the integrated braking function improve operation?
The braking function allows controlled deceleration of the motor, which helps reduce mechanical stress and improves positioning accuracy in stop-and-go applications. - Is this drive suitable for continuous operation in industrial environments?
Yes, it is designed for continuous operation as long as it is installed within recommended environmental and electrical conditions. - Can the communication interface be expanded or customized?
Yes, the blank interface module allows users to add communication modules based on system requirements, increasing flexibility. - What kind of protection features are included in this model?
The drive includes protections such as overcurrent, overvoltage, and thermal protection to ensure safe and reliable operation. - How is the drive typically installed in a system?
It is panel-mounted and installed inside a control cabinet, which also provides protection due to its IP20 rating. - What type of motors can be used with this drive?
It is commonly used with standard AC induction motors and compatible servo motors within its power and current range. - Does the compact size affect performance or reliability?
No, the compact design is optimized for efficiency and does not compromise performance when used within its rated specifications. - What is the advantage of using a low-power drive like this?
It reduces energy consumption, lowers system cost, and is ideal for applications that do not require high power but still need precise control.
Related Models
| Model | Description | Power Rating |
|---|---|---|
| 20AC2P1A0AYNANC0 | PowerFlex 70 AC Drive | 0.75 kW |
| 20AC3P5A0AYNANC0 | PowerFlex 70 AC Drive | 1.5 kW |
| 20AC5P0A0AYNANC0 | PowerFlex 70 AC Drive | 2.2 kW |
| 20AC7P5A0AYNANC0 | PowerFlex 70 AC Drive | 3.7 kW |
| 20AC010A0AYNANC0 | PowerFlex 70 AC Drive | 5.5 kW |
| 20AC015A0AYNANC0 | PowerFlex 70 AC Drive | 7.5 kW |
Popular Models
| Model | Product Type | Key Feature |
|---|---|---|
| 20AC015A0AYNANC0 | AC Drive | Compact VFD solution |
| 20AC022A0AYNANC0 | AC Drive | Medium power control |
| 20AC030A0AYNANC0 | AC Drive | Higher output capacity |
| 20AC043A0AYNANC0 | AC Drive | High power performance |
| 25B-D013N104 | PowerFlex 525 | Compact and efficient |
| 22F-D013N104 | PowerFlex 4M | Cost-effective solution |
