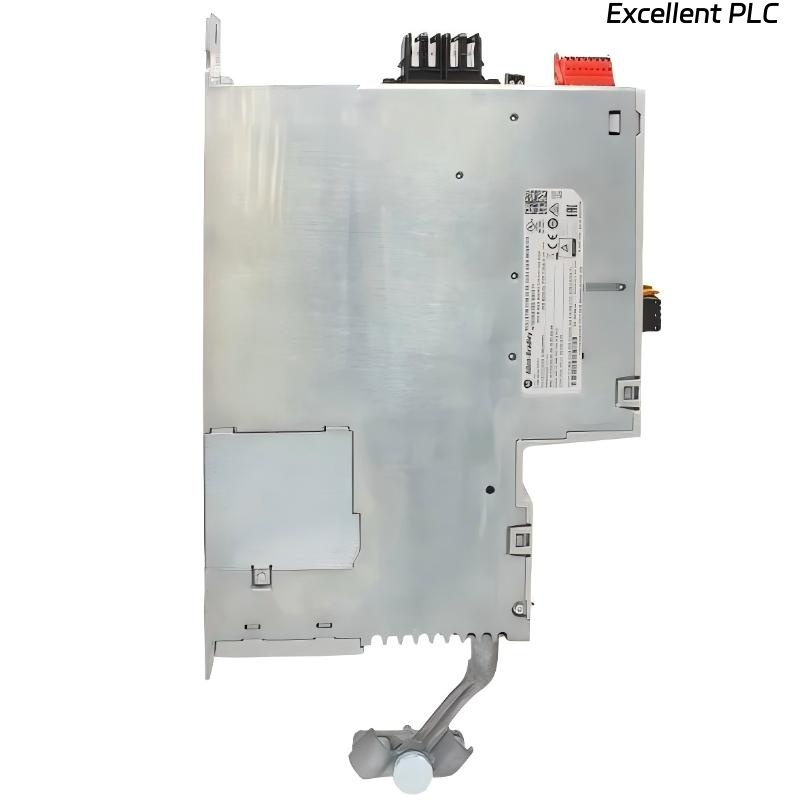

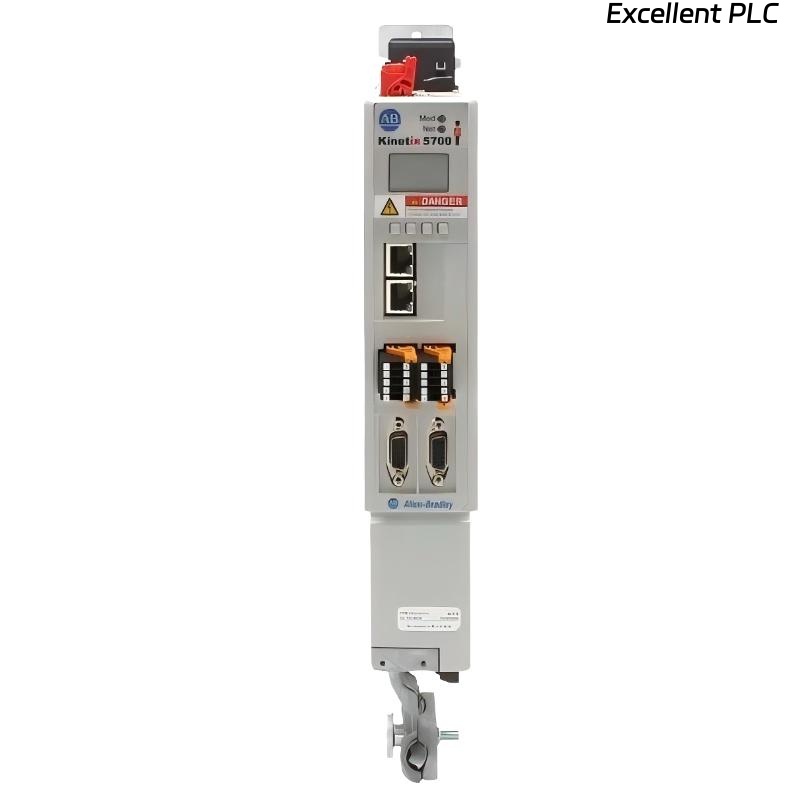

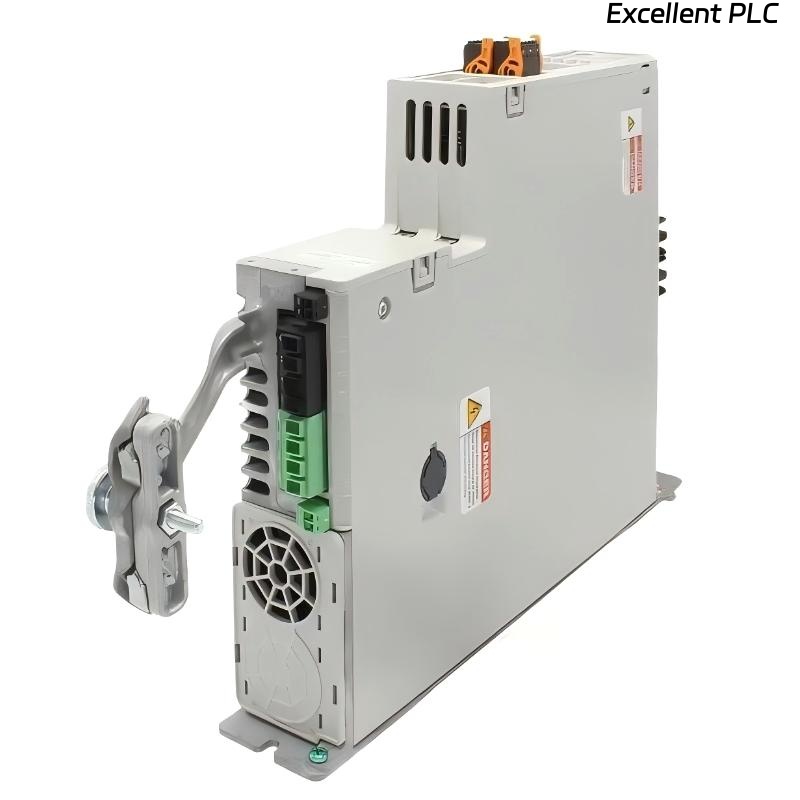

Allen Bradley 2198-D020-ERS3 Kinetix 5700 Dual Axis Servo Drive

Product Introduction

The Allen-Bradley 2198-D020-ERS3 Kinetix 5700 Dual Axis Servo Drive is a high-performance dual-axis servo drive engineered for precise motion control in demanding industrial automation applications. Part of the Kinetix 5700 family, this model delivers synchronized control of two servo axes, making it ideal for multi-axis machinery, robotics, and packaging systems.

Designed with inverter technology, the 2198-D020-ERS3 ensures efficient energy conversion and smooth motor control. Its compact 55 mm module width allows for space-efficient cabinet installations, while its robust construction provides reliable performance in industrial environments. The drive is capable of handling moderate power applications and supports seamless integration into EtherNet/IP and other automation networks, enabling advanced diagnostics, control, and monitoring.

---

Product Specifications

---

Applications

• Dual-Axis Motion Control – Simultaneously manages two servo axes for coordinated movements in machinery.

• Robotics – Enables precise and synchronized motion for robotic arms and automation cells.

• Packaging and Material Handling – Ideal for pick-and-place, conveyors, and sorting systems.

• Industrial Automation – Integrates with networked controllers for real-time monitoring and control.

• Machine Tool Operation – Supports high-precision motion control for machining processes.

---

Advantages

• Dual-Axis Control – Reduces the number of drives required in multi-axis systems, simplifying installation.

• Inverter Technology – Ensures smooth motor operation, reduced energy loss, and precise speed control.

• Compact Module Width – 55 mm allows for efficient cabinet space utilization.

• Robust Construction – Designed for reliability in industrial environments.

• Seamless Integration – Compatible with networked automation systems for centralized control.

• High-Precision Motion – Supports accurate positioning and synchronized multi-axis operation.

FAQ

1. What types of applications is this drive best suited for?
   It is ideal for multi-axis machinery, robotics, packaging, and automated material handling, providing coordinated motion control.
2. Does it allow simultaneous control of two axes?
   Yes, it provides synchronized dual-axis control, reducing hardware requirements and improving efficiency.
3. Can it integrate with standard industrial networks?
   Yes, the drive is compatible with EtherNet/IP and other automation protocols, enabling centralized control and monitoring.
4. Is the drive capable of smooth motor operation?
   Yes, its inverter technology ensures precise speed control and smooth motion, reducing mechanical stress.
5. Can multiple drives work together in a networked system?
   Yes, multiple units can be networked to coordinate larger multi-axis systems.
6. Is it suitable for high-precision tasks?
   Yes, it supports accurate and repeatable positioning, making it suitable for demanding automation.
7. How does the drive handle varying load conditions?
   It provides consistent performance under dynamic loads, ensuring smooth operation and motion stability.
8. Can it be used in robotic applications?
   Yes, it is well-suited for robotic arms and manipulators, offering precise motion and synchronized control.
9. Does it support real-time diagnostics and monitoring?
   Yes, the drive provides monitoring capabilities for system health and performance in real time.
10. What benefits does it provide over single-axis drives?
    It combines dual-axis control in a compact module, reducing cabinet space, hardware complexity, and wiring needs.
