Product Introduction

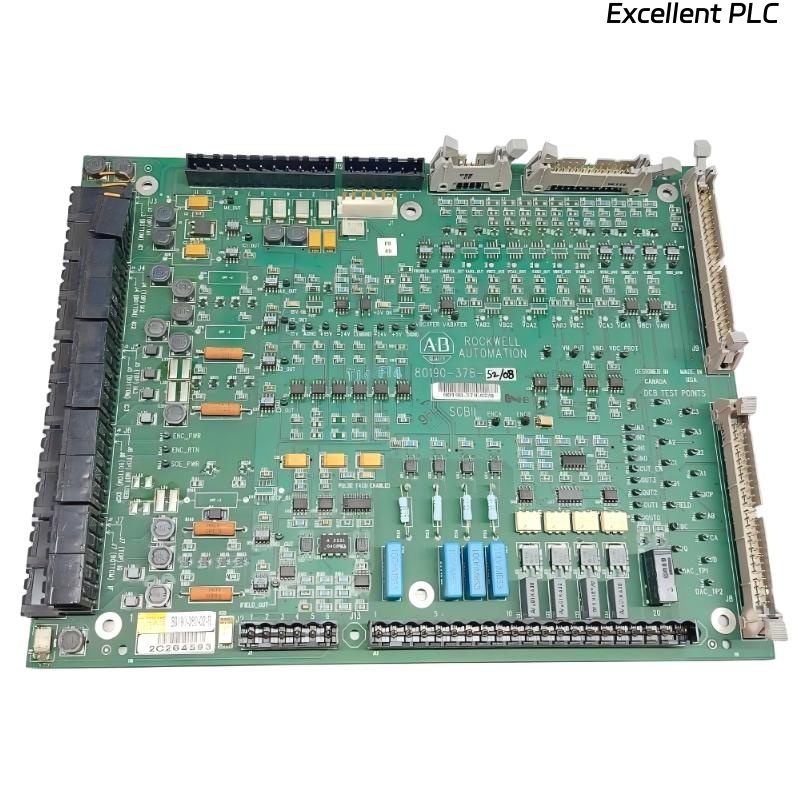

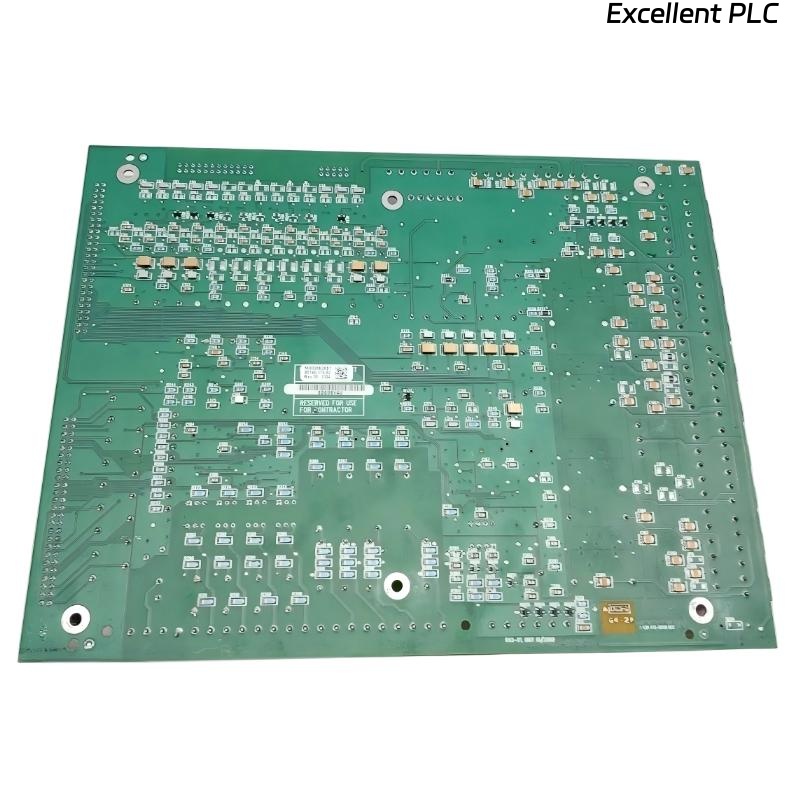

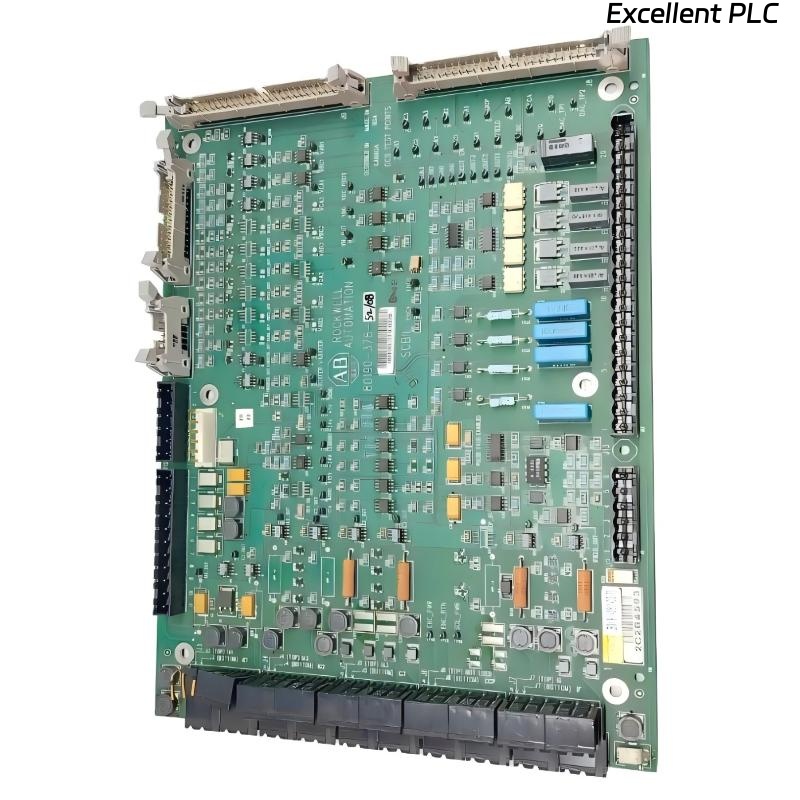

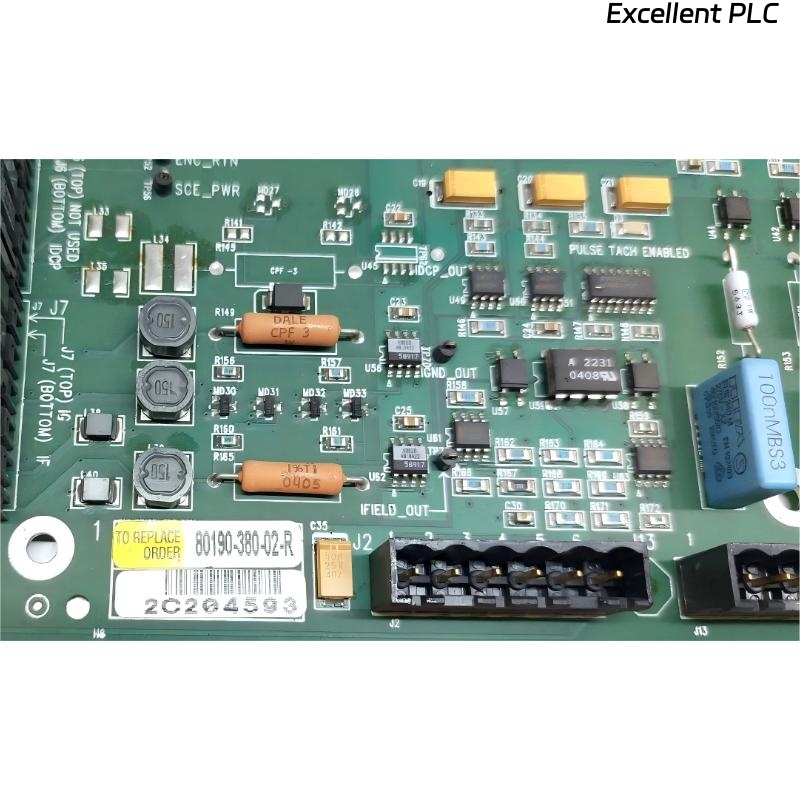

The Allen Bradley 80190-380-02-R Signal Conditioning Board is a specialized circuit board assembly designed for PowerFlex inverters. Its primary function is to process, filter, and condition analog and digital signals between the inverter and its connected sensors or control systems.
By refining signal integrity, the 80190-380-02-R ensures accurate and reliable communication of operational parameters such as voltage, current, and feedback signals. This is especially critical in industrial environments where electrical noise, interference, and fluctuating signals can compromise inverter performance.
The board is engineered for robust operation, allowing continuous performance monitoring and precise control of inverter functions. It simplifies maintenance and improves system reliability by stabilizing input signals, reducing errors, and supporting consistent drive operation. The 80190-380-02-R is suitable for various inverter applications, including industrial automation, material handling, and energy-intensive processes.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 80190-380-02-R |
| Module Type | Signal Conditioning Board |
| Function | Signal processing, filtering, and conditioning for inverter inputs |
| Application | PowerFlex inverter signal stabilization and communication |
| Circuit Type | Analog and digital signal conditioning |
| Compatibility | Designed for PowerFlex inverter modules |
| Mounting Type | Board assembly, suitable for internal installation within inverter |
| Indicators | LED or test points for diagnostics (if applicable) |
| Protection Features | Overvoltage and noise filtering capabilities |
| Temperature Range | Operating: 0°C to 60°C, Storage: -20°C to 70°C |
| Dimensions (Approx.) | 180 x 25 x 150 mm |
| Weight | 0.3 kg |
Applications
• Signal Conditioning for Inverters to ensure accurate input/output measurements
• Industrial Automation Systems that require stable analog and digital signals
• Motor Control and Drive Systems to enhance inverter performance and reliability
• Material Handling and Manufacturing where precise signal monitoring is essential
• Energy-Intensive Industrial Processes that depend on accurate inverter feedback
Advantages
• Improves Signal Accuracy by conditioning and filtering raw signals
• Reduces Electrical Noise Interference for consistent inverter operation
• Enhances System Reliability ensuring stable and predictable performance
• Supports Maintenance and Diagnostics through reliable signal monitoring
• Compatible with PowerFlex Inverters for seamless integration
• Durable Industrial Construction suitable for continuous operation in demanding environments
