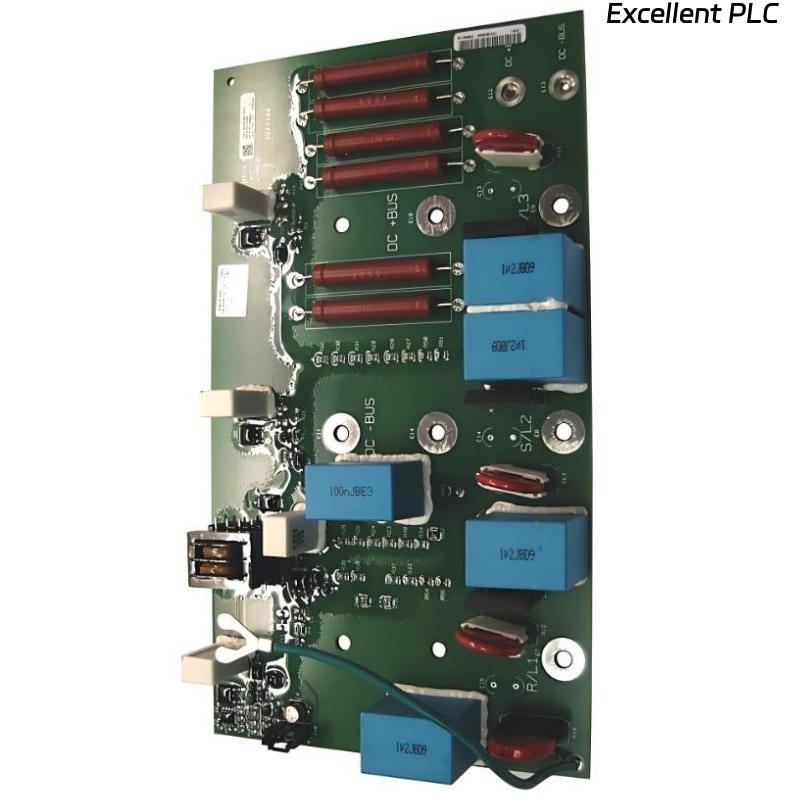

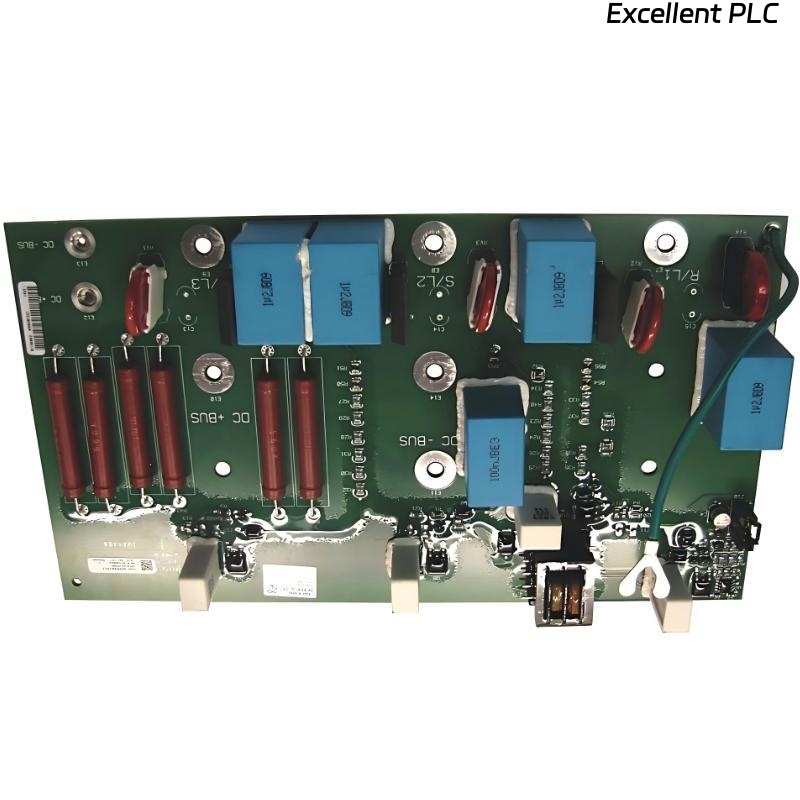

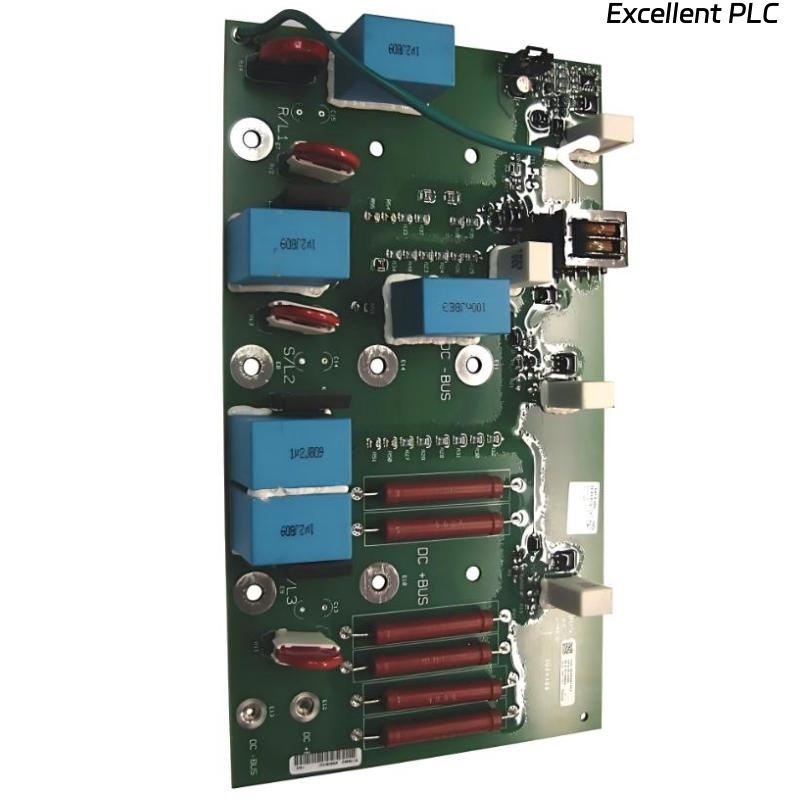

Allen Bradley SK-R9-PCG1-DF7 PowerFlex 750 Size 7 Frame Precharge Kit
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley SK-R9-PCG1-DF7 PowerFlex 750 Size 7 Frame Precharge Kit is a critical internal component designed to ensure safe and controlled startup of AC drive systems. Developed by Rockwell Automation and part of the Allen-Bradley portfolio, this precharge kit is specifically engineered for PowerFlex 750 series drives with Frame Size 7.
Its primary function is to gradually charge the DC bus capacitors during power-up, effectively limiting inrush current and preventing electrical stress on drive components. This controlled precharge process enhances system reliability, protects sensitive electronics, and ensures stable operation in 400/480 V industrial environments.
Product Specifications
| Parameter | Value |
|---|---|
| Model | SK-R9-PCG1-DF7 |
| Product Type | Precharge Kit |
| Series Compatibility | PowerFlex 750 Series |
| Frame Size | Frame 7 |
| Voltage Rating | 400 / 480 V AC |
| Function | DC Bus Precharge / Inrush Current Limiting |
| Application | AC Drive Systems |
| Installation | Internal Drive Component |
| Dimensions | 120 × 30 × 100 mm |
| Weight | 0.5 kg |
Applications
• AC drive startup control — Ensures safe energization of PowerFlex 750 drives by limiting inrush current.
• Industrial motor control systems — Supports stable operation in manufacturing and processing environments.
• Drive system protection — Prevents damage to capacitors and internal circuits during power-up.
• Maintenance and replacement — Used for servicing or upgrading existing drive systems.
• Medium-voltage automation systems — Suitable for 400/480 V industrial applications.
Advantages
• Effective inrush current limitation — Protects drive components during startup.
• Improved system reliability — Ensures stable and controlled energization of the drive.
• Extended equipment lifespan — Reduces electrical stress on internal components.
• Optimized compatibility — Specifically designed for PowerFlex 750 Frame 7 drives.
• Compact and robust design — Suitable for demanding industrial environments.
• Easy integration — Seamlessly fits into existing drive architecture.
FAQ
- What is the main function of this precharge kit?
It limits inrush current and safely charges the DC bus capacitors during drive startup. - Which drive series is it compatible with?
It is designed for PowerFlex 750 series drives. - What frame size does it support?
It is specifically for Frame Size 7 drives. - What voltage range does it operate in?
It supports 400/480 V AC systems. - Why is precharge important in AC drives?
It prevents sudden current surges that could damage capacitors and internal electronics. - Can it be used with other frame sizes?
No, it is designed exclusively for Frame 7 configurations. - Is this a replacement part or for new installations?
It can be used for both maintenance replacement and new installations. - Does it improve system lifespan?
Yes, by reducing electrical stress during startup, it helps extend equipment life. - Is installation complex?
Installation should be performed by qualified personnel familiar with drive systems. - Is it an original Rockwell Automation product?
Yes, it is an official component designed for seamless integration with Allen-Bradley drives.
Related Models
| Model | Description | Type | Application |
|---|---|---|---|
| SK-R9-PCG1-DF6 | Precharge Kit | Drive Component | Frame 6 |
| SK-R9-PCG1-DF8 | Precharge Kit | Drive Component | Frame 8 |
| SK-R1-MCB1-PF753 | Main Control Board | Drive Component | PowerFlex 753 |
| SK-R1-BP1 | Backplane Interface Kit | Drive Accessory | PowerFlex 750 |
| SK-R1-PS1 | Power Supply Board | Drive Component | Internal Power |
| SK-R1-FAN | Cooling Fan Kit | Drive Accessory | Cooling System |
Popular Models
| Model | Product Type | Series | Key Features |
|---|---|---|---|
| 20F11ND077AA0NNNNN | PowerFlex 753 Drive | PowerFlex 750 | Flexible motor control |
| 20G11ND065AA0NNNNN | PowerFlex 755 Drive | PowerFlex 750 | High-performance drive |
| 1756-L85E | ControlLogix Controller | ControlLogix | High-speed processing |
| 1769-L33ER | CompactLogix Controller | CompactLogix | Integrated Ethernet/IP |
| 1734-AENTR | POINT I/O Adapter | POINT I/O | Network communication |
| 25B-D017N104 | PowerFlex 525 Drive | PowerFlex 520 | Compact motor control |
