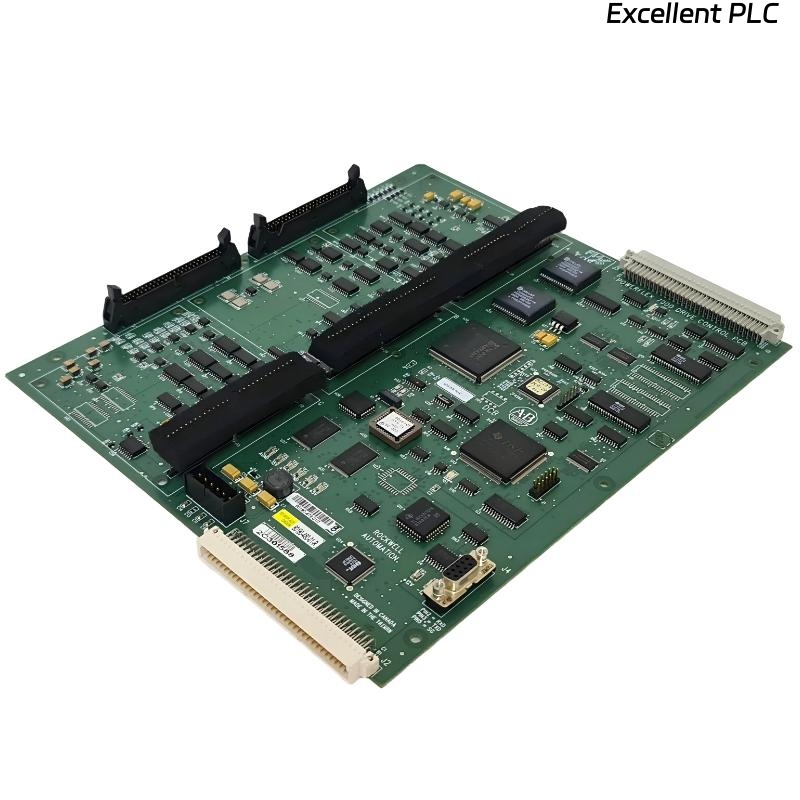

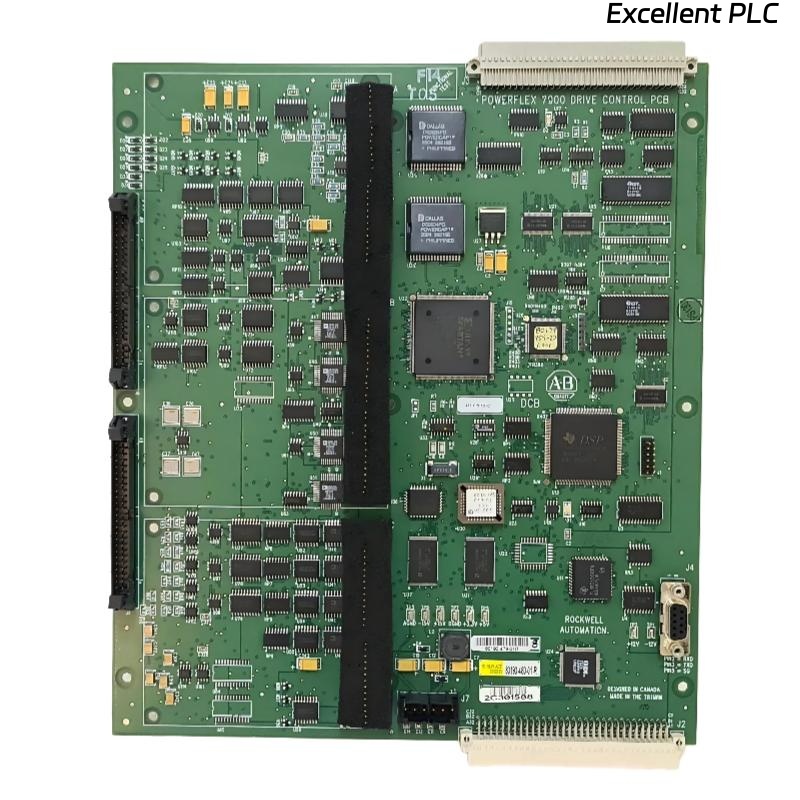

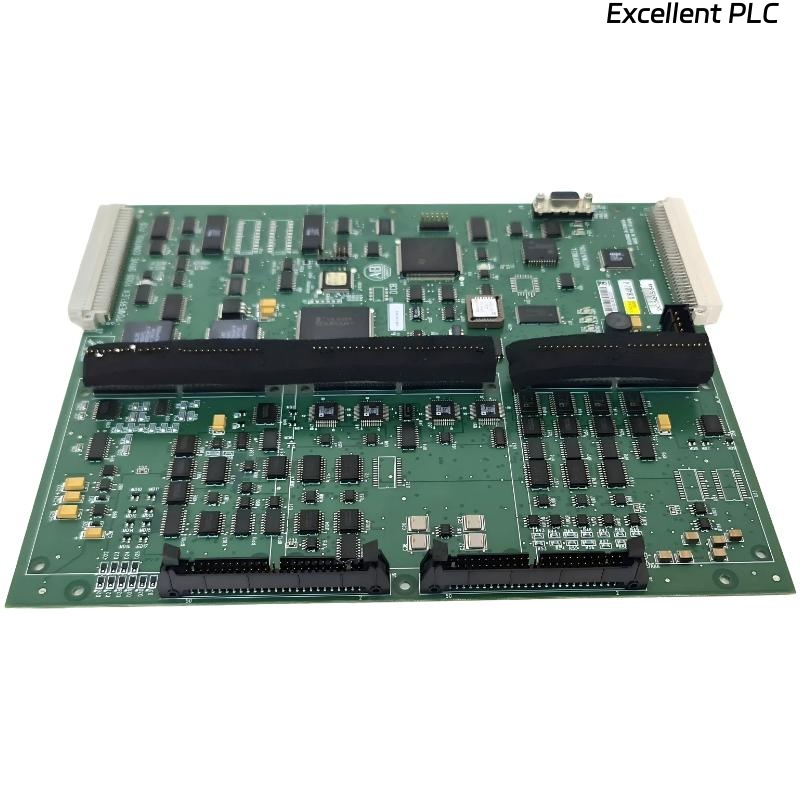

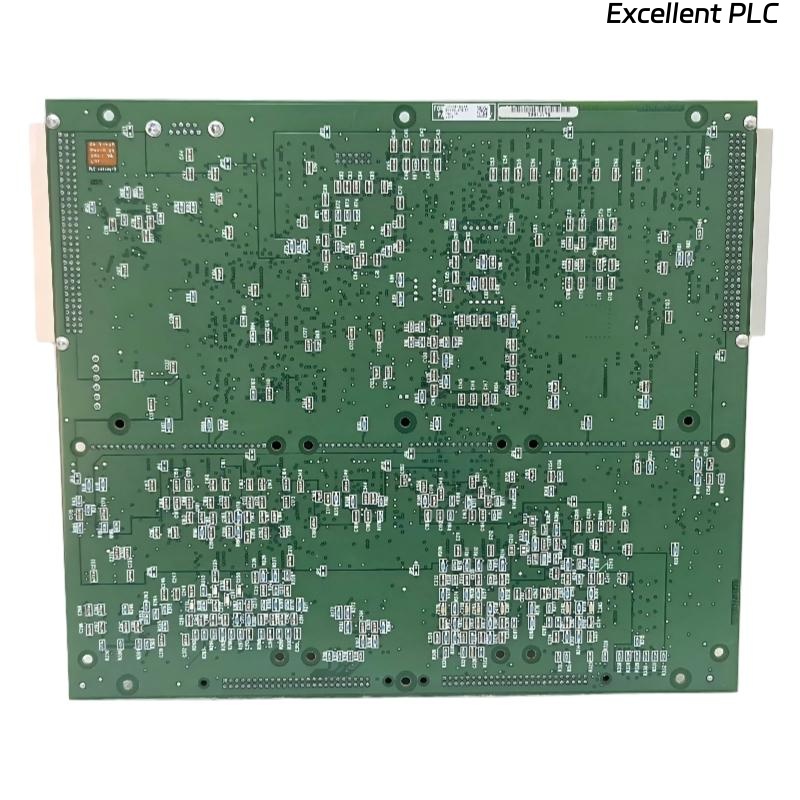

Allen Bradley 80190-480-01-R Drive Control Board

Product Introduction

The Allen-Bradley 80190-480-01-R Drive Control Board is a dedicated industrial drive control module designed for multi-motor coordination and precise automation control. Developed by Rockwell Automation under the well-known Allen-Bradley product line, this control board is engineered for integration into medium-power motor drive systems operating at 480 VAC.

This module serves as the central control unit in drive systems, managing signal processing, motor coordination, and I/O communication. With support for up to four motors, it is particularly suitable for applications requiring synchronized or independent multi-axis control. The board features a robust digital I/O structure, allowing seamless interfacing with sensors, actuators, and higher-level PLC or DCS systems.

Its compact design and stable architecture make it ideal for retrofitting existing drive cabinets or integrating into new industrial automation systems. The board is optimized for reliability in demanding industrial environments, ensuring consistent performance under varying load and electrical conditions.

---

Product Specifications

---

Applications

• Multi-motor drive systems — Enables coordinated control of up to four motors in conveyor lines, packaging systems, and assembly equipment.

• Industrial automation lines — Integrates easily with PLC-controlled systems for synchronized process control and signal management.

• Material handling systems — Suitable for conveyor belts, sorting systems, and automated logistics setups requiring precise motor sequencing.

• Process control environments — Used in manufacturing sectors such as chemical, food processing, and light industry for controlled motor operations.

• Retrofitting legacy systems — Provides a reliable upgrade path for older drive systems needing enhanced I/O and control capability.

---

Advantages

• Flexible multi-motor control capability — Supports up to four motors, reducing the need for multiple control modules and simplifying system architecture.

• High I/O density — Equipped with 16 digital inputs and 16 digital outputs, allowing extensive field device connectivity without additional expansion modules.

• Stable performance under 480 VAC systems — Designed specifically for industrial high-voltage environments, ensuring consistent and safe operation.

• Compact and lightweight design — Facilitates easy installation within limited cabinet space and improves system layout efficiency.

• Reliable industrial-grade construction — Built to withstand electrical noise, vibration, and temperature variations typical in industrial settings.

• Cost-effective integration — Combines control and I/O functions into a single board, reducing overall system cost and wiring complexity.

FAQ

1. How does the board manage multiple motors simultaneously?
   The control board uses internal logic and signal distribution to coordinate start, stop, and status feedback for each motor channel. It can operate motors independently or in synchronized sequences depending on the control configuration.
2. What type of signals are accepted by the digital inputs?
   The digital inputs are typically designed for standard industrial discrete signals, such as 24 VDC logic levels, enabling connection to sensors, switches, and PLC outputs.
3. Can this board be integrated with a PLC system?
   Yes, it is commonly used alongside PLC systems. The digital I/O channels allow direct communication with PLC outputs and inputs for command and feedback exchange.
4. Is isolation provided between input and output channels?
   The board is designed with electrical isolation features to protect internal circuits from voltage spikes and noise, improving system stability and safety.
5. How is fault detection handled in the system?
   Fault conditions such as overload or abnormal signals can be detected through input monitoring and feedback loops, allowing the control system to trigger alarms or shutdown sequences.
6. What type of motors can be controlled with this board?
   It is typically used with AC motors in industrial drive systems, particularly those compatible with 480 VAC power environments.
7. Does the board support real-time control?
   Yes, the board is designed for real-time signal processing, enabling immediate response to control commands and system feedback.
8. How are digital outputs typically used in applications?
   Digital outputs are used to control actuators, relays, contactors, or drive enable signals, forming the execution layer of the control system.
9. What protection mechanisms are included in the board design?
   The board incorporates protection against electrical noise, transient voltage, and signal interference, ensuring reliable long-term operation.
10. Can the board be used in harsh industrial environments?
    Yes, it is engineered for industrial environments and can operate reliably under conditions involving vibration, electrical interference, and temperature variation.
