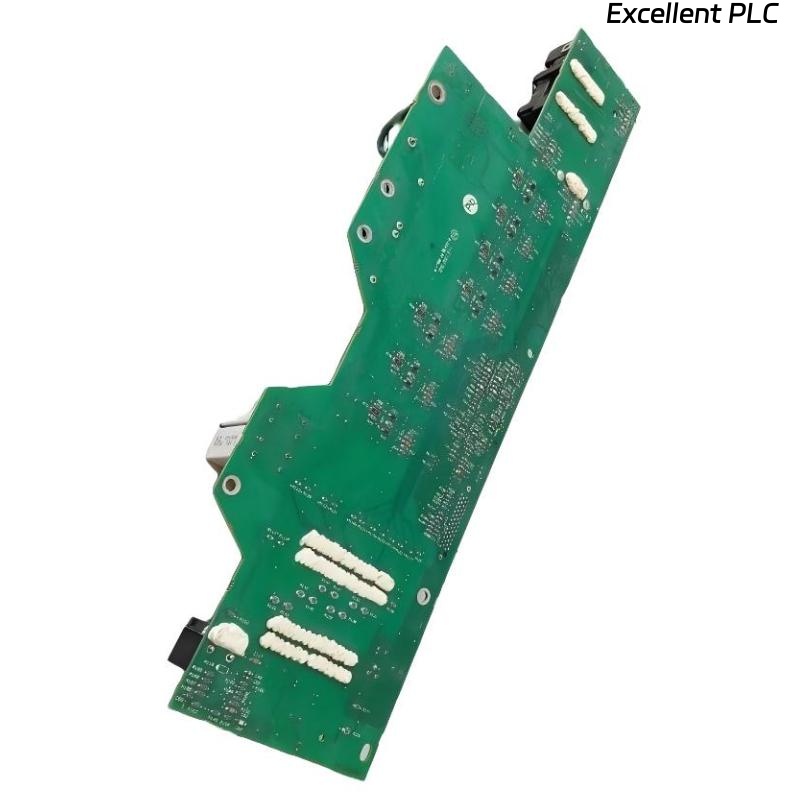

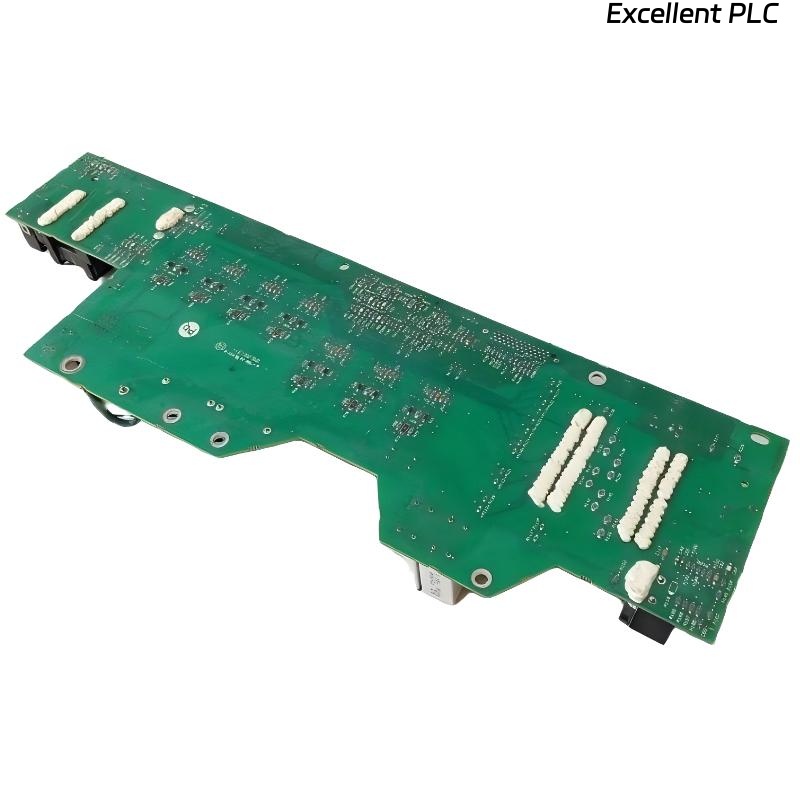

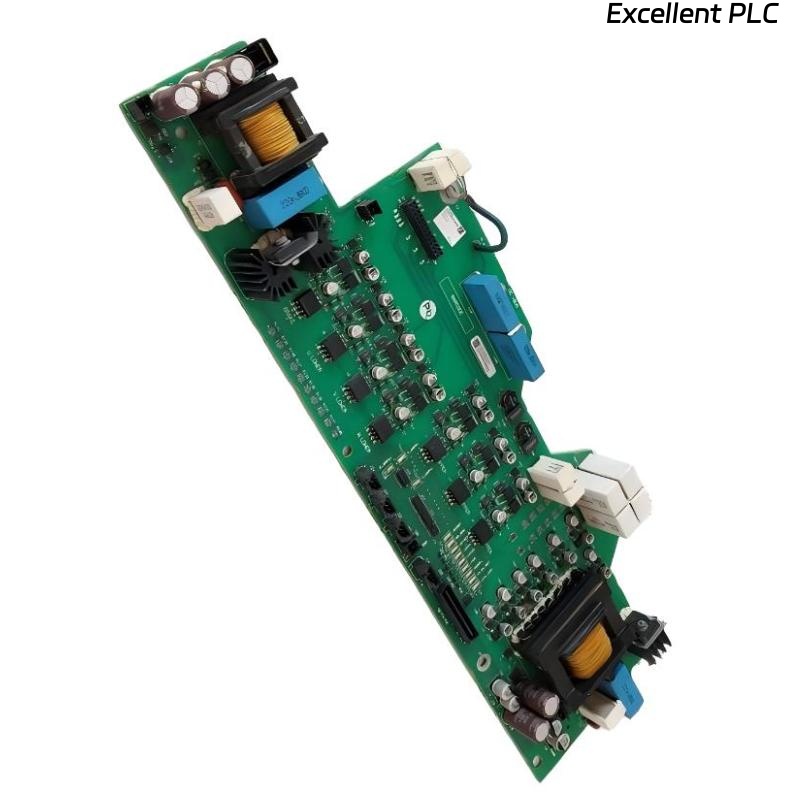

Allen Bradley SK-R9-PINT1-FF6L PowerFlex 750 Power Interface

Product Introduction

The Allen-Bradley SK-R9-PINT1-FF6L PowerFlex 750 Power Interface is a high-capacity internal module designed to handle power distribution and interface control within PowerFlex 750 series AC drives. Developed by Rockwell Automation and part of the Allen-Bradley portfolio, this component is optimized for demanding industrial motor control applications.

Designed specifically for Frame Size 6 drives, this version supports higher power ratings up to 90 kW at voltages up to 690 V. It ensures efficient power routing between internal drive sections, maintaining stable operation and protecting critical components under high-load conditions.

---

Product Specifications

---

Applications

• High-power motor control systems — Ideal for 90 kW industrial drive applications.

• PowerFlex 750 Frame 6 drives — Designed for seamless integration.

• Heavy-duty industrial environments — Suitable for manufacturing, mining, and processing industries.

• Drive system maintenance — Used as a replacement or upgrade component.

• Energy-intensive operations — Ensures stable internal power distribution.

---

Advantages

• Higher power capacity — Supports up to 90 kW, suitable for demanding loads.

• High voltage support — Operates reliably at up to 690 V.

• Stable power management — Ensures consistent internal energy distribution.

• Industrial-grade durability — Built for continuous operation in harsh environments.

• Frame-specific compatibility — Fully optimized for Frame 6 drives.

• Improved system reliability — Reduces electrical stress and enhances performance.

FAQ

1. What is the main function of the SK-R9-PINT1-FF6L module?
   It is responsible for managing internal power distribution within the drive. The module ensures proper electrical connection between power components, enabling stable operation and protecting the system from irregular power flow conditions.
2. Which drive series is this module designed for?
   This module is specifically designed for the PowerFlex 750 series from Rockwell Automation, ensuring full compatibility and seamless integration.
3. What frame size does it support?
   It is engineered exclusively for Frame Size 6 drives and should not be used in other frame sizes due to design and power differences.
4. What voltage range can it handle?
   The module supports high-voltage applications up to 690 V, making it suitable for heavy-duty industrial environments and high-power motor systems.
5. What is the rated power capacity?
   This version supports applications up to 90 kW, making it ideal for larger motor loads and energy-intensive operations.
6. Can this module replace the FF6K (75 kW) version?
   In some cases, yes, but only if the system requirements match. Since this model supports higher power (90 kW), compatibility should always be verified with the drive configuration before replacement.
7. Is this module critical for drive operation?
   Yes, it is a key internal component. Without proper power interface functionality, the drive cannot safely distribute power or operate reliably.
8. What are the typical failure signs of this module?
   Common signs include unstable drive operation, power faults, startup issues, or abnormal electrical behavior. In such cases, inspection or replacement may be required.
9. Is installation or replacement complicated?
   Installation requires technical knowledge of PowerFlex drives. It should be carried out by qualified engineers to ensure safety and correct integration with other internal components.
10. Does this module improve overall system performance?
    Yes, by ensuring efficient and stable power distribution, it helps improve drive reliability, reduce electrical stress, and extend the lifespan of the entire system.
