Product Introduction

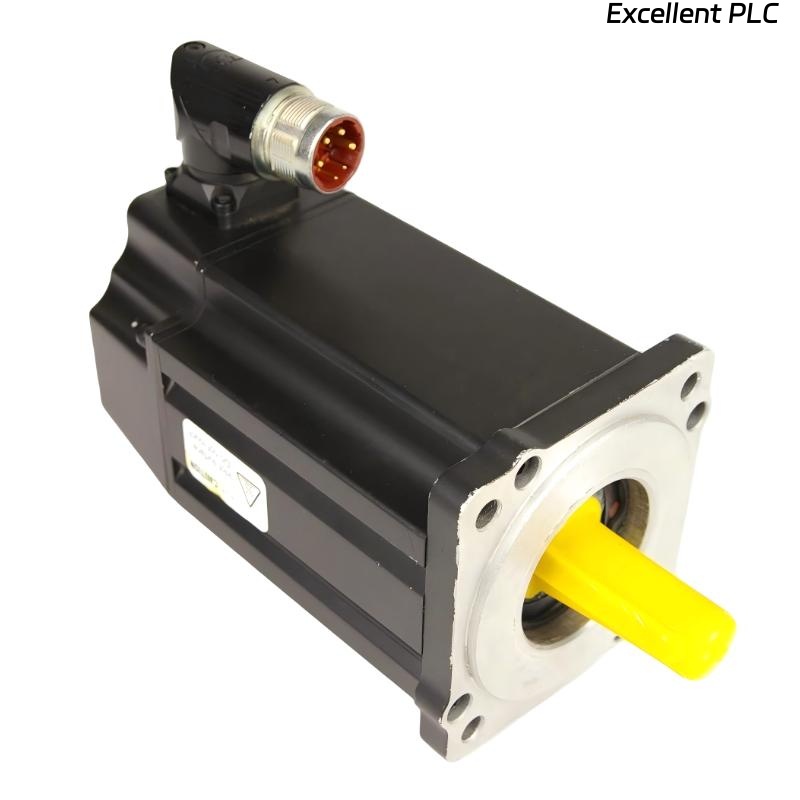

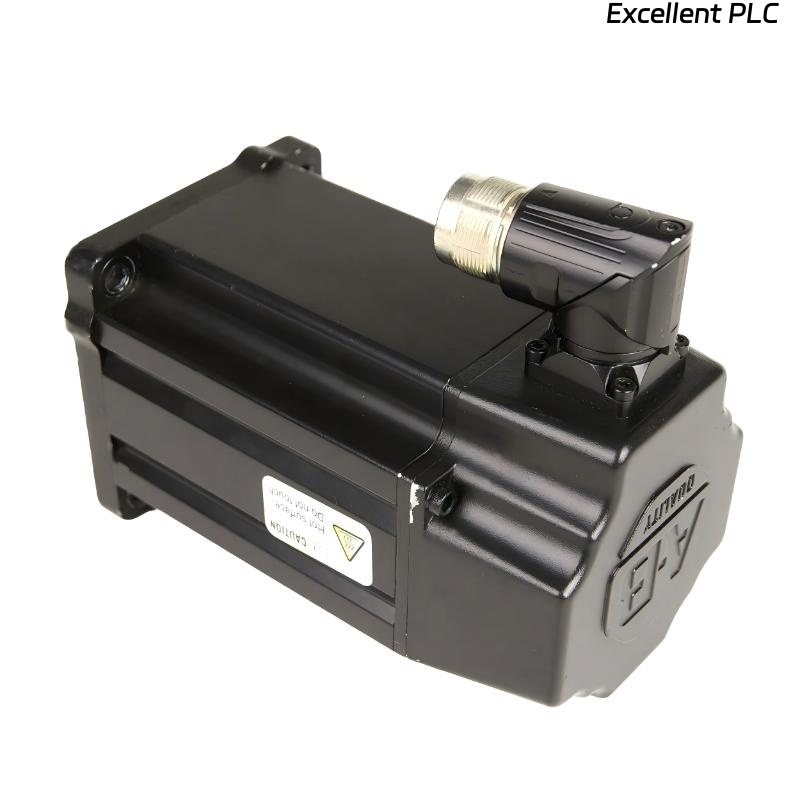

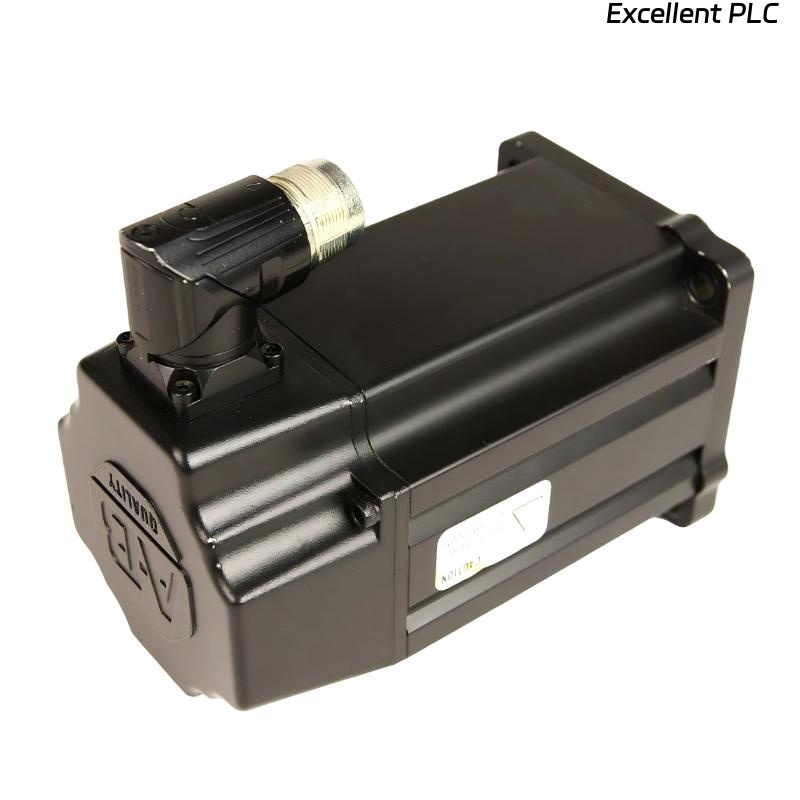

The Allen-Bradley VPL-B1002M-PJ12AA Servo Motor is part of the Kinetix VPL low-inertia servo motor family, engineered to deliver high dynamic performance, precision motion control, and seamless integration with Allen-Bradley Kinetix servo drives.
Designed with a 100 mm frame size and advanced magnetic core technology, this motor provides excellent torque-to-size ratio and rapid acceleration capabilities, making it ideal for high-speed and high-precision automation systems. The integrated Hiperface DSL digital encoder enables single-cable technology, combining power, feedback, and optional brake signals into one connection, significantly reducing wiring complexity and installation time.
With a rated speed of 6000 RPM and optimized torque output, this servo motor is well-suited for demanding industrial motion applications such as packaging, material handling, robotics, and precision assembly.
Product Specifications
| Parameter | Value |
|---|---|
| Product Model | VPL-B1002M-PJ12AA |
| Manufacturer | Allen-Bradley |
| Motor Type | Kinetix VPL Low Inertia Servo Motor |
| Frame Size | 100 mm |
| Rated Speed | 6000 RPM |
| Rated Torque | 3.39 Nm |
| Voltage Class | 400 V |
| Magnet Stack | 2 |
| Feedback Device | 18-bit Absolute Multi-turn Hiperface DSL |
| Encoder Type | Digital Encoder |
| Shaft Type | Keyed Shaft |
| Connector Type | Single SpeedTec DIN Connector |
| Brake | No Brake |
| Inertia Class | Low Inertia |
| Motor Standard | IEC Metric Servo Motor |
| Dimensions | 100 × 100 × 100 mm |
| Weight | 3.52 kg |
Key Features
● Low inertia design, enabling fast acceleration and deceleration for high-performance motion control
● Single-cable technology, combining motor power, feedback, and brake into one cable
● High-resolution encoder, 18-bit absolute multi-turn feedback for precise positioning
● 6000 RPM high-speed capability, suitable for dynamic and high-throughput applications
● Optimized for Kinetix drives, ensuring efficient system sizing and performance matching
● Compact 100 mm frame, balancing power and space efficiency
● Proven magnetic core technology, delivering reliable and consistent torque output
Applications
● Packaging machinery, requiring high-speed and accurate positioning
● Material handling systems, such as conveyors and pick-and-place units
● Robotics and automation, for precise motion control and repeatability
● Assembly lines, supporting synchronized multi-axis operations
● CNC and precision equipment, ensuring accurate speed and position control
● Printing and converting machines, where dynamic performance is critical
