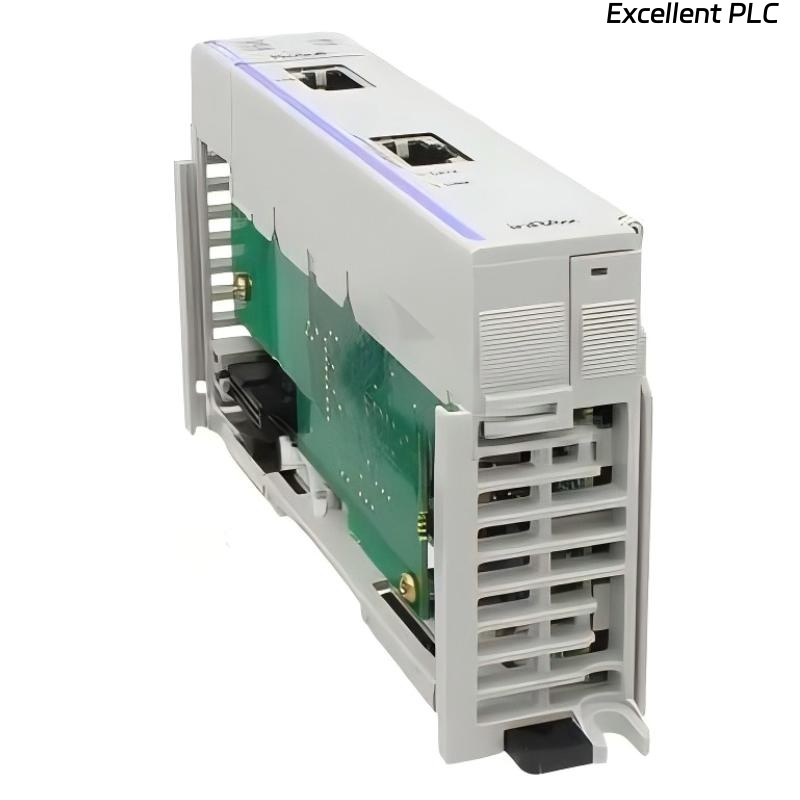

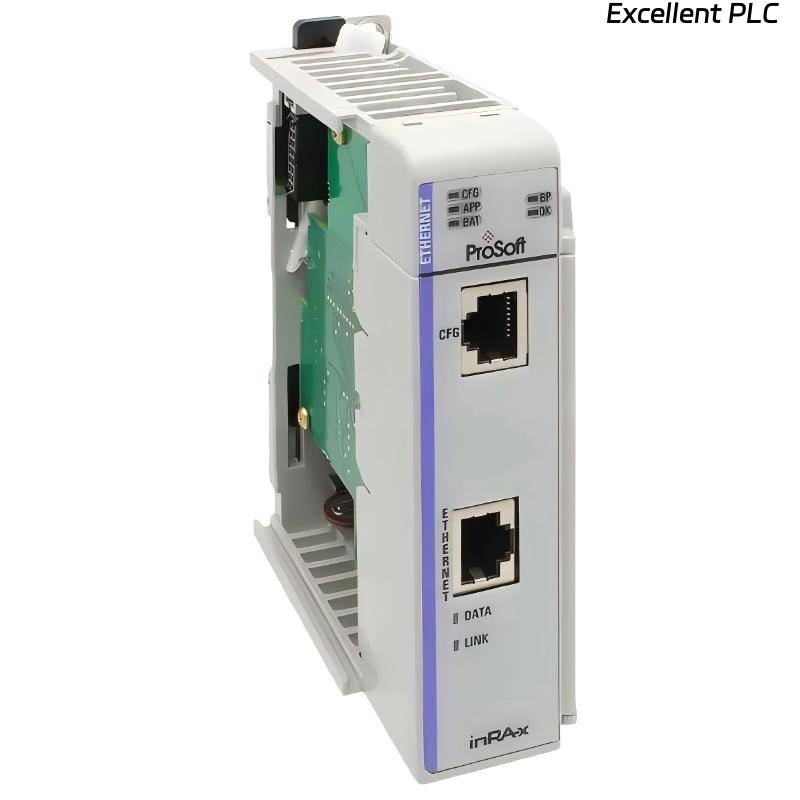

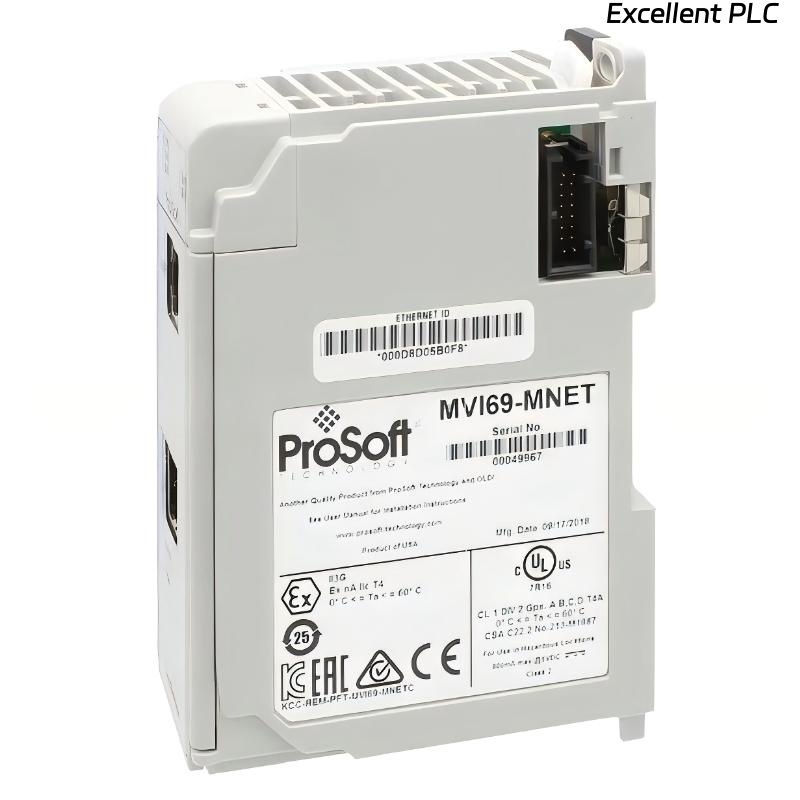

ProSoft MVI69-MNET Modbus TCP/IP Communication Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The ProSoft MVI69-MNET is a Modbus TCP/IP Communication Module designed for Allen-Bradley CompactLogix processors, providing reliable Ethernet-based connectivity to Modbus TCP networks. It enables seamless integration between PLC systems and a wide range of Modbus-compatible devices such as HMIs, SCADA systems, remote I/O, and industrial instruments.
This module operates as both a Client and Server, allowing the controller to initiate communication requests while also responding to incoming data queries. It serves as a bridge between the CompactLogix backplane and Ethernet networks, simplifying system architecture and eliminating the need for external gateways.
With high-speed 10/100 Mbps Ethernet communication and dual-port capability, the MVI69-MNET ensures efficient data exchange in modern industrial environments. Its compact single-slot design makes it suitable for applications requiring reliable network communication without occupying excessive panel space.
Product Specifications
| Parameter | Value |
|---|---|
| Product Model | MVI69-MNET |
| Manufacturer | ProSoft Technology |
| Module Type | Modbus TCP/IP Communication Module |
| Platform Compatibility | Allen-Bradley CompactLogix |
| Communication Protocol | Modbus TCP/IP (Client/Server) |
| Configuration Port | 1 × RJ45 Serial Port (CFG) |
| Ethernet Ports | 2 × RJ45 (10/100 Mbps) |
| Communication Speed | 10/100 Mbps |
| Backplane Current Load | 800 mA @ 5 VDC |
| Power Supply | 5 VDC |
| Power Supply Distance | 2 |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting | Single Slot |
| Dimensions | 118 × 35 × 87 mm |
| Weight | 0.18 kg |
Applications
● Modbus TCP/IP network integration, enabling CompactLogix controllers to communicate with Ethernet-based industrial devices
● SCADA and HMI systems, supporting high-speed data exchange for monitoring and control
● Industrial Ethernet infrastructure, connecting PLCs with remote I/O, drives, and intelligent devices
● System modernization projects, upgrading legacy systems to Ethernet-based communication
● Distributed automation systems, allowing communication across multiple networked devices
● Energy management and utilities, providing reliable communication with meters and monitoring systems
Advantages
● Client/Server functionality, enabling flexible communication roles within the same module
● Dual Ethernet ports, supporting network expansion and simplified topology design
● High-speed communication, ensuring efficient data transfer over 10/100 Mbps networks
● Seamless CompactLogix integration, eliminating the need for external communication gateways
● Compact single-slot design, saving valuable panel space
● Reliable industrial performance, designed for stable operation in demanding environments
FAQ
- What is the primary function of the MVI69-MNET module?
It enables CompactLogix processors to communicate with Modbus TCP/IP devices over Ethernet, acting as both a Client and Server. - Does the module support both Client and Server modes?
Yes, it supports both modes simultaneously, allowing flexible data exchange with multiple devices. - What is the purpose of the dual Ethernet ports?
They allow network expansion, device daisy-chaining, or flexible network topology configurations. - What communication speed does the module support?
It supports 10/100 Mbps Ethernet communication for efficient data transfer. - How is the module configured?
Configuration is performed through the RJ45 serial configuration port using ProSoft tools. - Can the module communicate with multiple devices at once?
Yes, it can handle communication with multiple Modbus TCP devices on the network. - How does the module interact with the PLC?
It exchanges data through the CompactLogix backplane as an I/O module, making integration straightforward. - Is it suitable for system upgrades?
Yes, it is commonly used to upgrade legacy systems to support modern Ethernet-based communication. - What industries typically use this module?
It is widely used in manufacturing, utilities, energy management, and process industries. - How does the module ensure communication reliability?
It includes diagnostic features, error handling mechanisms, and stable Ethernet communication design to maintain reliable operation.
Related Models
| Model | Description |
|---|---|
| MVI69E-MBTCP | Enhanced Modbus TCP module |
| MVI69-MCM | Modbus Master/Slave serial module |
| MVI69L-MBS | Modbus Serial Lite module |
| MVI69-DFNT | EtherNet/IP communication module |
| MVI69-GSC | Generic ASCII serial module |
| MVI69-PDPS | PROFIBUS DP Slave module |
Popular Models
| Model | Description |
|---|---|
| MVI56E-MNETC | Modbus TCP/IP communication module |
| MVI56E-MCM | Modbus Master/Slave module |
| MVI56E-61850 | IEC 61850 communication module |
| PLX31-EIP-MBTCP | EtherNet/IP to Modbus TCP gateway |
| MVI69E-MBTCP | CompactLogix Modbus TCP module |
| ILX34-MBS485 | Modbus serial communication module |
