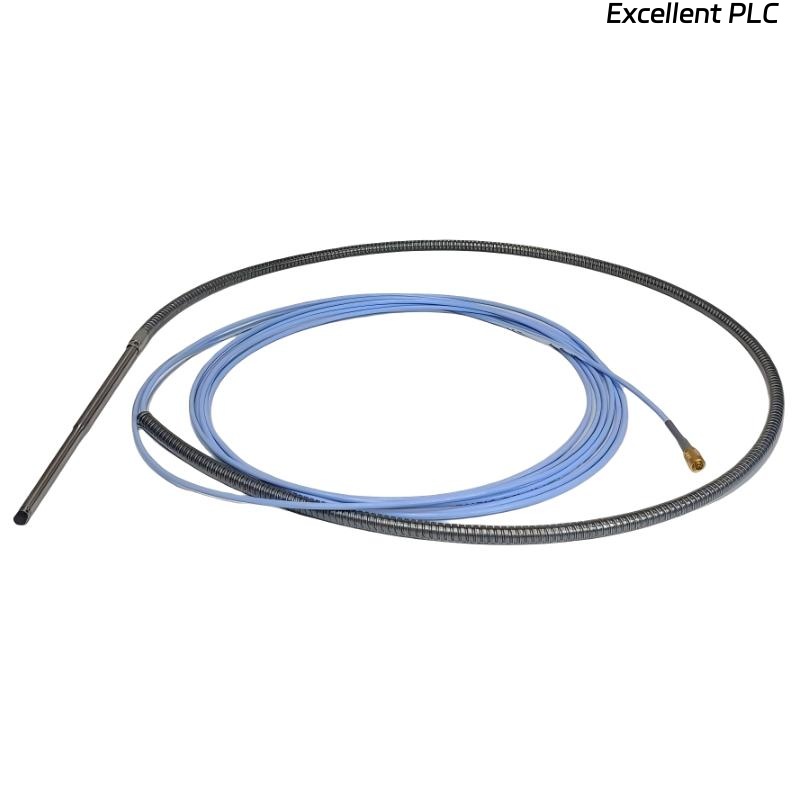

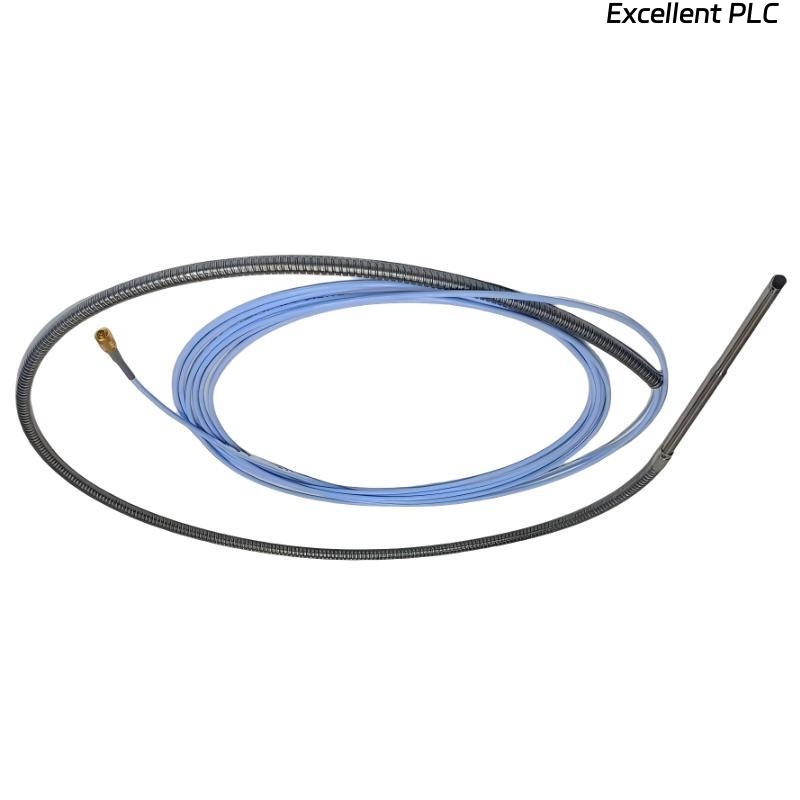

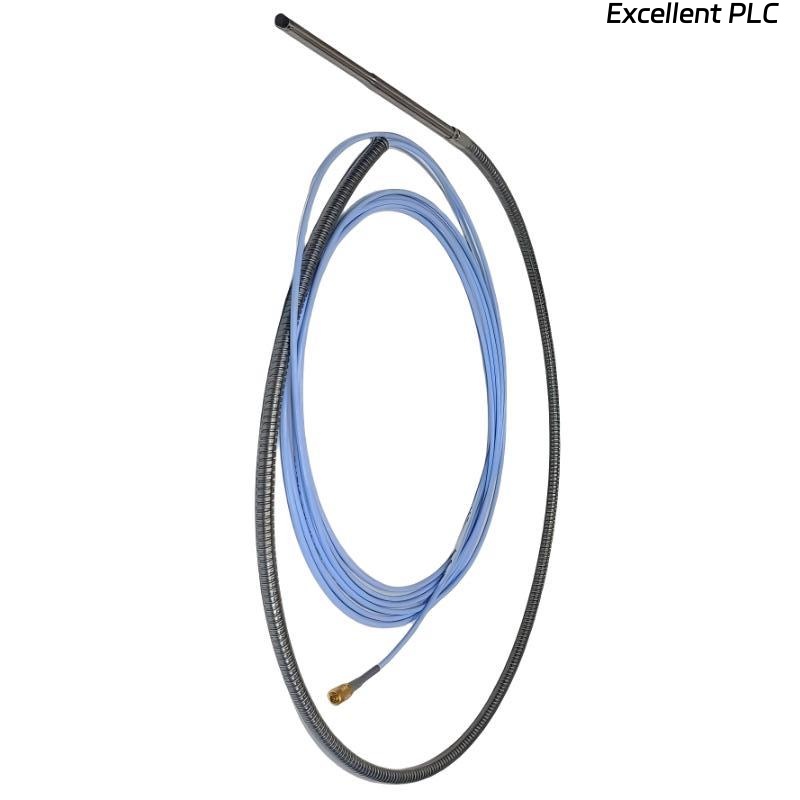

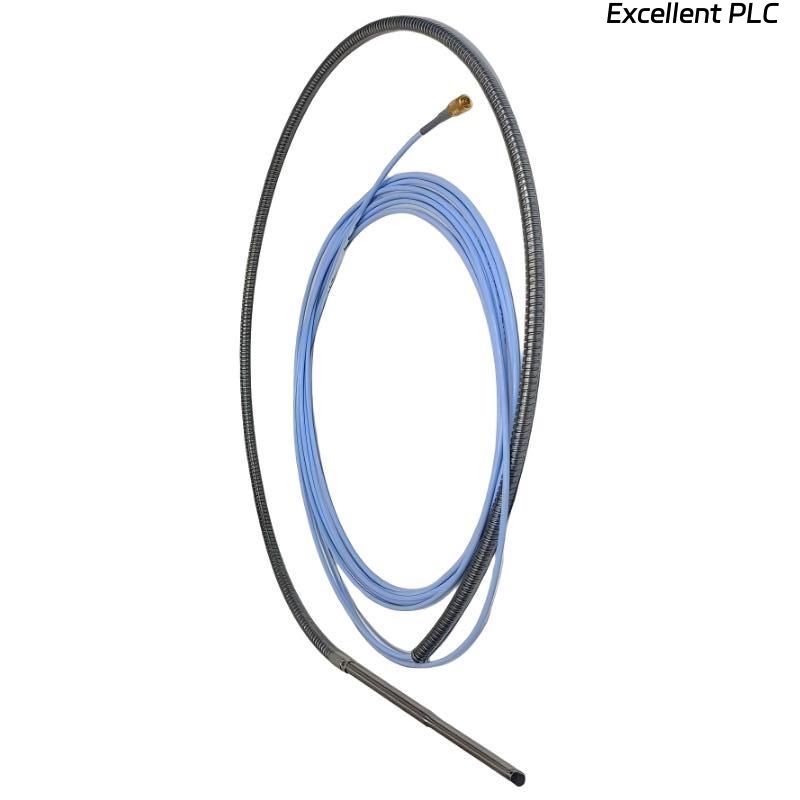

Bently Nevada 143493-00-080-080-70-00 3300 XL NSv Vibration Probe Component
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Bently Nevada 3300 XL NSv Vibration Probe (Model: 143493-00-080-080-70-00) is a compact eddy current proximity probe designed for precise vibration and displacement measurement in confined installation environments. It belongs to the 3300 XL NSv series, which is specifically engineered for applications where conventional probe sizes cannot be accommodated.
This probe adopts advanced eddy current sensing technology to provide stable, repeatable, and high-resolution measurements of shaft vibration and position. The NSv (Narrow Side View) structure allows installation in tight radial or axial clearances without compromising signal integrity, making it particularly suitable for critical monitoring points in compact machinery.
It is typically used in combination with matched extension cables and NSv Proximitor sensors to form a complete monitoring system. The overall design emphasizes durability and long-term stability, ensuring reliable operation under harsh industrial conditions such as oil contamination, vibration, and temperature variation.
Product Specifications
| Parameter | Value |
|---|---|
| Product Type | Eddy Current Proximity Probe |
| Series | 3300 XL NSv |
| Model Number | 143493-00-080-080-70-00 |
| Probe Tip Diameter | Approx. 5 mm |
| Measurement Range | Up to 2 mm (80 mils) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature Range | -35°C to +177°C |
| Cable Configuration | Integrated probe cable + extension |
| Connector Type | ClickLoc miniature connector |
| Probe Material | PPS (Polyphenylene Sulfide) |
| Mounting Thread | M8 or 3/8-24 UNF |
| Output Signal | Analog voltage proportional to displacement |
| System Compatibility | 3300 XL NSv Proximitor |
| Shipping Weight | 3 kg |
Applications
• Compact machinery vibration monitoring
Used in installations where space is limited, enabling accurate measurement without structural modification.
• High-speed rotating equipment
Applied in turbines and compressors requiring stable dynamic response and precise vibration tracking.
• Axial displacement measurement
Suitable for shaft position monitoring in tight installation conditions.
• Pump and gearbox condition monitoring
Helps detect imbalance, misalignment, and early mechanical faults.
• Retrofit and upgrade projects
Ideal for replacing legacy probes in systems with restricted mounting space.
Advantages
• Miniature probe structure
Designed for restricted installation environments, improving adaptability in compact machinery.
• High measurement precision
Provides excellent linearity and repeatability, ensuring reliable data acquisition.
• Strong environmental adaptability
Resistant to oil, vibration, and temperature fluctuations, suitable for harsh industrial conditions.
• Flexible configuration
Supports different cable lengths and system combinations for customized installations.
• Proven technology platform
Based on widely applied solutions in critical rotating equipment monitoring systems.
• Stable long-term operation
Ensures consistent signal output with minimal drift over extended periods.
FAQ
- What measurement principle does this probe use?
The probe operates based on the eddy current principle, where an electromagnetic field interacts with a conductive target, and the resulting changes are converted into a voltage signal proportional to displacement. - Why is the NSv probe suitable for tight installation spaces?
Its miniature sensing tip and compact mechanical design allow it to be installed in locations where standard probes cannot physically fit, without sacrificing measurement performance. - What type of surfaces can be measured by this probe?
It is designed for conductive metallic surfaces, typically steel shafts, where eddy current interaction can be reliably established. - How is signal stability ensured in industrial environments?
The probe uses shielded cables, robust connectors, and stable electronic characteristics to minimize interference from electrical noise and environmental factors. - What role does the Proximitor sensor play in the system?
The Proximitor sensor processes the raw signal from the probe, providing power and converting the signal into a standardized output for monitoring systems. - Can the probe handle dynamic vibration measurements?
Yes, it supports a wide frequency response range, allowing it to accurately capture both static displacement and dynamic vibration signals. - What installation factors are critical for proper operation?
Correct gap setting, proper alignment, and secure mounting are essential to ensure accurate measurement and prevent signal distortion. - How does temperature affect probe performance?
Temperature variations can influence material properties and signal characteristics, but the probe is designed to maintain stable operation within its rated temperature range. - Is calibration required after installation?
System calibration is typically performed using matched components, and proper configuration ensures the output remains within specified accuracy. - What are common troubleshooting steps if signal issues occur?
Check cable connections, verify grounding, inspect probe tip condition, and confirm that the installation gap is within the recommended range.
Related Models
| Model | Description |
|---|---|
| 143493-00-050-090-70-00 | Short-length NSv probe configuration |
| 143493-00-100-080-70-00 | Extended cable configuration |
| 330905-00-05-10-02-00 | Standard NSv probe |
| 330906-02-12-05-02-00 | High-temperature NSv probe |
| 330907-05-30-10-02-00 | Long-range NSv probe |
| 330910-00-08-10-02-00 | General-purpose NSv probe |
Popular Models
| Model | Description |
|---|---|
| 330103-00-05-10-02-00 | 3300 XL 8 mm proximity probe |
| 330130-040-00 | Extension cable |
| 330180-90-00 | Proximitor sensor |
| 176449-02 | 3500/42M monitor module |
| 138607-01 | 3500/22M interface module |
| 330101-00-20-10-02-00 | 3300 XL 11 mm probe |
