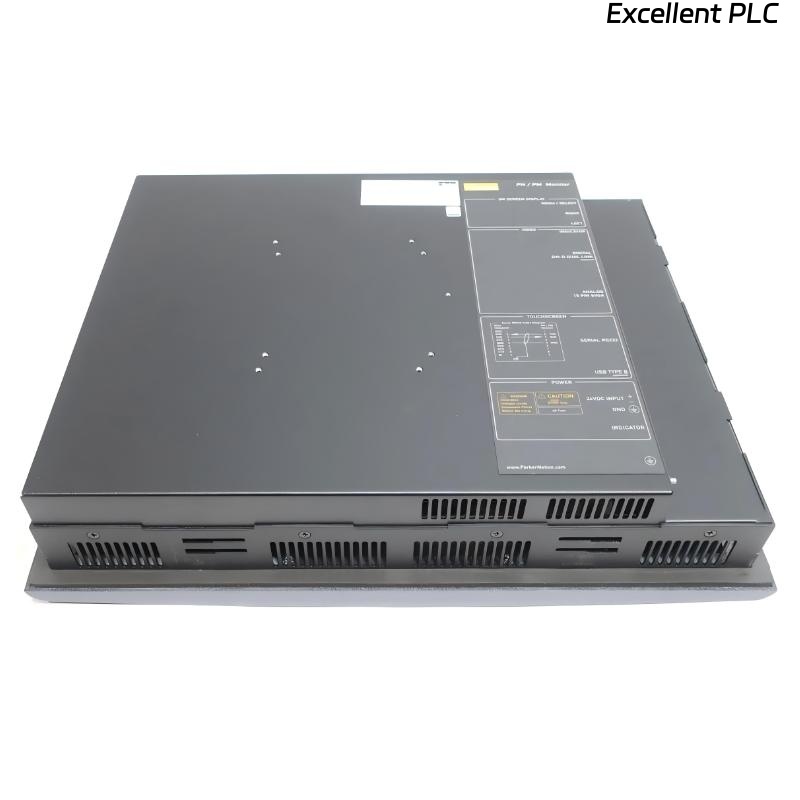

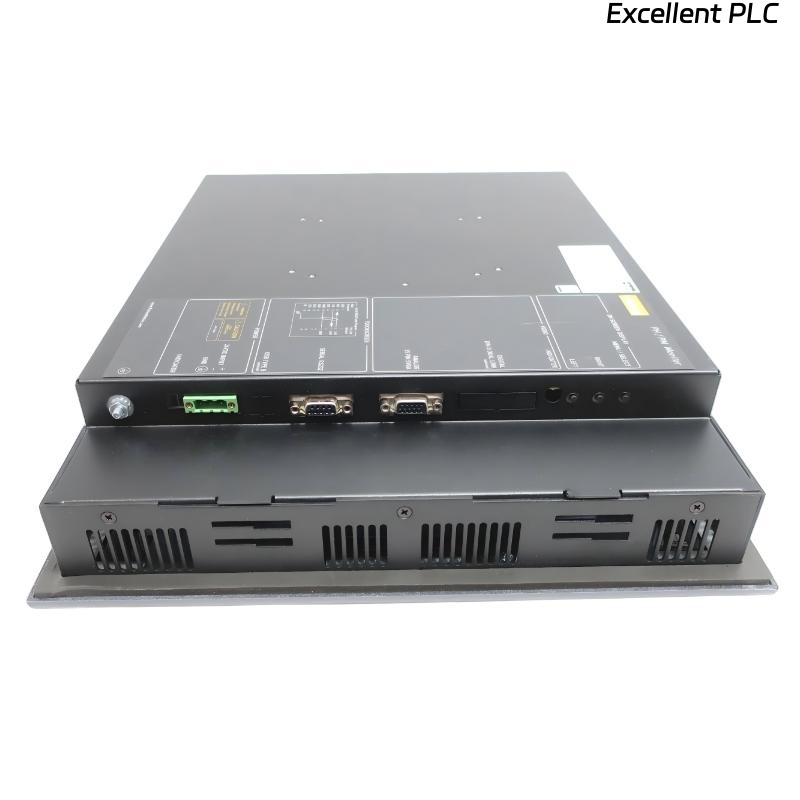

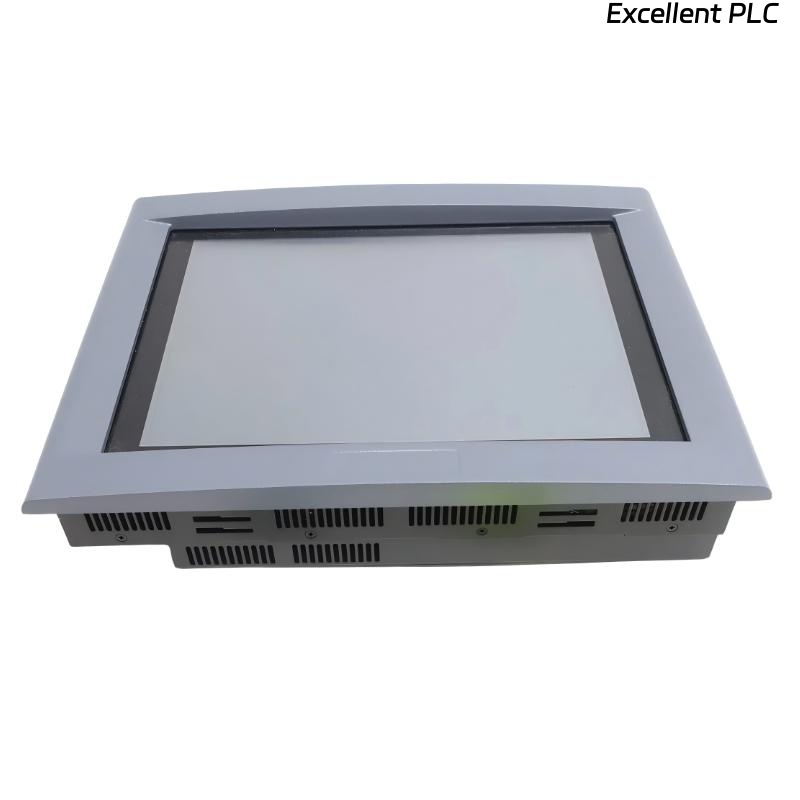

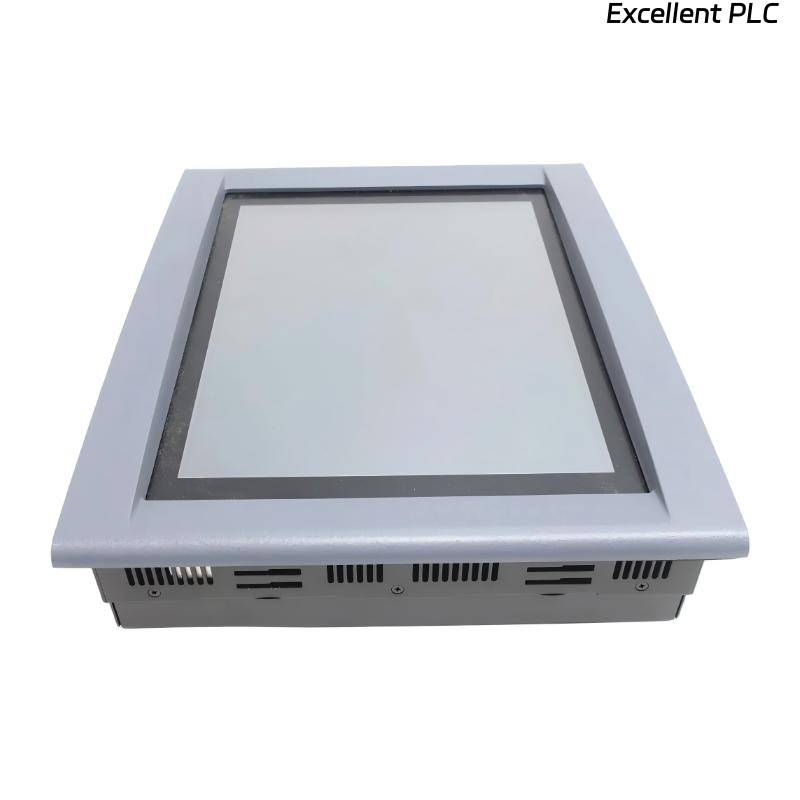

Bently Nevada 148654-01 3500/94M Spare Display
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Bently Nevada 3500/94M Spare Display (Model: 148654-01) is a dedicated display module designed for use within the 3500 Machinery Protection System. It provides real-time visualization of vibration, position, and process data collected from various monitoring modules, allowing operators to quickly assess machine condition and system status.
This display unit is typically installed in control rooms or local operator panels, offering clear and intuitive access to critical machinery information. It supports efficient monitoring of turbines, compressors, pumps, and other rotating equipment where continuous condition awareness is essential.
As a spare display, it serves as a replacement or backup unit, ensuring system availability and minimizing downtime in the event of display failure. Its robust design and stable performance make it suitable for long-term use in demanding industrial environments.
Product Specifications
| Parameter | Value |
|---|---|
| Product Type | Spare Display Module |
| Series | 3500 System |
| Model Number | 148654-01 |
| Function | Real-time data display and system interface |
| System Compatibility | Bently Nevada 3500/94M system |
| Display Type | Industrial graphical display |
| Data Interface | System communication interface |
| Mounting Type | Panel or rack-mounted installation |
| User Interface | Visual monitoring and navigation |
| Operating Environment | Industrial control systems |
| Application Area | Machinery condition monitoring |
| Dimensions | 426.72 x 96.52 x 337.82 mm |
| Weight | 7.8 kg |
Applications
• Turbine monitoring systems
Provides operators with real-time visualization of vibration and shaft position data.
• Compressor control rooms
Displays critical condition parameters for quick fault detection and operational decision-making.
• Pump and motor monitoring
Enables continuous observation of equipment performance and system status.
• Industrial control centers
Integrates with monitoring systems to provide centralized data display and supervision.
• Backup and spare system deployment
Ensures system continuity by replacing faulty displays with a ready-to-install spare unit.
Advantages
• Real-time data visualization
Provides clear and immediate display of machinery condition and monitoring data.
• High system compatibility
Fully integrated with the Bently Nevada 3500 monitoring system.
• Reliable industrial design
Built for stable operation in continuous industrial environments.
• User-friendly interface
Allows operators to easily interpret and navigate monitoring data.
• Reduced downtime
As a spare unit, it enables quick replacement to maintain system availability.
• Robust construction
Designed to withstand vibration and industrial environmental conditions.
FAQ
- What is the main function of the 3500/94M Spare Display?
It provides real-time visualization of monitoring data from the 3500 system, allowing operators to assess machine condition. - Is this display only used as a spare unit?
It is typically used as a replacement or backup, but it can also be installed as part of the system if needed. - What type of data can be displayed?
It displays vibration, displacement, position, and other machinery condition parameters. - Where is this display typically installed?
It is usually installed in control rooms, operator panels, or monitoring stations. - Does it require configuration after installation?
Yes, system configuration may be required to match it with the existing monitoring setup. - Can it operate continuously in industrial environments?
Yes, it is designed for continuous operation in demanding industrial conditions. - What happens if the display fails?
A spare unit like this can be quickly installed to restore system visibility. - Is it compatible with all 3500 modules?
It is designed for the 3500/94M system and works with compatible modules within that platform. - Does it affect system operation or only display data?
It primarily serves as a display interface and does not directly affect measurement or protection functions. - What are common issues during installation?
Incorrect connections, configuration mismatches, and improper mounting are common issues.
Related Models
| Model | Description |
|---|---|
| 3500/94 | Standard display module |
| 3500/92 | Communication gateway module |
| 3500/93 | System display interface |
| 3500/95 | Advanced display variant |
| 148654-02 | Updated spare display version |
| 3500/94M-01 | Alternate configuration |
Popular Models
| Model | Description |
|---|---|
| 3500/42M | Vibration monitoring module |
| 3500/22M | System interface module |
| 3300 XL 8mm Probe | Standard proximity probe |
| 330180-90-00 | Proximitor sensor |
| 330130-040-00 | Extension cable |
| 3300 XL NSv Probe | Compact probe system |
