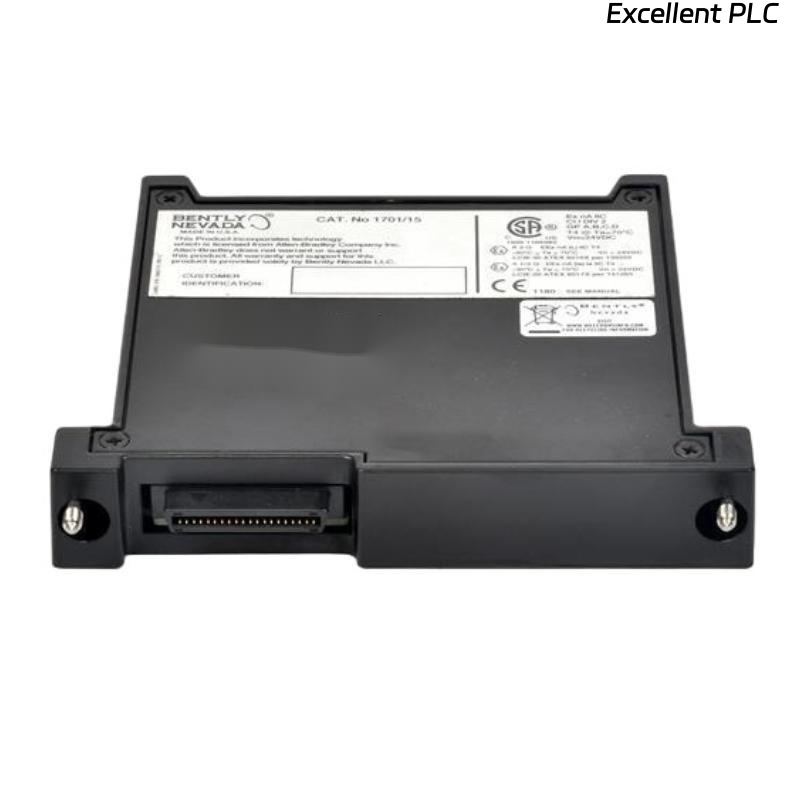

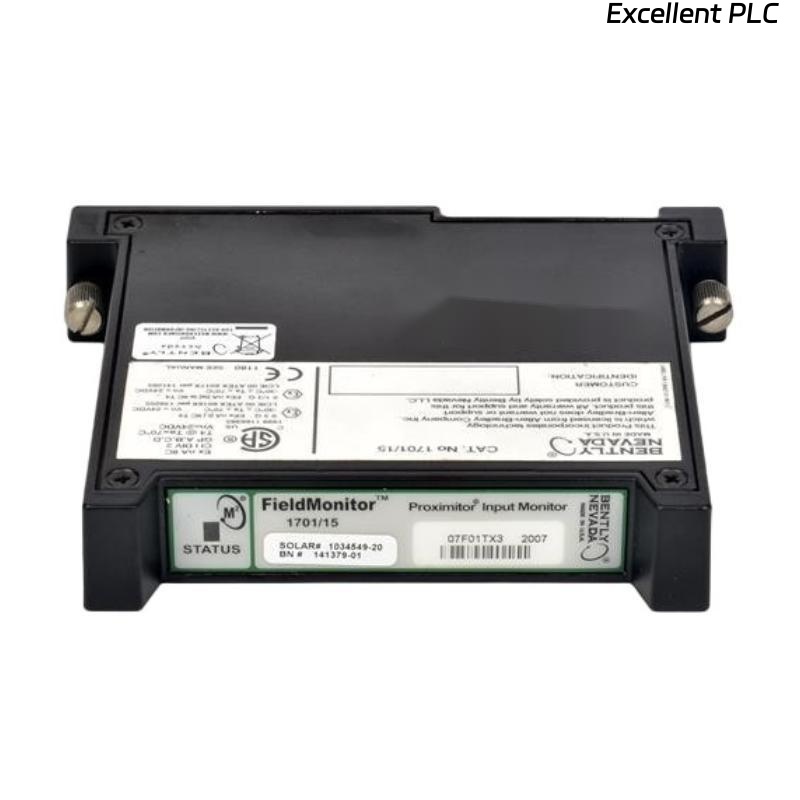

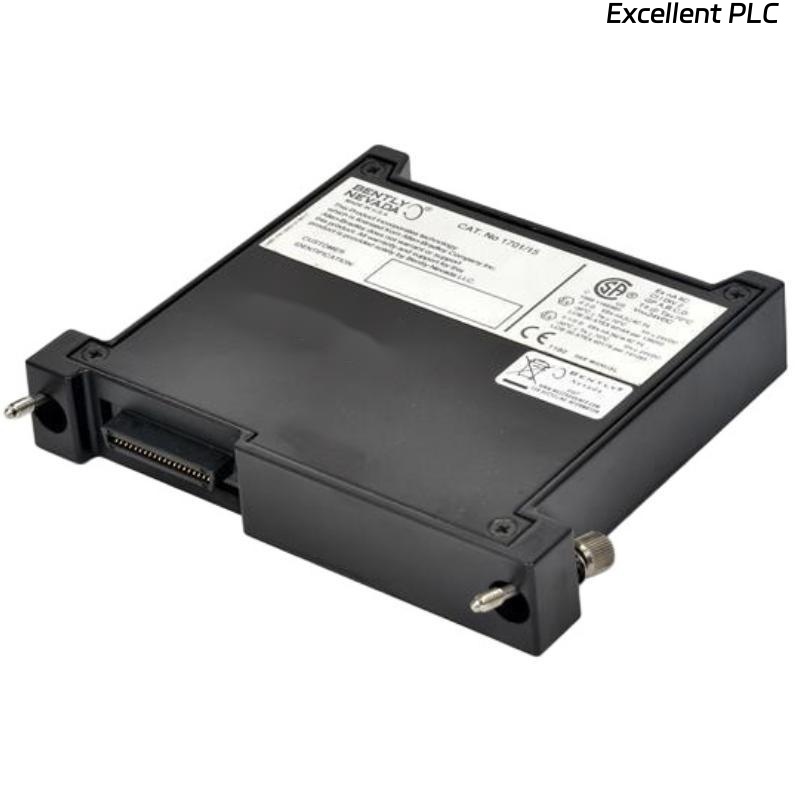

Bently Nevada 1701/15 Field Monitor Preamplifier Input Monitor
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Bently Nevada 1701/15 Field Monitor Preamplifier Input Monitor is an integral component of the Bently Nevada 1701 monitoring system. Designed to accept input from preamplifiers and field devices, this module provides accurate signal conditioning and reliable interface capabilities to ensure effective machinery protection and monitoring. Its rugged design allows it to function in demanding industrial environments, while its compatibility with Bently Nevada’s monitoring architecture ensures seamless integration into existing systems.
Key Features
-
Accepts inputs from preamplifiers and field devices
-
Ensures accurate signal conditioning and reliable processing
-
Fully compatible with Bently Nevada 1701 monitoring systems
-
Robust construction for industrial and harsh environment use
-
Supports critical machinery health monitoring applications
-
Status indicators for diagnostic monitoring
-
Compact design for easy installation and maintenance
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | Preamplifier Input Monitor |
| Model Number | 1701/15 |
| System Compatibility | Bently Nevada 1701 Field Monitor System |
| Input Type | Preamplifier input signals |
| Signal Processing | Signal conditioning and monitoring |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 127 x 21.6 x 105 mm |
| Weight | 0.314 kg |
| Indicators | Module status LEDs |
Industry Applications
-
Oil & Gas – Monitoring turbine, compressor, and pump vibration through preamplifier inputs
-
Power Generation – Signal conditioning for vibration and machinery health monitoring
-
Chemical & Petrochemical – Reliable monitoring of rotating equipment and process machinery
-
Mining & Metals – Integration with heavy-duty machinery monitoring systems
-
Marine & Offshore – Signal input interface for monitoring offshore machinery
-
Pulp & Paper – Ensures reliable operation of field monitoring devices for critical equipment
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 1701/15 module?
It serves as a preamplifier input monitor, conditioning signals from field preamplifiers for processing by the 1701 system.
Q2: Which system is the 1701/15 compatible with?
It is specifically designed for the Bently Nevada 1701 Field Monitor system.
Q3: What type of inputs does it accept?
It accepts preamplifier input signals for vibration and machinery condition monitoring.
Q4: What is the operating temperature range?
-20°C to +70°C.
Q5: What are the storage temperature limits?
-40°C to +85°C.
Q6: Does it have built-in diagnostic indicators?
Yes, it features status LEDs for power and module health monitoring.
Q7: What are the physical dimensions?
127 mm x 21.6 mm x 105 mm.
Q8: How much does it weigh?
Approximately 0.314 kg.
Q9: Can it be used in harsh environments?
Yes, its rugged design makes it suitable for demanding industrial and offshore applications.
Q10: Is it easy to integrate into existing systems?
Yes, it is designed for seamless integration with other Bently Nevada 1701 monitoring modules.
Related Models
| Model Number | Description |
|---|---|
| 1701/10 | 24 V DC Power Supply |
| 1701/10-01 | 24 V DC Power Supply (variant) |
| 1701/15 | Field Monitor Preamplifier Input Monitor |
| 3500/15 125840-01 | High Voltage AC Power Input Module |
| 3500/20 125744-02 | Rack Interface Module |
| 3500/94 190214-01 | General I/O Module |
Popular Bently Nevada Modules
| Model Number | Description |
|---|---|
| 330104-01-08-50-01-CN | 8 mm Proximity Probe |
| 3500/33M 149986-01 | 16-channel Relay Module |
| 3500/42M 140734-02 | Proximitor/Seismic Monitor |
| 3500/50 133442-01 | Tachometer Module |
| 3500/60 133819-01 | Temperature Monitor |
| 3500/91 161204-01 | EGD Gateway Module |
