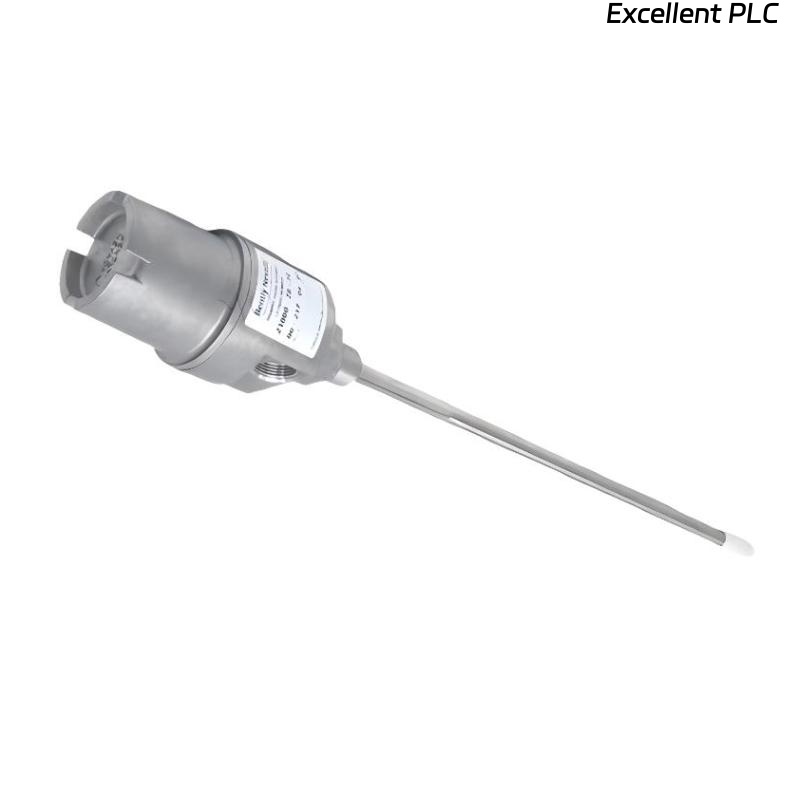

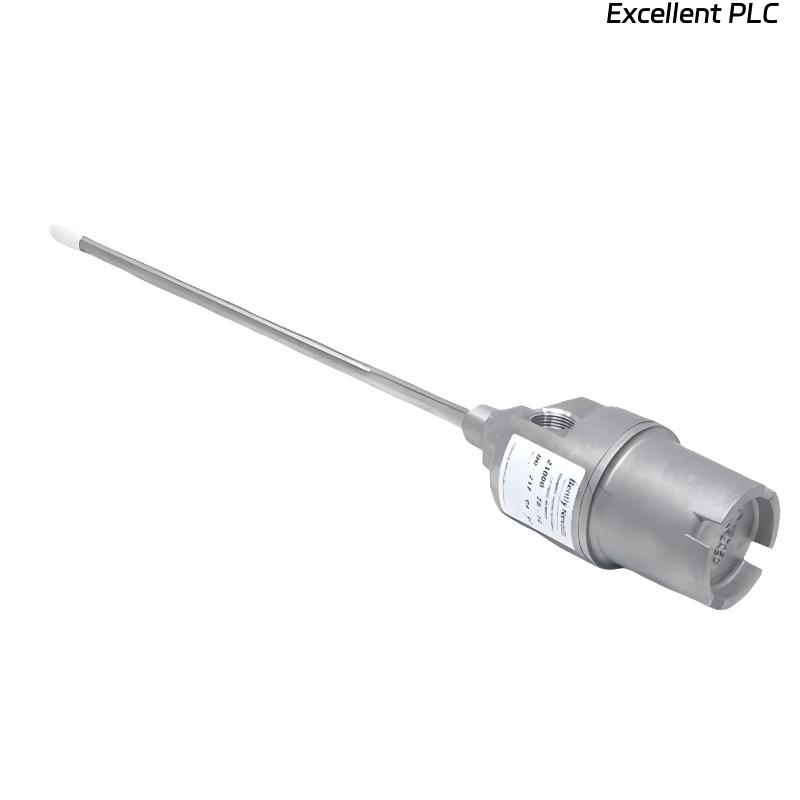

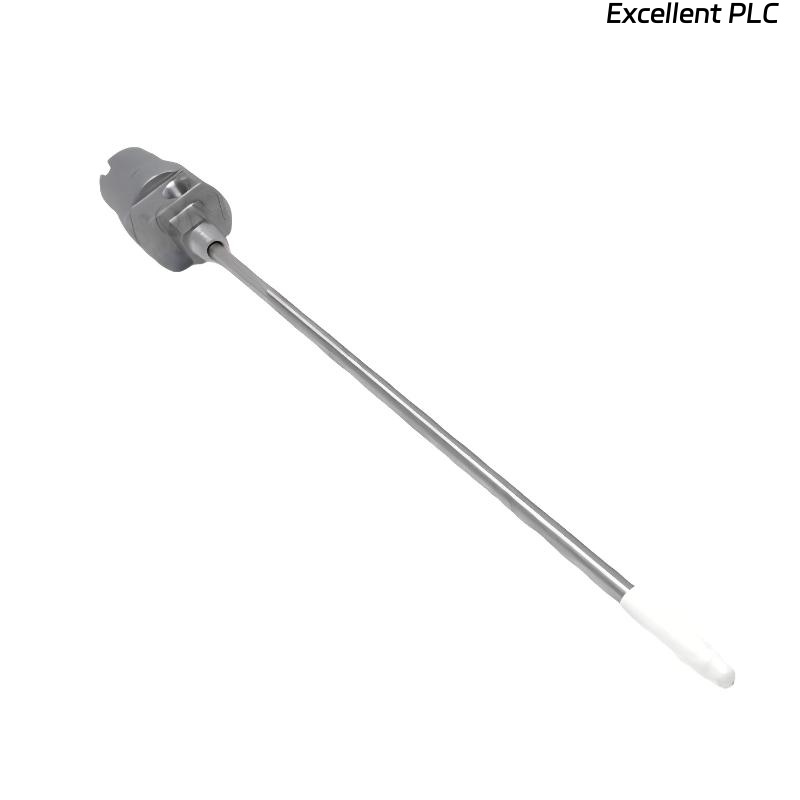

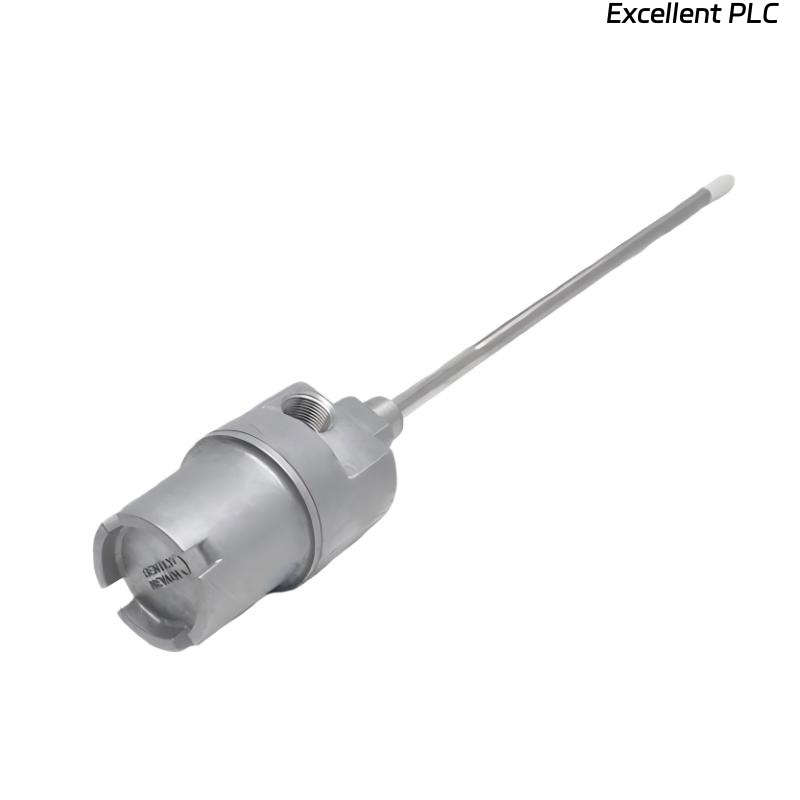

Bently Nevada 21000-16-10-25-056-03-03 Proximity Probe Housing Assemblie

Product Introduction

The Bently Nevada Proximity Probe Housing Assembly (Model: 21000-16-10-25-056-03-03) is a precision mechanical mounting solution designed for eddy current proximity probe systems used in rotating machinery condition monitoring. It provides a stable, accurately aligned interface between the probe and the monitored target surface, ensuring consistent measurement performance.

This housing assembly is engineered to support reliable probe positioning in demanding industrial environments such as turbines, compressors, pumps, and gearboxes. It helps maintain the correct probe gap and angular alignment, which are critical for accurate vibration and displacement measurements.

In addition to mechanical support, the housing also offers protection against contamination, vibration-induced loosening, and installation misalignment. It is typically used as part of a complete Bently Nevada proximity measurement system together with probes, extension cables, and Proximitor sensors.

---

Product Specifications

---

Applications

• Steam and gas turbine systems

Ensures stable probe positioning for high-precision shaft vibration and displacement monitoring in critical rotating equipment.

• Compressor monitoring systems

Provides secure probe mounting to maintain accurate measurement under continuous high-speed operation conditions.

• Pump vibration monitoring

Supports reliable sensor alignment for detecting early-stage mechanical wear and hydraulic instability.

• Gearbox condition monitoring

Maintains probe stability in high-vibration environments where alignment drift must be minimized.

• Industrial system retrofits

Used to upgrade or replace existing probe mounting structures for improved measurement reliability.

---

Advantages

• High mechanical stability

Ensures consistent probe positioning, reducing measurement drift caused by mechanical movement.

• Accurate alignment support

Designed to maintain correct probe gap and orientation for optimal signal quality.

• Robust industrial construction

Built to withstand vibration, contamination, and harsh operating environments.

• Improved measurement reliability

Stable mounting structure directly enhances eddy current probe accuracy and repeatability.

• Flexible installation design

Supports adaptable configuration for different machine layouts and monitoring points.

• Reduced maintenance demand

Strong structural integrity minimizes the need for frequent readjustment or recalibration.

FAQ

1. What is the primary purpose of this housing assembly?
   It provides a stable and precise mounting structure for proximity probes, ensuring correct alignment and consistent measurement performance in rotating machinery.
2. Why is probe alignment so critical in this application?
   Accurate alignment ensures that the probe operates within its calibrated range, which directly affects the precision of vibration and displacement readings.
3. Can this housing be used in high-vibration environments?
   Yes, it is specifically designed to maintain structural stability and probe positioning even under continuous mechanical vibration.
4. How does the housing improve measurement reliability?
   By maintaining a fixed and stable probe position, it reduces signal variation caused by mechanical looseness or misalignment.
5. Is this assembly compatible with all Bently Nevada probes?
   It is designed for use within Bently Nevada proximity measurement systems, but compatibility depends on specific configuration and probe type.
6. Does temperature affect the housing performance?
   The housing is designed for industrial environments and maintains structural integrity within standard operating temperature ranges.
7. What happens if the probe is misaligned during installation?
   Misalignment can lead to inaccurate readings, reduced sensitivity, and potential signal distortion in the monitoring system.
8. Can this housing be adjusted after installation?
   Yes, it allows controlled adjustment to ensure correct probe positioning during setup and maintenance.
9. What type of maintenance is required?
   Only periodic inspection is needed to ensure mechanical tightness and correct probe alignment.
10. Where is this housing most commonly used?
    It is commonly used in turbines, compressors, pumps, and other critical rotating machinery requiring continuous condition monitoring.
