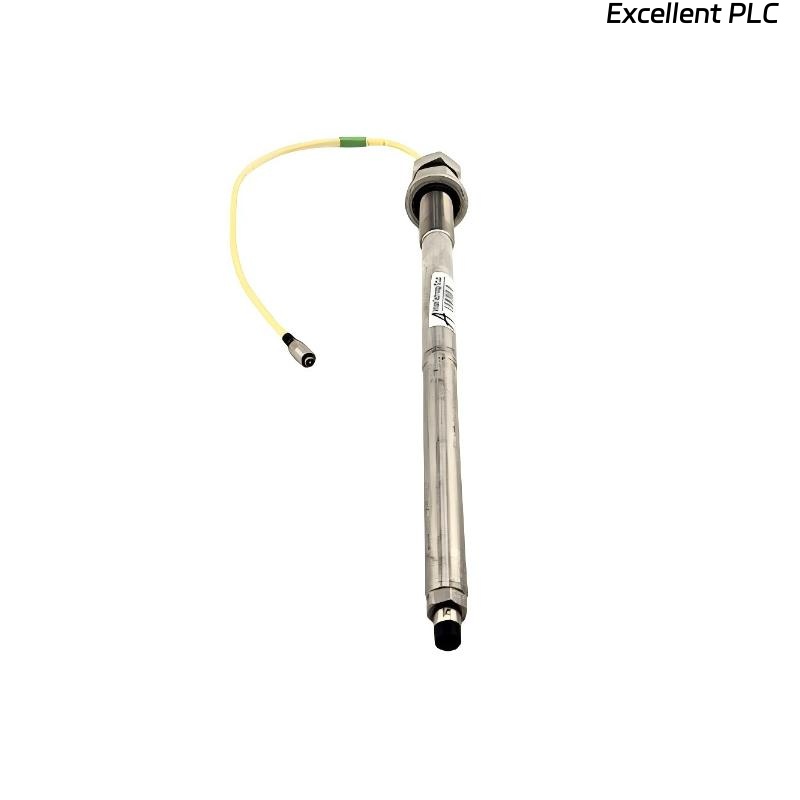

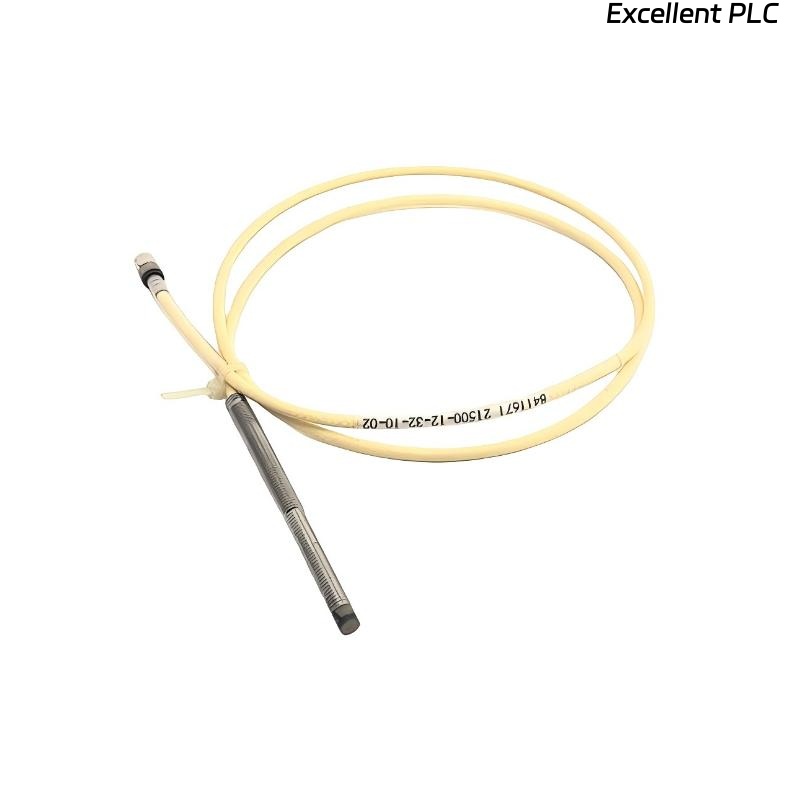

Bently Nevada 21500-04-32-05-02 Velomitor Piezo-Velocity Sensor
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Maintenance Specialist Overview
The Bently Nevada 21500-04-32-05-02 Velomitor Piezo-Velocity Sensor is an industrial-grade velocity transducer designed for accurate measurement of casing vibration in rotating equipment. Built on Bently Nevada’s piezoelectric sensing technology, it produces a voltage output directly proportional to vibration velocity, providing a stable and reliable signal for condition monitoring systems.
From a maintenance standpoint, the 21500-04-32-05-02 stands out for its rugged construction, resistance to contamination, and long-term calibration stability. It offers dependable performance in environments exposed to oil mist, mechanical shock, or high temperatures — all typical of turbine and compressor installations.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 21500-04-32-05-02 |
| Module Type | Velomitor Piezo-Velocity Sensor |
| Measurement Type | Vibration velocity (mm/s or in/s) |
| Sensitivity | 100 mV/in/s ±5% (nominal) |
| Frequency Range | 4.5 Hz to 5 kHz |
| Mounting Type | Stud mounting (1/4-28 UNF) |
| Output Signal | Single-ended voltage |
| Power Supply | +23 to +36 V DC |
| Temperature Range | –54 °C to +121 °C |
| Shock Limit | 5000 g peak |
| Connector Type | 2-pin MIL-C-5015 or compatible |
| Housing Material | Stainless steel |
| Typical Dimensions | 90 mm × 35 mm × 120 mm |
| Weight | 0.32 kg |
| Sealing | Hermetically sealed, IP65 equivalent |
Applications / Field Deployment Examples
-
Casing Vibration Measurement on compressors, pumps, turbines, and fans.
-
Integration with Bently Nevada 3500/42M and 1900/65A monitoring modules.
-
Used in predictive maintenance programs for rotating machinery.
-
Ideal for retrofit projects replacing older velocity transducers.
-
Suited for hazardous or outdoor environments due to sealed housing design.
Advantages / Key Features
-
Hermetically Sealed Housing: Protects against oil, dust, and humidity.
-
Excellent Frequency Response: Accurate velocity readings across wide dynamic range.
-
Maintenance-Free Operation: No moving parts; calibration remains stable over years.
-
High Shock Resistance: Can withstand installation on heavy industrial machinery.
-
Flexible Integration: Compatible with Bently Nevada and third-party monitoring systems.
-
Temperature Resilience: Operates reliably across extreme thermal conditions.
Technical FAQs
-
What type of measurement does the Velomitor provide?
– Vibration velocity (mm/s or in/s RMS). -
What is the standard sensitivity?
– 100 mV/in/s ±5%. -
Can it be directly connected to a 3500 rack?
– Yes, through 3500/42M vibration input modules. -
What is the usable frequency range?
– 4.5 Hz to 5 kHz. -
How is it powered?
– +23 to +36 V DC. -
Is the sensor sealed?
– Yes, hermetically sealed for harsh environments. -
What is the mounting method?
– Stud mount, typically 1/4-28 UNF thread. -
What materials are compatible with the housing?
– Stainless steel construction for corrosion resistance. -
What temperature range can it handle?
– –54 °C to +121 °C. -
Does it require recalibration?
– Normally no; periodic verification recommended every 2–3 years.
Recommended Related Models
| Model Number | Description |
|---|---|
| 330500-02 | Velocity Transducer Cable Assembly |
| 330400 | Accelerometer for casing vibration |
| 3500/42M | Vibration Monitor Module |
| 1900/65A | Compact Monitor for velocity and acceleration signals |
Popular Bently Nevada Models
| Model Number | Description |
|---|---|
| 330180-50-00 | 8 mm Proximitor Module |
| 330103-00-04-10-02-05 | 5 mm Proximity Probe |
| 3500/15 | Power Supply Module |
| 3500/22M | Transient Data Interface Module |
| 2100-28-05-00-40-03-02 | Compact Proximitor Module |
