Product Overview

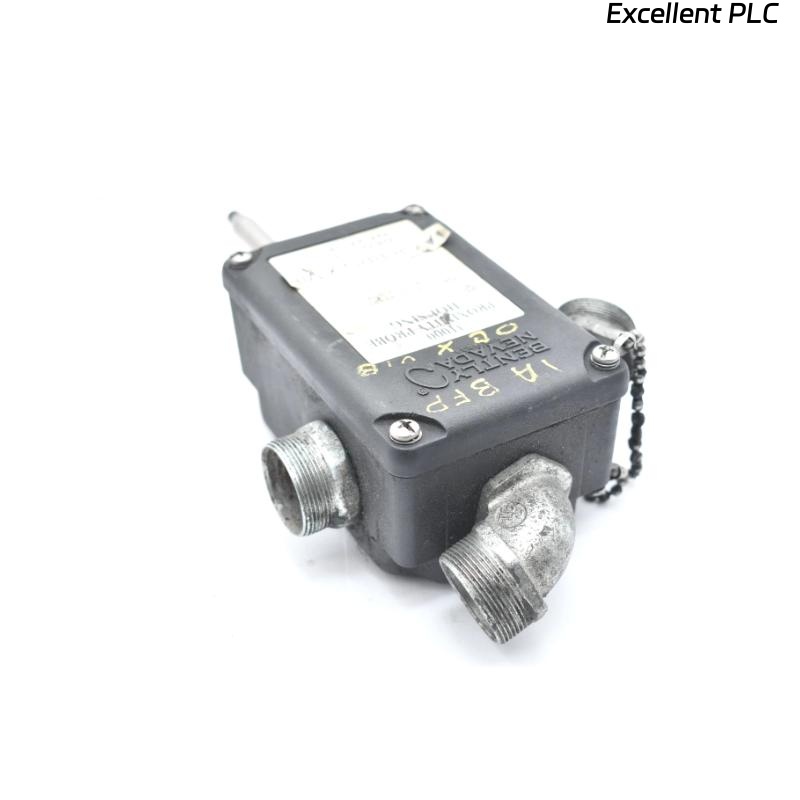

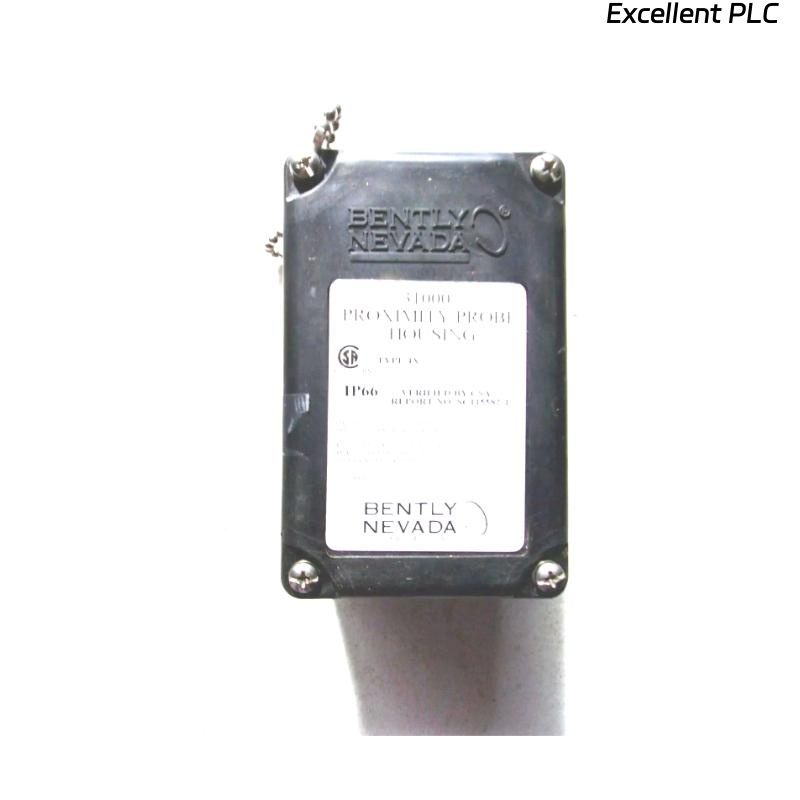

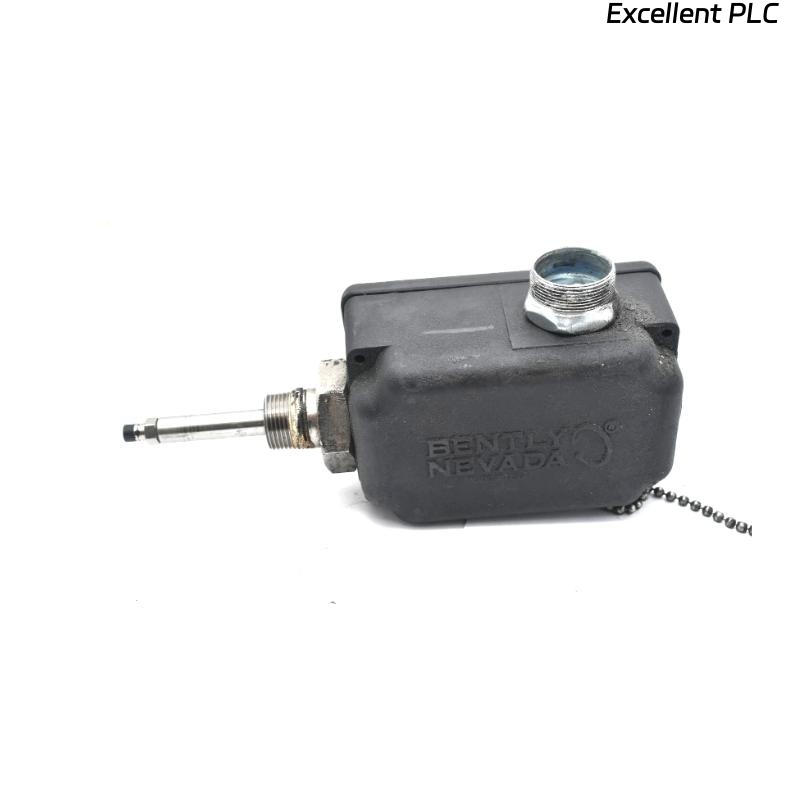

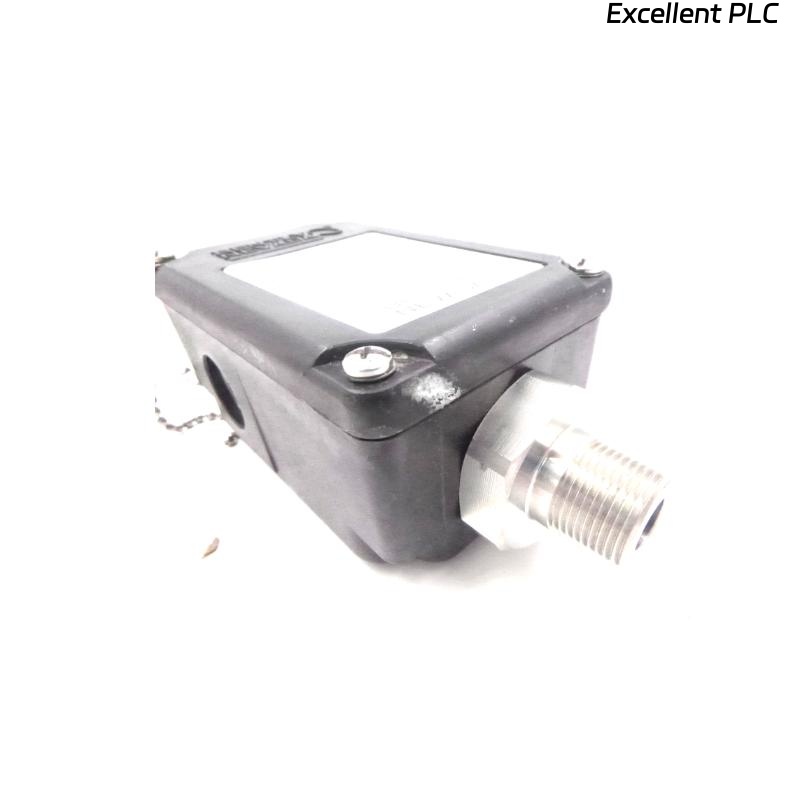

The Bently Nevada 31000-28-05-35-032-03-02 Proximity Probe Housing is engineered for precise shaft displacement measurement in critical machinery. It provides robust protection for the proximity probe while ensuring accurate and repeatable readings in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | Proximity Probe Housing |
| Probe Cable Length | 0.5 meter |
| Weight | 1.2 kg |
| Material | Stainless Steel |
| Operating Temperature | -40°C to 120°C |
| Mounting Type | Flanged / Threaded |
| Sensor Compatibility | 3300 XL Series Proximity Probes |
| Vibration Resistance | Up to 20 g |
| Protection Rating | IP67 |
| Dimensions | Refer to attached drawing for detailed dimensions |
Applications
-
Turbine and generator shaft monitoring
-
Compressor and pump shaft displacement measurement
-
Industrial rotating equipment with high vibration
-
Critical machinery in power generation, petrochemical, and manufacturing plants
Advantages
-
Rugged housing for harsh industrial environments
-
Ensures accurate and stable proximity probe measurements
-
Corrosion-resistant materials for long-term durability
-
Easy installation with standard mounting options
-
Compatible with Bently Nevada 3300 XL series probes
-
Reduces maintenance requirements by protecting the probe
Frequently Asked Questions (FAQ)
1. What is the maximum operating temperature?
The housing operates reliably between -40°C to 120°C.
2. Is the housing compatible with all Bently Nevada probes?
It is specifically designed for 3300 XL Series proximity probes.
3. What protection rating does the housing have?
It offers IP67 protection against dust and water ingress.
4. How long is the probe cable?
The standard cable length is 0.5 meters.
5. What material is the housing made of?
The housing is constructed from stainless steel for corrosion resistance.
6. Can the housing withstand high vibration?
Yes, it can withstand up to 20 g vibration.
7. Is installation easy?
Yes, it supports standard flanged or threaded mounting for straightforward installation.
8. What is the weight of the housing?
The housing weighs 1.2 kg.
9. Can it be used in outdoor environments?
Yes, its IP67 rating allows it to operate in harsh outdoor conditions.
10. Does it reduce maintenance needs?
Yes, by protecting the probe, it minimizes maintenance frequency and extends operational life.
Related Models
| Model | Description | Probe Cable Length | Weight |
|---|---|---|---|
| 31000-28-05-35-032-01-02 | Standard Proximity Probe Housing | 0.5 m | 1.2 kg |
| 31000-28-05-35-032-02-02 | High-Temperature Housing | 0.5 m | 1.3 kg |
| 31000-28-05-35-032-04-02 | Anti-Vibration Housing | 0.6 m | 1.4 kg |
| 31000-28-05-35-032-05-02 | Compact Housing | 0.4 m | 1.0 kg |
| 31000-28-05-35-032-06-02 | Corrosion-Resistant Housing | 0.5 m | 1.3 kg |
| 31000-28-05-35-032-07-02 | Long Cable Housing | 1.0 m | 1.5 kg |
Popular Bently Nevada Models
| Model | Description | Dimensions | Weight |
|---|---|---|---|
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | Standard | 0.9 kg |
| 330104-00-06-50-01-00 | 8 mm Proximity Probe | Standard | 1.0 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor | Standard | 1.1 kg |
| 330105-00-06-10-11-00 | 5 mm Proximity Probe | Compact | 0.8 kg |
| 330188-02-CN | 3300 XL Monitor | Standard | 1.5 kg |
| 330325-01-01-00 | 3300 XL Monitor Module | Standard | 1.2 kg |
