Product Overview

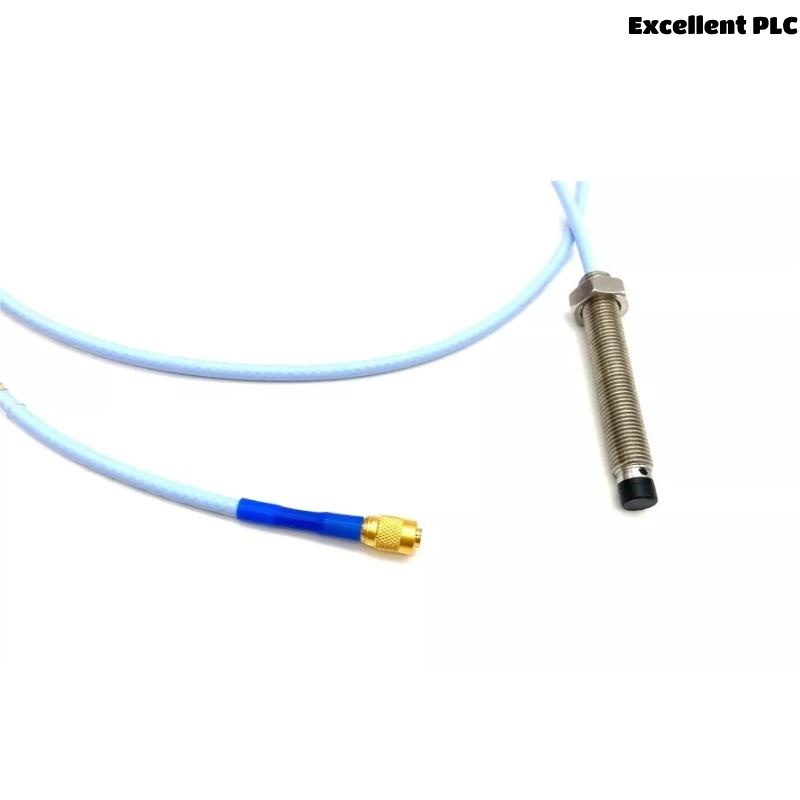

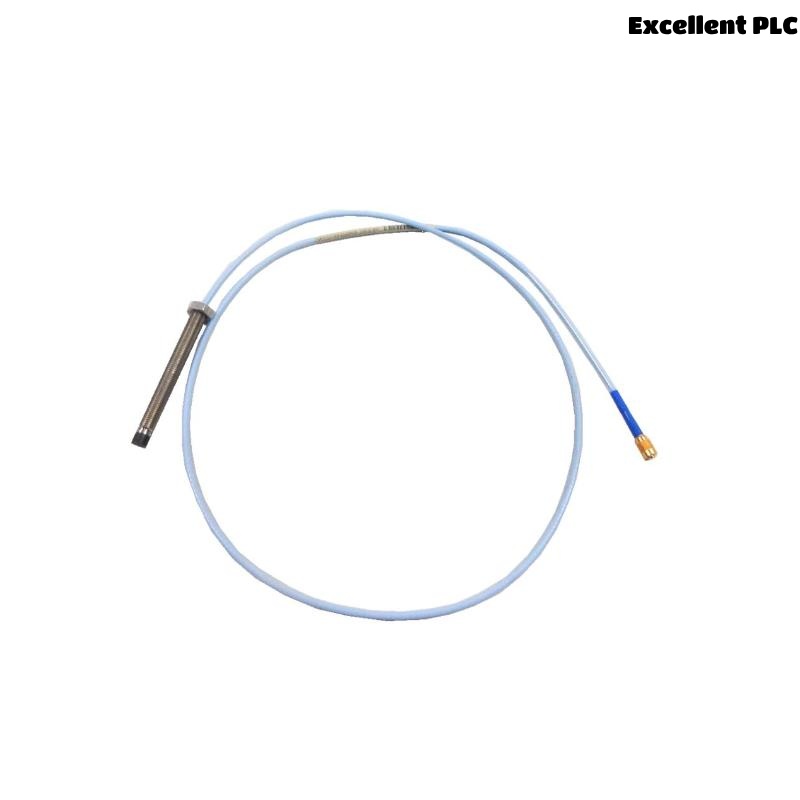

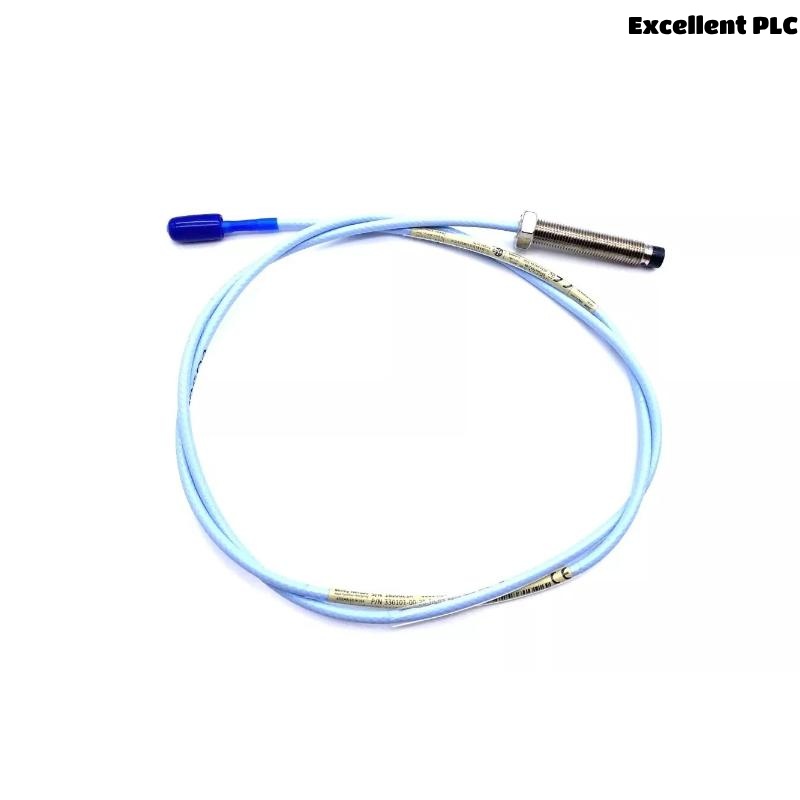

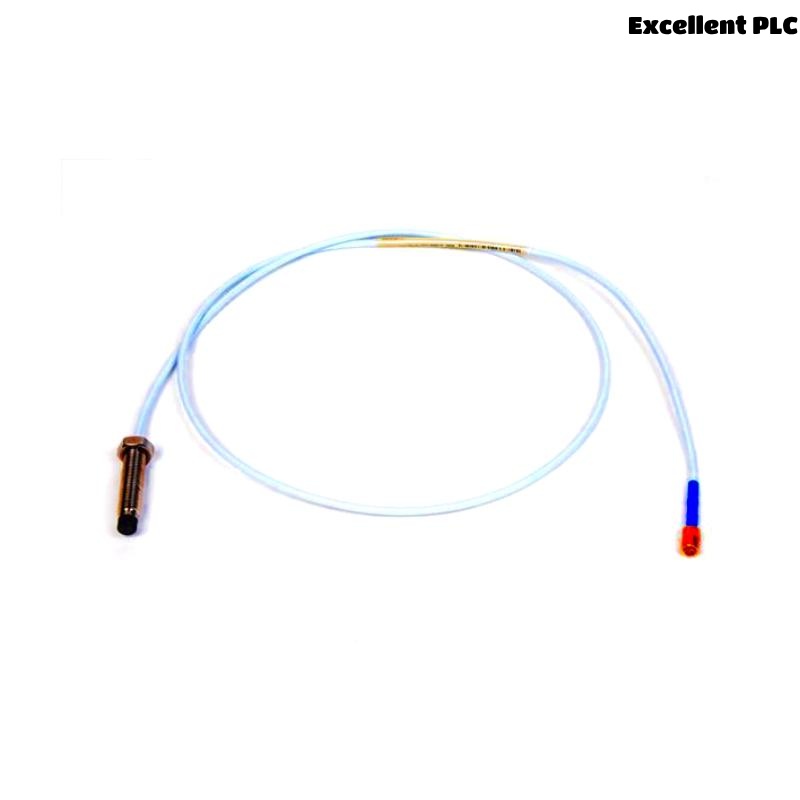

The Bently Nevada 330101-00-35-05-02-05 is part of the 3300 XL 8 mm Proximity Transducer System. It is designed for use in harsh industrial environments to monitor shaft vibration and position in rotating machinery. With robust construction and high reliability, it ensures accurate non-contact measurements.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 330101-00-35-05-02-05 |
| Series | 3300 XL 8 mm |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |
| Cable Length | 5.0 meters |
| Connector Type | Miniature coaxial connector |
| Tip Material | Polyphenylene sulfide (PPS) |
| Operating Temperature | -35°C to +177°C |
| Mounting | Threaded with lock nut |
| Target Material | 4140 steel or equivalent conductive metal |
Applications
-
Steam and gas turbines
-
Compressors and pumps
-
Motors and generators
-
Gearboxes and fans
-
Centrifugal equipment
-
Industrial machinery requiring precise shaft position monitoring
Product Advantages
-
Resistant to high temperatures and harsh environments
-
Precise non-contact measurements
-
Standardized system compatible with 3300 XL Proximitor
-
Durable construction for long operational life
-
Reliable performance in continuous vibration monitoring systems
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330101-00-35-05-02-05 probe?
A1: It measures shaft vibration and axial position in rotating equipment without physical contact.
Q2: Is the probe suitable for high-temperature environments?
A2: Yes, it operates reliably in temperatures from -35°C to +177°C.
Q3: What is the length of the probe and the cable?
A3: The probe is 0.5 meters long, and the cable is 5.0 meters.
Q4: Which transducer system is this probe compatible with?
A4: It is compatible with the Bently Nevada 3300 XL Proximitor system.
Q5: What material is used for the probe tip?
A5: The probe tip is made from Polyphenylene sulfide (PPS), ensuring durability and stability.
Q6: Can the probe be used in corrosive environments?
A6: Yes, the probe is built with corrosion-resistant materials for harsh industrial settings.
Q7: What is the weight of the probe?
A7: The weight of the probe is 0.162 kg.
Q8: What type of connector does the probe use?
A8: It uses a miniature coaxial connector.
Q9: Is this probe compatible with other Bently Nevada systems?
A9: It is mainly designed for 3300 XL systems but may integrate with other Bently setups using adaptors.
Q10: How is the probe mounted?
A10: It is mounted using a threaded body with a lock nut for secure positioning.
Related or Same Series Models
| Model Number | Cable Length | Probe Length | Weight | Connector Type |
|---|---|---|---|---|
| 330101-00-25-10-02-00 | 10.0 m | 0.25 m | 0.175 kg | Coaxial |
| 330101-00-30-10-02-00 | 10.0 m | 0.30 m | 0.180 kg | Coaxial |
| 330101-00-50-10-02-00 | 10.0 m | 0.50 m | 0.190 kg | Coaxial |
| 330101-00-80-05-02-00 | 5.0 m | 0.80 m | 0.210 kg | Coaxial |
| 330101-00-100-05-02-00 | 5.0 m | 1.00 m | 0.230 kg | Coaxial |
| 330104-00-06-10-11-00 | 9.0 m | 0.60 m | 0.200 kg | Coaxial |
