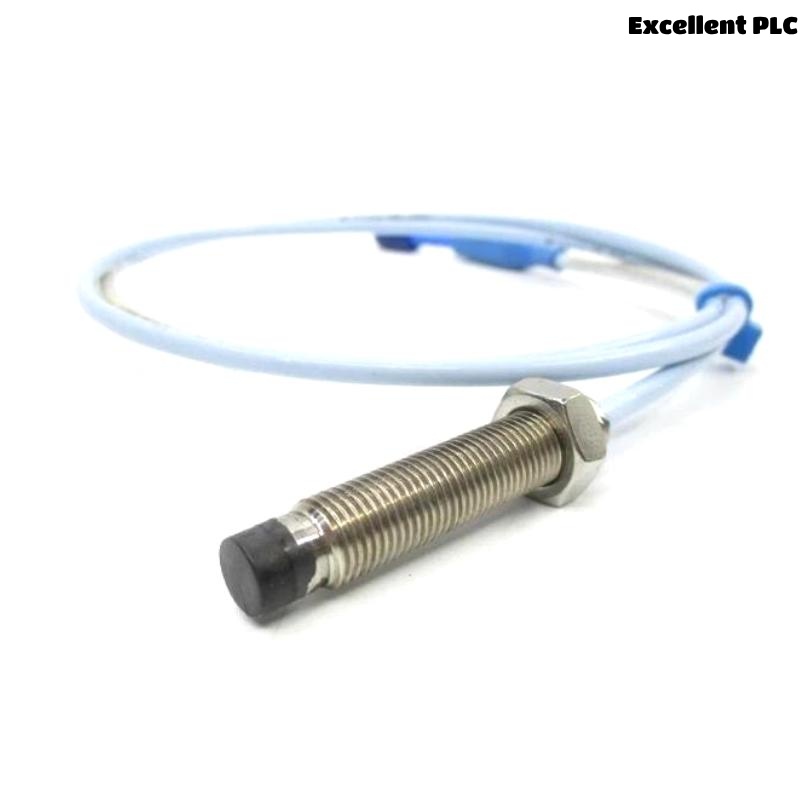

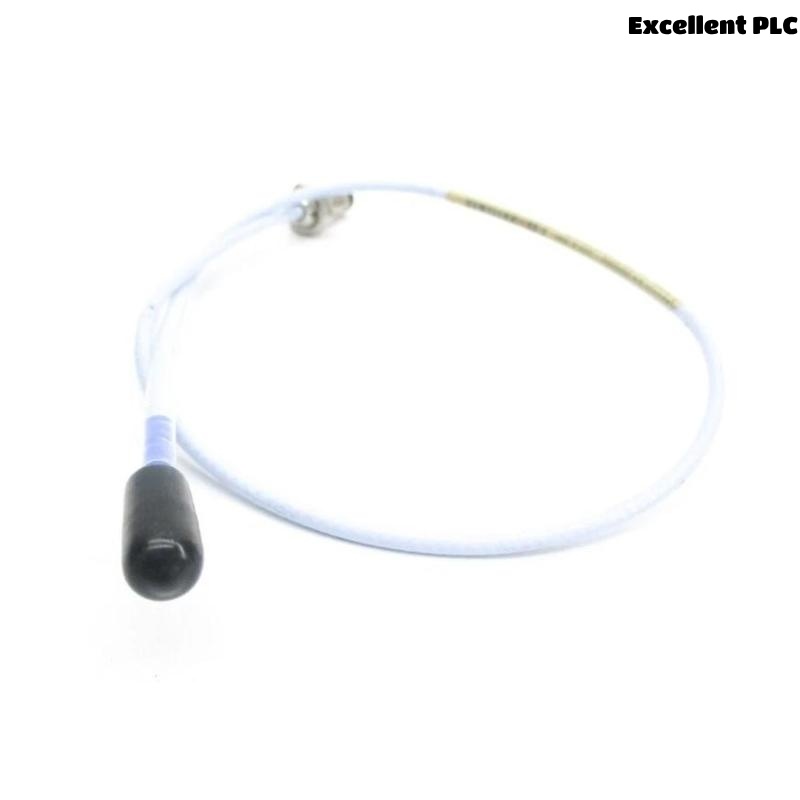

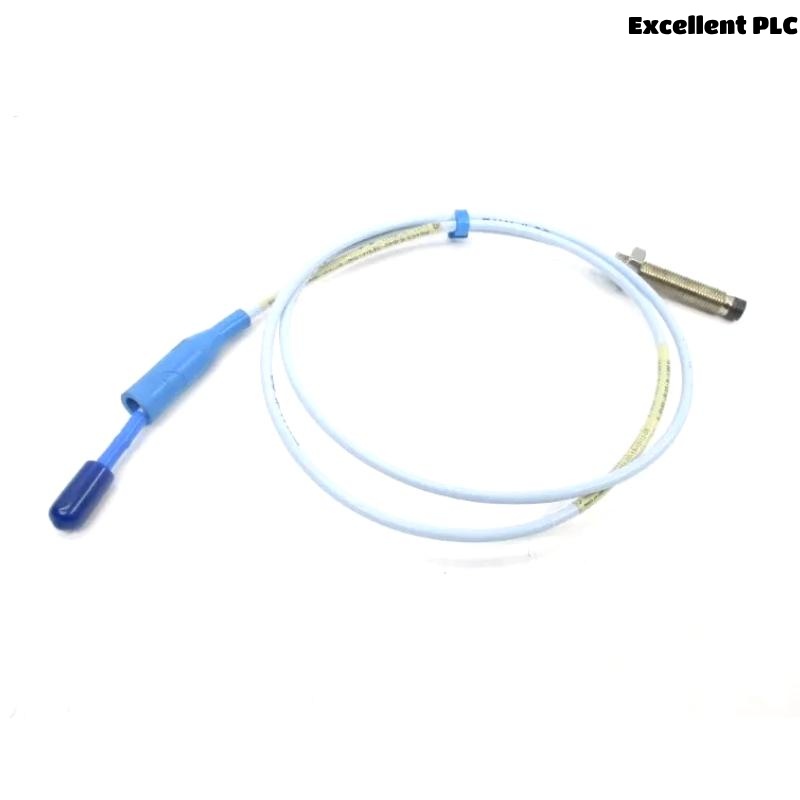

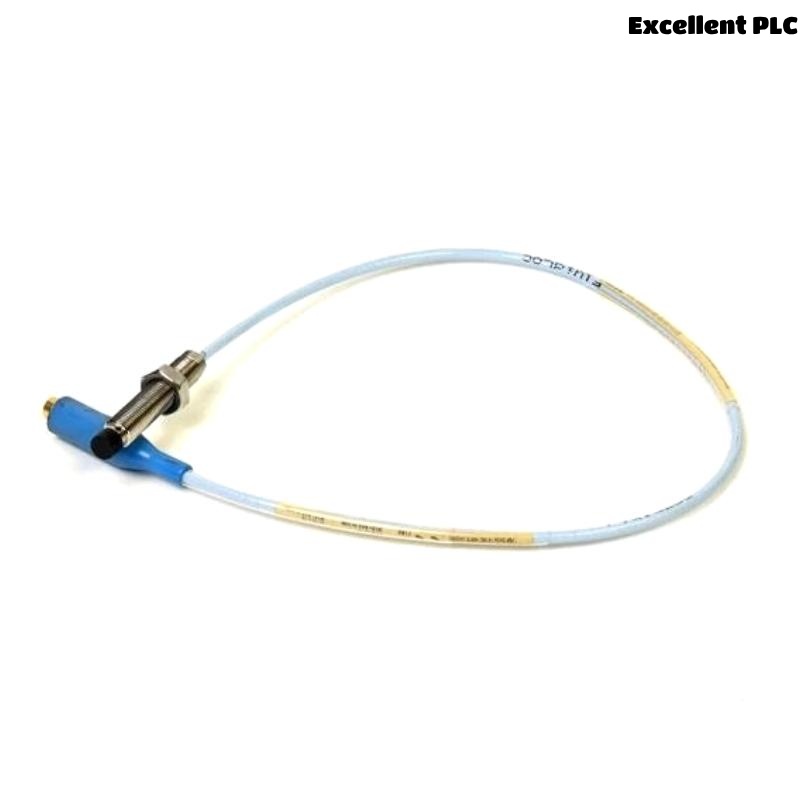

Bently Nevada 330101-00-36-10-02-05 3300 XL 8 mm Proximity Probe
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description
The Bently Nevada 330101-00-36-10-02-05 is a high-performance 3300 XL 8 mm Proximity Probe designed to deliver precise vibration and displacement measurements. It is optimized for industrial machinery monitoring and integrates seamlessly with 3300 XL systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-36-10-02-05 |
| Series | 3300 XL 8 mm |
| Probe Tip Diameter | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Thread Size | 3/8-24 UNF |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303 Stainless Steel |
| Cable Type | Teflon jacket, triaxial design |
| Temperature Range | -35°C to +120°C |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| System Compatibility | 3300 XL Proximitor Sensor and Extension Cable |
| Environmental Sealing | Epoxy sealed, IP68 rated |
Applications
-
Steam turbines
-
Gas turbines
-
Compressors
-
Gearboxes
-
Pumps
-
Fans
-
Industrial rotating machinery
Advantages
-
Precise 8 mm tip ensures accurate shaft displacement measurement
-
Compatible with Bently Nevada 3300 XL systems
-
Robust stainless-steel housing for harsh environments
-
Excellent signal stability and noise immunity
-
Proven reliability in demanding industrial applications
-
Easy installation with standard thread sizes
FAQ
Q1: What is the primary use of the 330101-00-36-10-02-05 probe?
A1: It is used for measuring shaft displacement and vibration in rotating machinery.
Q2: Is this probe compatible with other Bently Nevada systems?
A2: Yes, it is fully compatible with the 3300 XL Proximitor Sensor and extension cables.
Q3: What material is the probe tip made of?
A3: The tip is made of durable polyphenylene sulfide (PPS).
Q4: Can the probe withstand high temperatures?
A4: Yes, it operates reliably in temperatures ranging from -35°C to +120°C.
Q5: What is the probe’s thread size for mounting?
A5: It uses a 3/8-24 UNF mounting thread.
Q6: What is the sensitivity of the probe?
A6: It provides a standard sensitivity of 7.87 mV/µm (200 mV/mil).
Q7: How is the probe sealed against the environment?
A7: It is epoxy sealed and rated IP68 for water and dust protection.
Q8: What is the weight of the probe?
A8: The probe weighs 0.323 kg.
Q9: What cable is used with this probe?
A9: It uses a Teflon-jacketed triaxial cable.
Q10: What systems is it commonly used on?
A10: It is commonly used on turbines, compressors, pumps, and other critical rotating equipment.
Recommended Related Models (Same Series or Compatible)
| Model Number | Description | Tip Diameter | Length | Weight |
|---|---|---|---|---|
| 330101-00-20-10-02-00 | 3300 XL 8 mm Probe | 8 mm | 2.0 m | 0.360 kg |
| 330101-00-25-10-02-05 | 3300 XL 8 mm Probe | 8 mm | 2.5 m | 0.370 kg |
| 330101-00-15-10-02-00 | 3300 XL 8 mm Probe | 8 mm | 1.5 m | 0.340 kg |
| 330103-00-08-10-02-00 | 3300 XL 11 mm Probe | 11 mm | 0.8 m | 0.310 kg |
| 330180-90-00 | 3300 XL Proximitor Sensor | N/A | N/A | 0.250 kg |
| 330130-040-00-00 | 3300 XL Extension Cable | N/A | 4.0 m | 0.280 kg |
Popular Models from Bently Nevada
| Model Number | Description | Application | Weight |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | Machinery protection systems | 0.450 kg |
| 3500/42M | Proximitor/Seismic Monitor | Vibration monitoring | 0.500 kg |
| 330104-00-06-10-11-00 | 3300 XL 8 mm Probe | Displacement measurement | 0.320 kg |
| 330500 | Velomitor Sensor | Velocity vibration measurement | 0.400 kg |
| 165855-01 | Power Supply for 3500 Series | Power management | 0.650 kg |
| 3500/15 | Power Supply Module | 3500 rack systems | 0.480 kg |
