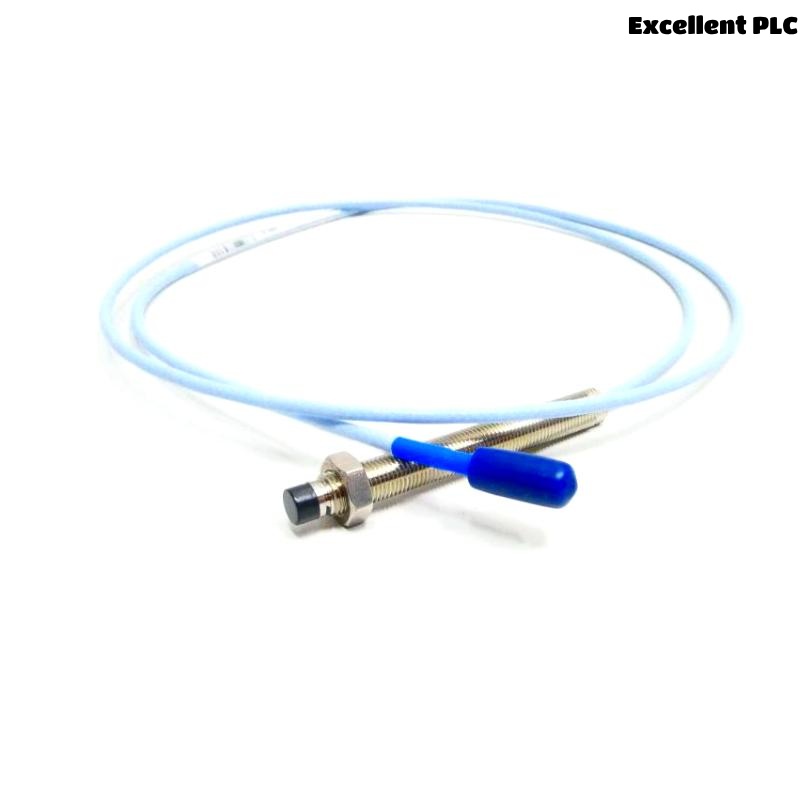

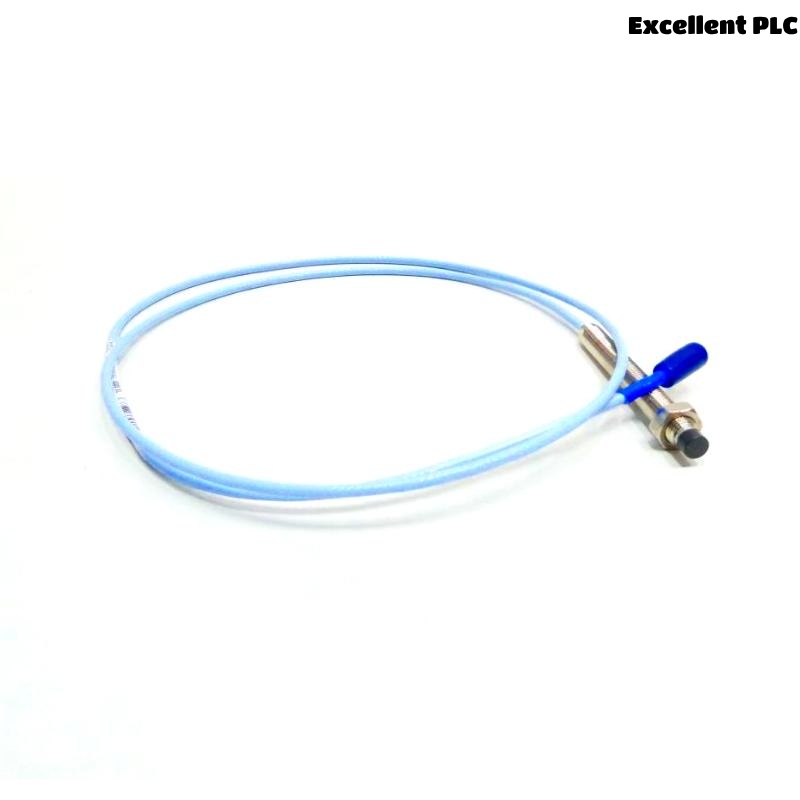

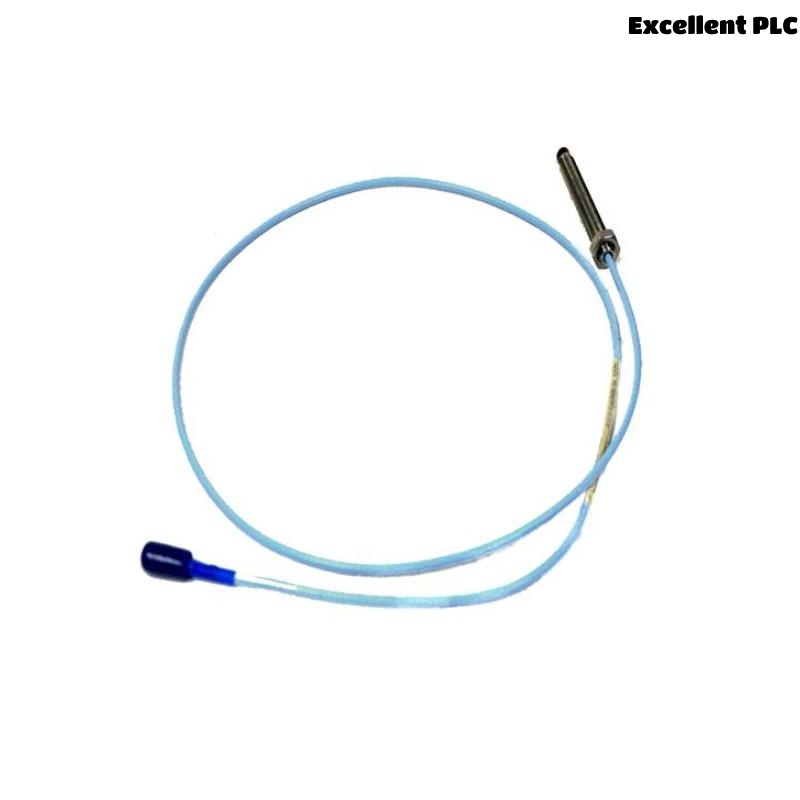

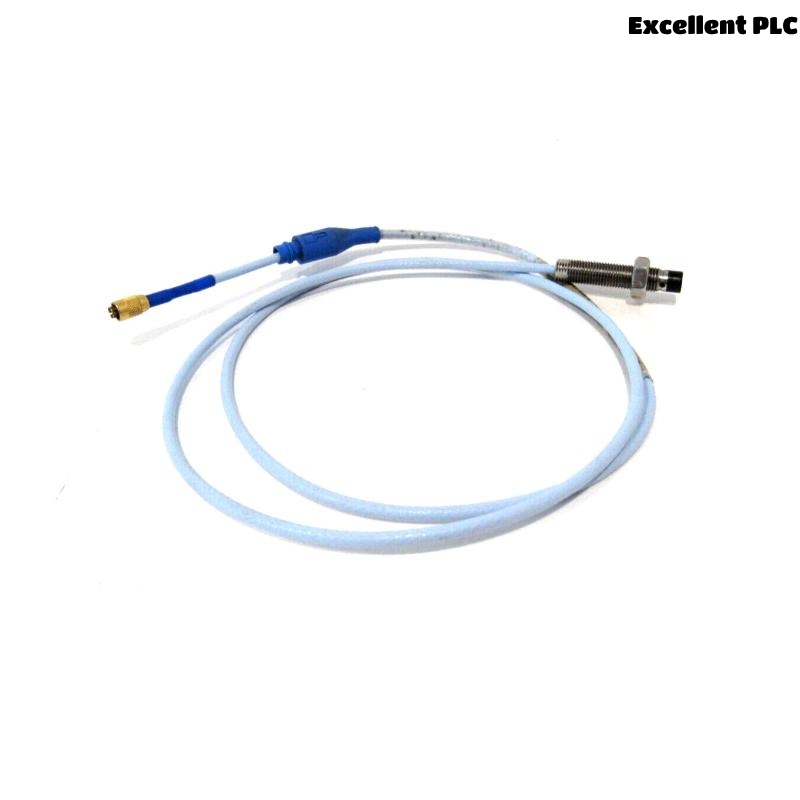

Bently Nevada 330101-00-53-05-02-05 3300 XL 8 mm Proximity Probe
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Bently Nevada 330101-00-53-05-02-05 is part of the 3300 XL 8 mm Proximity Transducer System, designed for accurate non-contact vibration and position measurements. It is especially suited for fluid-film bearing machines. The system includes a probe, extension cable, and Proximitor Sensor, and is compliant with API 670 standards.
Product Applications
-
Vibration monitoring on rotating machinery
-
Shaft position and radial displacement detection
-
Speed and Keyphasor reference measurements
-
Use in turbines, compressors, and motors
-
Suitable for harsh industrial environments, including high temperature zones
Product Advantages
-
Fully compliant with API 670
-
Interchangeable components—no calibration required
-
Resistant to EMI/RFI interference
-
SpringLoc terminal strips for tool-free wiring
-
Optional FluidLoc cable prevents oil leakage
-
High tensile strength and rugged PPS tip construction
-
Extended temperature range options up to 260°C
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Part Number | 330101-00-53-05-02-05 |
| Probe Tip Diameter | 8.0 mm |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |
| Linear Range | 2.0 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz (+0/-3 dB) |
| Temperature Range | –52°C to +177°C (standard), up to +260°C (ETR) |
| Probe Cable Type | 75Ω triaxial, FEP insulated |
| Housing Material | AISI 303 or 304 stainless steel |
| Connector Type | Gold-plated ClickLoc (miniature coaxial) |
| Pressure Seal | Viton® O-ring |
| Compliance | CE, RoHS, ATEX, CSA, IECEx, SIL 2/3 |
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 330101-00-53-05-02-05 probe?
A1: It measures shaft vibration and position without contacting the rotating surface.
Q2: Is the probe compatible with non-XL 3300 series components?
A2: Yes, it is both electrically and physically interchangeable.
Q3: Can this probe be used in hazardous areas?
A3: Yes, it carries ATEX, CSA, and IECEx certifications for use in hazardous zones.
Q4: What is the recommended installation torque for the probe?
A4: 11.2 N•m (100 in•lbf) is the recommended torque for forward-mount probes.
Q5: Does the probe require individual calibration?
A5: No, all system components are factory-calibrated and interchangeable.
Q6: What is the durability of the connector system?
A6: ClickLoc connectors are robust, corrosion-resistant, and lock securely without tools.
Q7: How does the FluidLoc cable option help?
A7: It prevents fluid leakage through the cable, ideal for oil-lubricated environments.
Q8: What materials are used in the probe construction?
A8: Probe tip: PPS; Case: Stainless steel; Connector: Gold-plated brass or copper.
Q9: What is the minimum shaft diameter for accurate measurements?
A9: Minimum shaft diameter is 50.8 mm; 76.2 mm is recommended.
Q10: Is the probe suitable for extended temperature environments?
A10: Yes, with the ETR version, it supports up to 260°C on the cable.
Related Models (Same Series)
| Model Number | Description | Cable Length | Weight |
|---|---|---|---|
| 330101-00-10-05-02-05 | 3300 XL 8 mm Probe, 1.0m, standard cable | 1.0 m | 0.188 kg |
| 330101-00-15-05-02-05 | 3300 XL 8 mm Probe, 1.5m, standard cable | 1.5 m | 0.214 kg |
| 330101-00-20-05-02-05 | 3300 XL 8 mm Probe, 2.0m, standard cable | 2.0 m | 0.240 kg |
| 330101-00-50-05-02-05 | 3300 XL 8 mm Probe, 5.0m, standard cable | 5.0 m | 0.323 kg |
| 330102-00-20-05-02-05 | 3300 XL 8 mm Probe with armor, 2.0m | 2.0 m | 0.310 kg |
| 330191-00-10-05-02-05 | 3300 XL 8 mm ETR Probe, 1.0m, high-temp | 1.0 m | 0.190 kg |
Popular Bently Nevada Models
| Model Number | Description | Type | Application |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor Module | Monitoring Module | Vibration/Position Monitoring |
| 3500/22M | Transient Data Interface | Data Interface Module | High-speed Data Acquisition |
| 3500/25 | Keyphasor Module | Reference Module | Shaft Speed and Phase Reference |
| 3500/15E | Power Supply Module | Power Module | Redundant Power for Rack |
| 3500/05 | System Rack | Rack System | Centralized Monitoring Rack |
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe, armored, metric | Proximity Probe | Tight-space or metric thread use |
