Bently Nevada 330101-00-53-10-02-05 3300 XL 8 mm Proximity Probe
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Description

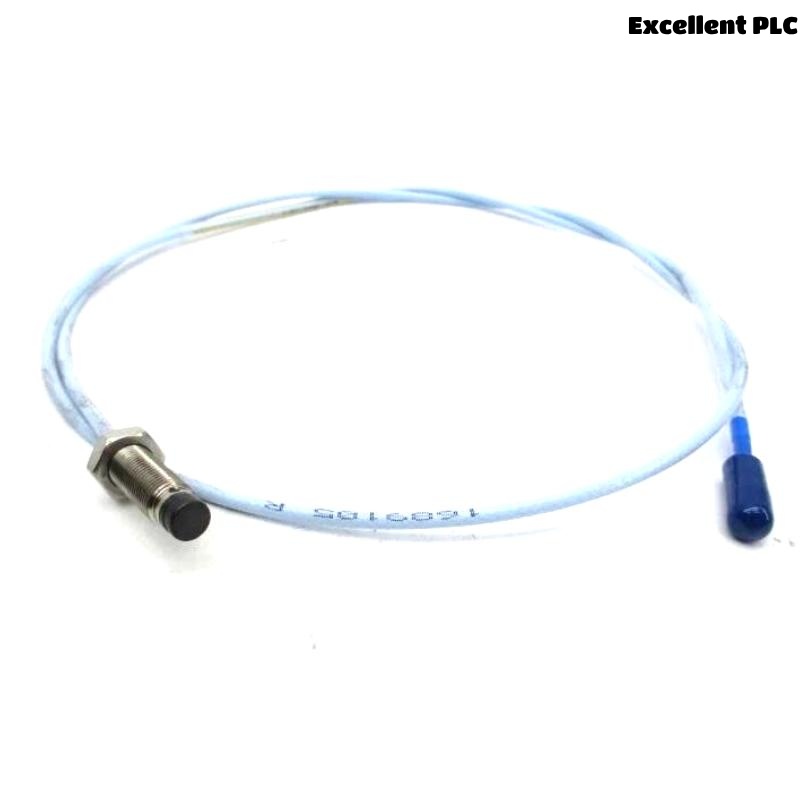

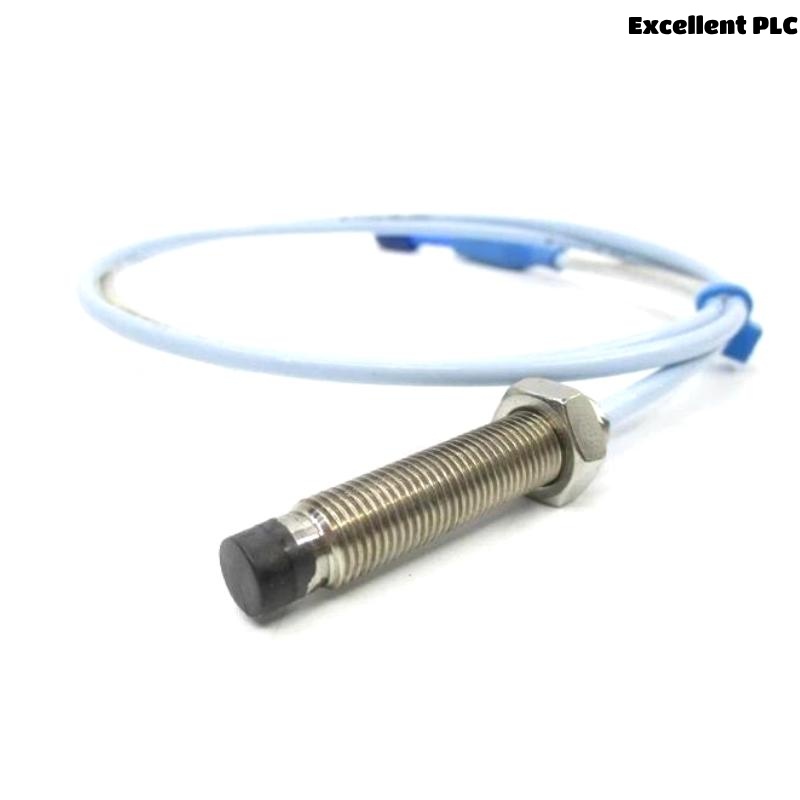

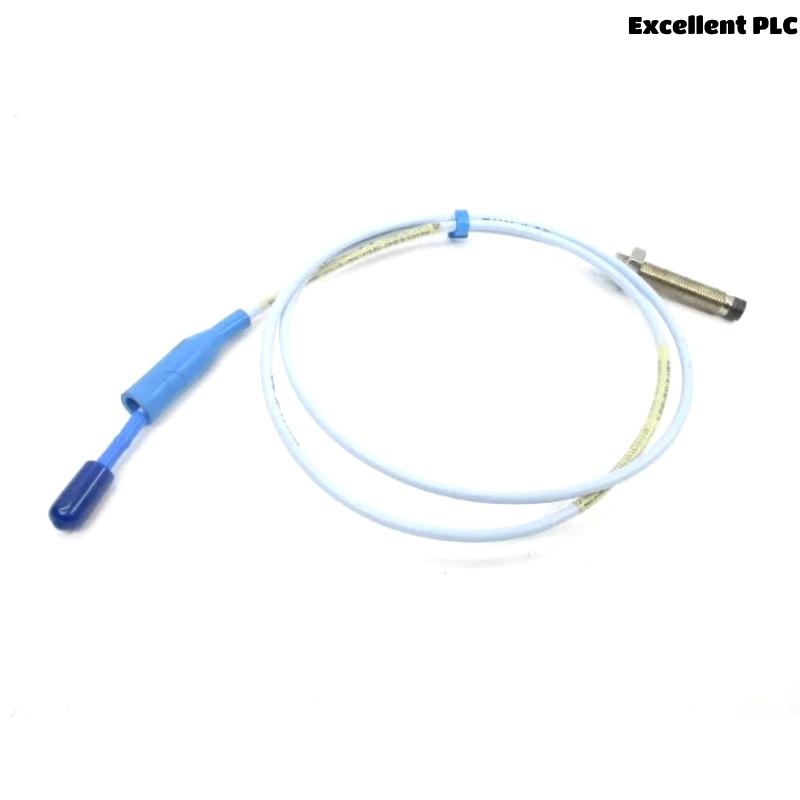

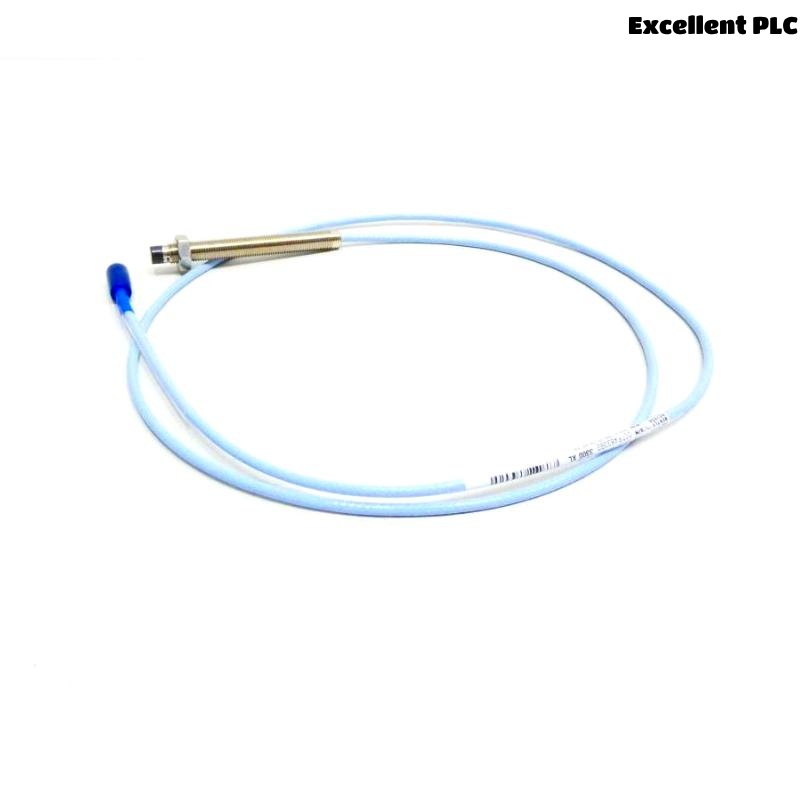

The 330101-00-53-10-02-05 is part of the Bently Nevada 3300 XL 8 mm Proximity Transducer System. It measures the distance between the probe tip and a conductive target surface, converting this into an output voltage. This probe is ideal for vibration and position monitoring in fluid-film bearing machines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330101-00-53-10-02-05 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel AISI 303 or 304 |
| Cable Type | 75Ω triaxial, FEP insulated |
| Thread Type | 3/8-24 UNF |
| Connector Type | Miniature coaxial ClickLoc |
| Operating Temperature | -52°C to +177°C (standard) |
| Pressure Seal | Viton O-ring |
| Recommended Gap Setting | ~1.27 mm (50 mils) |
| Linear Range | 2.0 mm (80 mils) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 – 10 kHz |
| Minimum Shaft Diameter | 50.8 mm (recommended: 76.2 mm) |
Applications
-
Shaft vibration monitoring
-
Rotor position detection
-
Speed and Keyphasor measurements
-
Fluid-film bearing machines
-
Turbomachinery condition monitoring
Advantages
-
Fully API 670 compliant
-
Enhanced RFI/EMI immunity
-
Backward-compatible with 3300 non-XL systems
-
ClickLoc connectors for tool-free secure connections
-
Durable PPS tip with TipLoc and CableLoc features
-
Optional FluidLoc to prevent fluid leakage through cable
FAQs
Q1: What does the 330101-00-53-10-02-05 measure?
A1: It measures the distance (gap) between the probe tip and a conductive surface, used for vibration and position monitoring.
Q2: Is this probe suitable for high-temperature environments?
A2: Yes, the standard version supports up to +177°C. For higher temperatures, an ETR variant is available.
Q3: Can this probe be used with older 3300 systems?
A3: Yes, it is fully backward-compatible with 3300 non-XL 8 mm systems.
Q4: What type of connector does it use?
A4: It uses a miniature coaxial ClickLoc connector that clicks into place and requires no tools.
Q5: What is the linear range of the probe?
A5: The linear range is 2.0 mm (80 mils).
Q6: What materials is the probe constructed from?
A6: The probe uses PPS for the tip and stainless steel for the case.
Q7: What is the recommended installation gap?
A7: The optimal gap is approximately 1.27 mm (50 mils).
Q8: Does the probe need calibration?
A8: It is factory-calibrated to AISI 4140 steel and generally does not require user calibration.
Q9: What is the system’s frequency response?
A9: 0 to 10 kHz, suitable for dynamic measurements.
Q10: Is this probe suitable for use in hazardous areas?
A10: Yes, it has ATEX, IECEx, CSA, and other approvals for hazardous environments.
Related Models (Same Series)
| Model Number | Length | Armor | Temperature Range | Connector Type |
|---|---|---|---|---|
| 330101-00-08-10-02-00 | 1.0 m | No | Standard | Standard ClickLoc |
| 330102-00-20-10-02-00 | 2.0 m | Yes | Standard | Standard ClickLoc |
| 330103-00-02-10-02-05 | 1.0 m | No | Standard | Metric M10, ClickLoc |
| 330104-01-05-50-02-00 | 5.0 m | Yes | Standard | Metric M10, ClickLoc |
| 330191-00-10-10-02-05 | 1.0 m | No | Extended | ClickLoc, ETR variant |
| 330105-02-12-10-02-05 | 1.0 m | No | Standard | Reverse mount, ClickLoc |
Popular Bently Nevada Models
| Model Number | Description | Application |
|---|---|---|
| 3500/22M | Transient Data Interface Module | Data collection from monitoring racks |
| 3500/42M | Proximitor Seismic Monitor | Vibration monitoring |
| 3500/32M | 4-Channel Relay Module | Alarm/Relay interface |
| 3500/93 | LCD Display Module | Visual rack data display |
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe | General vibration detection |
| 330180-91-CN | 3300 XL Proximitor Sensor (1m DIN mount) | Position and vibration measurement |
FAQs
Q1: What does the 330101-00-53-10-02-05 measure?
A1: It measures the distance (gap) between the probe tip and a conductive surface, used for vibration and position monitoring.
Q2: Is this probe suitable for high-temperature environments?
A2: Yes, the standard version supports up to +177°C. For higher temperatures, an ETR variant is available.
Q3: Can this probe be used with older 3300 systems?
A3: Yes, it is fully backward-compatible with 3300 non-XL 8 mm systems.
Q4: What type of connector does it use?
A4: It uses a miniature coaxial ClickLoc connector that clicks into place and requires no tools.
Q5: What is the linear range of the probe?
A5: The linear range is 2.0 mm (80 mils).
Q6: What materials is the probe constructed from?
A6: The probe uses PPS for the tip and stainless steel for the case.
Q7: What is the recommended installation gap?
A7: The optimal gap is approximately 1.27 mm (50 mils).
Q8: Does the probe need calibration?
A8: It is factory-calibrated to AISI 4140 steel and generally does not require user calibration.
Q9: What is the system’s frequency response?
A9: 0 to 10 kHz, suitable for dynamic measurements.
Q10: Is this probe suitable for use in hazardous areas?
A10: Yes, it has ATEX, IECEx, CSA, and other approvals for hazardous environments.
Related Models (Same Series)
| Model Number | Length | Armor | Temperature Range | Connector Type |
|---|---|---|---|---|
| 330101-00-08-10-02-00 | 1.0 m | No | Standard | Standard ClickLoc |
| 330102-00-20-10-02-00 | 2.0 m | Yes | Standard | Standard ClickLoc |
| 330103-00-02-10-02-05 | 1.0 m | No | Standard | Metric M10, ClickLoc |
| 330104-01-05-50-02-00 | 5.0 m | Yes | Standard | Metric M10, ClickLoc |
| 330191-00-10-10-02-05 | 1.0 m | No | Extended | ClickLoc, ETR variant |
| 330105-02-12-10-02-05 | 1.0 m | No | Standard | Reverse mount, ClickLoc |
Popular Bently Nevada Models
| Model Number | Description | Application |
|---|---|---|
| 3500/22M | Transient Data Interface Module | Data collection from monitoring racks |
| 3500/42M | Proximitor Seismic Monitor | Vibration monitoring |
| 3500/32M | 4-Channel Relay Module | Alarm/Relay interface |
| 3500/93 | LCD Display Module | Visual rack data display |
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe | General vibration detection |
| 330180-91-CN | 3300 XL Proximitor Sensor (1m DIN mount) | Position and vibration measurement |
