Product Description

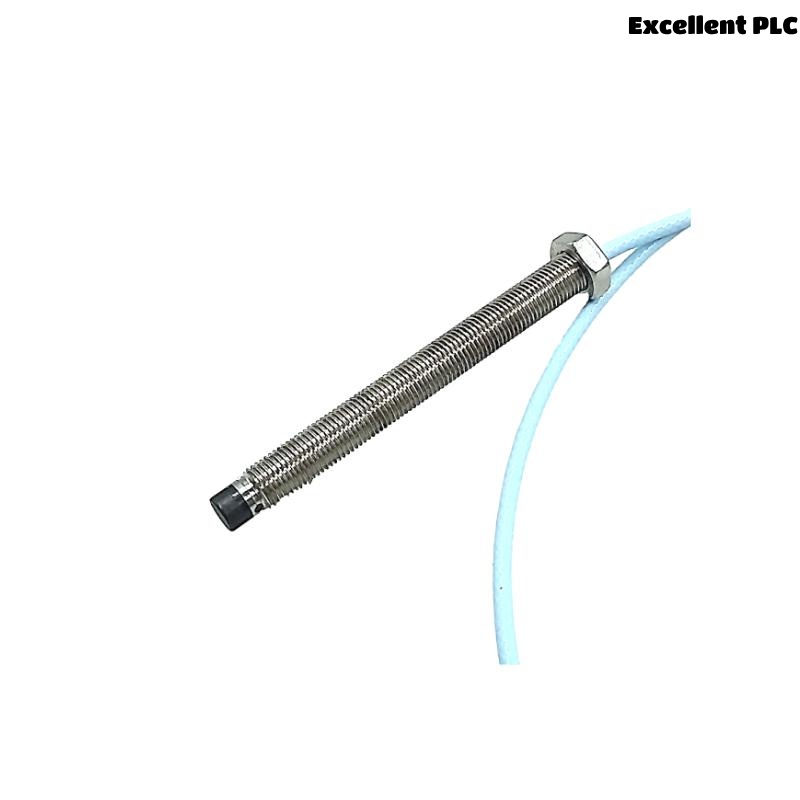

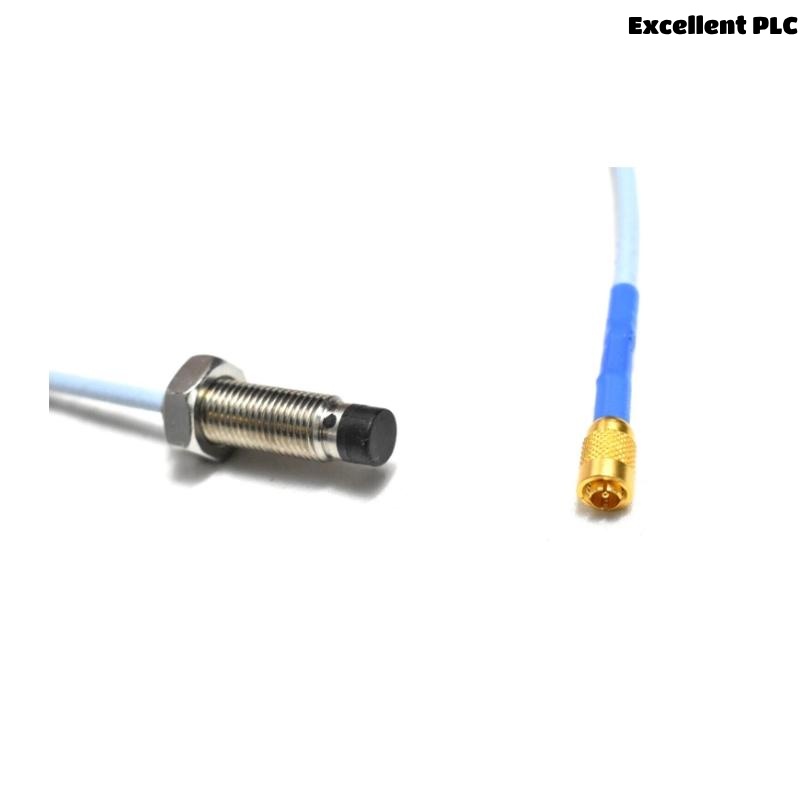

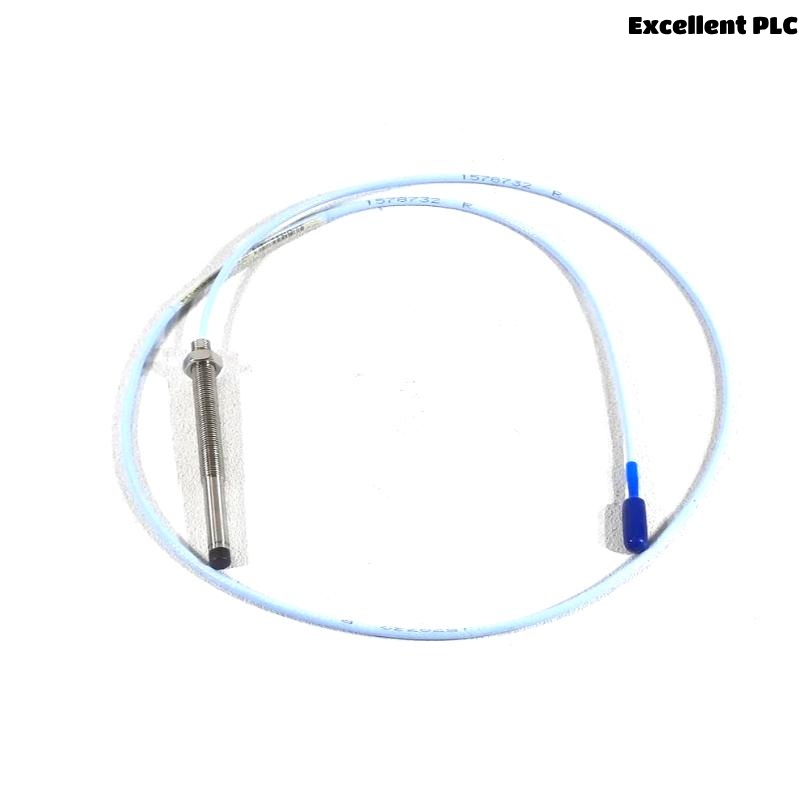

The Bently Nevada 330101-00-53-10-02-CN is part of the 3300 XL 8 mm Proximity Transducer System, which includes a probe, extension cable, and Proximitor sensor. This system is designed for precise, reliable vibration and position monitoring in industrial rotating machinery using eddy current technology. It is API 670 compliant and supports full interchangeability of system components without recalibration.
Product Features and Advantages
-
Complies with API 670 mechanical configuration standards
-
TipLoc and CableLoc patented designs for enhanced durability
-
ClickLoc connectors for secure, tool-free connections
-
High resistance to RFI/EMI, supporting non-metallic housings
-
Optional FluidLoc cable prevents fluid ingress
-
Supports both panel mount and DIN-rail mount
-
Backward compatible with non-XL 3300 8 mm and 5 mm systems
Applications
-
Radial and axial vibration monitoring
-
Shaft position and Keyphasor measurements
-
Overspeed protection systems
-
Suitable for steam turbines, compressors, motors, and pumps
-
Common in oil & gas, power generation, and industrial manufacturing
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303 / 304 Stainless Steel |
| Probe Cable | FEP insulated, 75Ω triaxial |
| System Length | 1.0 meter (probe only, no extension cable) |
| Weight | 0.323 kg |
| Linear Range | 2.0 mm (80 mils) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature (Probe) | -52°C to +177°C |
| Storage Temperature (Probe) | -52°C to +177°C |
| Humidity Resistance | <3% change in ASF under 93% RH for 56 days |
| Recommended Gap | -9 VDC ≈ 1.27 mm (50 mils) |
| Minimum Shaft Diameter | 50.8 mm (recommended: ≥76.2 mm) |
| Compliance | CE, FCC, RoHS, SIL 2 / SIL 3, ATEX, CSA, IECEx |
Frequently Asked Questions (FAQ)
Q1: What is the total length of this proximity probe model?
A1: The 330101-00-53-10-02-CN has a total probe length of 1.0 meter.
Q2: Does this probe require an extension cable?
A2: No, this version is a 1.0-meter probe and is designed to be used without an extension cable.
Q3: What target material is the system factory-calibrated to?
A3: It is calibrated to AISI 4140 steel by default.
Q4: Can this probe be used for overspeed protection?
A4: Yes, but refer to Bently Nevada application notes for guidance on using it in tachometer or overspeed applications.
Q5: What makes the probe mechanically durable?
A5: The probe uses TipLoc and CableLoc designs for high tensile strength and robust sealing.
Q6: Are the probe and sensor interchangeable with older models?
A6: Yes, they are backward-compatible with non-XL 3300 5 mm and 8 mm systems.
Q7: Can this model be used in hazardous areas?
A7: Yes, it meets ATEX and CSA hazardous area approvals when installed per guidelines.
Q8: How should the connectors be installed?
A8: ClickLoc connectors are designed for finger-tight installation, with a locking click.
Q9: What’s the recommended gap voltage for accurate radial vibration measurement?
A9: -9 VDC, corresponding to a physical gap of about 1.27 mm (50 mils).
Q10: What’s the advantage of using the FluidLoc cable option?
A10: It prevents oil or fluid ingress into the machine via the probe cable.
Related Bently Nevada 3300 XL Series Models
| Model Number | Description | Length | Weight |
|---|---|---|---|
| 330101-00-08-10-02-00 | Standard probe, 1.0m, UNF thread | 1.0 m | 0.323 kg |
| 330101-00-20-10-02-00 | Standard probe, 2.0m, UNF thread | 2.0 m | 0.46 kg |
| 330103-00-05-10-02-00 | Metric thread probe, 1.5m | 1.5 m | 0.38 kg |
| 330105-02-12-10-02-00 | Reverse mount probe, 1.0m, UNF thread | 1.0 m | 0.34 kg |
| 330191-00-08-10-02-00 | ETR probe, UNF thread | 1.0 m | 0.33 kg |
| 330130-030-00-00 | Standard extension cable, 3.0m | 3.0 m | 0.10 kg |
