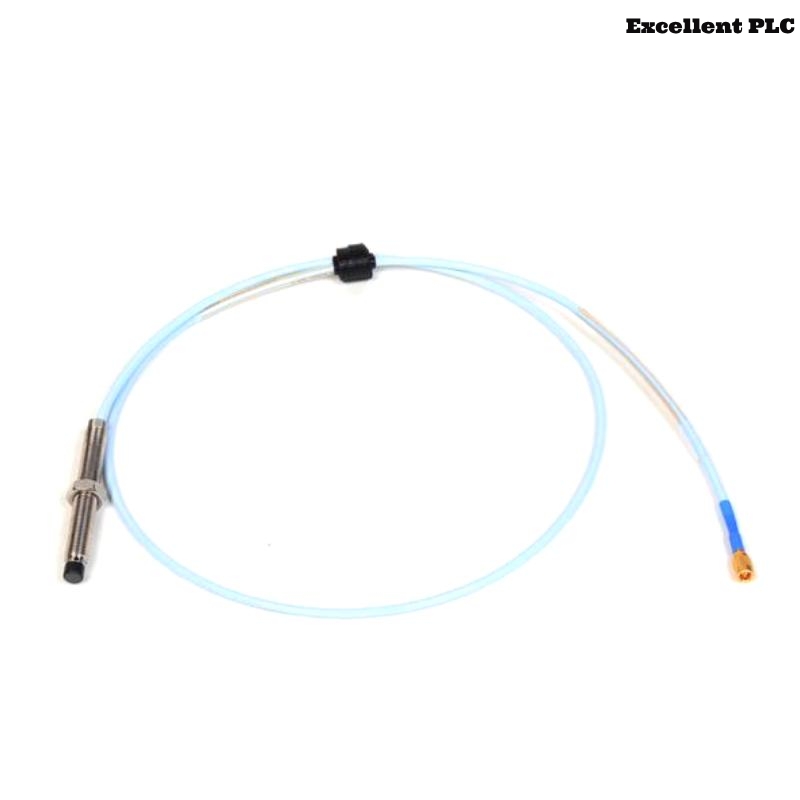

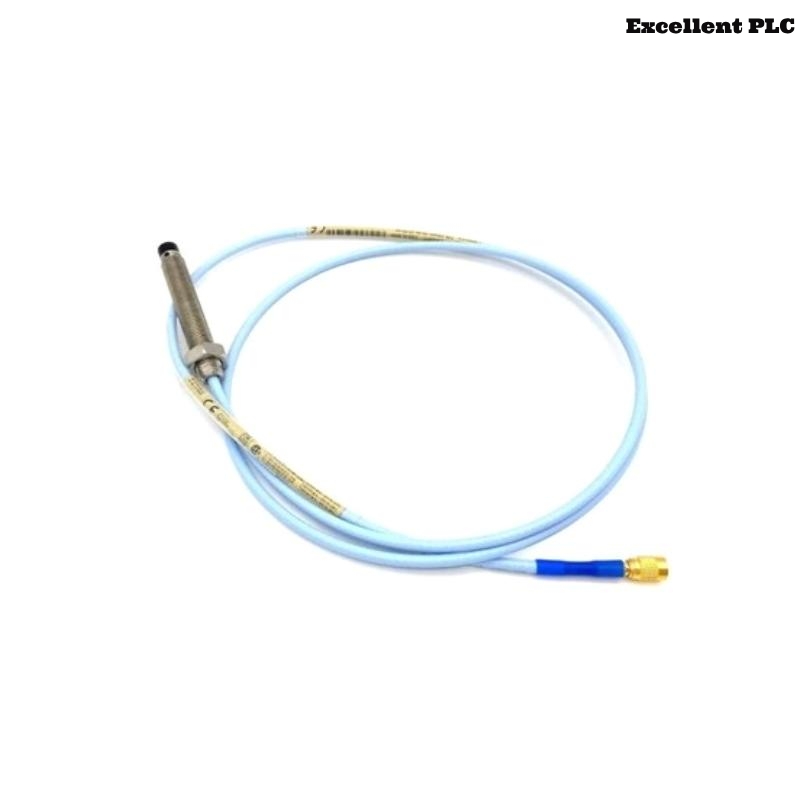

Bently Nevada 330101-00-54-10-02-00 3300 XL 8mm Proximity Probes

Product Introduction

The Bently Nevada 330101-00-54-10-02-00 is part of the 3300 XL 8mm Proximity Transducer System, one of the most trusted vibration and position monitoring solutions used in rotating machinery protection. Developed by Bently Nevada, a subsidiary of Baker Hughes, this probe plays a critical role in detecting the relative motion and vibration behavior of shafts and rotating parts in turbines, compressors, pumps, and gearboxes.

This particular probe model is designed with an 8 mm tip, providing a linear output over a standard 80 mil (2 mm) range and optimized for high-reliability industrial applications. The 3300 XL series stands out for its rugged design, superior EMI/RFI immunity, and industry-wide compatibility with various monitoring systems.

Product Specifications

Product Applications

The 330101-00-54-10-02-00 proximity probe is commonly deployed in high-value rotating machinery monitoring applications where precise shaft vibration and position data are critical for predictive maintenance and safety. Key applications include:

• Steam and Gas Turbines
  Measures shaft vibration and axial position to prevent catastrophic failures.

• Compressors
  Enables proximity monitoring for thrust bearing wear and imbalance detection.

• Industrial Pumps
  Detects misalignment, cavitation, and mechanical looseness before failure.

• Electric Motors and Generators
  Monitors rotor shaft behavior and detects electrical or mechanical anomalies.

• Gearboxes
  Identifies gear mesh problems and shaft deflections.

• Oil & Gas and Petrochemical Facilities
  Used in API 670-compliant machinery protection systems for safety-critical equipment.

Product Advantages

• Proven Field Reliability
  Designed for high reliability in harsh industrial environments with extreme temperatures and contaminants.

• Superior EMI/RFI Immunity
  Improved shielding ensures signal stability in high-noise environments like power plants and refineries.

• ClickLoc Connector System
  Ensures a secure, vibration-resistant connection with positive locking engagement.

• Mechanical Ruggedness
  Built with high-grade stainless steel construction for chemical, corrosion, and mechanical wear resistance.

• Interchangeability
  Compatible with Bently Nevada’s 3300 XL series extension cables and drivers, simplifying maintenance.

• Certified for Harsh Environments
  Available in explosion-proof and ATEX-compliant versions for hazardous area installations.

• Long Cable Runs
  Supports extended cable lengths without significant signal loss—ideal for large machinery setups.

• Lifetime Cost Efficiency
  Designed for extended lifecycle, reducing the need for frequent replacements or recalibration.

Frequently Asked Questions (FAQ)

1. Is the 330101-00-54-10-02-00 compatible with older Bently Nevada monitors?

   • Yes, it is backward-compatible with most legacy 3300 and 7200 series systems.

2. Can I use this probe in hazardous areas?

   • ATEX and IECEx-certified versions are available for hazardous zone compliance.

3. What type of connector is used?

   • It uses a ClickLoc 2-pin connector, designed to prevent accidental disconnection.

4. What is the standard linear range of this probe?

   • It offers a linear range of 80 mils (2 mm), ensuring high-resolution proximity measurements.

5. Can this probe be used in high-vibration environments?

   • Yes, it is engineered to survive 50g peak vibration and up to 5000g shock.

6. Is the probe suitable for long cable lengths?

   • Yes, when used with matching Bently extension cables and drivers, long cable runs are supported.

7. Does it require calibration after installation?

   • Factory calibration is provided, but periodic verification is recommended for critical systems.

8. What is the operational temperature range?

   • The probe operates reliably between -51°C to +177°C.

9. Is the probe waterproof?

   • Yes, it is IP68-rated and hermetically sealed against moisture ingress.

10. How do I identify the cable lengths in the part number?

• The part number includes embedded codes: “10” = 1.0 meter Total Length.
