Bently Nevada 330101-00-60-10-02-05 3300 XL 8 mm Proximity Probe
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description

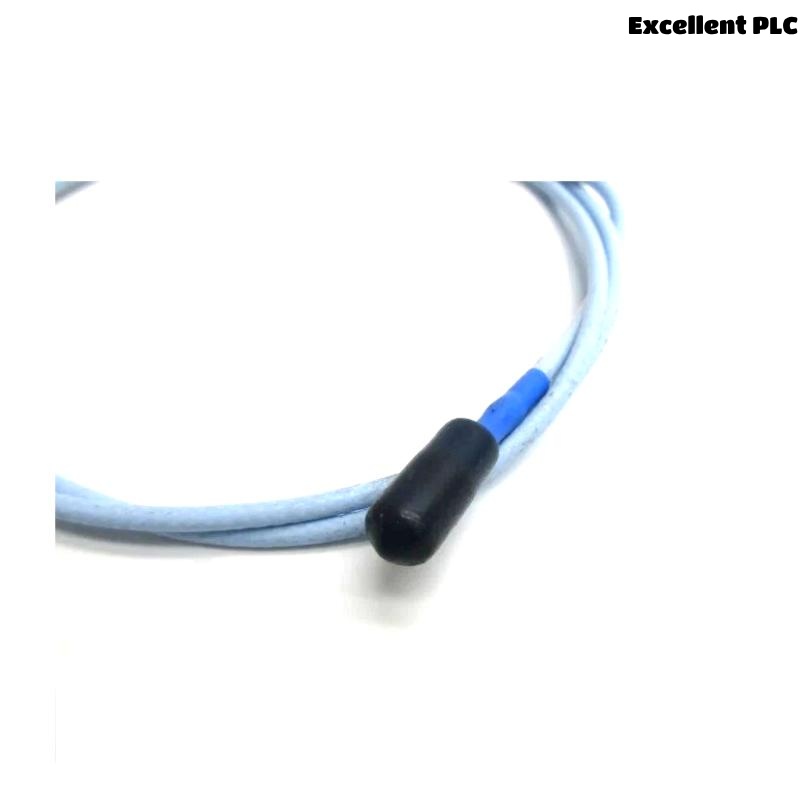

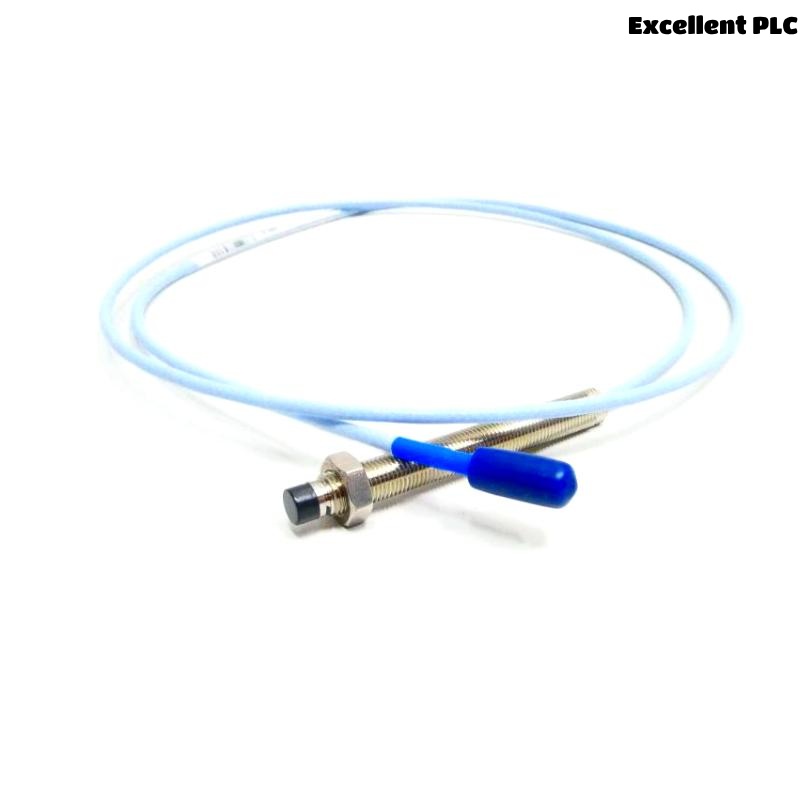

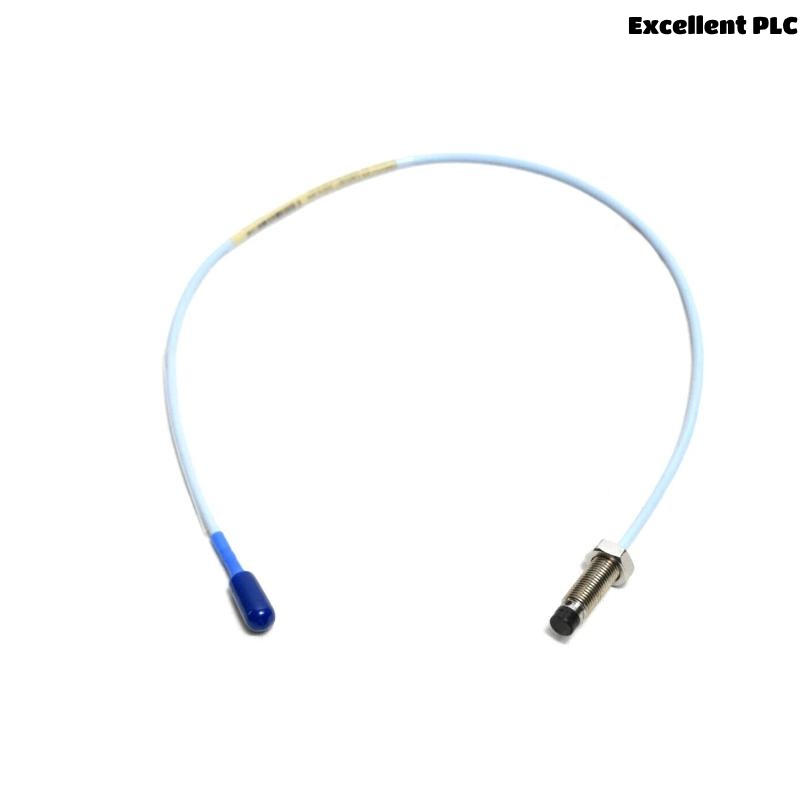

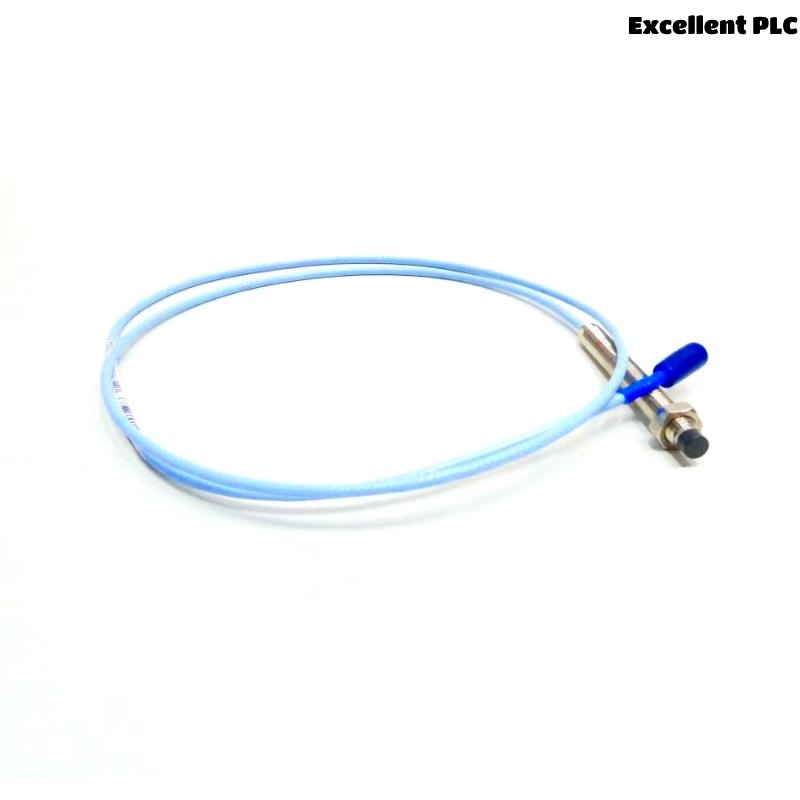

The Bently Nevada 330101-00-60-10-02-05 is part of the 3300 XL 8 mm Proximity Transducer System, designed to measure static and dynamic shaft position and vibration in critical rotating machinery. It includes a proximity probe with a total length of 1.0 meter, offering industry-leading accuracy and durability.
Technical Specifications
| Parameter | Description |
|---|---|
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Total Length | 1.0 meter |
| Weight | 0.323 kg (323 g) |
| Linear Range | 2.0 mm (80 mils) |
| Recommended Gap Voltage | -9 VDC (approx. 1.27 mm or 50 mils) |
| Incremental Scale Factor | 7.87 V/mm ± 5% (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Operating Temp. (Standard Probe) | –52°C to +177°C |
| Pressure Sealing | Viton® O-ring |
| Connector Type | ClickLoc, finger-tight gold-plated coaxial |
| Cable Type | 75Ω triaxial FEP-insulated |
Applications
-
Shaft vibration and position monitoring
-
Keyphasor® reference signal measurement
-
Overspeed and speed detection in rotating machinery
-
Turbine, compressor, and pump protection systems
-
High-temperature and high-density mounting environments
Advantages
-
Full API 670 compliance for mechanical configuration and performance
-
ClickLoc™ connectors for secure, tool-free connection
-
TipLoc™ and CableLoc™ technology improves reliability and durability
-
Backward compatibility with non-XL systems
-
Extended temperature versions available for harsh environments
-
No calibration required between components due to system interchangeability
Frequently Asked Questions (FAQ)
Q1: What does this proximity probe measure?
A1: It measures both static (position) and dynamic (vibration) distances between the probe tip and a conductive target.
Q2: Is it compatible with older 3300 series components?
A2: Yes, it is both electrically and mechanically compatible with 5 mm and 8 mm non-XL 3300 series components.
Q3: What is the total system length of this probe?
A3: The total length is 1.0 meter, which means it does not require an extension cable.
Q4: What is the recommended gap setting?
A4: The recommended gap setting is -9 VDC, corresponding to approximately 1.27 mm (50 mils).
Q5: Can it be used in high-temperature environments?
A5: Yes, standard probes operate up to 177°C, and ETR versions support up to 218°C (probe) and 260°C (cable).
Q6: What type of connector does it use?
A6: It uses a miniature gold-plated ClickLoc coaxial connector that clicks when fully tightened.
Q7: Is the probe armorable?
A7: This specific model (00-60-10-02-05) is not armored, but armored versions are available.
Q8: Does it meet API 670 standards?
A8: Yes, it meets API 670 requirements for configuration, linear range, and performance.
Q9: What is the operating temperature range?
A9: From -52°C to +177°C for standard configurations.
Q10: How durable is the probe?
A10: The patented CableLoc design provides 330 N (75 lbf) pull strength, ensuring high mechanical robustness.
Related Models from Same Series
| Model Number | Description | Length | Thread Type | Cable Type |
|---|---|---|---|---|
| 330101-00-08-10-02-05 | 3300 XL Probe, 1.0m, 3/8-24 UNF, ClickLoc | 1.0 m | 3/8-24 UNF | Standard |
| 330101-00-20-10-02-05 | 3300 XL Probe, 2.0m, 3/8-24 UNF, ClickLoc | 2.0 m | 3/8-24 UNF | Standard |
| 330102-00-20-10-02-00 | 3300 XL Armored Probe, 2.0m | 2.0 m | 3/8-24 UNF | Armored |
| 330103-00-04-10-02-00 | 3300 XL Probe, 1.0m, M10x1 Thread | 1.0 m | M10x1 | Standard |
| 330191-00-20-10-02-05 | 3300 XL ETR Probe, 2.0m, 3/8-24 UNF | 2.0 m | 3/8-24 UNF | ETR Cable |
| 330140-00-10-10-02-05 | 3300 XL Smooth Case Probe, 1.0m | 1.0 m | Smooth | Standard |
Popular Bently Nevada Models
| Model Number | Description | Function | Key Feature |
|---|---|---|---|
| 330104-00-06-10-02-00 | XL Probe, armored, 1.5m, M10 thread | Vibration Monitoring | Rugged armored design |
| 330180-50-05 | 3300 XL Proximitor Sensor, 5.0m, panel mount | Signal Conversion | DIN/panel mount |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Seismic Vibration Monitoring | Machinery protection |
| 3500/22M | Transient Data Interface Module | Data Interface | Ethernet compatibility |
| 3500/60 | Temperature Monitor Module | Temperature Monitoring | High-density temperature input |
| 3701/40 | Machinery Protection System | Integrated Protection | SIL 2/3 certified |
