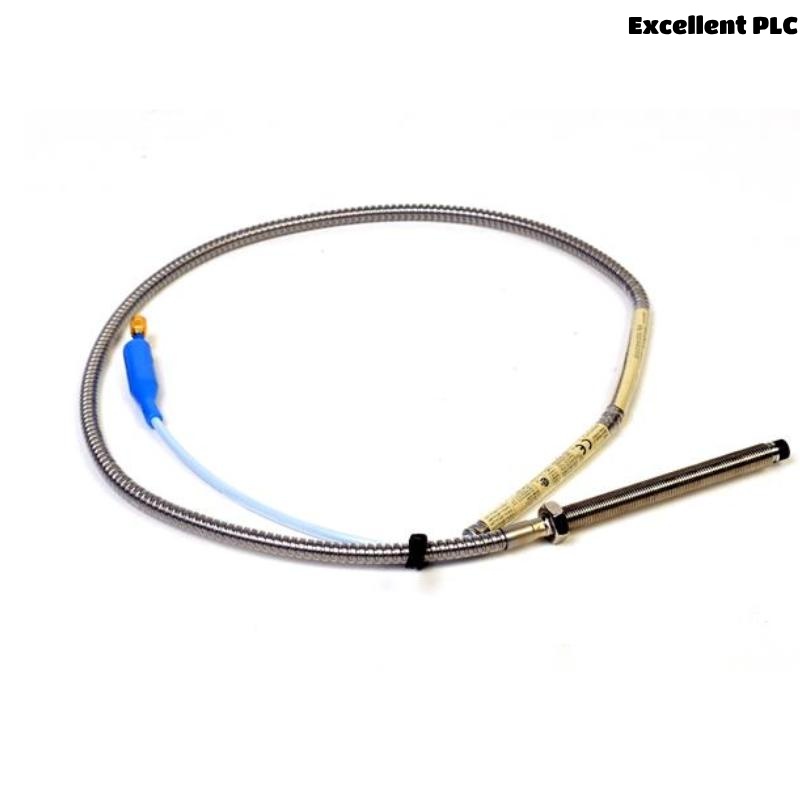

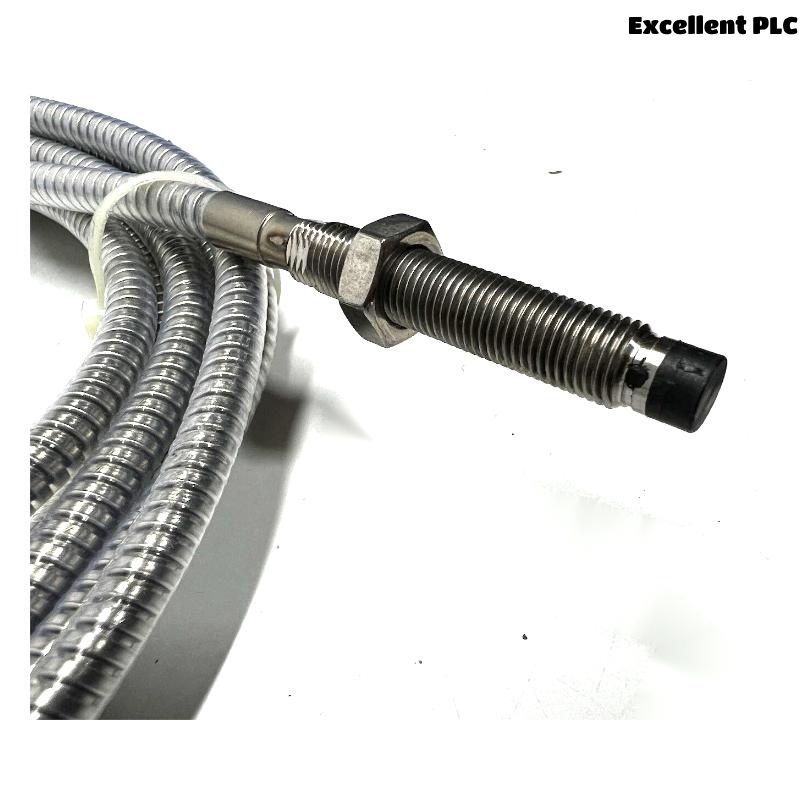

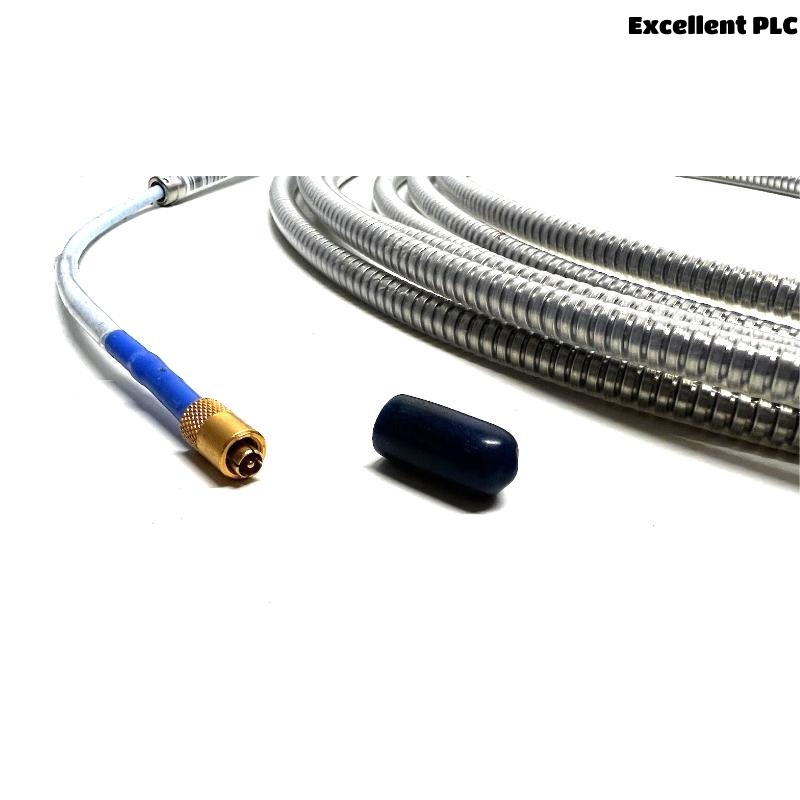

Bently Nevada 330102-00-10-20-01-00 3300 XL 8 mm Proximity Probe
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
📄 Product Description
The Bently Nevada 330102-00-10-20-01-00 3300 XL 8 mm Proximity Probe is part of the 3300 XL eddy current proximity transducer system. Designed for precise vibration and position monitoring on fluid-film bearing machines, it provides robust, API 670-compliant performance, enhanced RFI immunity, and interchangeable components. This armored probe ensures durability in harsh industrial environments.
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Diameter | 8.0 mm |
| Probe Thread | 3/8-24 UNF |
| Operating Temperature | -52°C to +177°C |
| Cable Type | Armored with ClickLoc connector |
| Linear Range | 0.25–2.3 mm |
| Frequency Response | 0–10 kHz |
| Recommended Gap | ~1.27 mm |
| Minimum Target Diameter | 15.2 mm |
🛠 Applications
-
Radial and axial vibration monitoring
-
Shaft position measurements
-
Keyphasor reference and speed detection
-
Overspeed protection (with precautions)
-
Machinery diagnostics on turbines, compressors, and pumps
🌟 Advantages
-
Fully compliant with API 670 standard
-
Backward compatible with older 3300 series components
-
Rugged armored construction with high tensile strength
-
Excellent RFI/EMI immunity, reducing installation complexity
-
Patented TipLoc and CableLoc designs for reliability
-
ClickLoc connectors simplify installation
❓ Frequently Asked Questions
Q1: What is the linear measurement range of this probe?
A1: The linear range is approximately 0.25–2.3 mm.
Q2: Is this probe compliant with API 670 standards?
A2: Yes, it meets API 670 mechanical and performance requirements.
Q3: Can the probe operate in high-temperature environments?
A3: Yes, up to +177°C standard, with extended options available.
Q4: Is the probe backward compatible with non-XL systems?
A4: Yes, it works with earlier 3300 series components.
Q5: Does the probe require special tools for installation?
A5: No, ClickLoc connectors are designed for tool-free installation.
Q6: What material is the probe case made of?
A6: Stainless steel (AISI 303/304).
Q7: Can it be used for both static and dynamic measurements?
A7: Yes, it supports position and vibration measurements.
Q8: What is the recommended shaft diameter for installation?
A8: Minimum shaft diameter of 50.8 mm, recommended 76.2 mm.
Q9: Does the probe have RFI/EMI immunity?
A9: Yes, the probe and sensor are designed for high immunity.
Q10: How durable is the probe’s cable connection?
A10: The patented CableLoc design provides up to 330 N pull strength.
🔗 Related Models (Same Series)
| Model | Thread | Length | Weight |
|---|---|---|---|
| 330101-00-10-20-01-00 | 3/8-24 | 1.0 m | ~0.3 kg |
| 330103-00-10-20-01-00 | M10x1 | 1.0 m | ~0.3 kg |
| 330104-00-10-20-01-00 | M10x1 | 1.0 m | ~0.3 kg |
| 330191-00-10-20-01-00 | 3/8-24 | 1.0 m | ~0.3 kg |
| 330192-00-10-20-01-00 | 3/8-24 | 1.0 m | ~0.3 kg |
| 330140-00-10-20-01-00 | Smooth | 1.0 m | ~0.3 kg |
🔗 Popular Bently Nevada Models
| Model | Description | Weight |
|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor | ~1.2 kg |
| 3500/44M-02-00 | Aeroderivative GT Vibration Monitor | ~1.1 kg |
| 3500/22M | Transient Data Interface Module | ~1.0 kg |
| 3500/25 | Keyphasor Module | ~0.8 kg |
| 3500/32M | Relay Module | ~0.9 kg |
| 3500/93 | Power Supply Module | ~1.3 kg |
