Bently Nevada 330102-00-18-90-02-00 3300 XL 8 mm Proximity Probe
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description

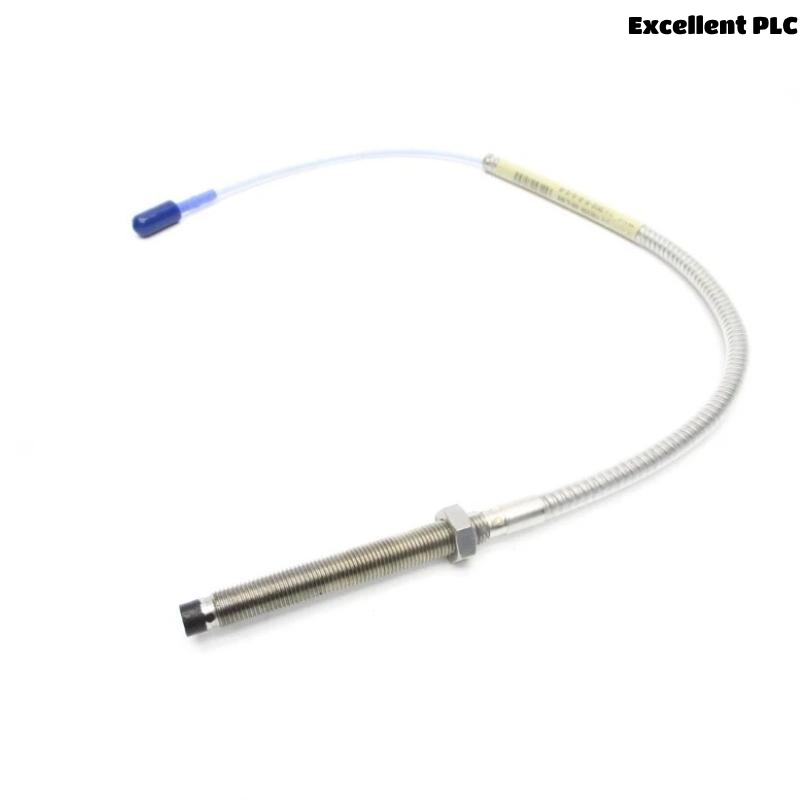

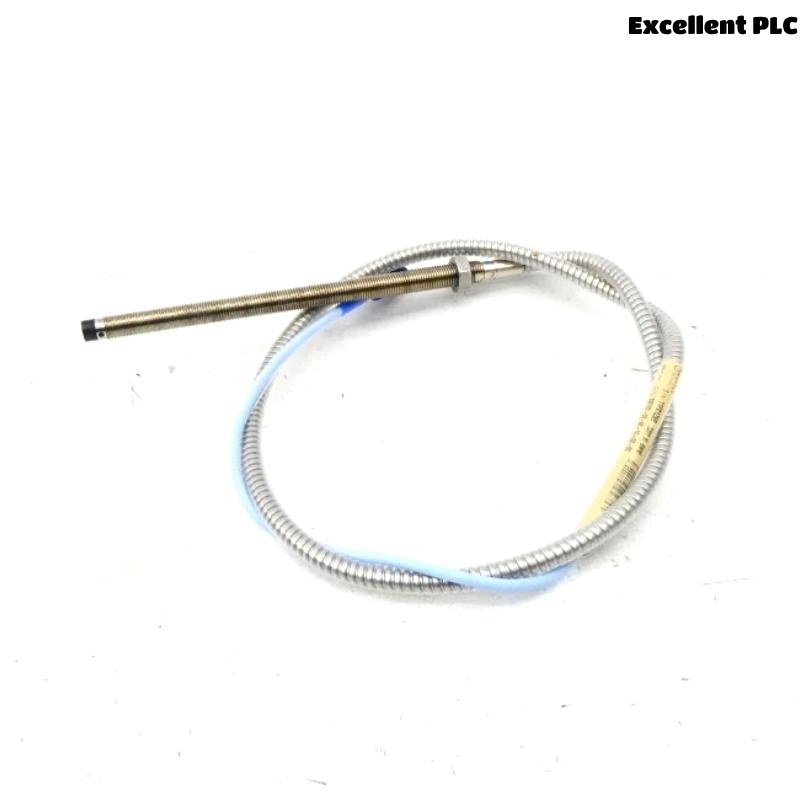

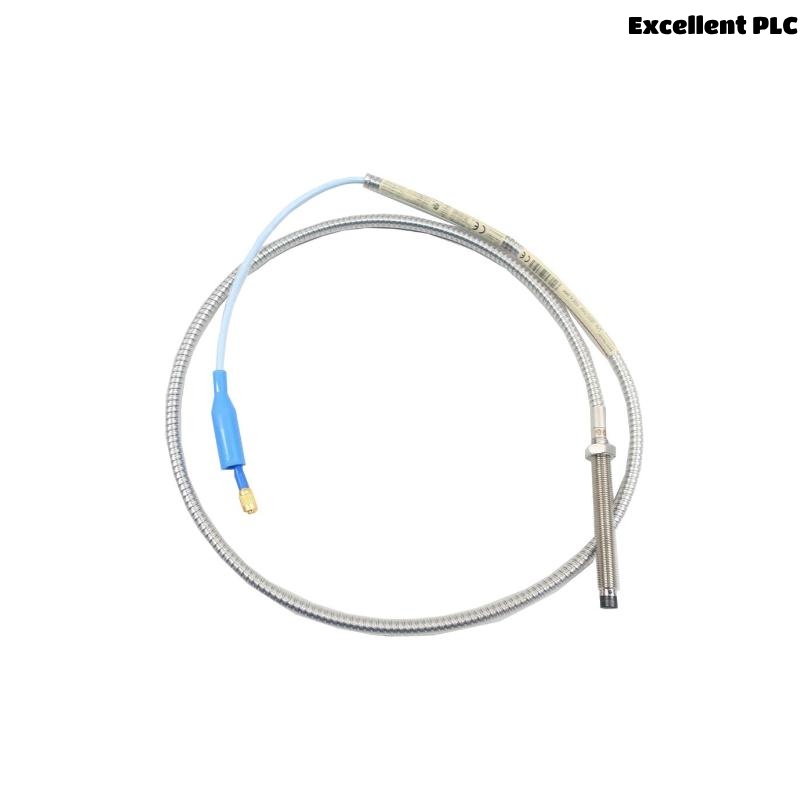

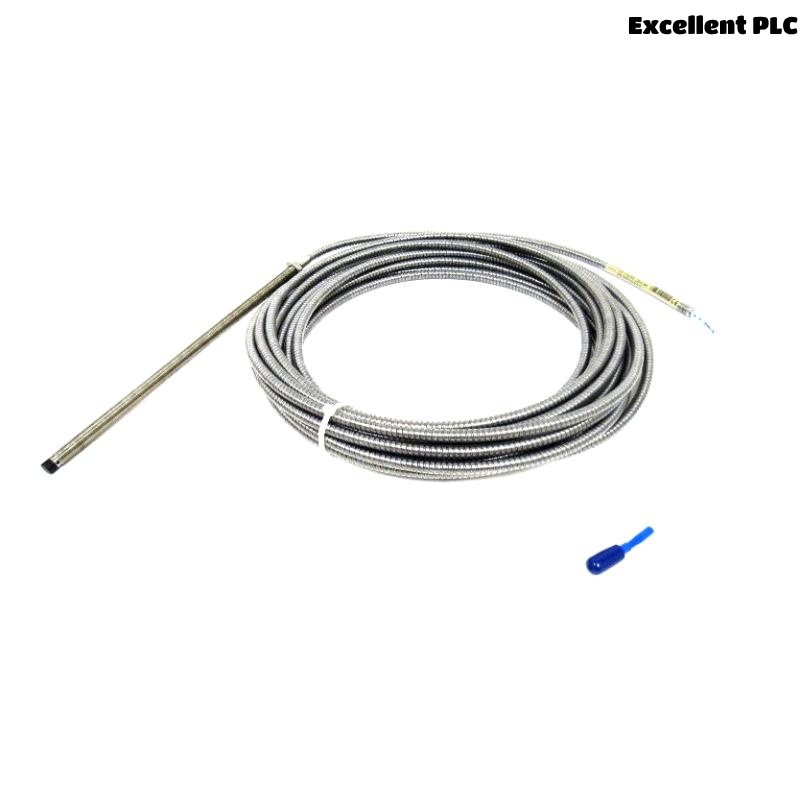

The Bently Nevada 330102-00-18-90-02-00 is a robust 3300 XL 8 mm proximity probe with armored cable. It measures static and dynamic displacement of rotating machinery, providing accurate vibration, position, Keyphasor, and speed measurements. The probe’s armored construction enhances durability in harsh environments. Fully compliant with API 670, it ensures excellent linearity, accuracy, and temperature stability without the need for component matching or calibration.
Applications
-
Fluid-film bearing machine vibration and position monitoring
-
Keyphasor phase and speed detection
-
Use in turbines, compressors, pumps, motors, and generators
-
High-density DIN-rail or panel-mount installations
Advantages
-
Meets API 670 standards
-
Fully interchangeable components
-
High immunity to RFI/EMI
-
Rugged armored design for demanding conditions
-
Extended temperature range options
-
Easy installation with ClickLoc connectors and SpringLoc terminals
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 9.0 meters |
| Weight | 2.907 kg |
| Probe Tip Diameter | 8 mm |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Operating Temperature | -52°C to +177°C (standard), up to +218°C (ETR) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Minimum Target Size | 15.2 mm (0.6 in) flat |
| Shaft Diameter (min.) | 50.8 mm (recommended ≥76.2 mm) |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) |
| Compliance | CE, RoHS, SIL 2/3, FCC Part 15 |
FAQ
Q1: What is the typical application of this probe?
A1: Monitoring vibration, shaft position, and speed in fluid-film bearing machines.
Q2: Does it meet API 670 standards?
A2: Yes, it fully complies with API 670 mechanical, linearity, and temperature stability requirements.
Q3: Is calibration needed for components?
A3: No, components are fully interchangeable without calibration.
Q4: Can it operate in high-temperature environments?
A4: Yes, up to +218°C (probe tip) with ETR versions.
Q5: Is it suitable for high-RFI environments?
A5: Yes, it has excellent RFI/EMI immunity.
Q6: Are connector protectors included?
A6: They are optional but recommended for environmental protection.
Q7: What is the minimum shaft diameter for accurate readings?
A7: Minimum is 50.8 mm, recommended ≥76.2 mm.
Q8: How is the probe mounted?
A8: With 3/8-24 UNF threads and optional mounting brackets.
Q9: Does it require special tools to install connectors?
A9: No, ClickLoc connectors are finger-tightened.
Q10: Is it backward compatible with non-XL systems?
A10: Yes, fully backward compatible with 3300 series 8 mm systems.
Recommended Related Models
| Model Number | Description | Length | Weight |
|---|---|---|---|
| 330101-00-08-50-02-00 | 3300 XL 8 mm Probe, non-armored | 5.0 m | 1.65 kg |
| 330103-00-08-50-02-00 | 3300 XL 8 mm Metric Thread, non-armored | 5.0 m | 1.65 kg |
| 330104-00-08-50-02-00 | 3300 XL 8 mm Metric Thread, armored | 5.0 m | 2.0 kg |
| 330105-02-12-90-02-00 | 3300 XL 8 mm Reverse Mount, armored | 9.0 m | 2.9 kg |
| 330140-00-08-50-02-00 | 3300 XL 8 mm Smooth Case, non-armored | 5.0 m | 1.6 kg |
| 330192-00-18-90-02-00 | 3300 XL 8 mm ETR Probe, armored | 9.0 m | 2.9 kg |
Popular Bently Nevada Models
| Model Number | Description | Length | Weight |
|---|---|---|---|
| 3300/20 | Dual Vibration Monitor | – | 2.5 kg |
| 330104-00-06-10-02-00 | 3300 XL 8 mm Metric Probe, armored | 6.0 m | 2.1 kg |
| 330130-080-00-00 | 3300 XL Extension Cable | 8.0 m | 1.2 kg |
| 3500/42M | Proximitor Seismic Monitor | – | 2.8 kg |
| 3500/22M | Transient Data Interface | – | 3.0 kg |
| 3500/25 | Keyphasor Module | – | 1.9 kg |
