Bently Nevada 330102-00-50-10-01-05 3300 XL 8 mm Proximity Probe
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Description

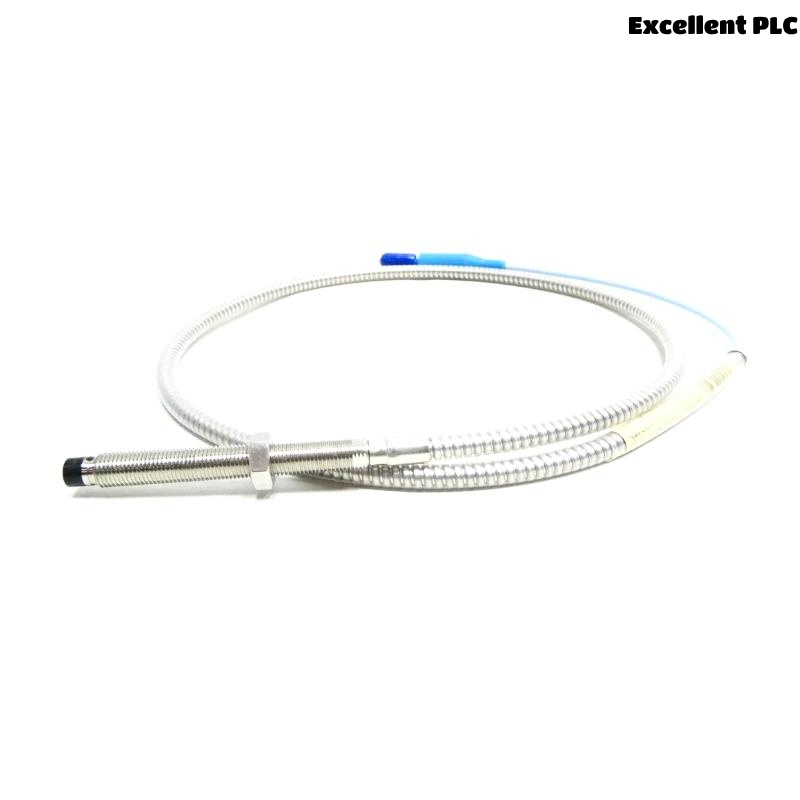

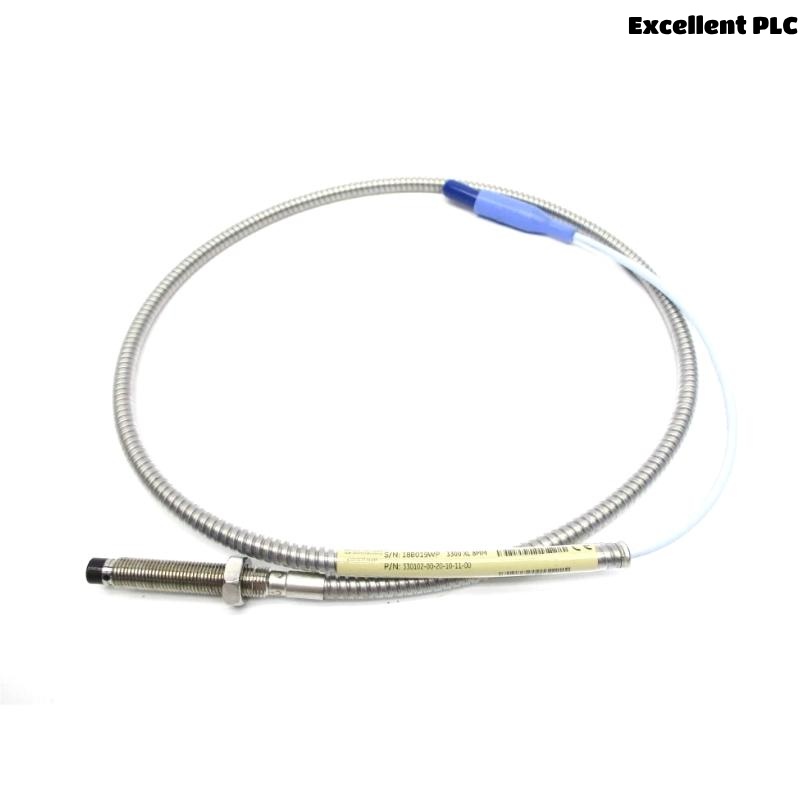

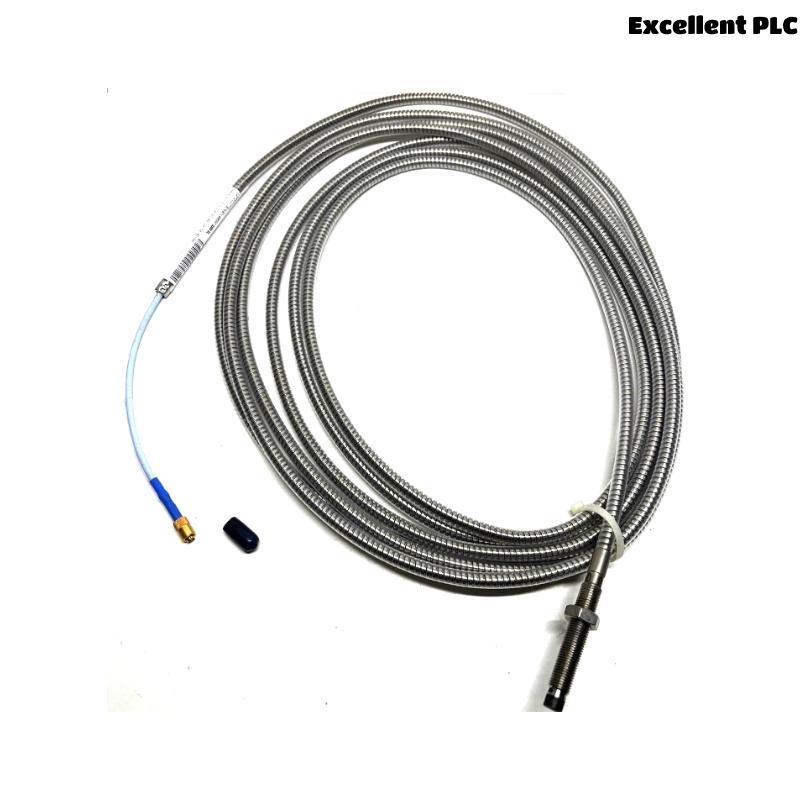

The Bently Nevada 330102-00-50-10-01-05 is a robust, armored 8 mm proximity probe from the 3300 XL series. It measures static and dynamic distances between the probe tip and a conductive surface, ideal for monitoring vibration, position, and speed in fluid-film bearing machinery. Fully API 670 compliant, it offers excellent linearity, temperature stability, and backward compatibility with 3300-series components.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330102-00-50-10-01-05 |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz |
| Operating Temperature | -52°C to +177°C |
| Cable Type | Armored with ClickLoc connectors |
| Mounting Torque (Recommended) | 7.5 N•m |
| Minimum Shaft Diameter | 50.8 mm |
| Minimum Target Size | 15.2 mm diameter |
Applications
-
Vibration monitoring on turbines, compressors, and pumps
-
Shaft position and displacement measurements
-
Keyphasor reference signal generation
-
Overspeed protection systems
-
Suitable for use in hazardous environments
Advantages
-
Fully compliant with API 670 for critical machinery monitoring
-
Backward and cross-series compatibility with 3300 components
-

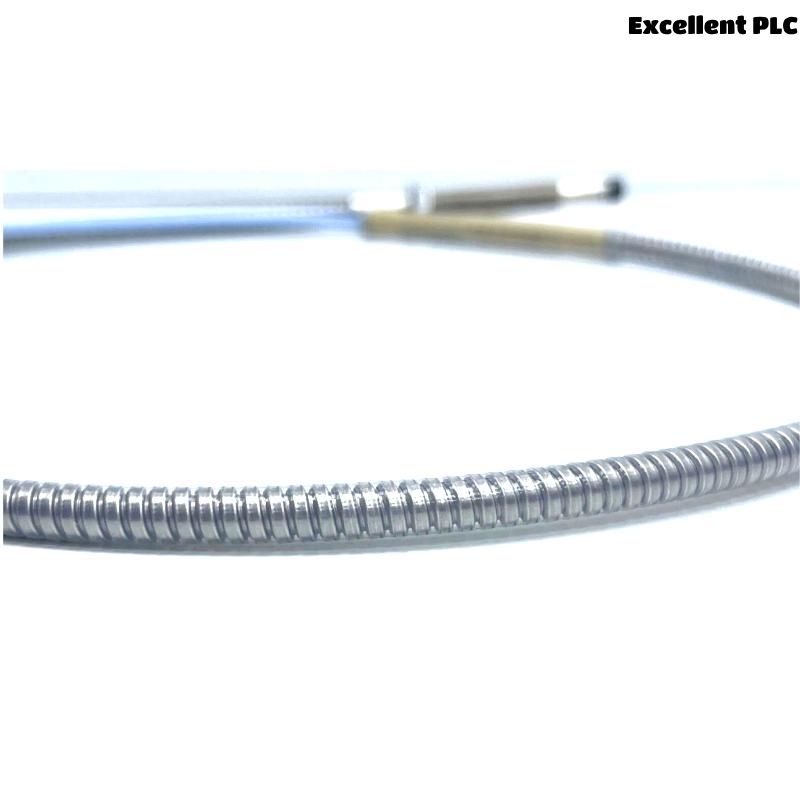

Armored cable for enhanced durability and oil ingress prevention
-
High immunity to EMI/RFI for reliable operation in industrial environments
-
ClickLoc connectors for secure and tool-free connections
FAQs
Q1: What is the primary use of this probe?
A1: It’s used for measuring vibration, position, and speed on rotating machinery.
Q2: Is the probe compatible with older 3300-series systems?
A2: Yes, it’s fully backward and cross-series compatible.
Q3: Does it meet API 670 standards?
A3: Yes, it complies with API 670 in mechanical configuration and performance.
Q4: Can it be used in high-temperature applications?
A4: Yes, it operates up to +177°C; extended temperature versions are also available.
Q5: Is the cable armored?
A5: Yes, this version comes with an armored cable for added protection.
Q6: What type of connector does it use?
A6: It uses ClickLoc miniature coaxial connectors with protectors.
Q7: What is the minimum recommended shaft diameter?
A7: The shaft should be at least 50.8 mm in diameter.
Q8: How is it mounted?
A8: It mounts into threaded holes with recommended torque of 7.5 N•m.
Q9: What’s the linear measurement range?
A9: 2 mm (80 mils) linear range.
Q10: Is it suitable for hazardous environments?
A10: Yes, it has approvals for hazardous area installations.
Recommended Related Models
| Model | Description | Length | Weight |
|---|---|---|---|
| 330101-00-10-10-01-05 | 3300 XL 8 mm Probe, unarmored | 1.0 m | 0.210 kg |
| 330103-00-10-10-01-05 | 3300 XL 8 mm Probe, metric thread, unarmored | 1.0 m | 0.210 kg |
| 330104-00-10-10-01-05 | 3300 XL 8 mm Probe, metric thread, armored | 1.0 m | 0.323 kg |
| 330105-02-10-10-01-05 | 3300 XL 8 mm Reverse Mount, unarmored | 1.0 m | 0.210 kg |
| 330106-05-10-10-01-05 | 3300 XL 8 mm Reverse Mount, metric thread, unarmored | 1.0 m | 0.210 kg |
| 330192-00-10-10-01-05 | 3300 XL 8 mm ETR Probe, armored | 1.0 m | 0.323 kg |
Popular Bently Nevada Models
| Model | Description | Length | Weight |
|---|---|---|---|
| 330180-50-00 | 3300 XL Proximitor Sensor, 5 m system | 5.0 m | 0.7 kg |
| 330130-030-00 | 3300 XL Extension Cable, standard | 3.0 m | 0.1 kg |
| 3500/42M-01-00 | 3500/42M Proximitor Seismic Monitor | – | 1.1 kg |
| 3500/22M-01-01 | 3500/22M Transient Data Interface | – | 0.8 kg |
| 3500/25-01-01 | 3500/25 Keyphasor Module | – | 0.9 kg |
| 3500/40M-01-00 | 3500/40M Proximitor Monitor | – | 1.0 kg |
