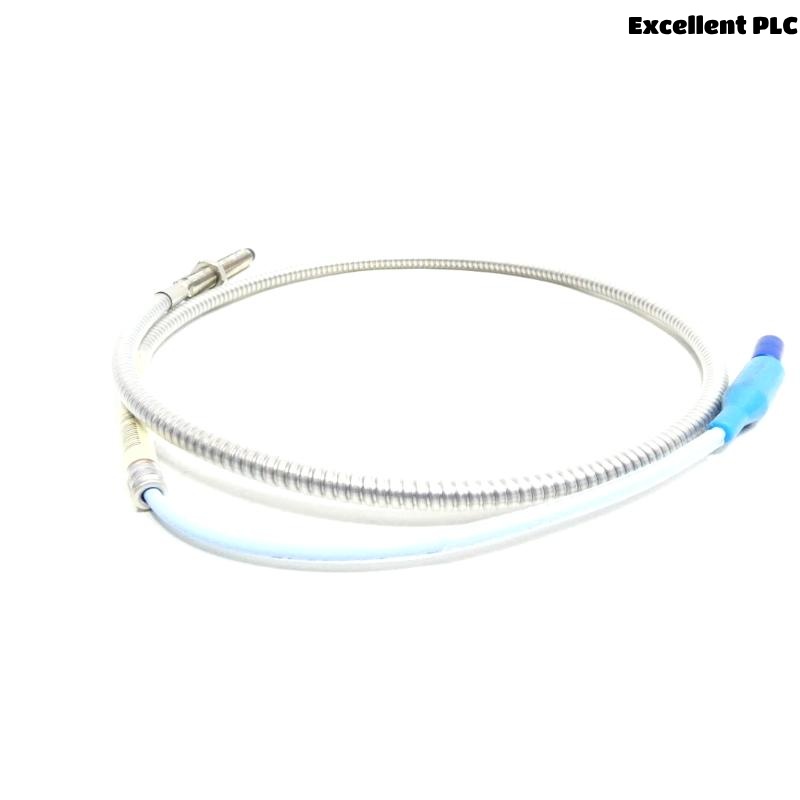

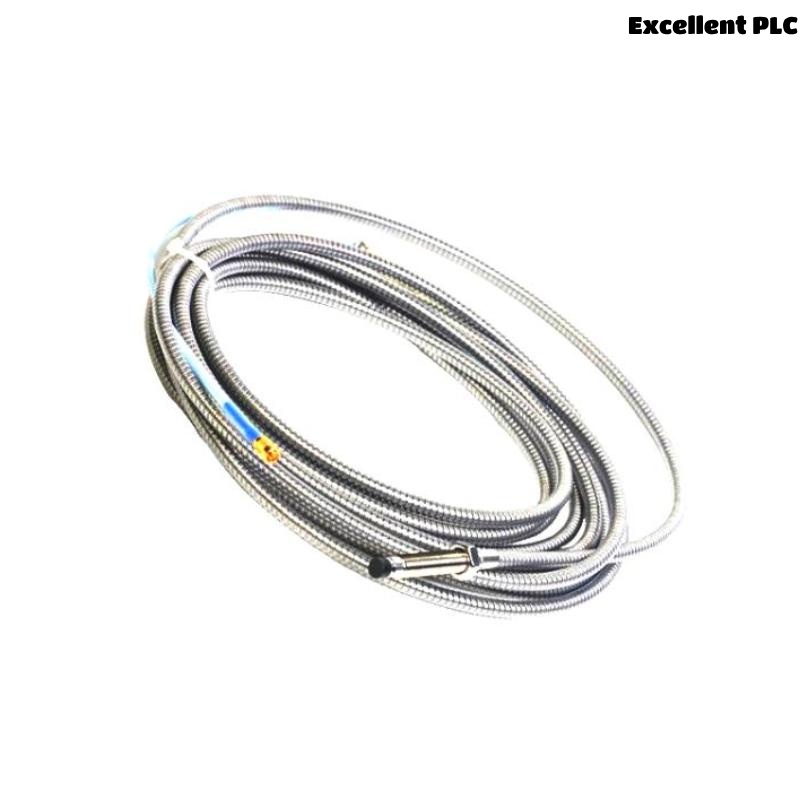

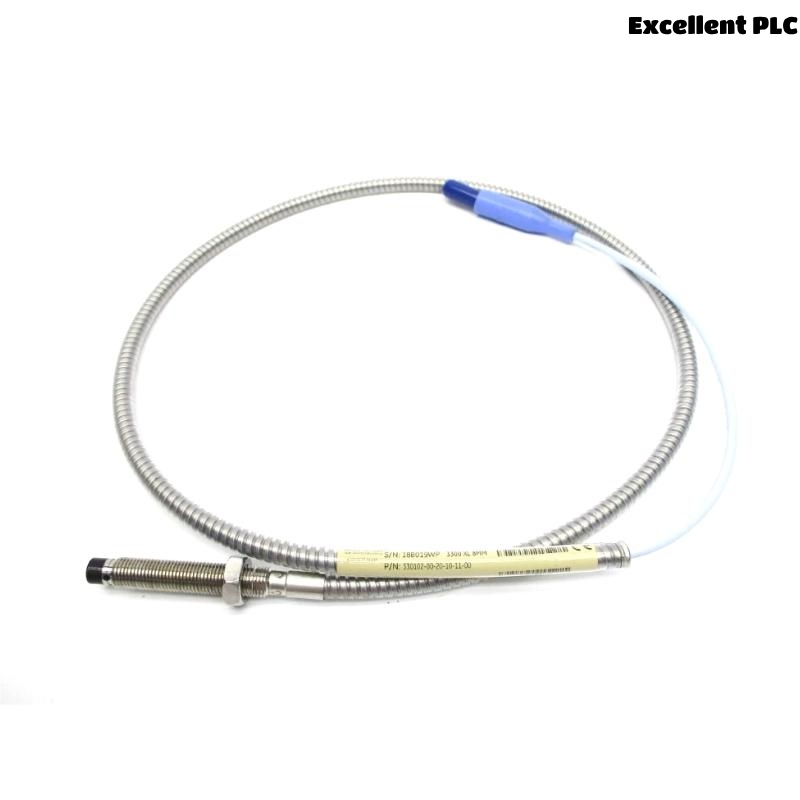

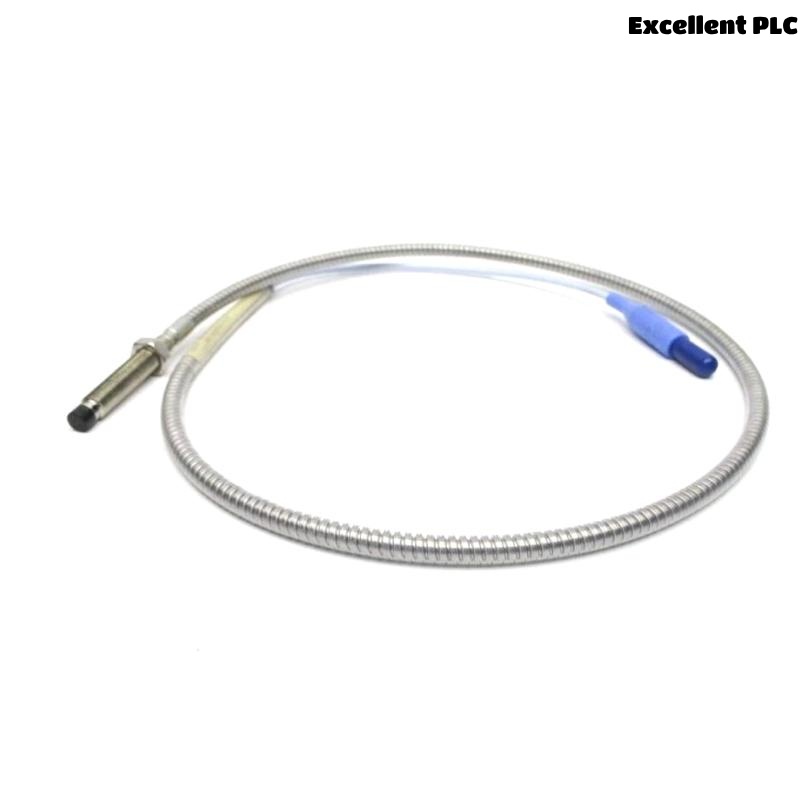

Bently Nevada 330102-00-70-10-02-05 3300 XL 8 mm Proximity Probe
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description
The Bently Nevada 330102-00-70-10-02-05 is an 8 mm proximity probe from the 3300 XL series, equipped with armored cable and ClickLoc connectors. It measures the distance between the probe tip and a conductive surface, providing precise static (position) and dynamic (vibration) measurements. Widely used in monitoring fluid-film bearing machines, it complies with API 670 standards and ensures interchangeability, robustness, and resistance to harsh industrial conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Probe Cable | Armored, 75Ω triaxial, FEP insulated |
| Operating Temperature | -52°C to +177°C (-62°F to +350°F) |
| Storage Temperature | Same as operating |
| Recommended Gap Setting | ~1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz, +0/-3 dB |
| Linear Range | 2 mm (80 mils) |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Compliance | SIL 2/3, CE, RoHS, ATEX, IECEx, FCC |
Applications
-
Vibration and position monitoring on fluid-film bearing machinery
-
Keyphasor reference and speed measurement
-
Suitable for high-density DIN-rail or panel mounting
-
Environments with high EMI/RFI, thanks to superior immunity
-
Extended temperature applications in turbines and compressors
Advantages
-
Fully compliant with API 670
-
Interchangeable components reduce maintenance and spare parts
-
Robust armored cable and rugged probe tip for harsh conditions
-
No special installation tools required
-
Lower installation cost with reduced shielding needs
-
Extended temperature range versions available
FAQ
Q1: What is the primary function of the 330102-00-70-10-02-05?
A1: It measures the distance between the probe tip and a conductive target to monitor machine vibration and position.
Q2: Does it comply with industry standards?
A2: Yes, it fully complies with API 670 for mechanical configuration and performance.
Q3: Can I use it in high-temperature environments?
A3: Yes, it supports operation up to +177°C standard, with extended temperature versions available.
Q4: Is it interchangeable with older 3300 series components?
A4: Yes, it is backward compatible and interchangeable with 3300 5 mm and 8 mm systems.
Q5: How is the cable protected?
A5: The probe features an armored, FEP-insulated cable for added durability.
Q6: What are the installation requirements?
A6: It requires no special tools, and connectors are designed for finger-tight installation.
Q7: What is the recommended shaft diameter for measurement?
A7: Recommended minimum shaft diameter is 76.2 mm (3 in) for optimal accuracy.
Q8: How resistant is it to electromagnetic interference?
A8: It has high RFI/EMI immunity, meeting CE mark requirements without special shielding.
Q9: Is the probe pressure-tested?
A9: No, pressure sealing is ensured by a Viton O-ring, but specific pressure tests must be requested if needed.
Q10: What is the weight of this probe?
A10: The total weight for a 1-meter probe is approximately 0.323 kg.
Recommended Related Models
| Model | Description | Length | Weight |
|---|---|---|---|
| 330101-00-08-10-02-00 | Standard 8mm probe, unarmored | 1.0 m | 0.270 kg |
| 330103-00-04-10-02-00 | Metric thread 8mm probe, unarmored | 1.0 m | 0.270 kg |
| 330104-00-06-10-02-00 | Metric thread 8mm probe, armored | 1.0 m | 0.323 kg |
| 330105-02-12-10-02-00 | Reverse mount, 8mm probe, unarmored | 1.0 m | 0.270 kg |
| 330191-00-08-10-02-00 | Extended temperature, unarmored | 1.0 m | 0.270 kg |
| 330192-00-08-10-02-00 | Extended temperature, armored | 1.0 m | 0.323 kg |
Popular Bently Nevada Models
| Model | Description | Length | Weight |
|---|---|---|---|
| 330180-50-00 | Proximitor Sensor, 5m system | N/A | 0.246 kg |
| 330130-030-00 | Standard Extension Cable, 3m | 3.0 m | 0.102 kg |
| 3500/42M-01-00 | Proximitor/Seismic Monitor Module | N/A | 0.450 kg |
| 3500/44M-02-00 | Aeroderivative Monitor | N/A | 0.450 kg |
| 3500/22M-01-00 | Transient Data Interface | N/A | 0.420 kg |
| 330400 | Velocity Sensor | N/A | 0.150 kg |
