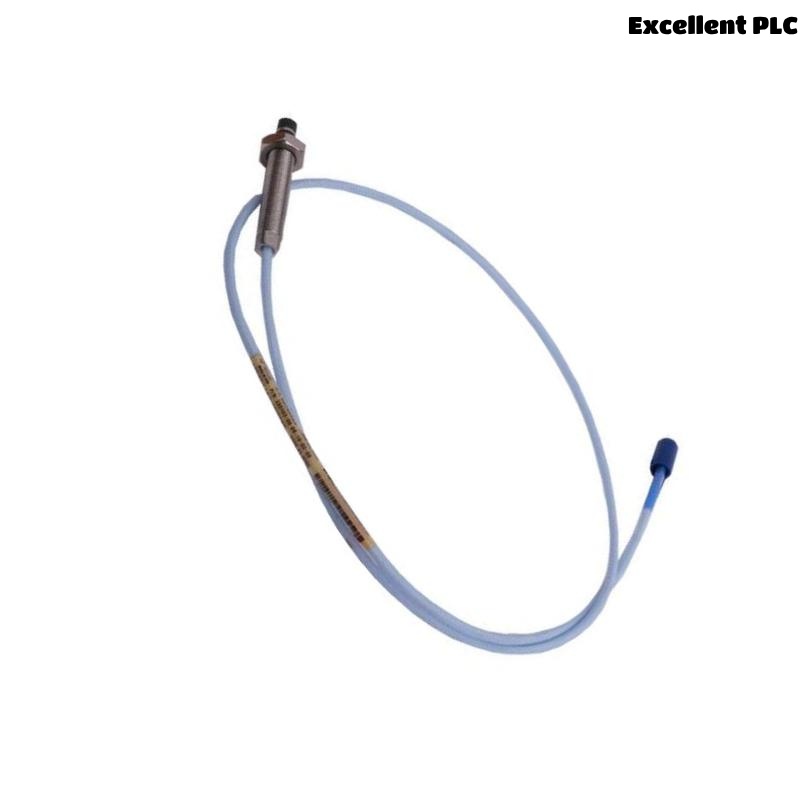

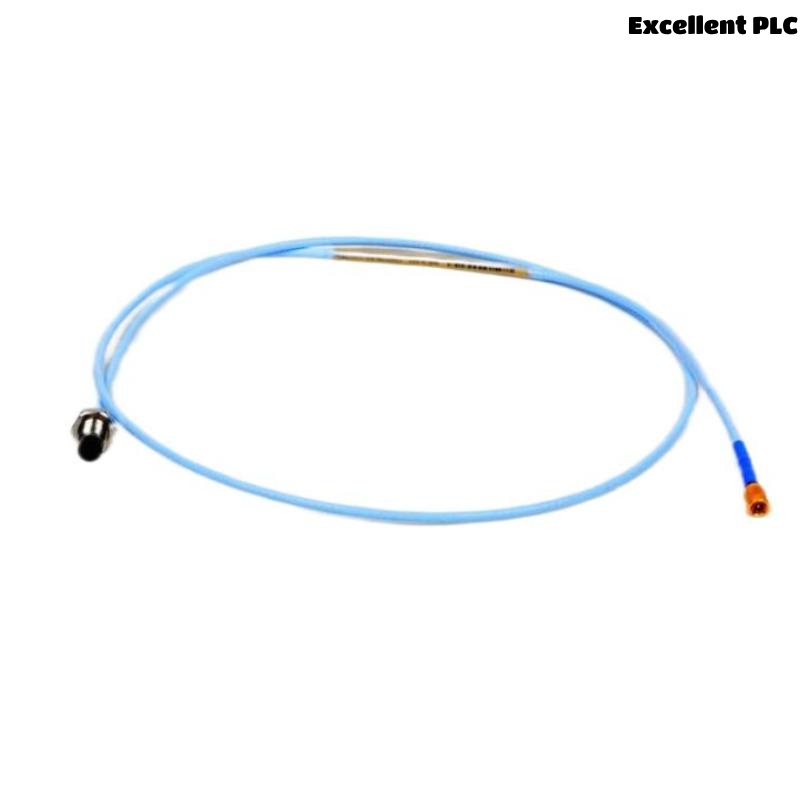

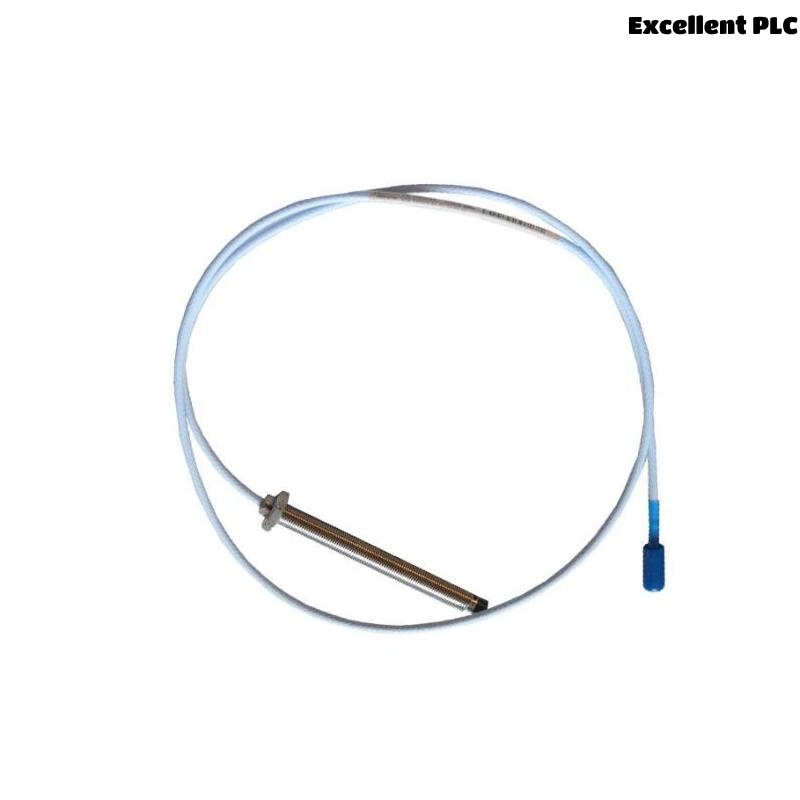

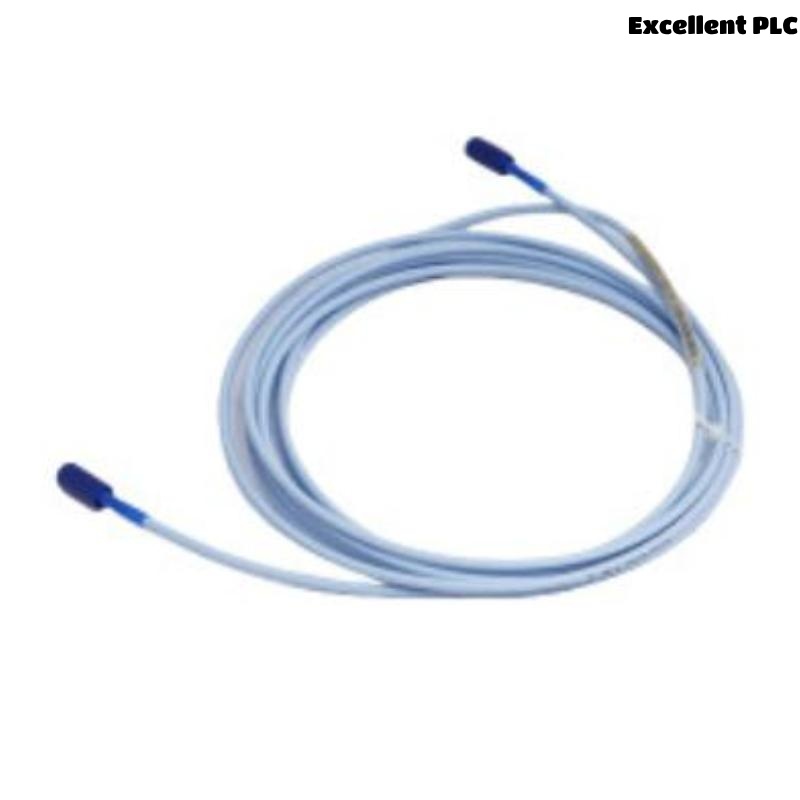

Bently Nevada 330103-00-06-05-02-02 3300 XL 8 mm Proximity Probe

Product Overview

The Bently Nevada 330103-00-06-05-02-02 is a high-performance, non-contact eddy current proximity probe, part of the trusted 3300 XL 8 mm series. Designed for accurate shaft displacement and vibration measurement in critical rotating equipment, it is widely used in industries such as oil & gas, petrochemicals, power generation, and heavy manufacturing.

This specific configuration comes with a 6-meter probe, paired with a 5-meter extension cable, and a rugged 10-pin connector. It provides a linear measurement range of 2.0 mm (±1.0 mm) and delivers reliable output even in demanding operational environments, supporting real-time condition monitoring and machinery protection.

Key Features

• 8 mm probe tip ideal for standard industrial clearance measurements

• 6 m probe and 5 m extension cable combination for long-distance installations

• Precision gap measurement using eddy current technology

• Fully compatible with 3300 XL Proximitor sensors and monitoring systems

• EMI/RFI shielded for reliable signal transmission

• Threaded stainless steel body (M10 × 1) for secure installation

• Excellent shock and vibration resistance

• Designed for high-reliability, long-term industrial use

Technical Specifications

Typical Applications

• Shaft vibration and position monitoring in turbines and compressors

• Thrust position and axial displacement detection

• Bearing condition monitoring for critical rotating assets

• Integration into Bently Nevada 3300 XL and 3500 machinery protection systems

• Predictive maintenance programs in oil & gas, refining, chemical plants

• Large-scale industrial fan, blower, and motor vibration diagnostics

• Machinery protection in power generation turbines (gas/steam)

• Preventive diagnostics in rotating processing equipment

Advantages

• Extended Reach: 6 m probe with 5 m extension cable accommodates remote mounting setups

• High Accuracy: Linear, stable output ensures consistent displacement measurement

• Long-Term Durability: Designed to withstand high shock, vibration, and harsh environments

• Interoperability: Seamless integration with Bently Nevada 3300 XL and 3500 monitoring systems

• Non-Contact Sensing: Prevents sensor wear and allows continuous measurement

• Electromagnetic Immunity: Optimized for high-noise environments with robust EMI/RFI shielding

• Modular Configuration: Easily replaceable probe and extension cable components

• Trusted Brand: Backed by Bently Nevada’s decades of machinery monitoring expertise

Frequently Asked Questions (FAQ)

1. What does the “-06-05” in the model number mean?
   It refers to a 6-meter probe and a 5-meter extension cable combination.

2. What is the total system length?
   The combined length of probe and extension cable is 11 meters.

3. What’s the difference between this and a 330103-00-05-10 model?
   That model typically includes a 5-meter probe and 10-meter extension cable; this one has reversed lengths.

4. Can the cable be replaced separately?
   Yes, the extension cable and probe are modular and field-replaceable.

5. Is this probe compatible with the 3300 Proximitor Sensor?
   Yes, it is specifically designed for use with the 3300 XL Proximitor Sensor.

6. What is the measurement range of the probe?
   The linear range is ±1.0 mm (±0.040 in) from the calibrated midpoint.

7. What are the operating temperature limits?
   It operates reliably between -40 °C and +120 °C.

8. What kind of connector does it use?
   It features a 10-pin male circular (Bendix-style) connector.

9. Is it suitable for hazardous areas?
   The probe is rugged and sealed, but use in hazardous areas depends on full system certifications.

10. How is the probe mounted?
    Via M10 × 1 threaded body, allowing fine adjustment and secure installation.
