Bently Nevada 330130-040-03-05 3300 XL Standard Extension Cable
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description

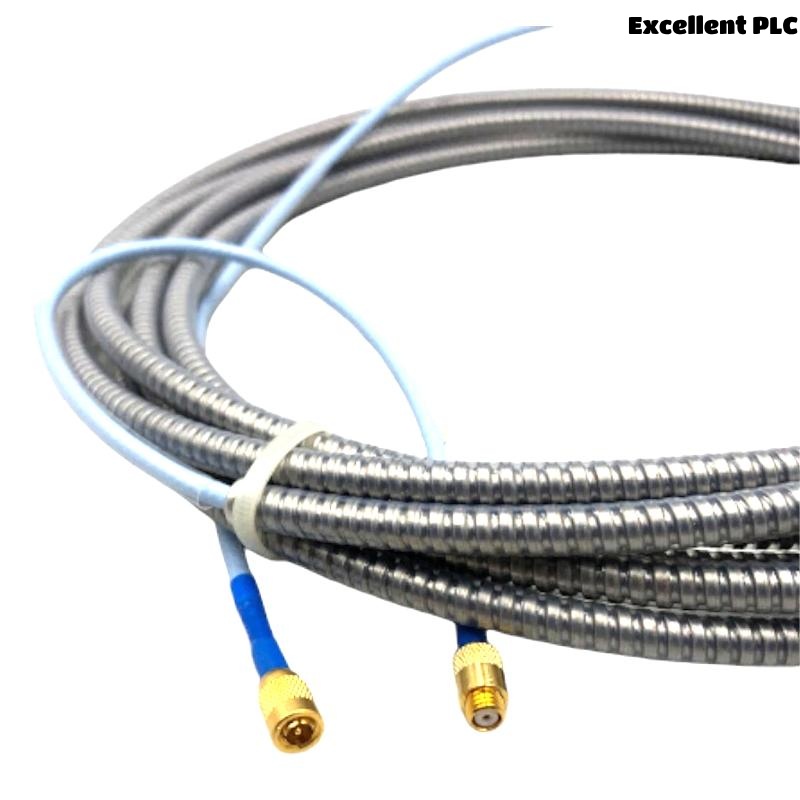

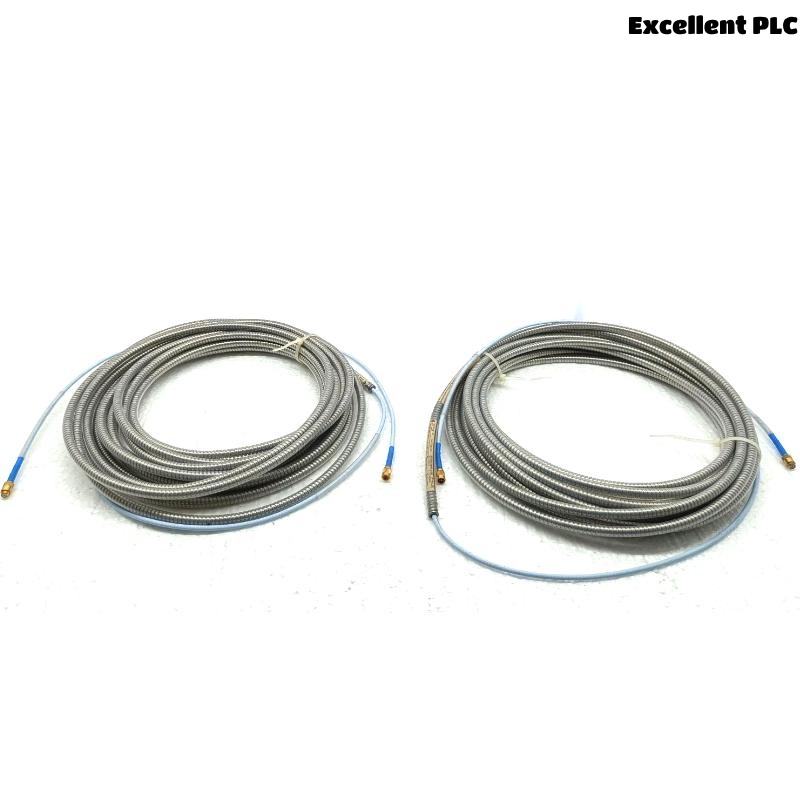

The Bently Nevada 330130-040-03-05 is a 4.0-meter 3300 XL Standard Extension Cable designed to connect 3300 XL proximity probes to Proximitor® Sensors. This extension cable is a critical component in the 3300 XL 8 mm Proximity Transducer System, used for accurate measurement of shaft position and vibration in fluid-film bearing machines.
Product Features and Benefits
-

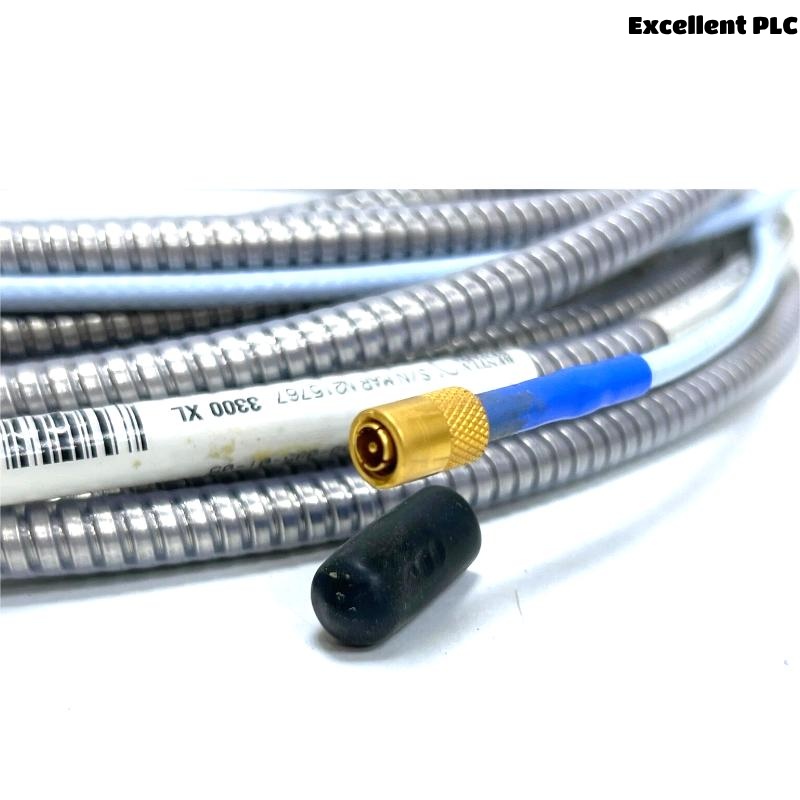

ClickLoc Connectors: Gold-plated, corrosion-resistant connectors with positive lock “click” feedback, ensuring secure and tool-free installation.
-
CableLoc Design: Provides high tensile strength (up to 330 N) to resist pullout.
-
Flexible Construction: Available with optional armor and connector protector for harsh industrial environments.
-
Interchangeability: Fully compatible with both XL and non-XL 3300 series systems, maintaining system performance.
-
FluidLoc Option: Prevents oil migration through the cable in demanding turbine applications.
Applications
-
Vibration Monitoring: For large rotating equipment in power plants and refineries.
-
Position Measurement: Accurate shaft position detection in turbines, compressors, and motors.
-
Keyphasor® Signals: Transmission of timing signals for rotational analysis.
-
Speed and Overspeed Detection: Suitable for integration with Bently Nevada monitoring systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330130-040-03-05 |
| Cable Type | Standard XL Extension Cable |
| Cable Length | 4.0 meters |
| DC Resistance (Core) | 0.88 ± 0.13 Ω |
| DC Resistance (Jacket) | 0.26 ± 0.05 Ω |
| Capacitance | 69.9 pF/m typical |
| Connector Type | ClickLoc, gold-plated |
| Temperature Range (Standard) | -52°C to +177°C |
| Cable Material | FEP insulated, triaxial |
| Minimum Bend Radius | 25.4 mm |
| Weight | 0.412 kg |
| Compliance | CSA, ATEX, IECEx, RoHS, FCC |
Product Advantages
-
High Signal Integrity: Maintains accuracy over long cable runs with minimal signal loss.
-
Mechanical Durability: Withstands tough industrial conditions with optional armored variants.
-
Certified for Safety: Approved for use in hazardous environments (Zone 0/Zone 2).
-
Modular and Easy Installation: Reduces downtime and simplifies maintenance with interchangeable parts.
-
Extended Temperature Options Available: Compatible with ETR probes and cables for high-temperature applications.
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330130-040-03-05 extension cable?
A1: It extends the signal from a proximity probe to the Proximitor Sensor in vibration and position monitoring systems.
Q2: Is the cable compatible with ETR probes?
A2: Yes, it can be used with extended temperature range (ETR) probes, though accuracy is limited to ETR system specifications.
Q3: What is the significance of the ClickLoc connector?
A3: ClickLoc connectors ensure a secure, tool-free connection with a tactile “click” for confirmation.
Q4: What environments is this cable rated for?
A4: It is certified for hazardous areas including Zone 0 and Zone 2, and can operate in temperatures from -52°C to +177°C.
Q5: Can this cable be used in applications with high vibration?
A5: Yes, especially when ordered with armor and connector protectors for enhanced mechanical protection.
Q6: What material is used for insulation?
A6: The standard version uses FEP insulation, while the ETR version uses PFA insulation for higher temperature resistance.
Q7: Is calibration required for this cable?
A7: No individual calibration is necessary; it is fully interchangeable with other 3300 XL components.
Q8: What is the typical weight of the 4.0-meter cable?
A8: Approximately 0.412 kg.
Q9: Can the cable be installed in restricted conduits?
A9: Yes, connector protectors or silicone tape options support such installations.
Q10: What is the bend radius requirement?
A10: Minimum cable bend radius is 25.4 mm (1 inch).
Related Models from the Same Series
| Model Number | Description | Cable Length | Weight |
|---|---|---|---|
| 330130-030-00-00 | Standard Extension Cable | 3.0 m | 0.309 kg |
| 330130-035-00-00 | Standard Extension Cable | 3.5 m | 0.360 kg |
| 330130-045-00-00 | Standard Extension Cable | 4.5 m | 0.464 kg |
| 330130-060-00-00 | Standard Extension Cable | 6.0 m | 0.618 kg |
| 330190-040-00-00 | ETR Extension Cable | 4.0 m | 0.412 kg |
| 330130-040-02-00 | Standard Cable with Connector Protector | 4.0 m | 0.412 kg |
Popular Bently Nevada Models
| Model Number | Description | Function Type | Weight |
|---|---|---|---|
| 330104-00-05-10-02-00 | 3300 XL 8 mm Probe | Proximity Probe | 0.38 kg |
| 330180-50-05 | 3300 XL Proximitor Sensor | Sensor | 0.25 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Monitor Module | 0.45 kg |
| 3500/22M-01-01-00 | Transient Data Interface Module | Communication Module | 0.40 kg |
| 3500/15-05-01-00 | Power Supply Module | Power Module | 0.48 kg |
| 3500/05-01-01-00-00 | System Rack | Housing | 5.50 kg |
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330130-040-03-05 extension cable?
A1: It extends the signal from a proximity probe to the Proximitor Sensor in vibration and position monitoring systems.
Q2: Is the cable compatible with ETR probes?
A2: Yes, it can be used with extended temperature range (ETR) probes, though accuracy is limited to ETR system specifications.
Q3: What is the significance of the ClickLoc connector?
A3: ClickLoc connectors ensure a secure, tool-free connection with a tactile “click” for confirmation.
Q4: What environments is this cable rated for?
A4: It is certified for hazardous areas including Zone 0 and Zone 2, and can operate in temperatures from -52°C to +177°C.
Q5: Can this cable be used in applications with high vibration?
A5: Yes, especially when ordered with armor and connector protectors for enhanced mechanical protection.
Q6: What material is used for insulation?
A6: The standard version uses FEP insulation, while the ETR version uses PFA insulation for higher temperature resistance.
Q7: Is calibration required for this cable?
A7: No individual calibration is necessary; it is fully interchangeable with other 3300 XL components.
Q8: What is the typical weight of the 4.0-meter cable?
A8: Approximately 0.412 kg.
Q9: Can the cable be installed in restricted conduits?
A9: Yes, connector protectors or silicone tape options support such installations.
Q10: What is the bend radius requirement?
A10: Minimum cable bend radius is 25.4 mm (1 inch).
Related Models from the Same Series
| Model Number | Description | Cable Length | Weight |
|---|---|---|---|
| 330130-030-00-00 | Standard Extension Cable | 3.0 m | 0.309 kg |
| 330130-035-00-00 | Standard Extension Cable | 3.5 m | 0.360 kg |
| 330130-045-00-00 | Standard Extension Cable | 4.5 m | 0.464 kg |
| 330130-060-00-00 | Standard Extension Cable | 6.0 m | 0.618 kg |
| 330190-040-00-00 | ETR Extension Cable | 4.0 m | 0.412 kg |
| 330130-040-02-00 | Standard Cable with Connector Protector | 4.0 m | 0.412 kg |
Popular Bently Nevada Models
| Model Number | Description | Function Type | Weight |
|---|---|---|---|
| 330104-00-05-10-02-00 | 3300 XL 8 mm Probe | Proximity Probe | 0.38 kg |
| 330180-50-05 | 3300 XL Proximitor Sensor | Sensor | 0.25 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Monitor Module | 0.45 kg |
| 3500/22M-01-01-00 | Transient Data Interface Module | Communication Module | 0.40 kg |
| 3500/15-05-01-00 | Power Supply Module | Power Module | 0.48 kg |
| 3500/05-01-01-00-00 | System Rack | Housing | 5.50 kg |
